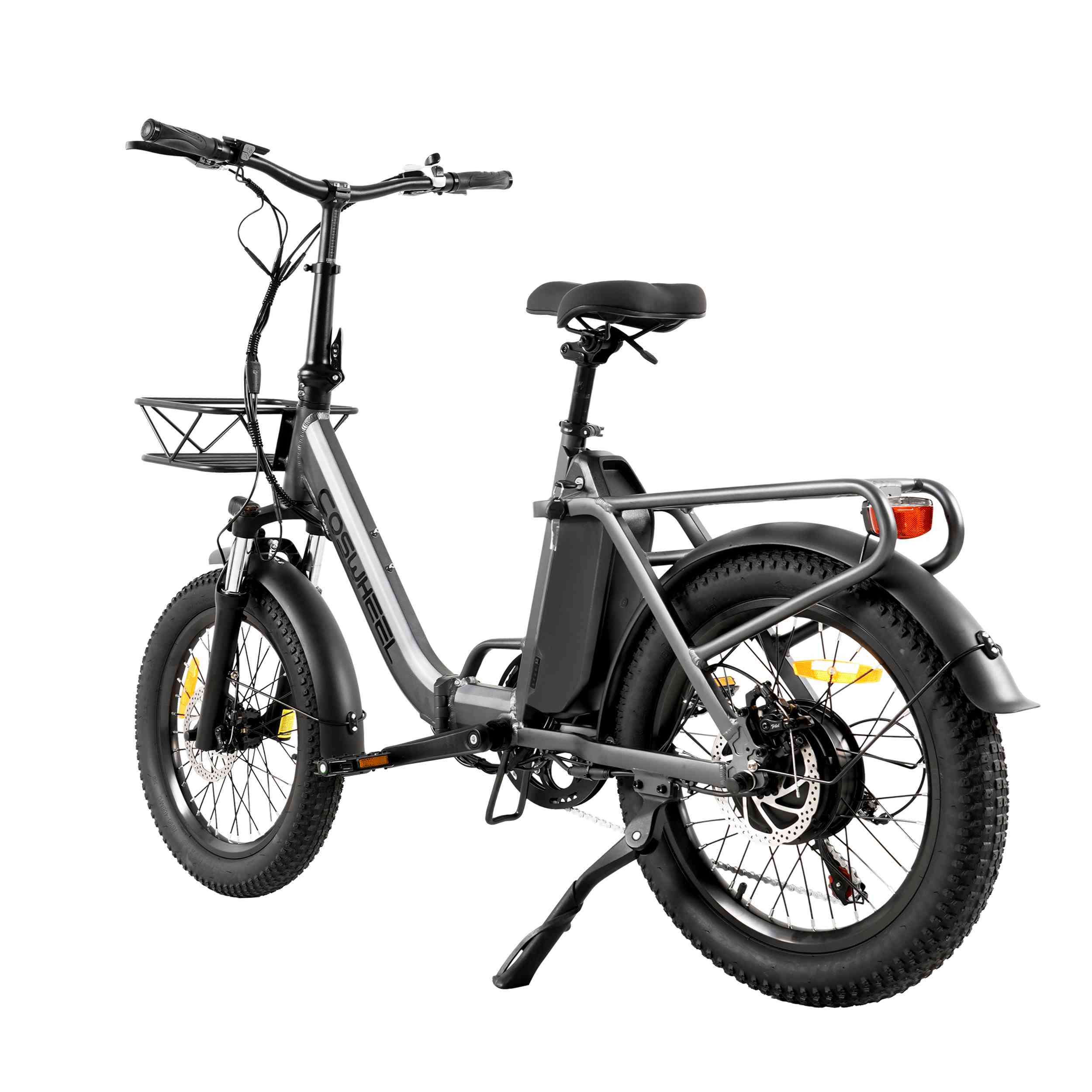

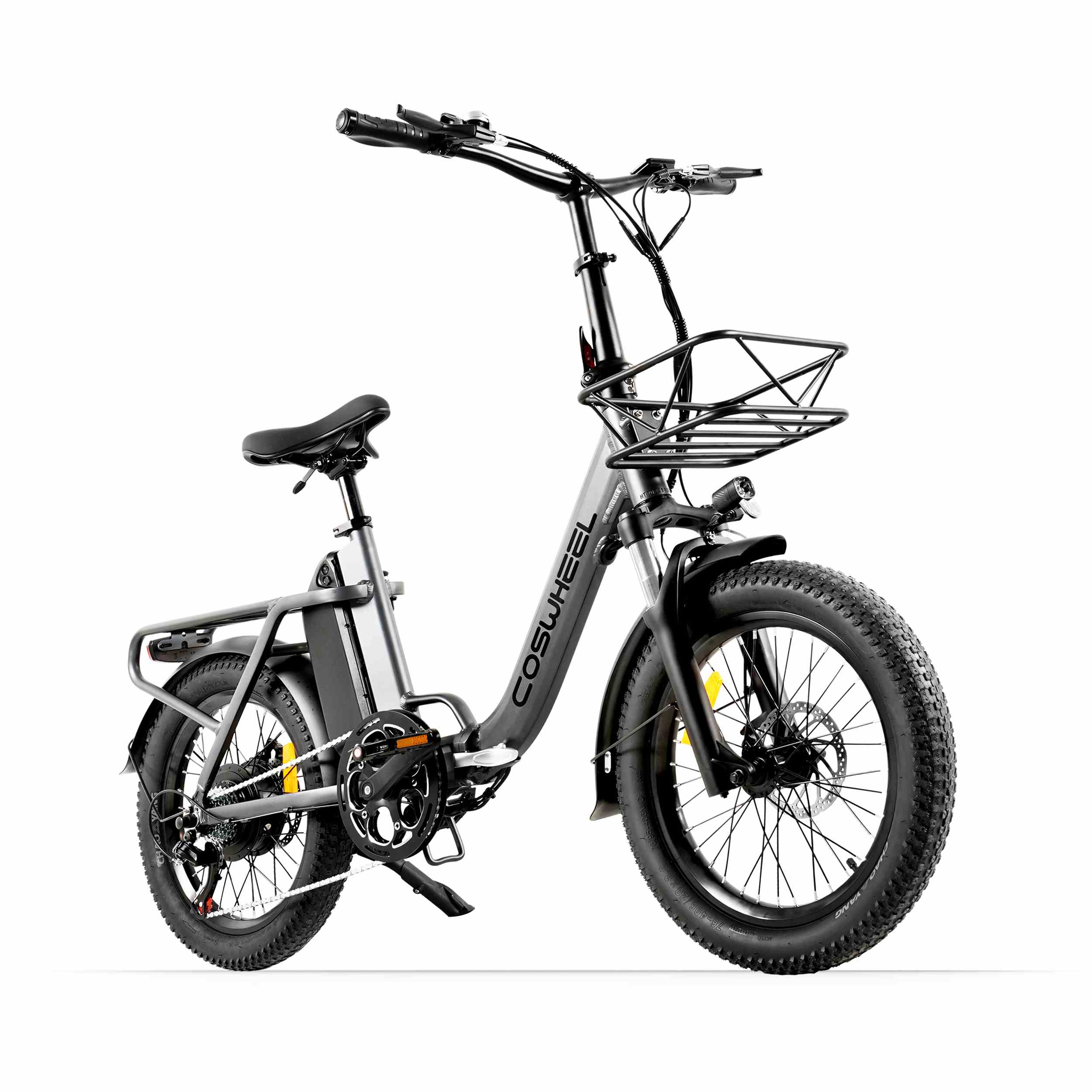

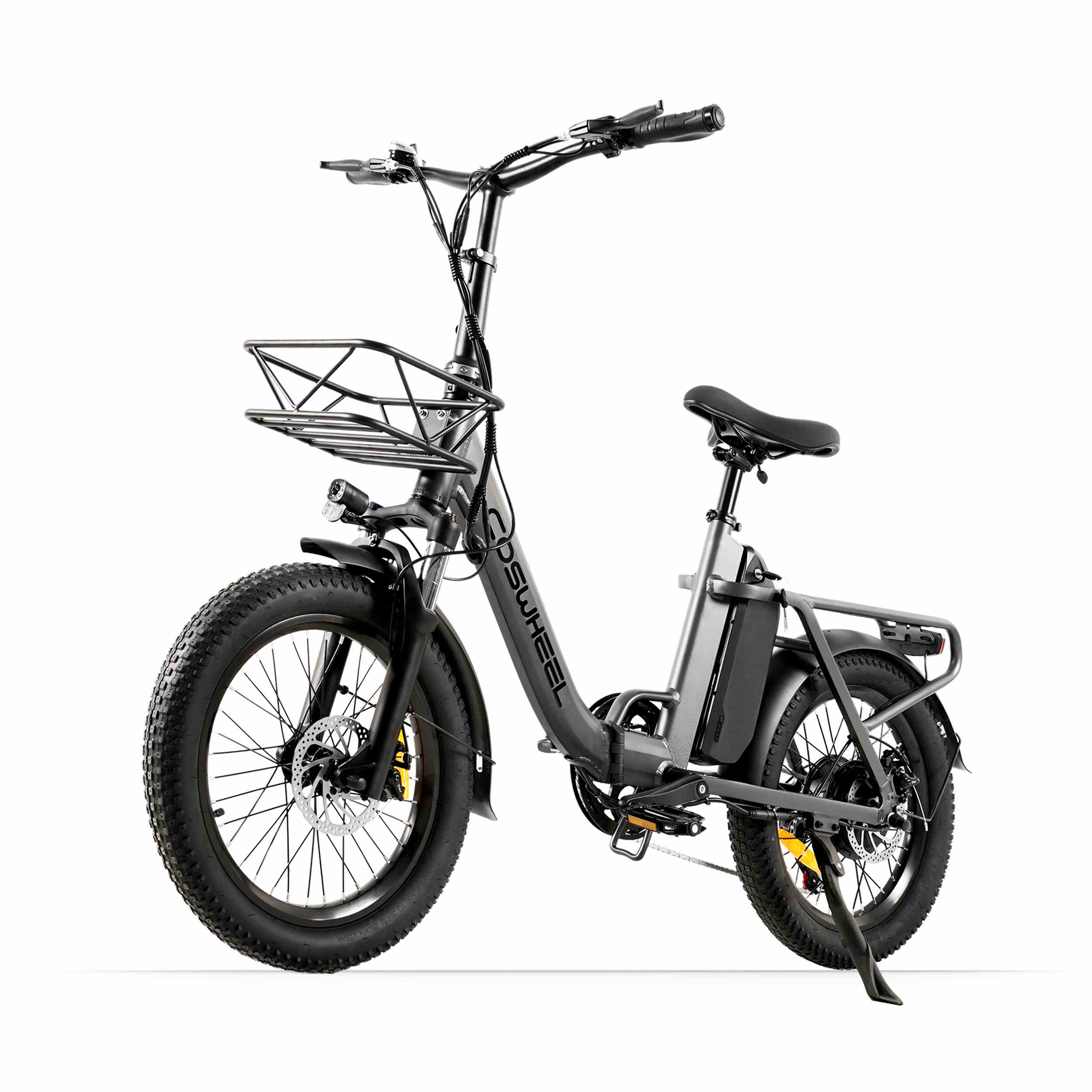

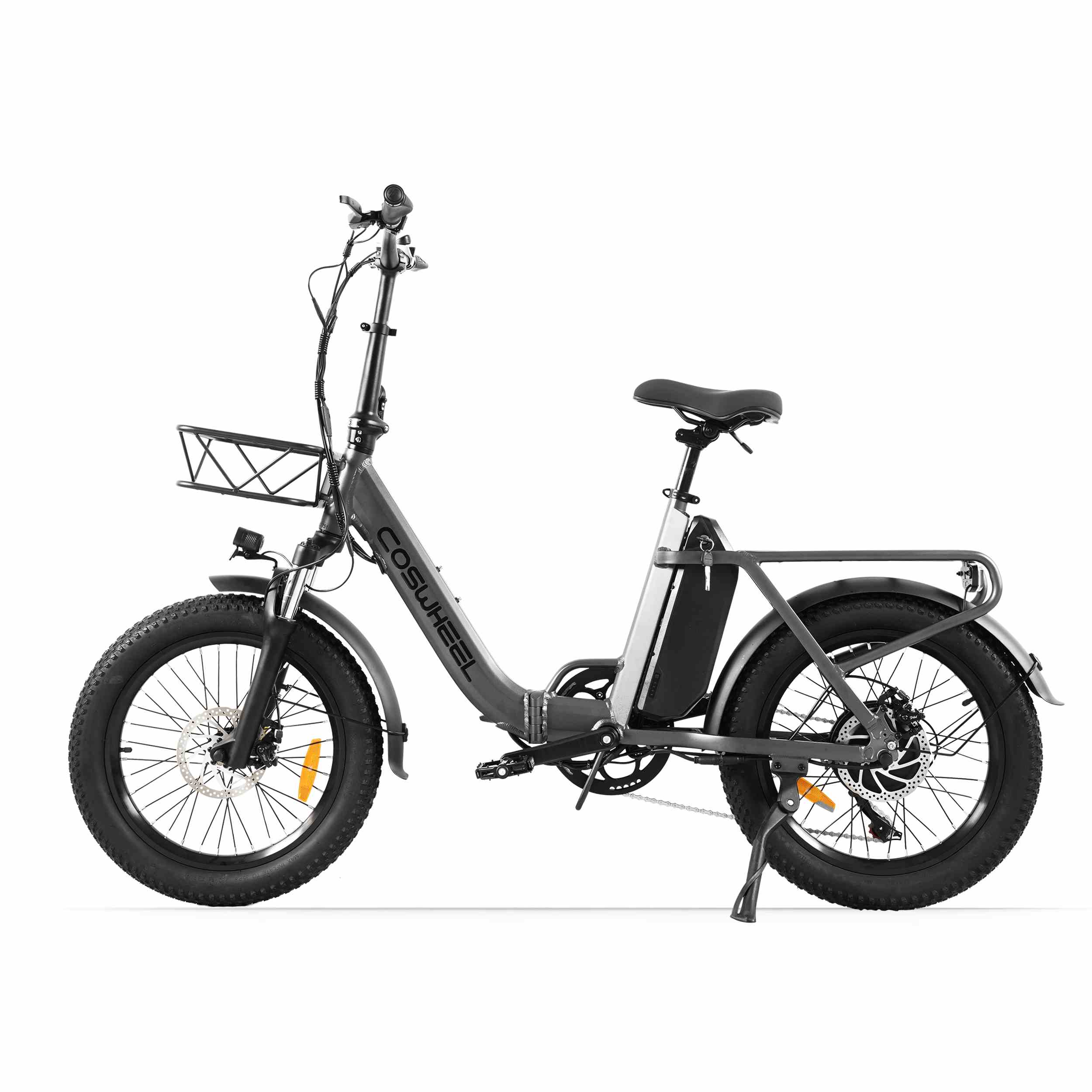

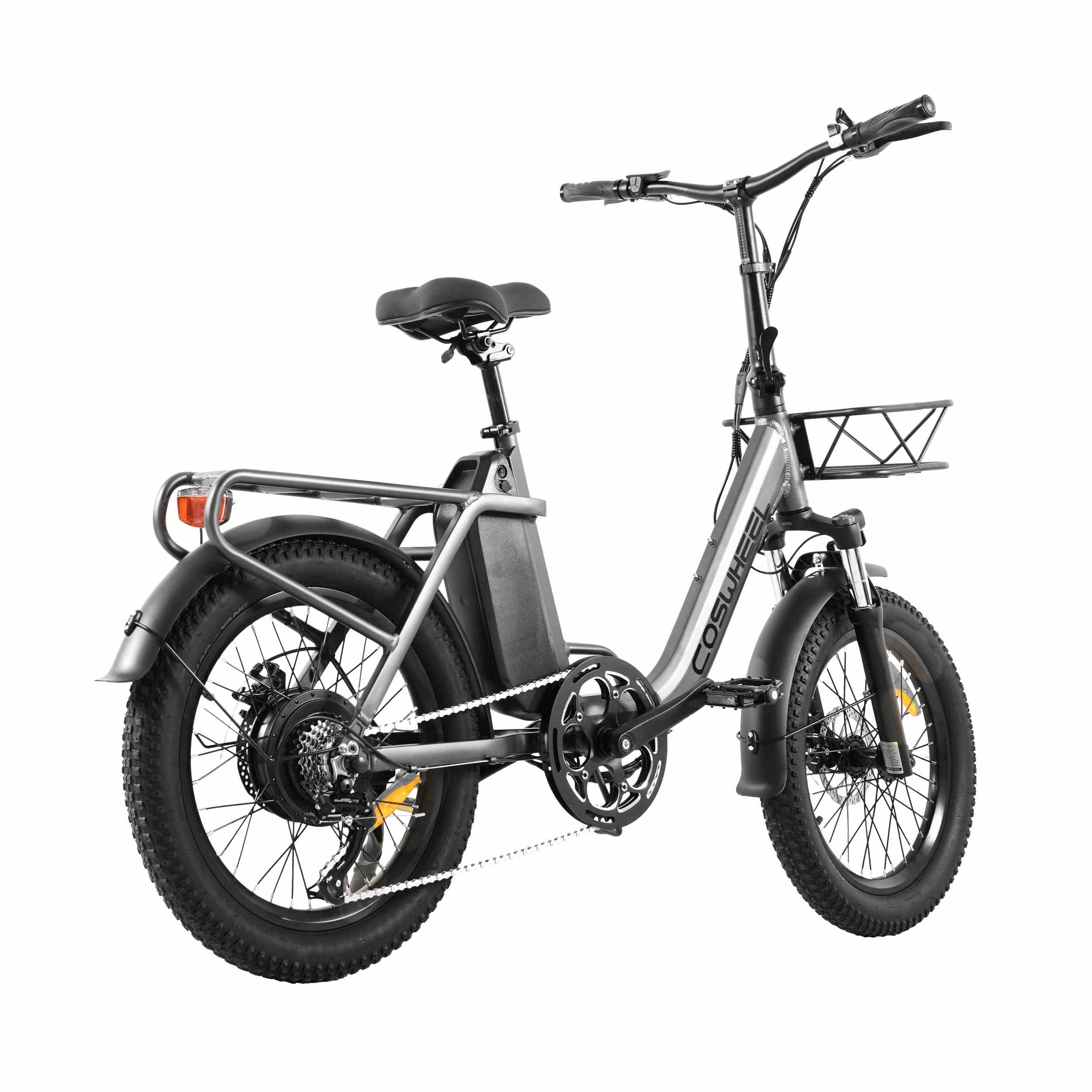

Coswheel Y20L Electric Folding Bike
250W 150km Max Speed 25 km/h Front Suspension Step-Thru E-bike
Y20L is expected to arrive at the Polish warehouse on October 10th. It is expected to be shipped normally from the Polish warehouse to various EU countries on October 12th (3-7 working days deliver o EU countries).
Y20L Complies with European regulations, no driver's license required.
Torque Sensor for Smooth Power
Y20L is a Step-Thru commuter electric bike that uses a torque sensor. Compared with electromagnetic induction sensors, torque sensors make the power output of electric bicycles more stable, available as you pedal, making riding more labor-saving and more friendly to aging and physically disabled riders.
Compact and Lightweight
The frame and handlebars of the Y20L are both foldable, and the net weight of the whole vehicle is only 28kg. In addition, the handles are designed at the folding point, which makes it very easy to lift and it is also very convenient to put into the car when traveling. It is one of the best choices for cycling exercise.
Y20L — Crafted to the Last Bolt

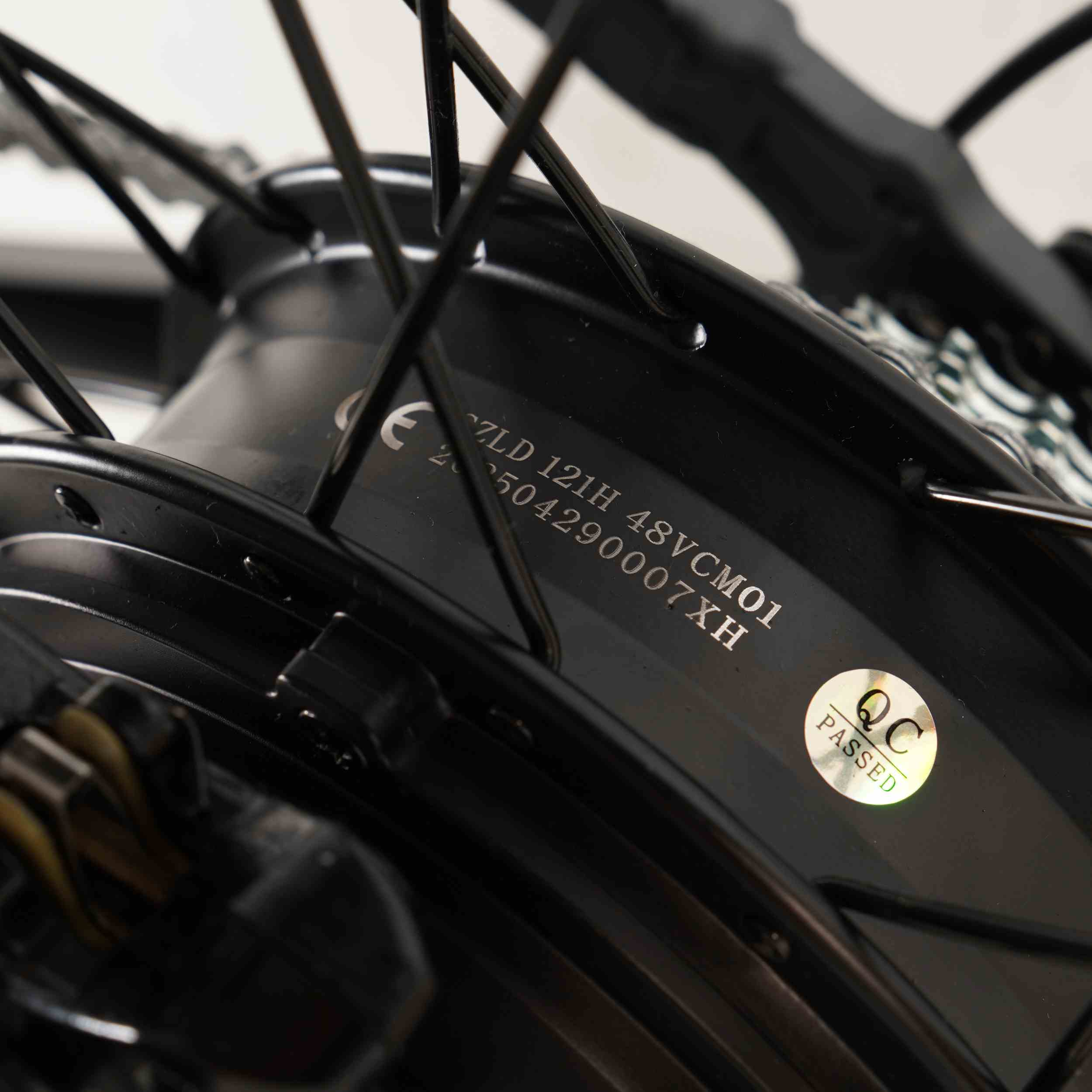

250W Brushless Motor
The Y20L is equipped with a 250W high-speed brushless motor, a torque of 75N.m, a maximum speed of 25km/h, and can easily climb a 30° slope.

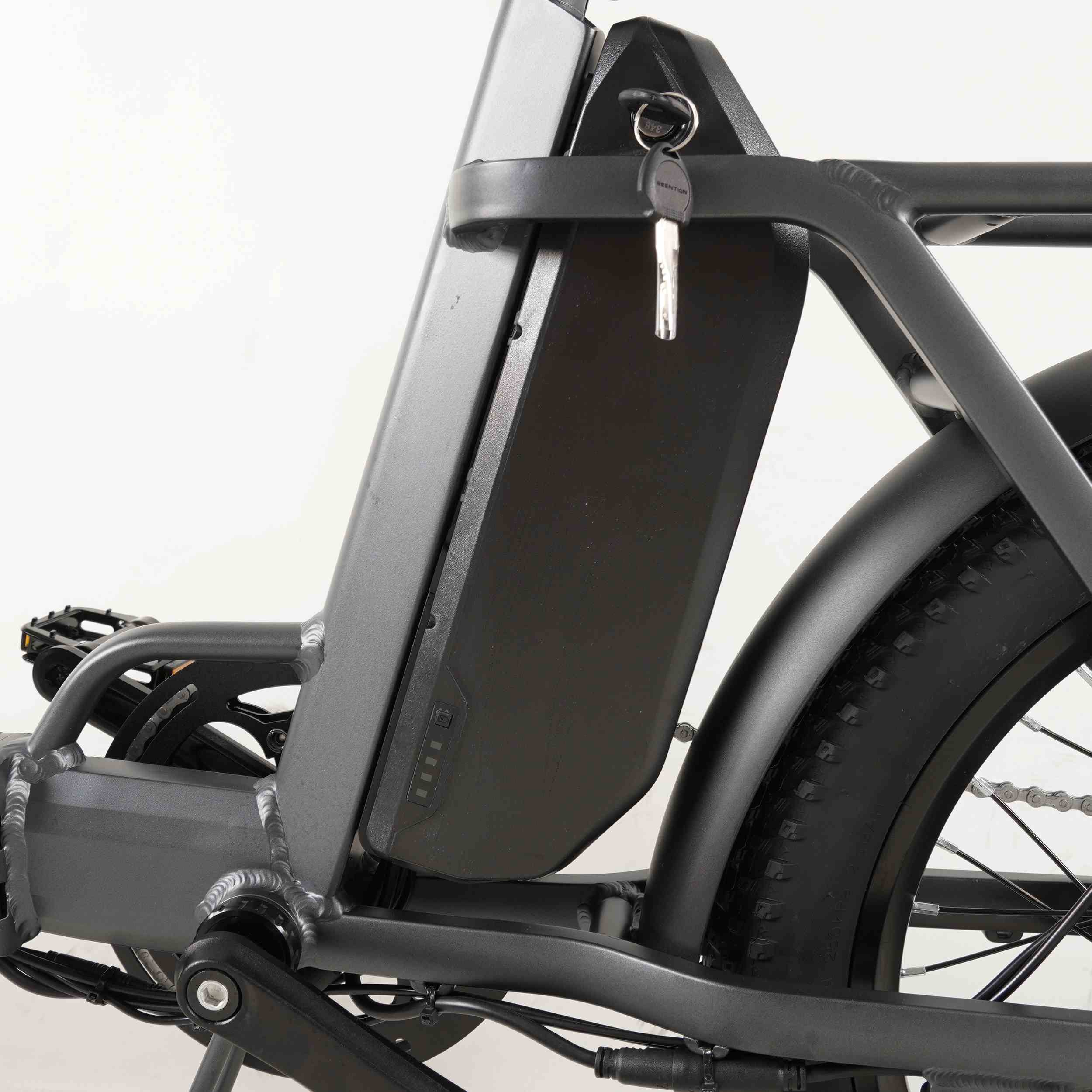

15AH Removable Battery
The Y20L is equipped with a 15AH lithium battery, 720WH, with a maximum range of 150km (accelerator + pedal assist). It is equipped with a key switch and the battery is removable.
Torque Sensors
It uses a new torque sensor, which ensures smooth power output and outputs power according to the strength of your foot, making riding more labor-saving and friendly to the elderly and disabled.

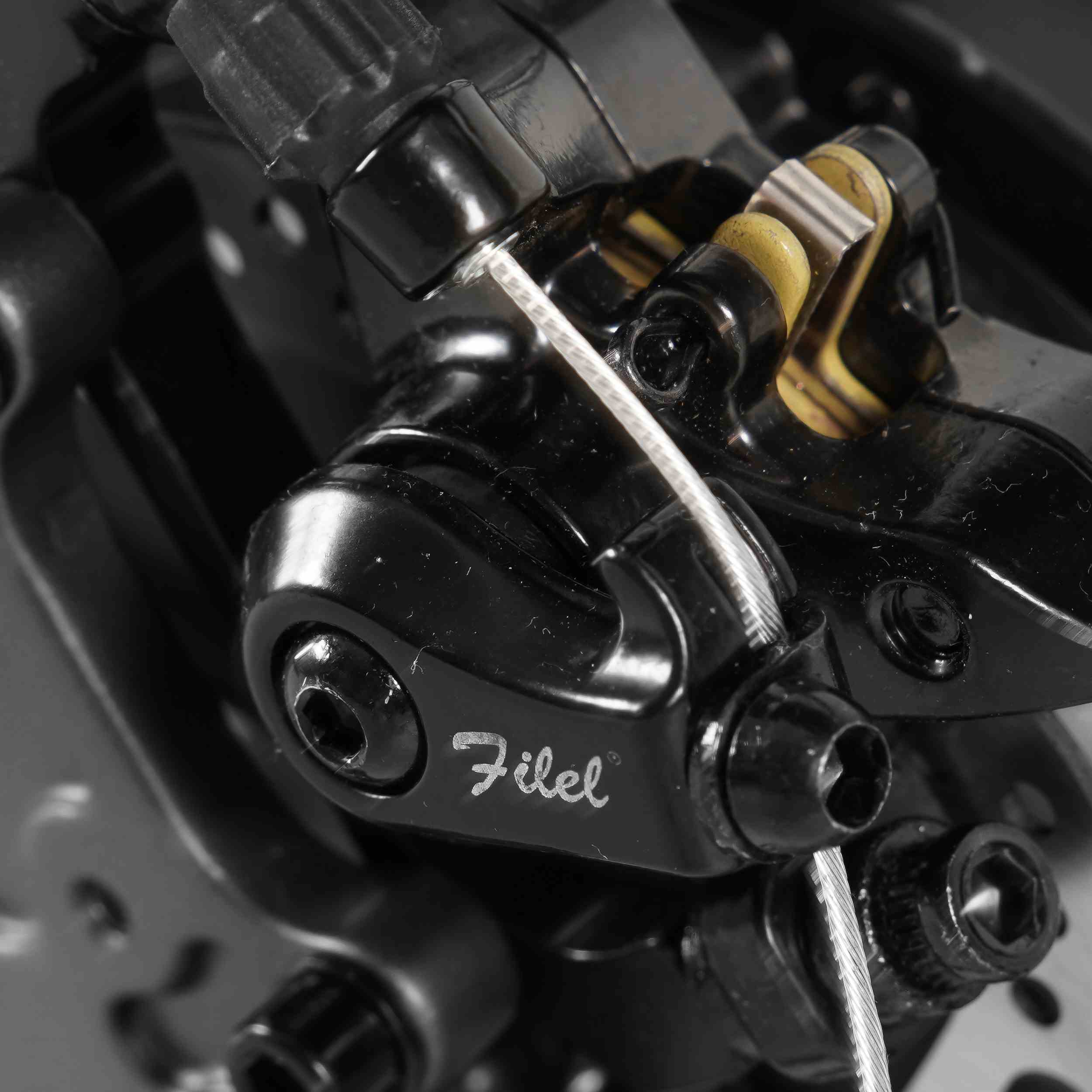

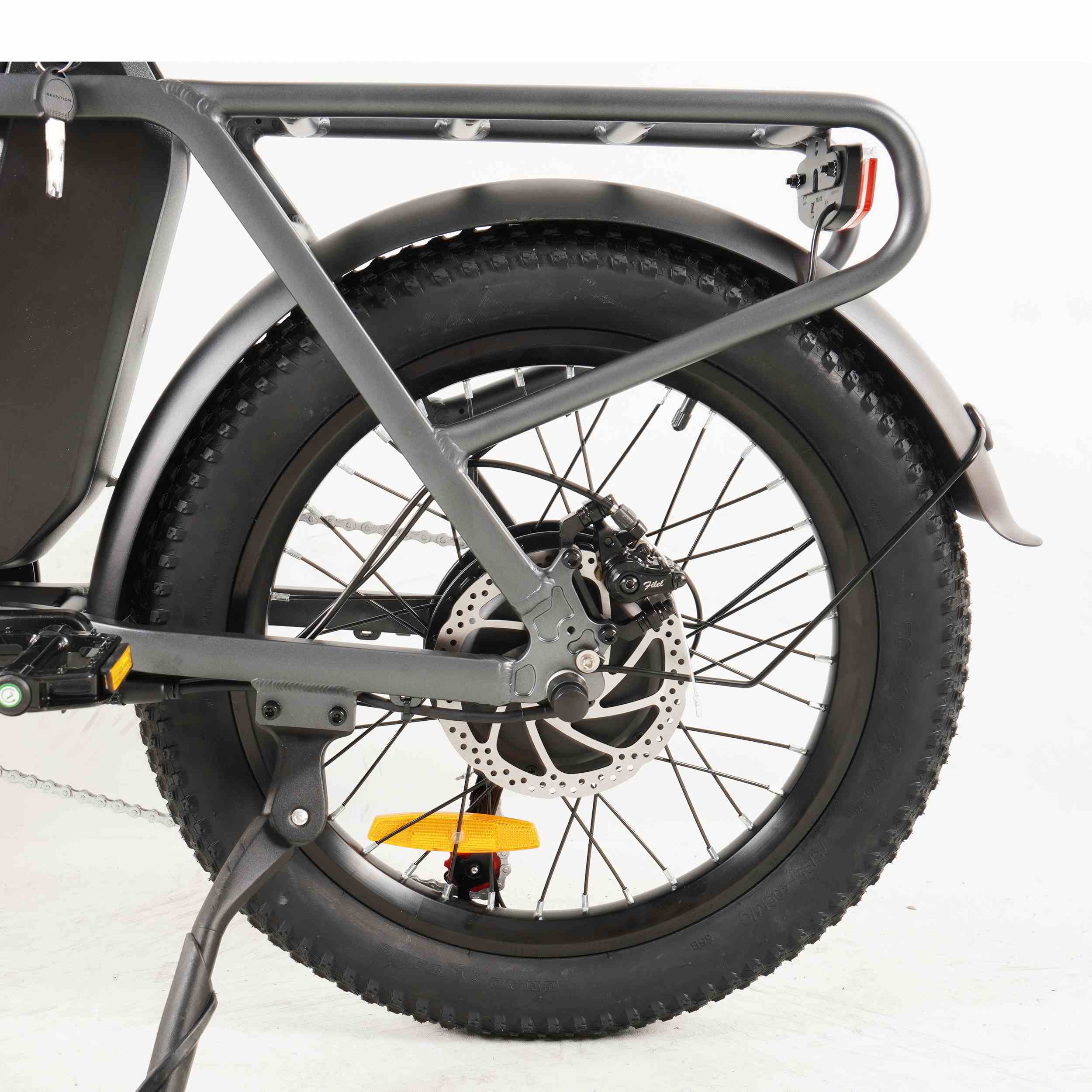

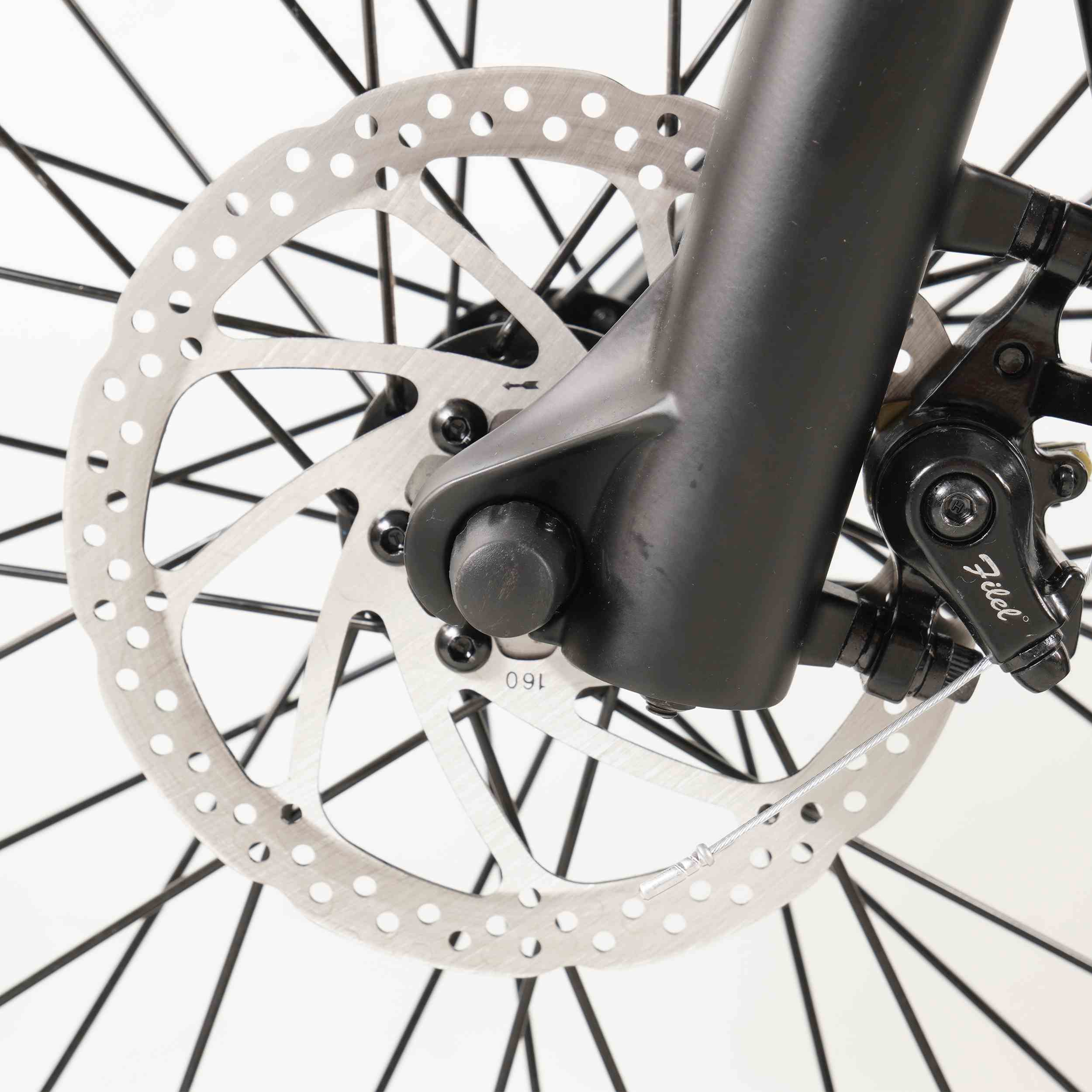

160mm Double Brake Disc
Equipped with 160mm brake discs at the front and rear, providing smooth braking.

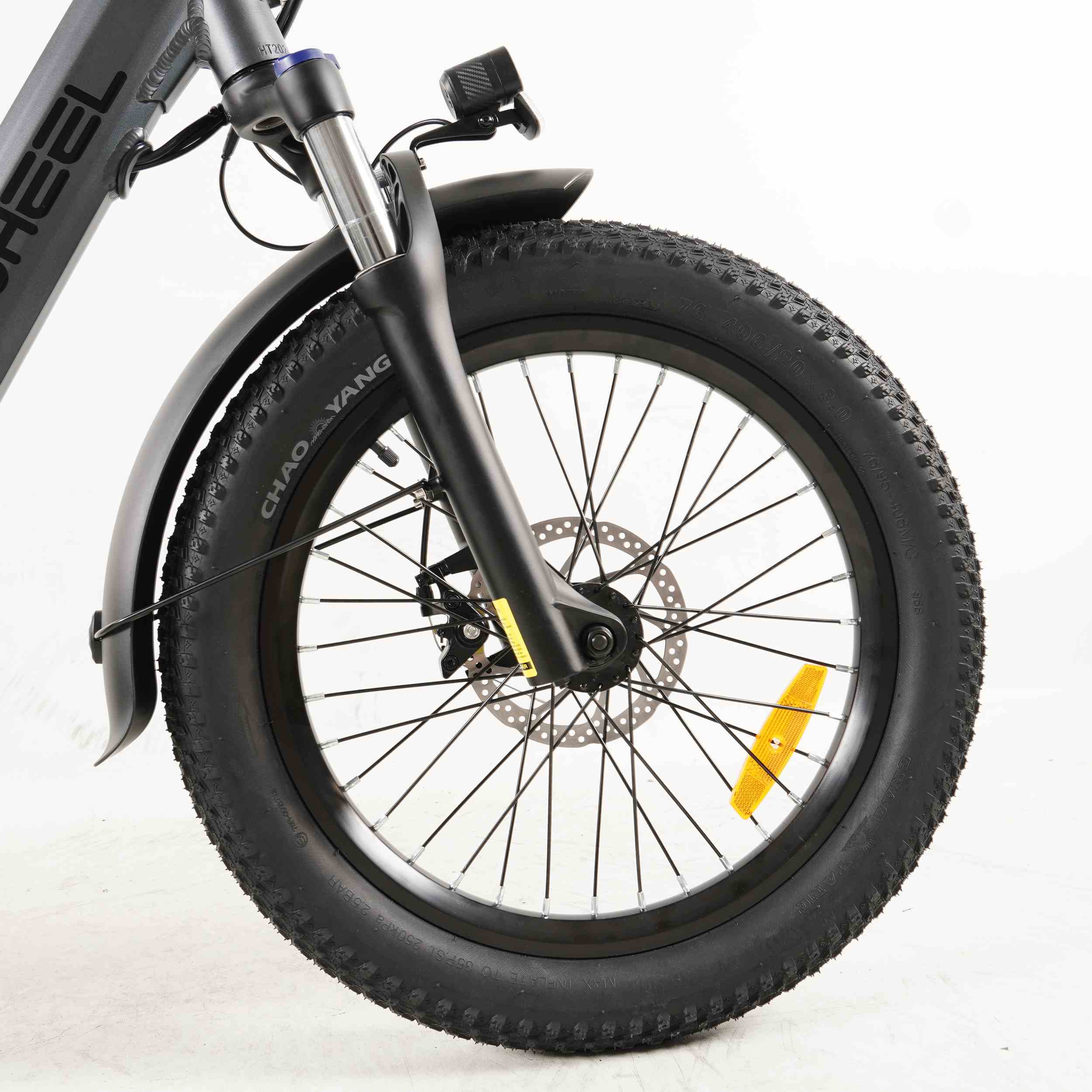

Lockable Front Suspension
The front suspension has 80mm travel and is equipped with a locking function, which can fix the front fork and prevent it from rebounding, allowing you to enjoy more riding pleasure.

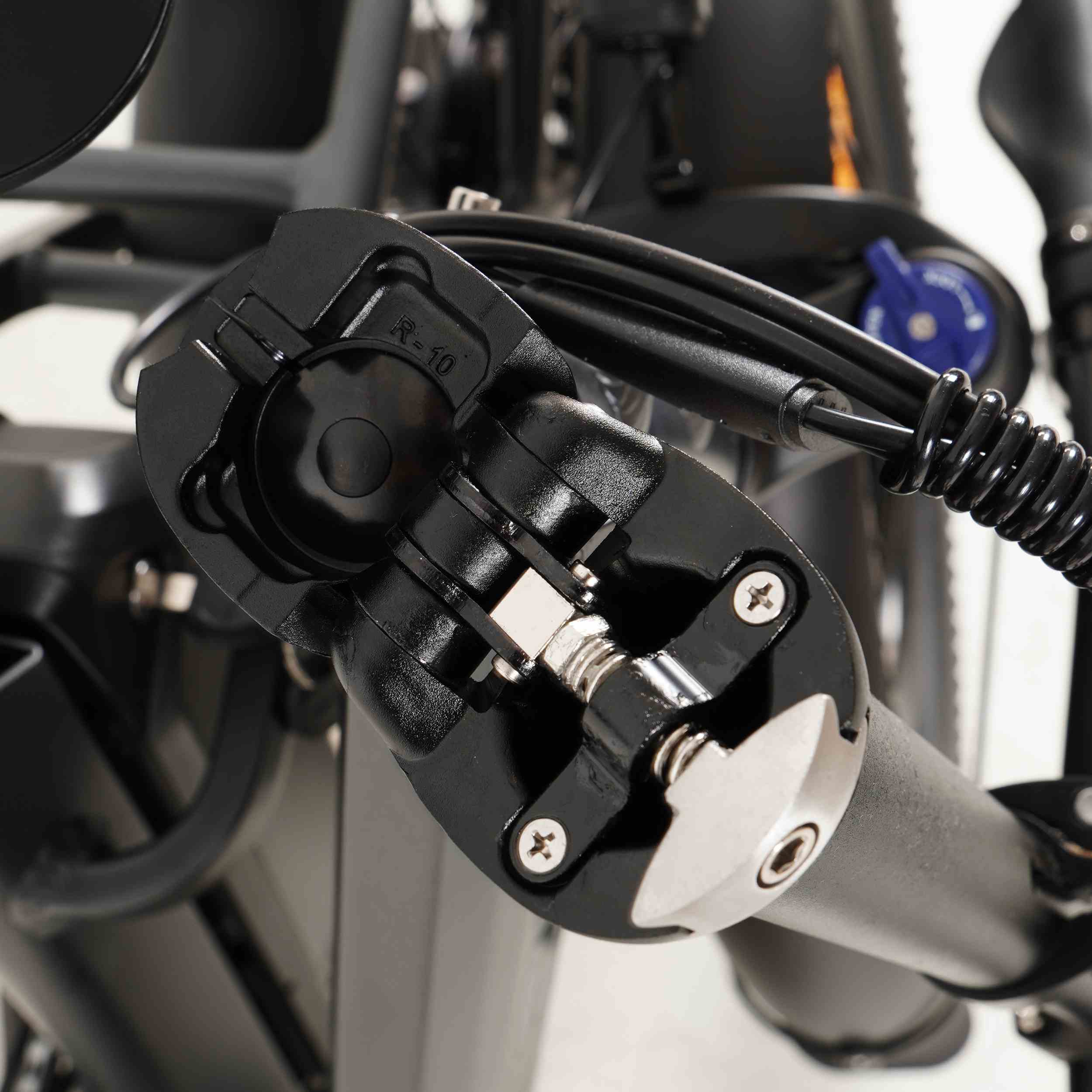

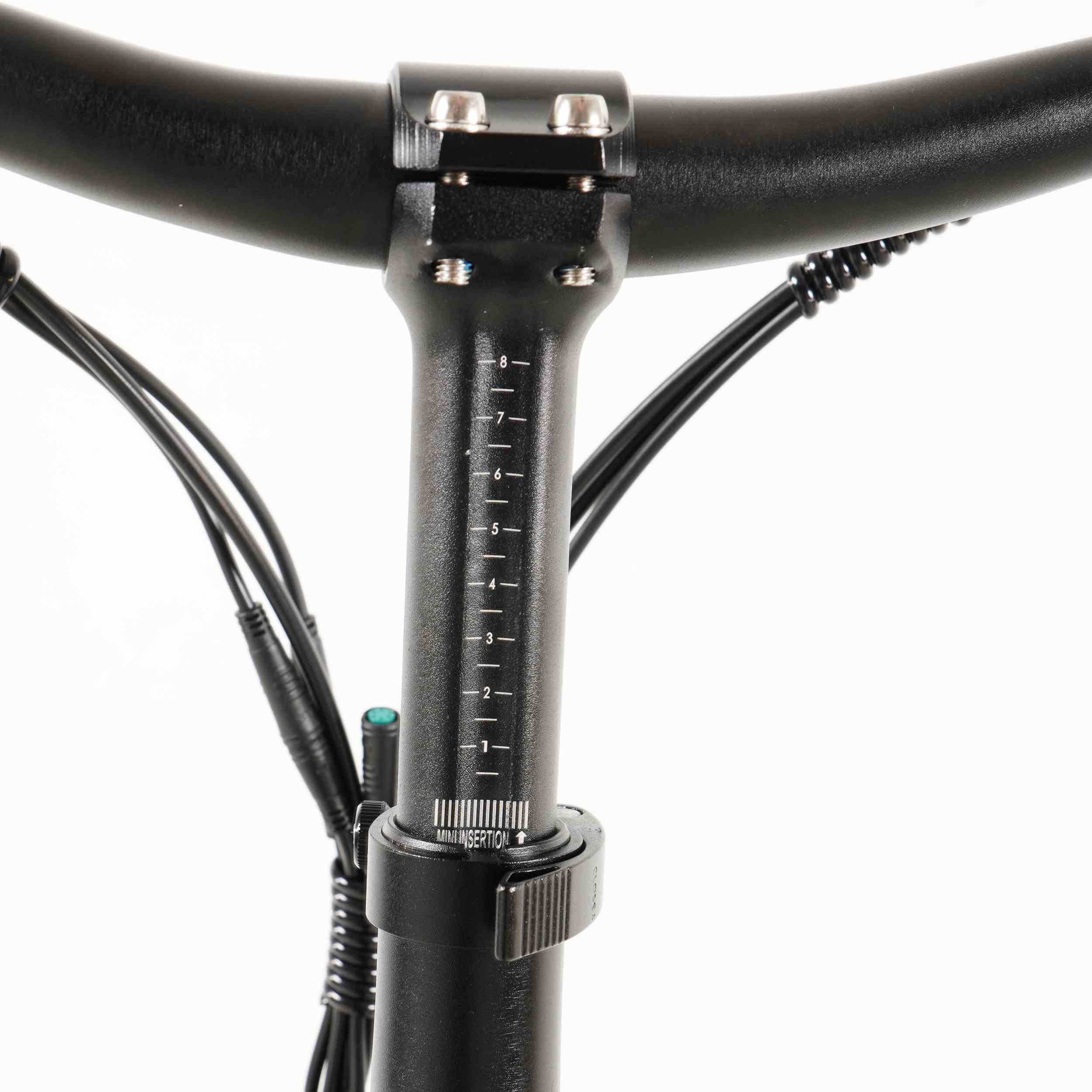

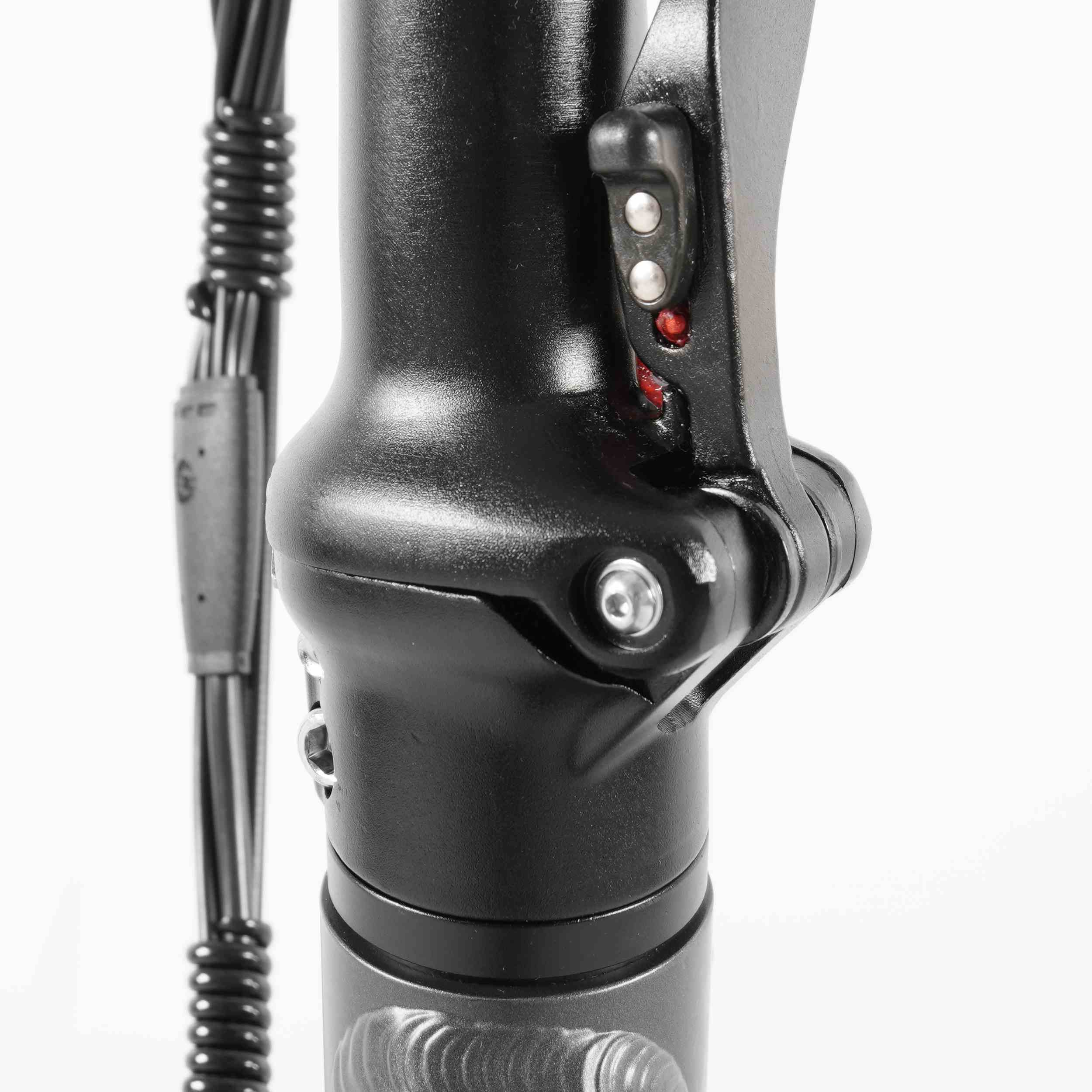

Adjustable Handlebar
The handlebars can be adjusted in height according to your preference and can be folded, which is very convenient.

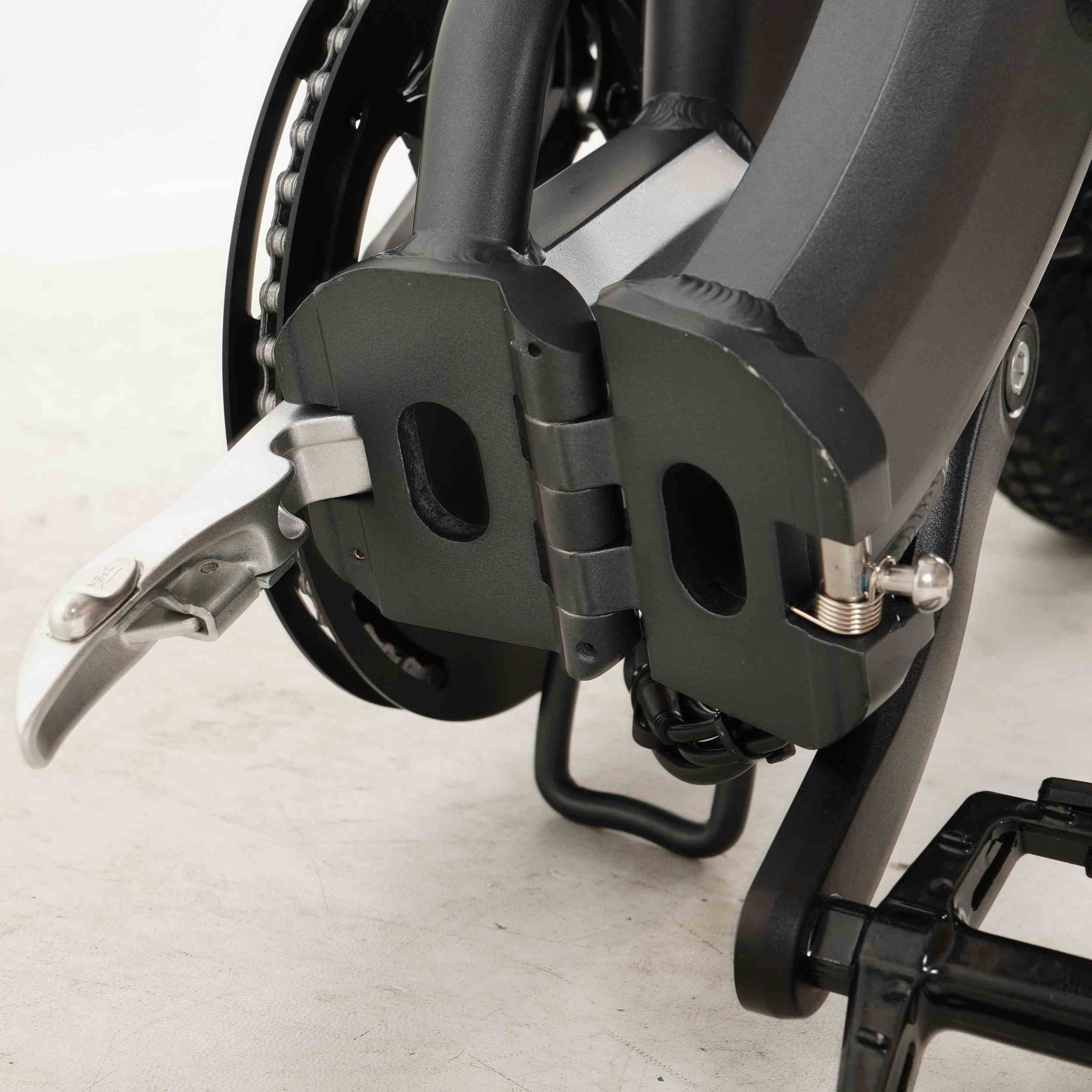

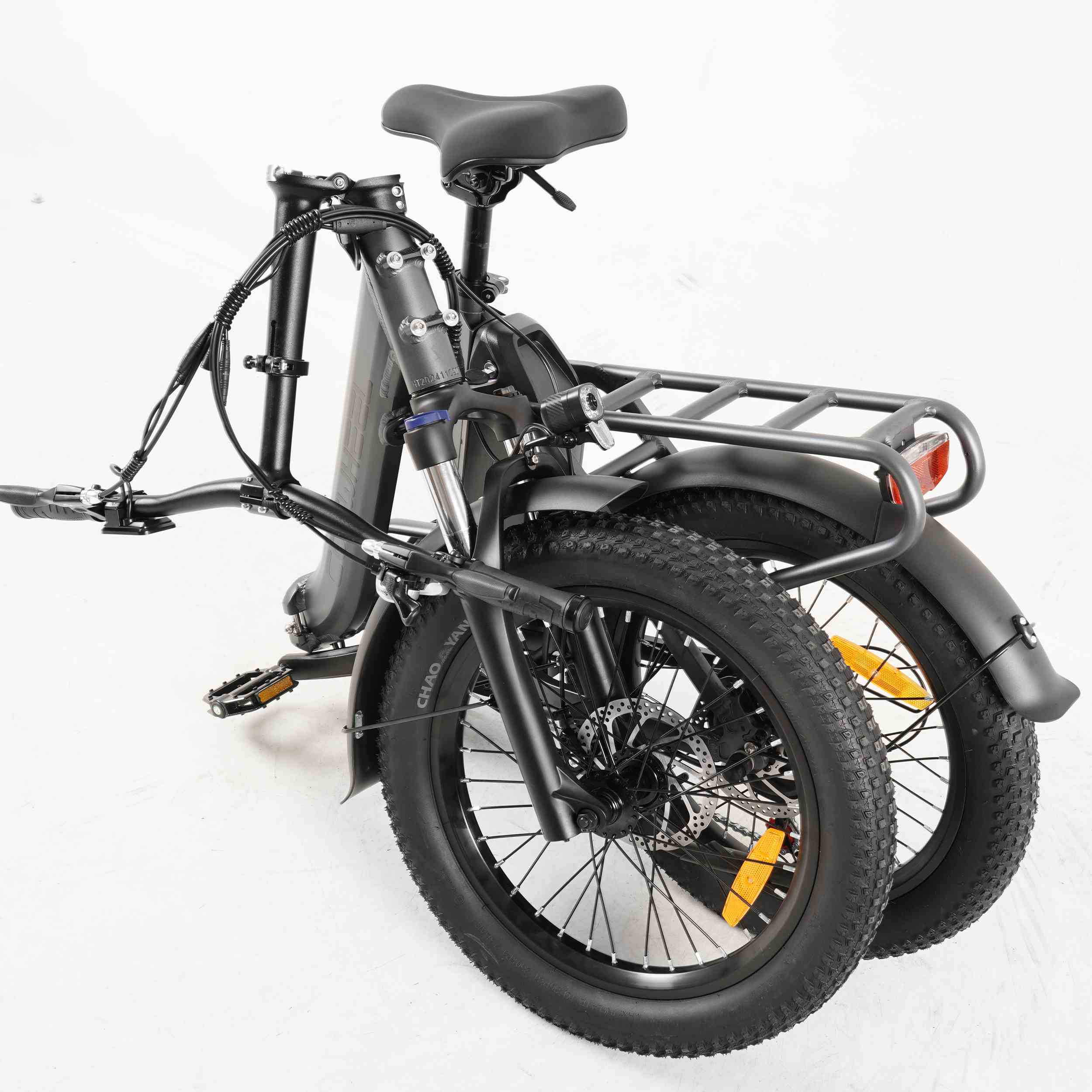

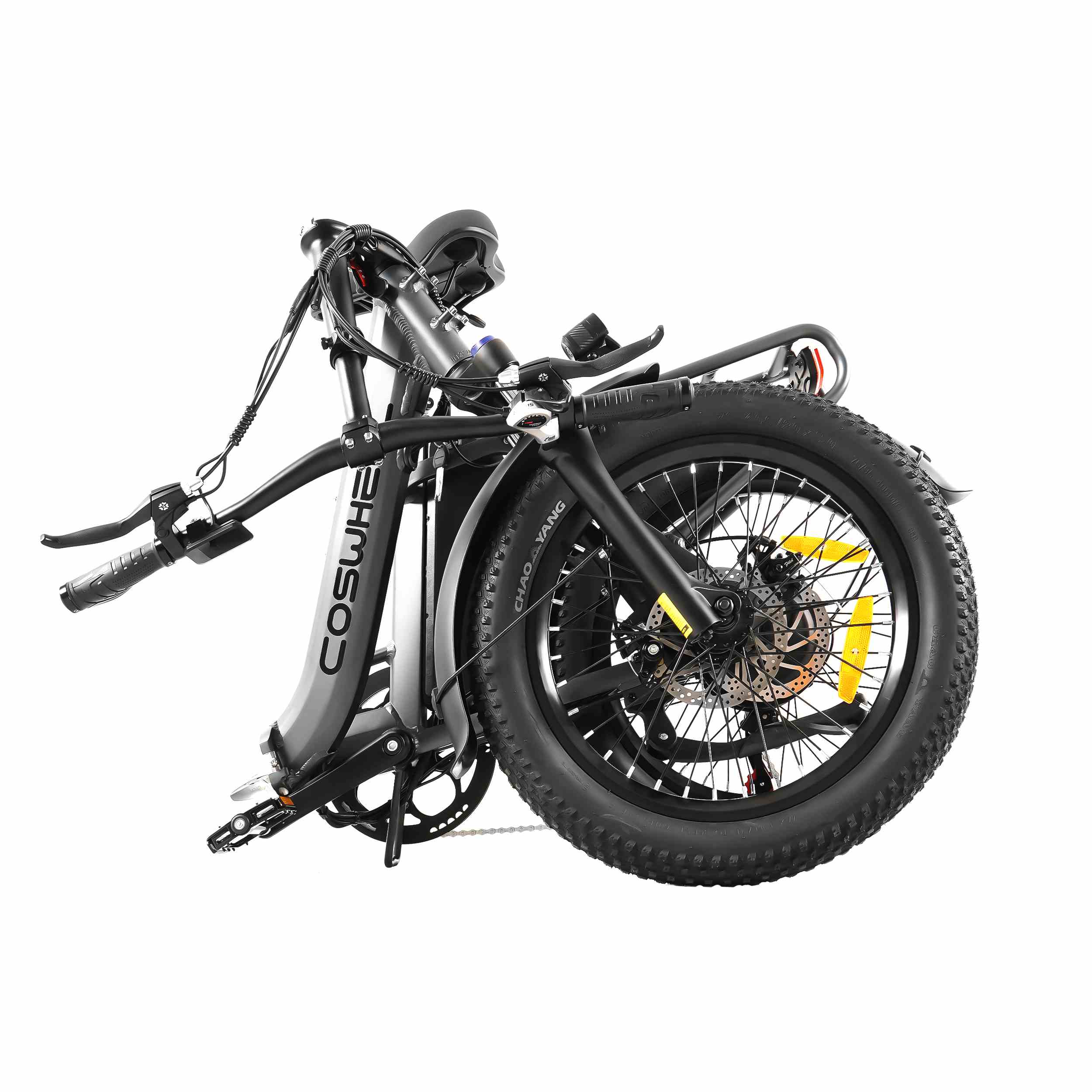

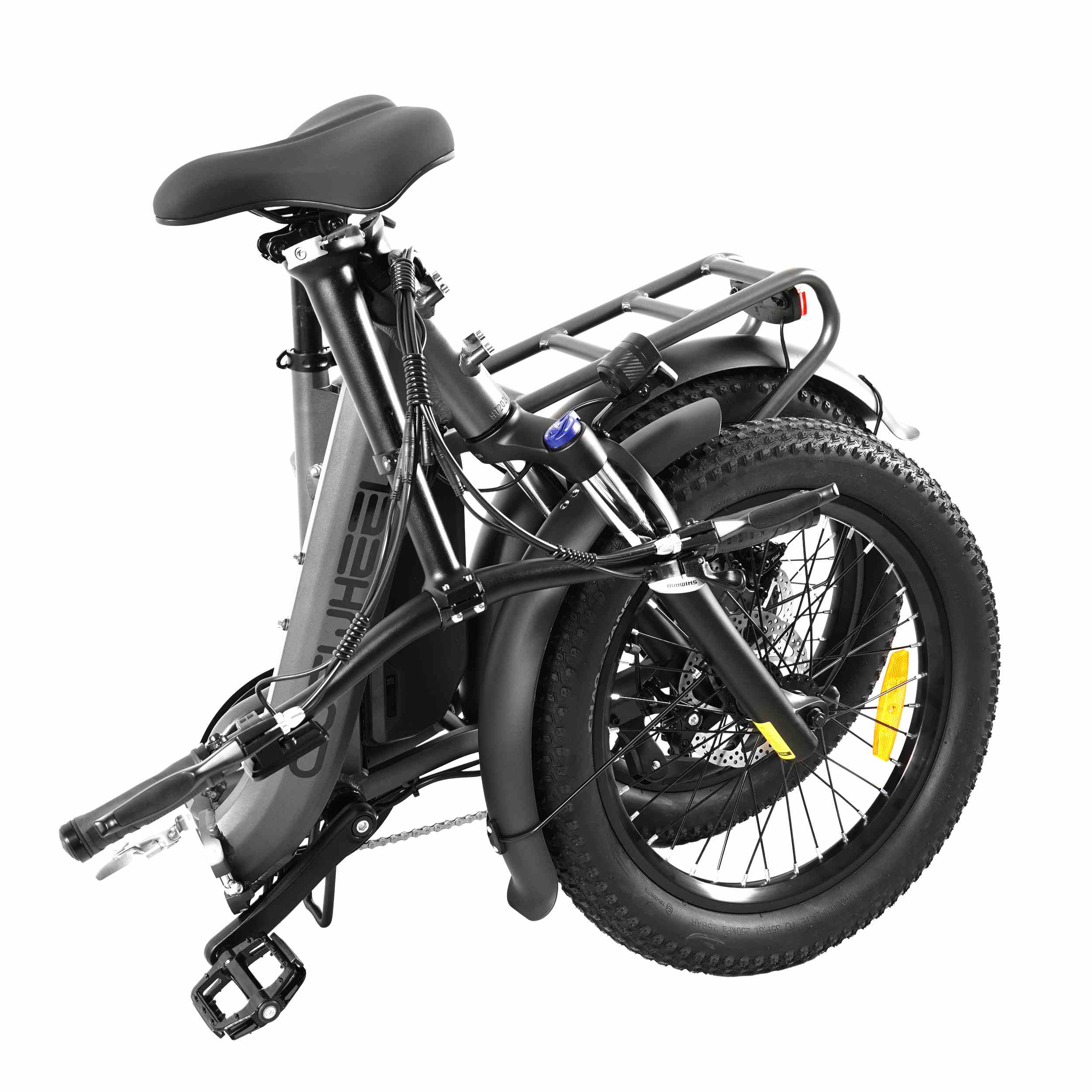

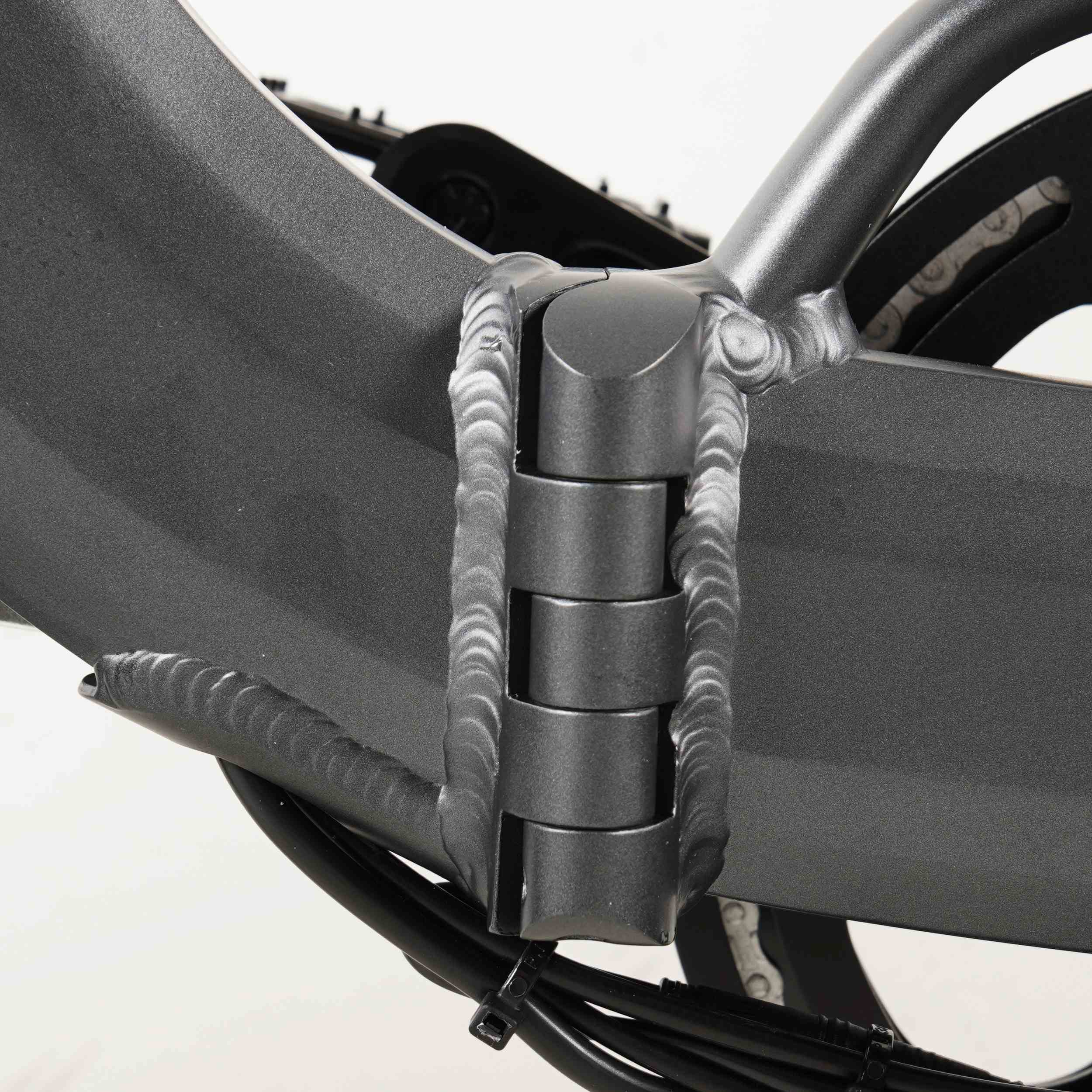

Foldable Frame
The frame can be folded and equipped with armrests, with a net weight of only 28kg, so it can be easily placed in the trunk of a car.

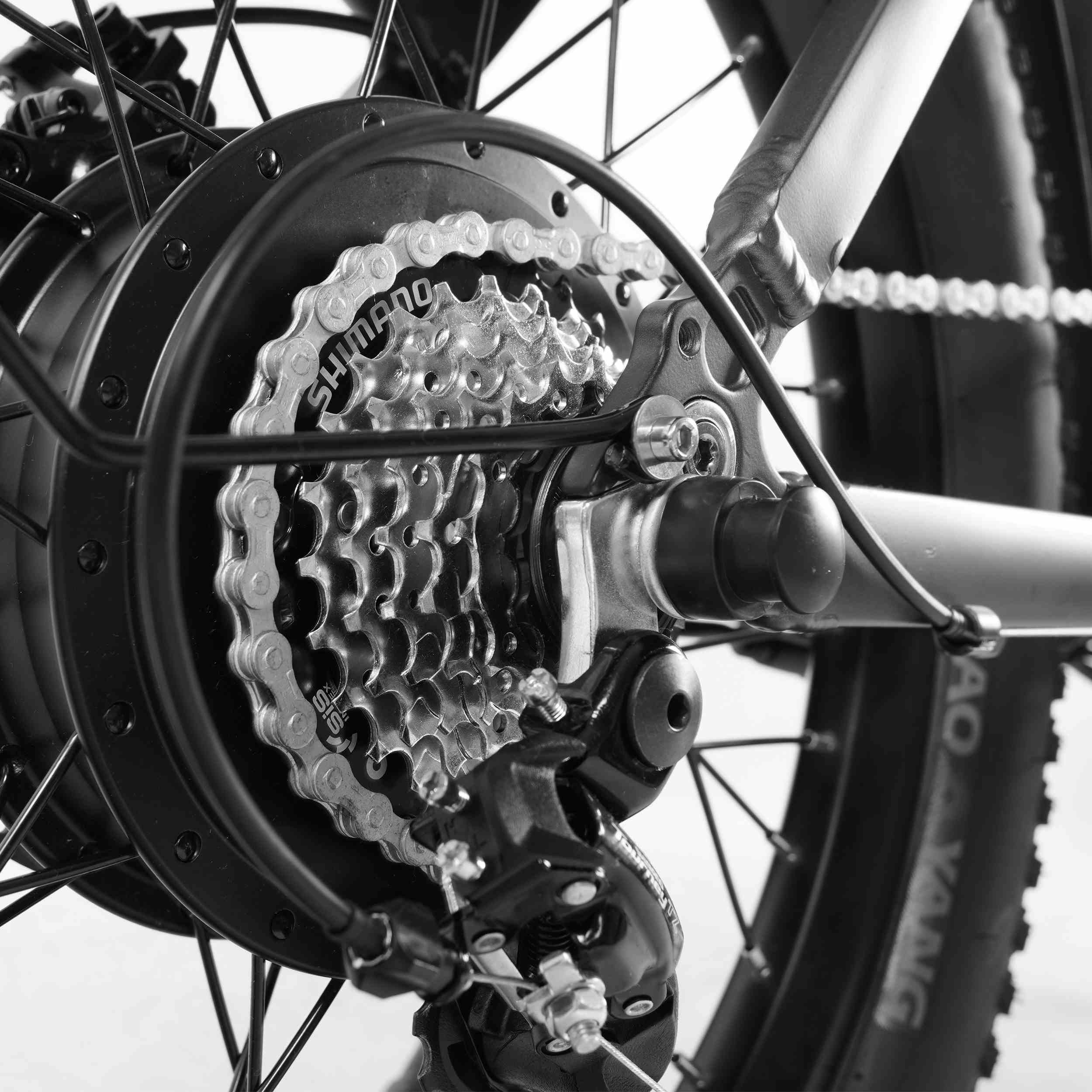

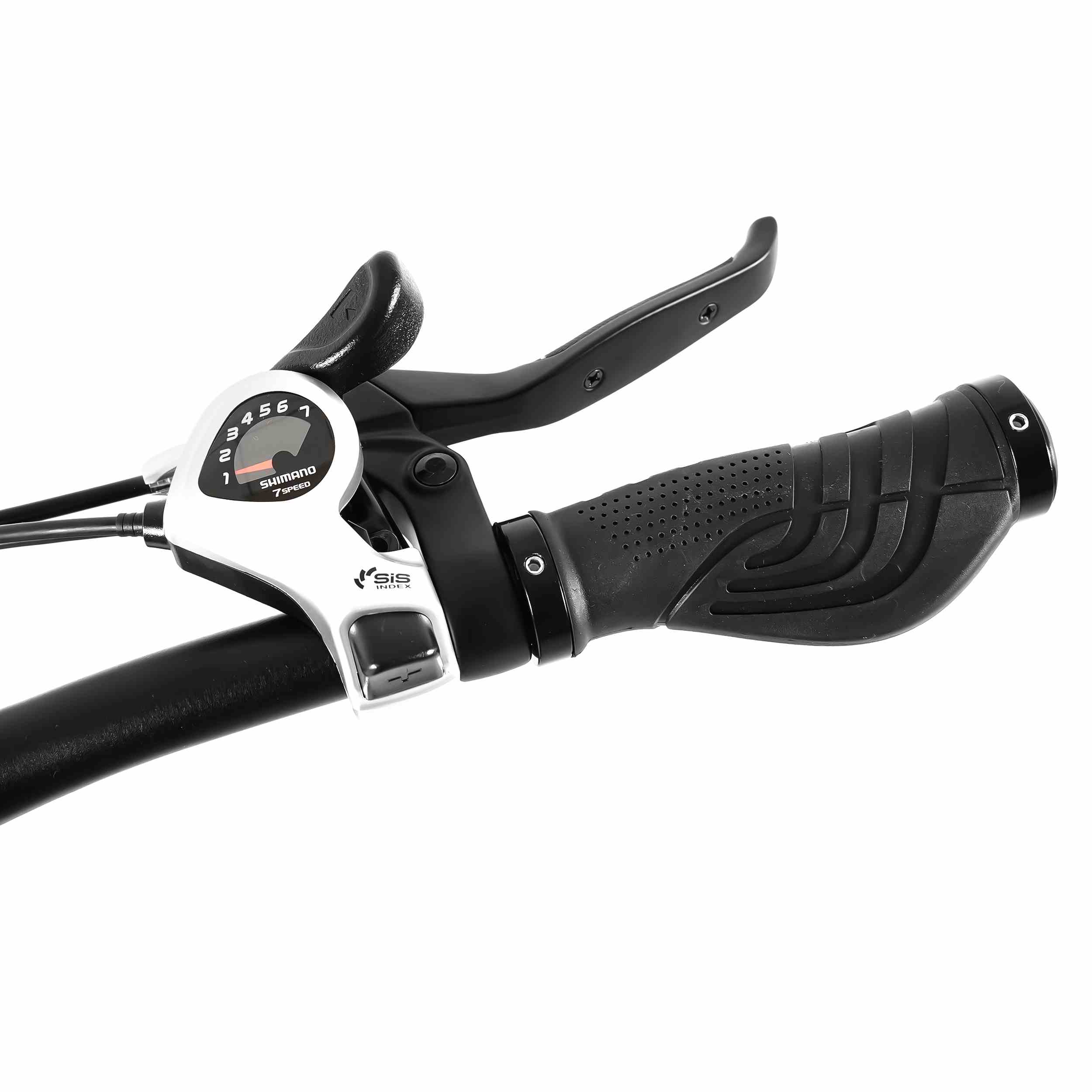

Shimano 7-speed derailleur
When the trail gets steep, we got you covered. The Y20L comes standard with an 7-speed cassette to provide that extra power to smooth out even the gnarliest hills

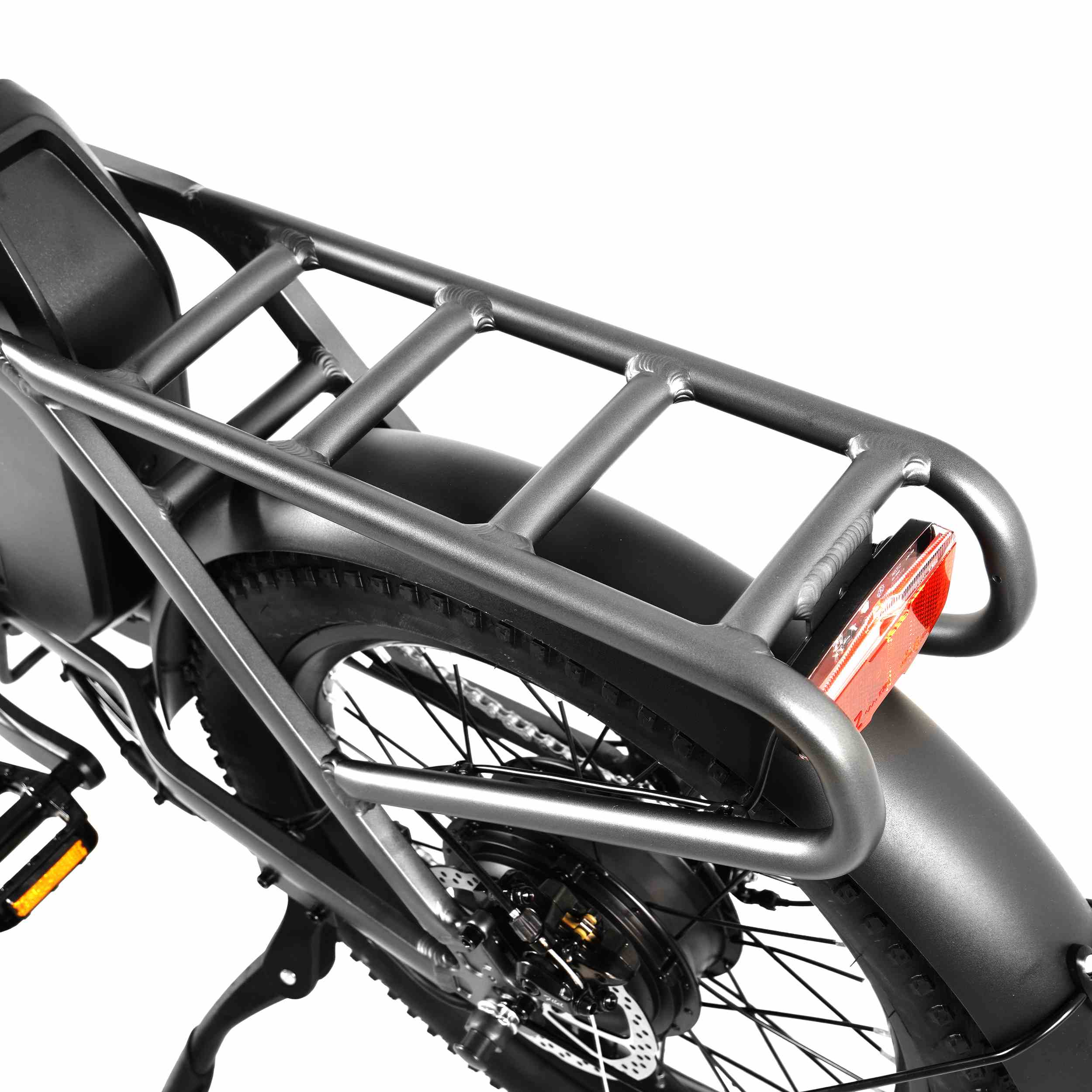

Free Cargo Accessories
When you purchase Y20L, you will receive a free front cargo basket, hanging bag, cushion and running boards, which will give you a stronger loading capacity when traveling and further demonstrate COSWHEEL's thoughtful care for users.
Y20L Spec
Performance
- Top Speed: 25km/h
- Range:; 150km Per charge
- Motor: 250W Brushless Rear Hub Motor 75N.m
- Battery: 48V 15Ah Battery (Lithium 18650 Cells)
- Energy: 720Wh
- Front Suspension: 20" Shoulder Shock Absorbing, 80mm Travel, Lockable
- Brakes: Disc Brakes, Equipped with 160mm Stainless Brake Disc
- Tires: Chaoyang Off Road Tire 20" × 3.0" A820 60TPI with Meimeng Tire+PVC Line
- Throttle: Grip Twist Throttle
Electronics
- Charger: 54.6V 2A Charger
- Charging Time: 7.5 Hours

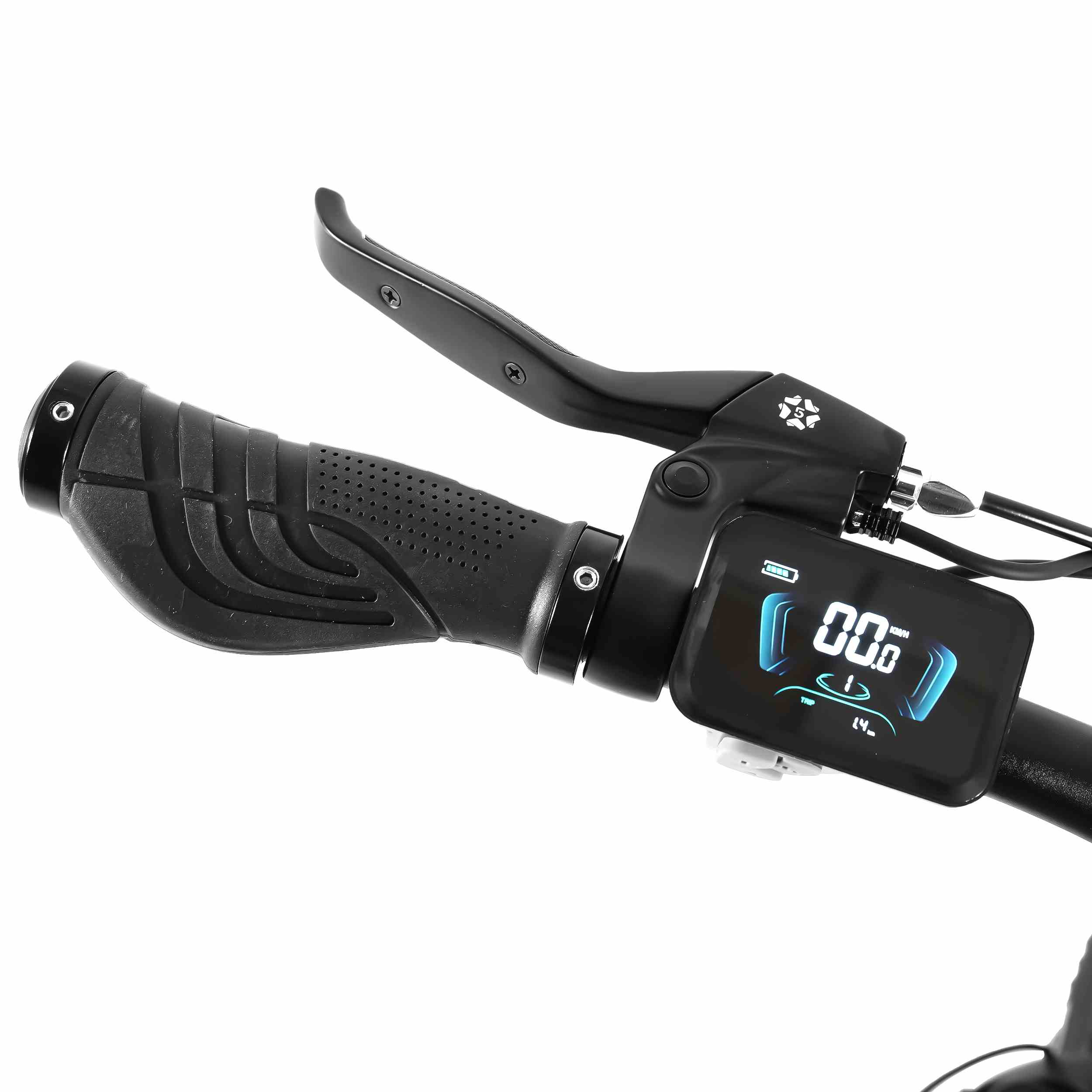

- Display: Easy Read LCD Display
- Controller: 48V 25A

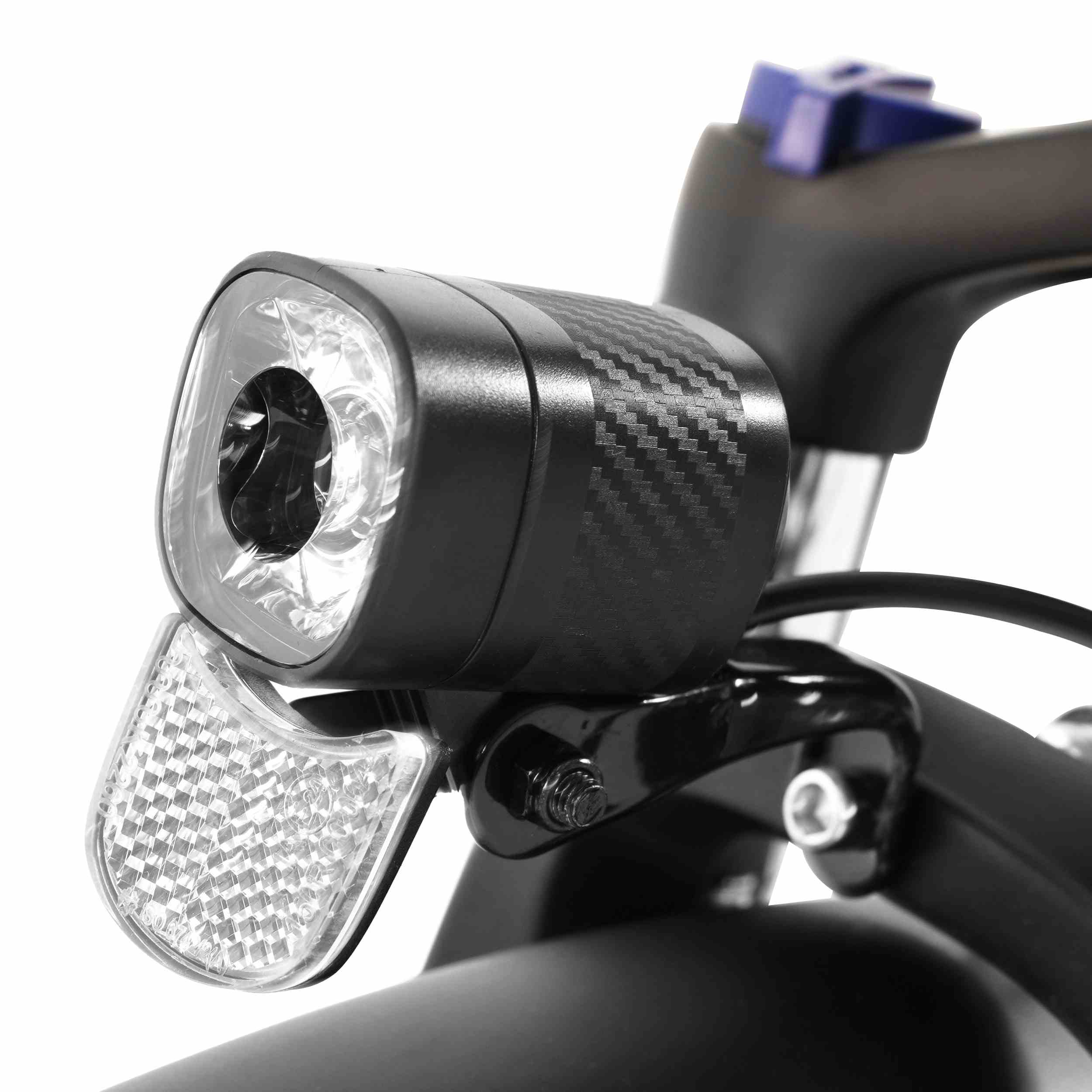

- Front Light: LED, 120 LUX

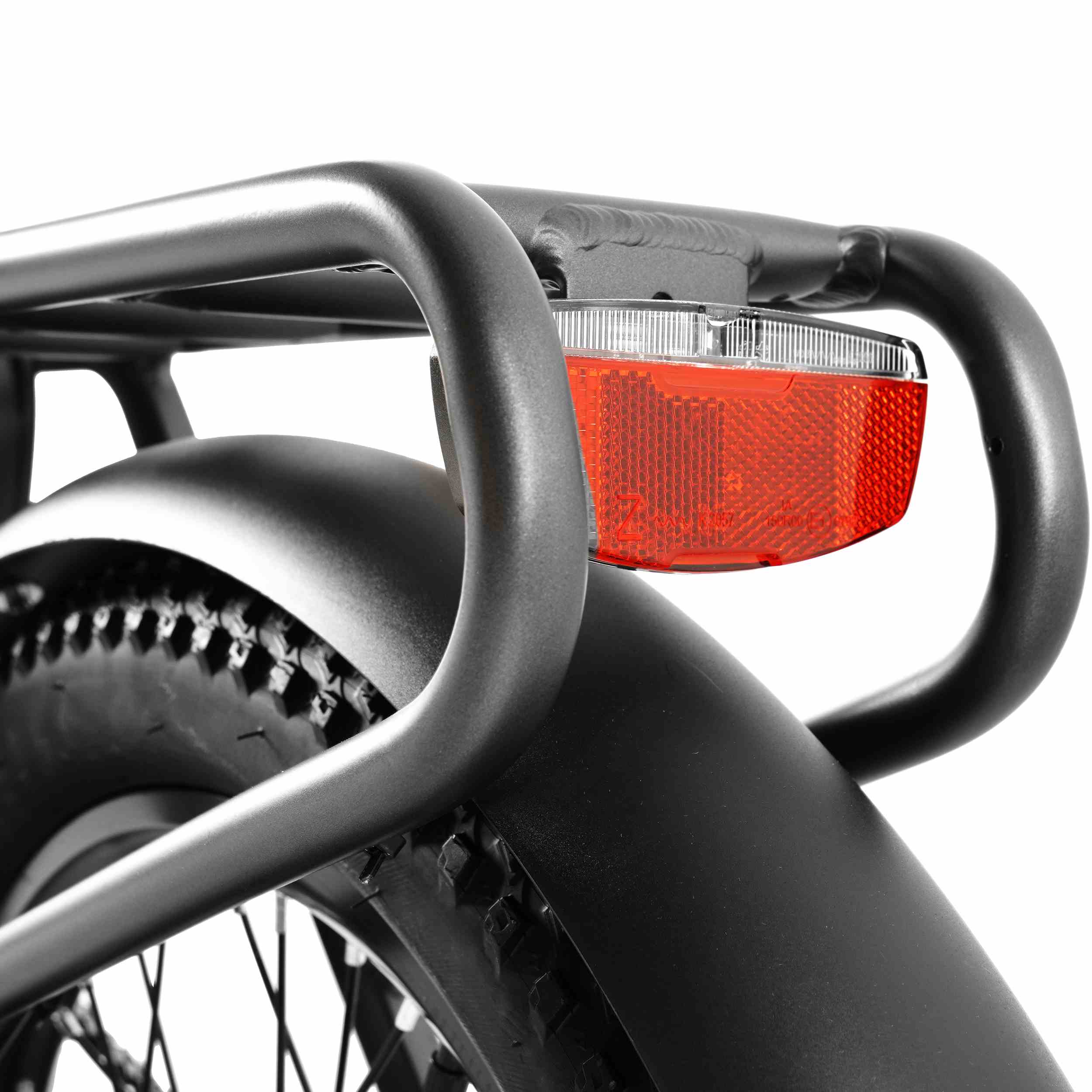

- Rear Light: LED
- Pedal Assist: 3 Levels
- Sensors: Torque Sensor
Components

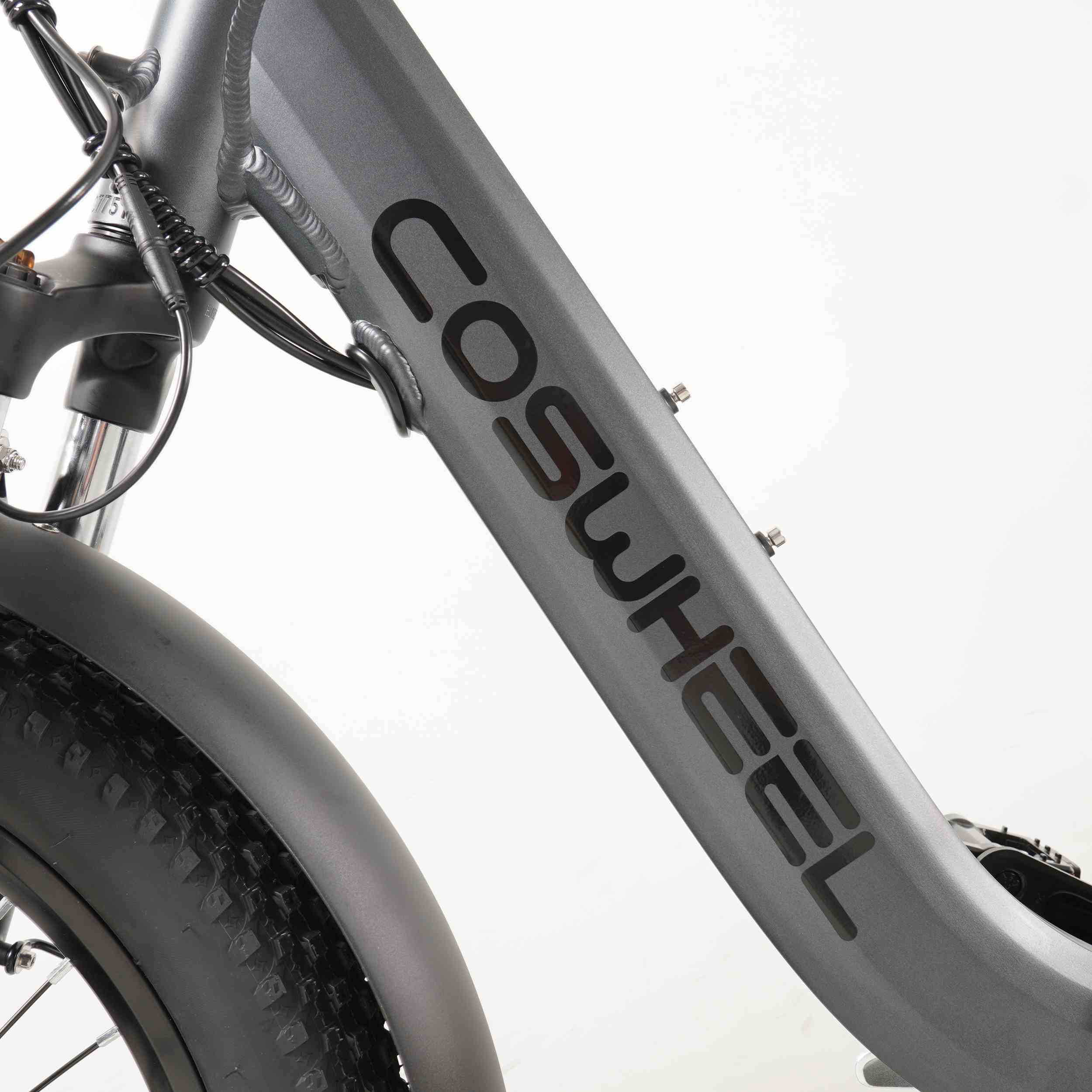

- Frame: Hydroformed Triple-Butted 6061-T6 Aluminium Alloy
- Pedal: Aluminum Alloy Pedal, with Reflect-light, Axis 9/16 x2

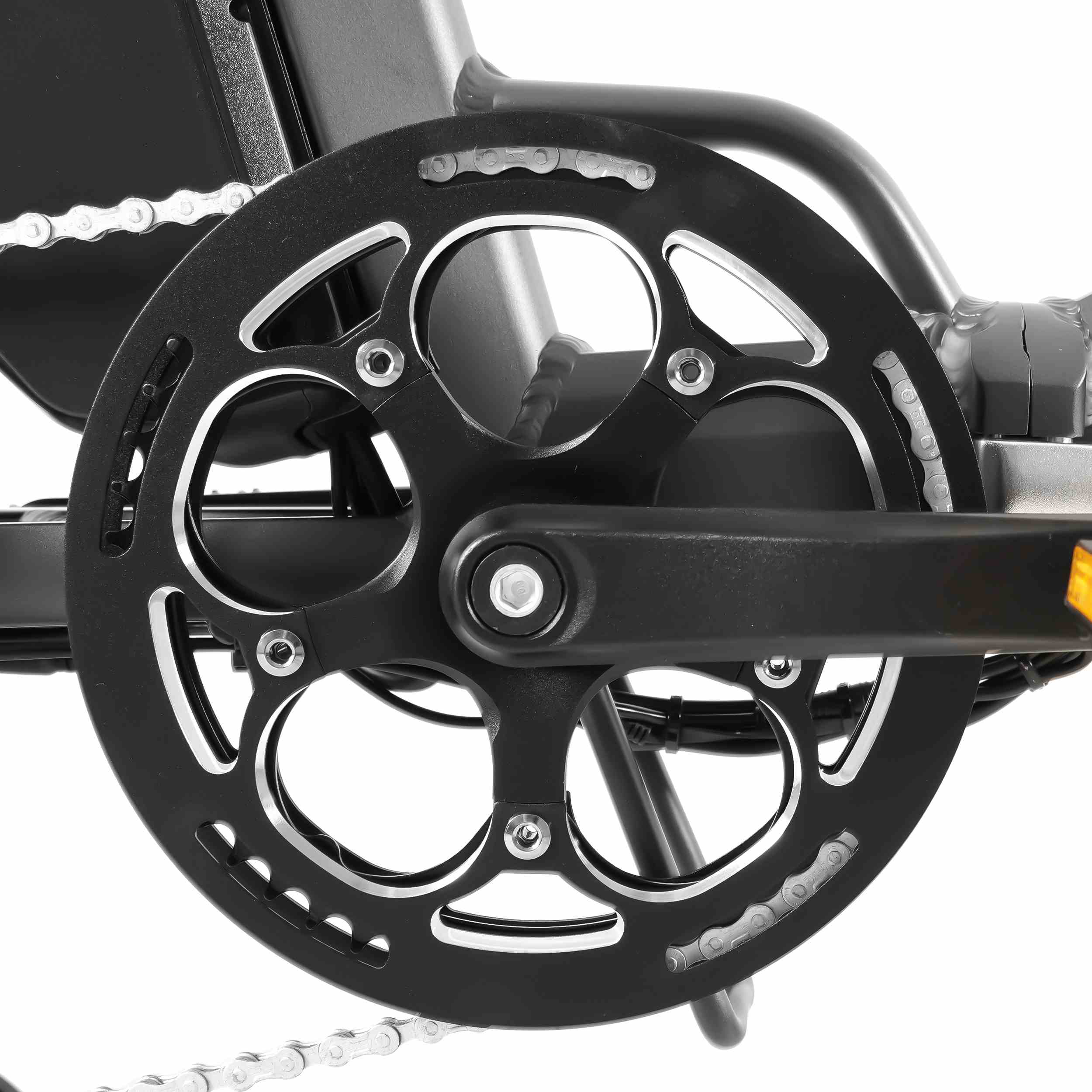

- Crank: 148T 170mm 7-speed ED Tooth Plate
- Rear Derailleur: Shimano 7-Speed
- Chain: 7-speed Anti-rust, 1/2" * 3/32"
- Handlebars: Aluminum Alloy
Geometry
- Suitable Height: 155cm-200cm（5'1" - 6'5"）
- Seat Height: 32.3"-39.7"（82-101cm)
- Handlebar Height: 41.7"-45.7" (106-116cm)
- Bike Weight: About 36KG (with Battery)
- Maximum Load: 330lbs (150kg)
- Safe Load: 265lbs (120kg)
- Overall Size: 66.2" * 26.4" *41.7" (168*67*106cm)
- Package Size: 37.4" * 17.3" * 29.9" (95*44*76cm)
