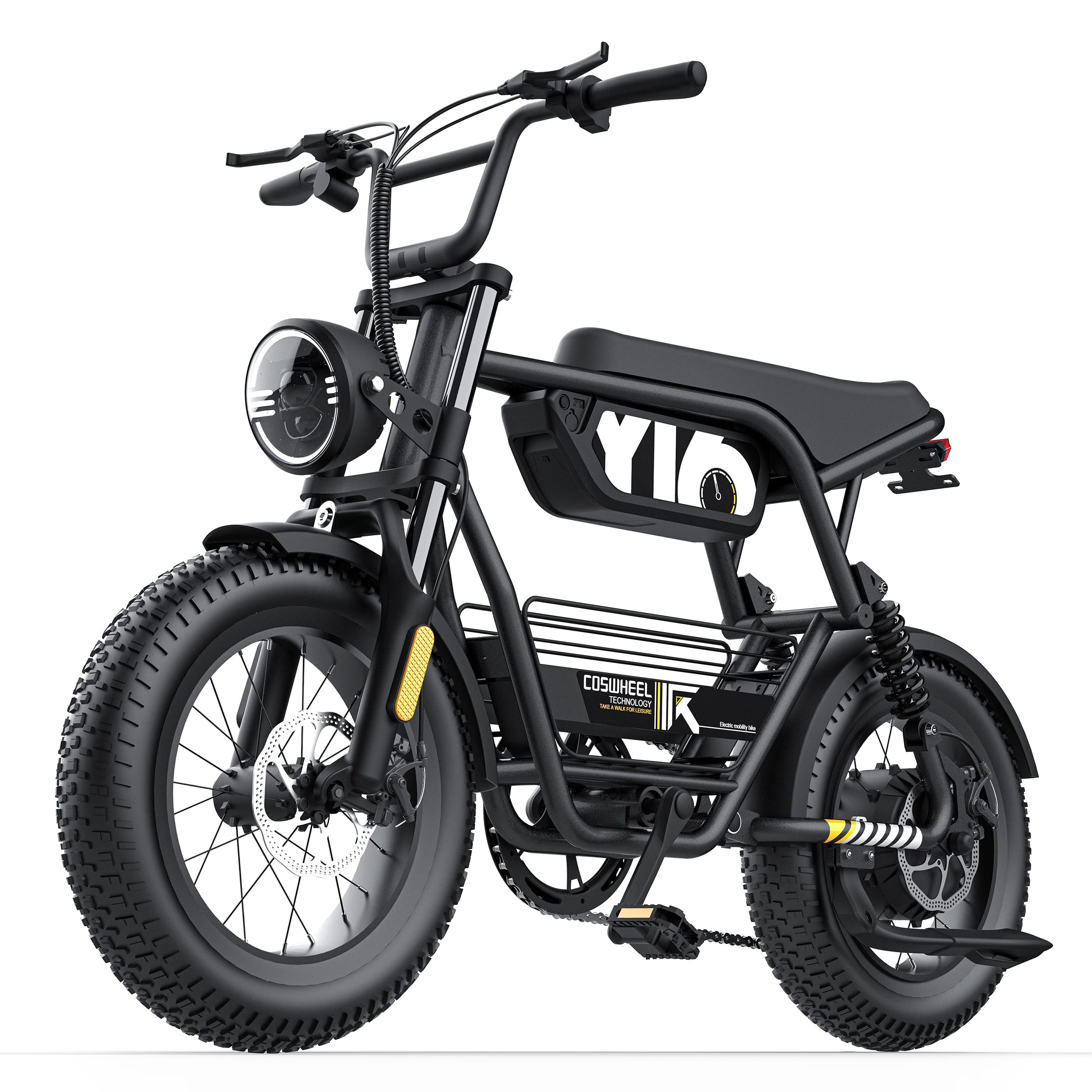

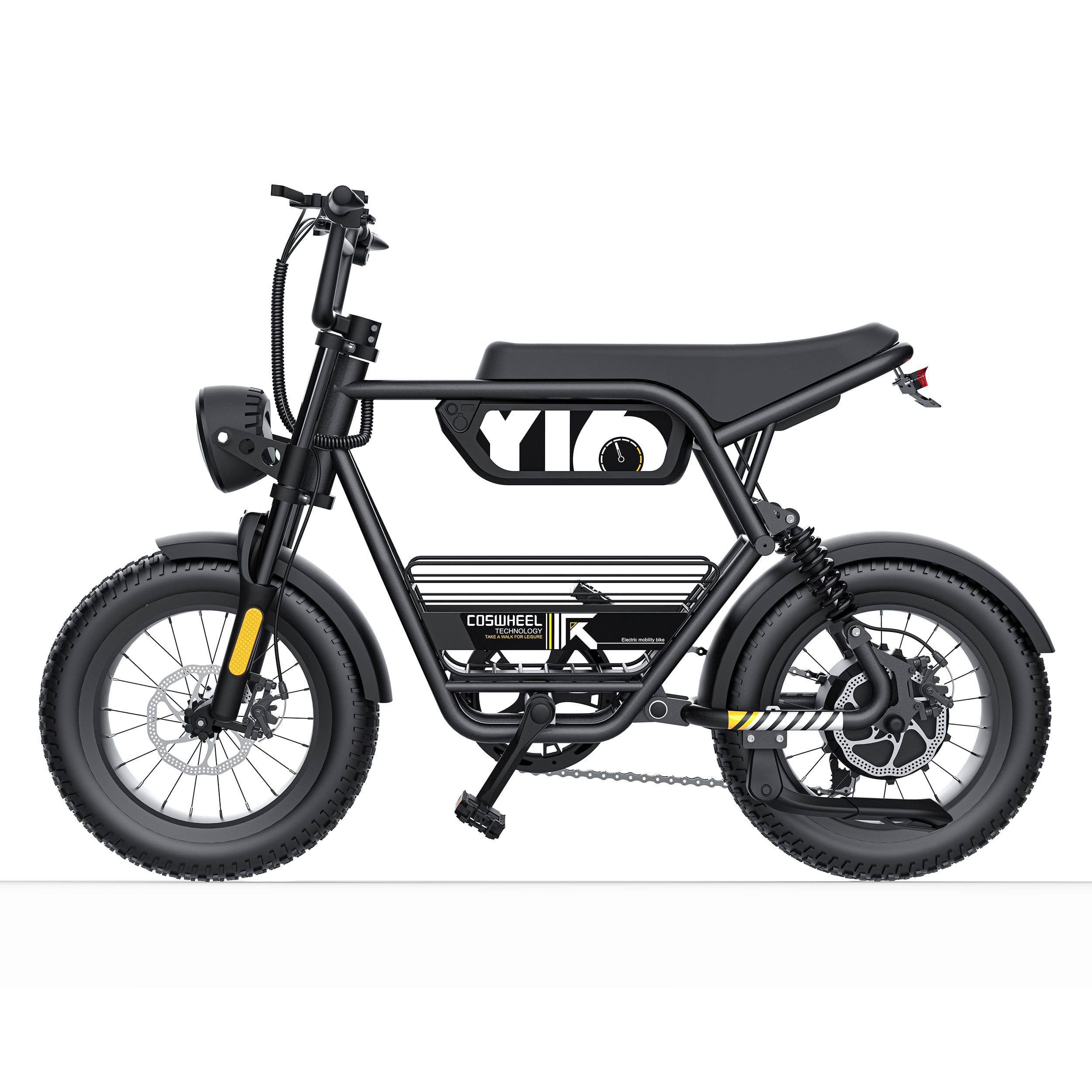

Y16 Pre-Sale
Pre-sale, expected to be in stock in June 20th

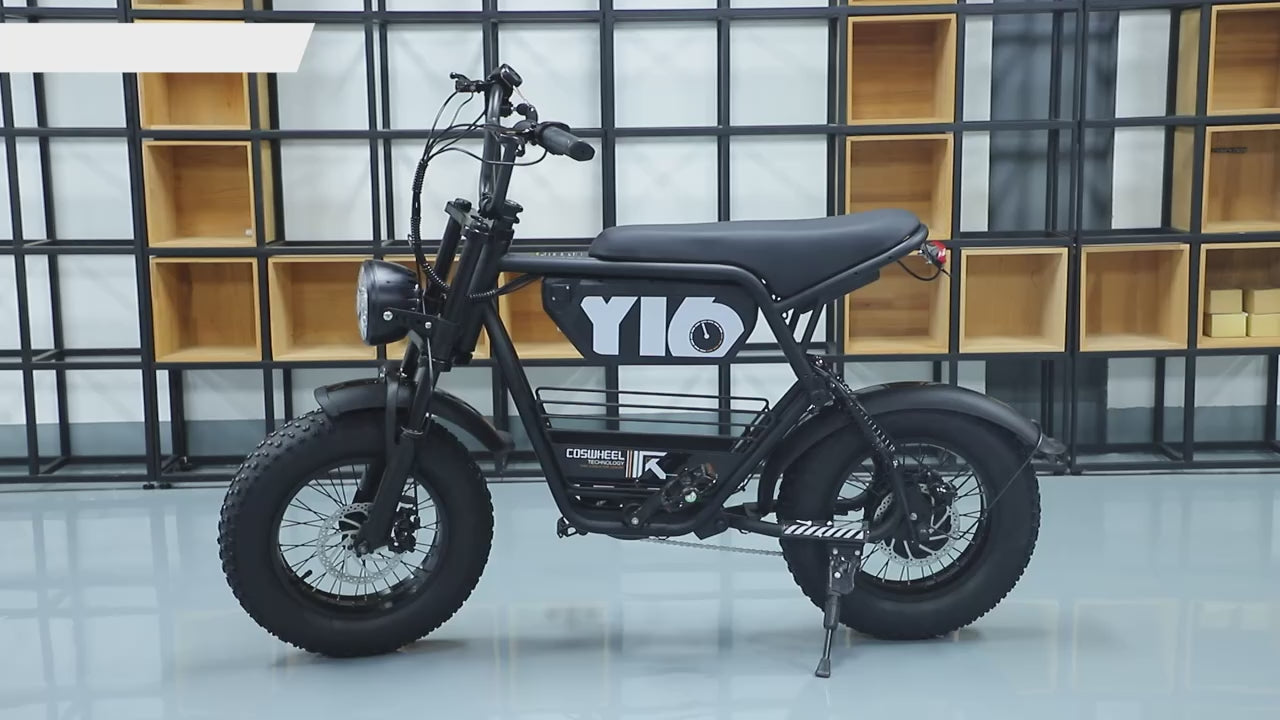

Video
Y16 Spec
Performance
- Top Speed: Class 2/3, 45Km/h
- Range: 48km in Class-2 throttle-only mode (pure electricity); 84km in Class-1 PAS (pedal assist)
- Motor: 48V Peak 1000W (Rated 750W) Brushless Rear Hub Motor 50N.m
- Battery: 48V 15Ah Battery (Lithium 18650 Cells)
- Energy: 720Wh
- Front Suspension: Double-Crown Front Fork, Total Length 630mm, Gap 135mm, 80mm Travel
- Rear Suspension: Dual Shock Absorbers, Hole Spacing 185mm, Poundage Wire Diameter 5mm

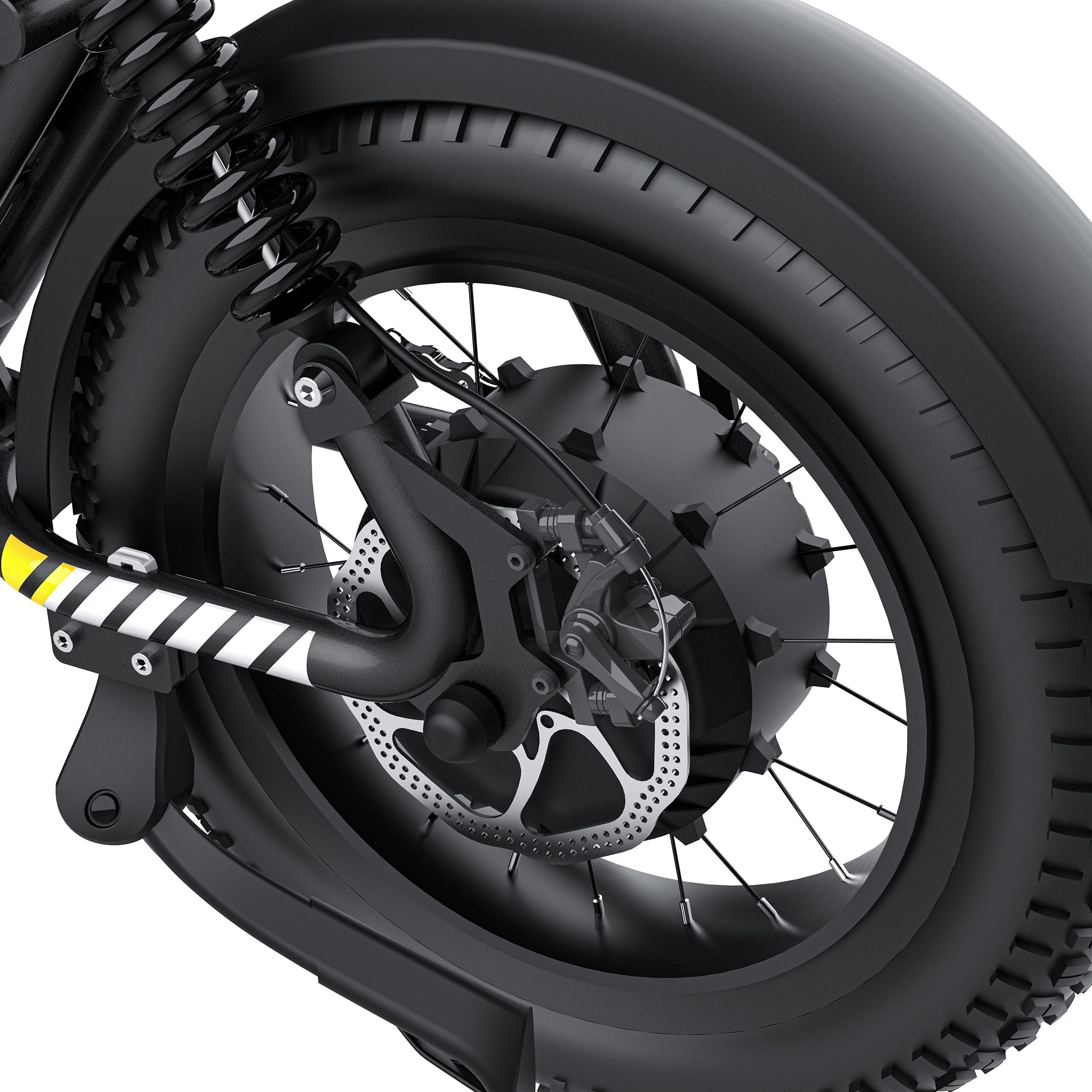

- Brakes: Double Disc Brakes, Equipped with 160mm Stainless Brake Disc
- Tires: ChaoYang All Terrain Tire 16" × 4.0" H5176 30TPI
- Throttle: Grip Twist Throttle
Electronics
- Charger: 48V3A Charger
- Charging Time: 3.5-8.0 Hours

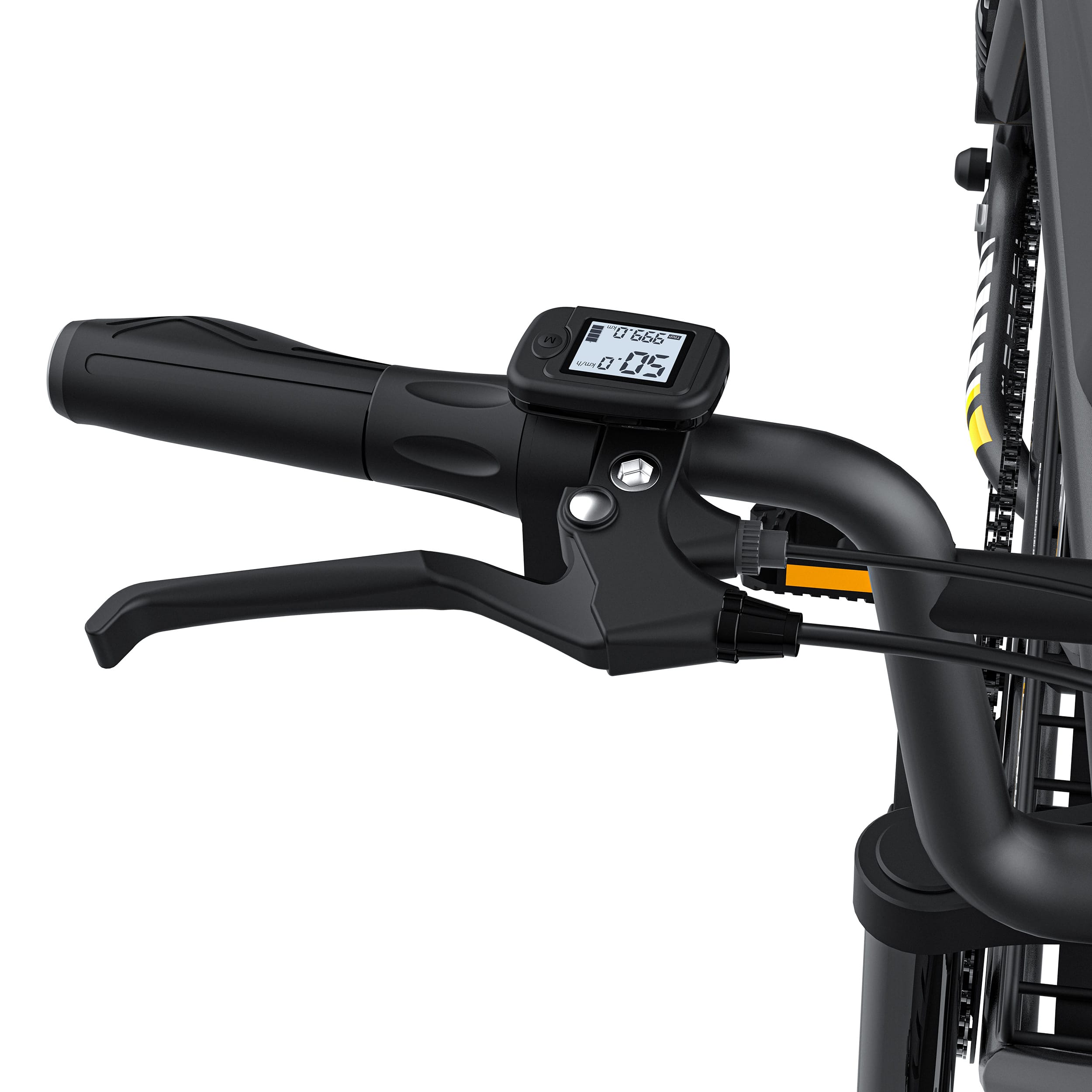

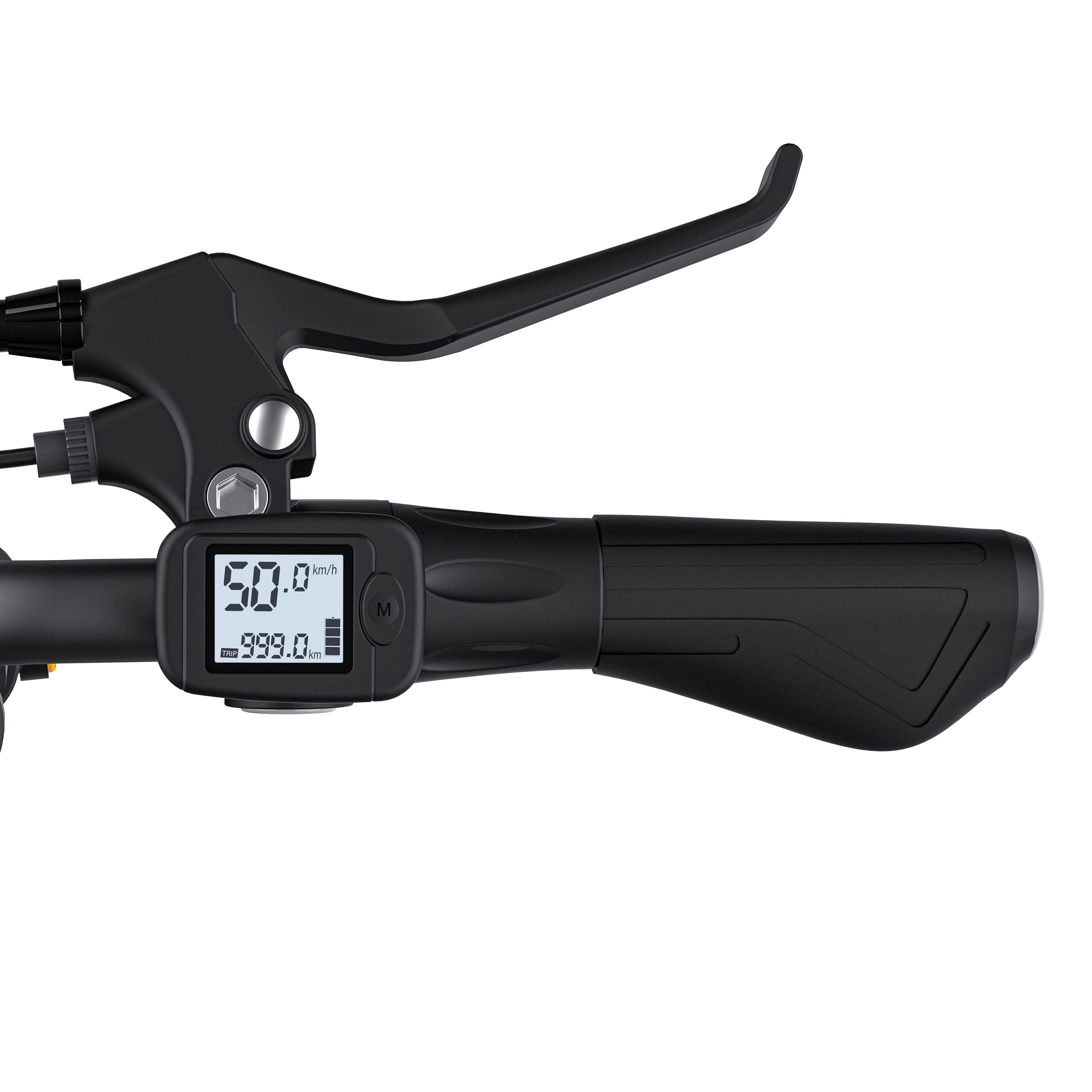

- Display: Easy Read LCD Display
- Controller: 48V 22A

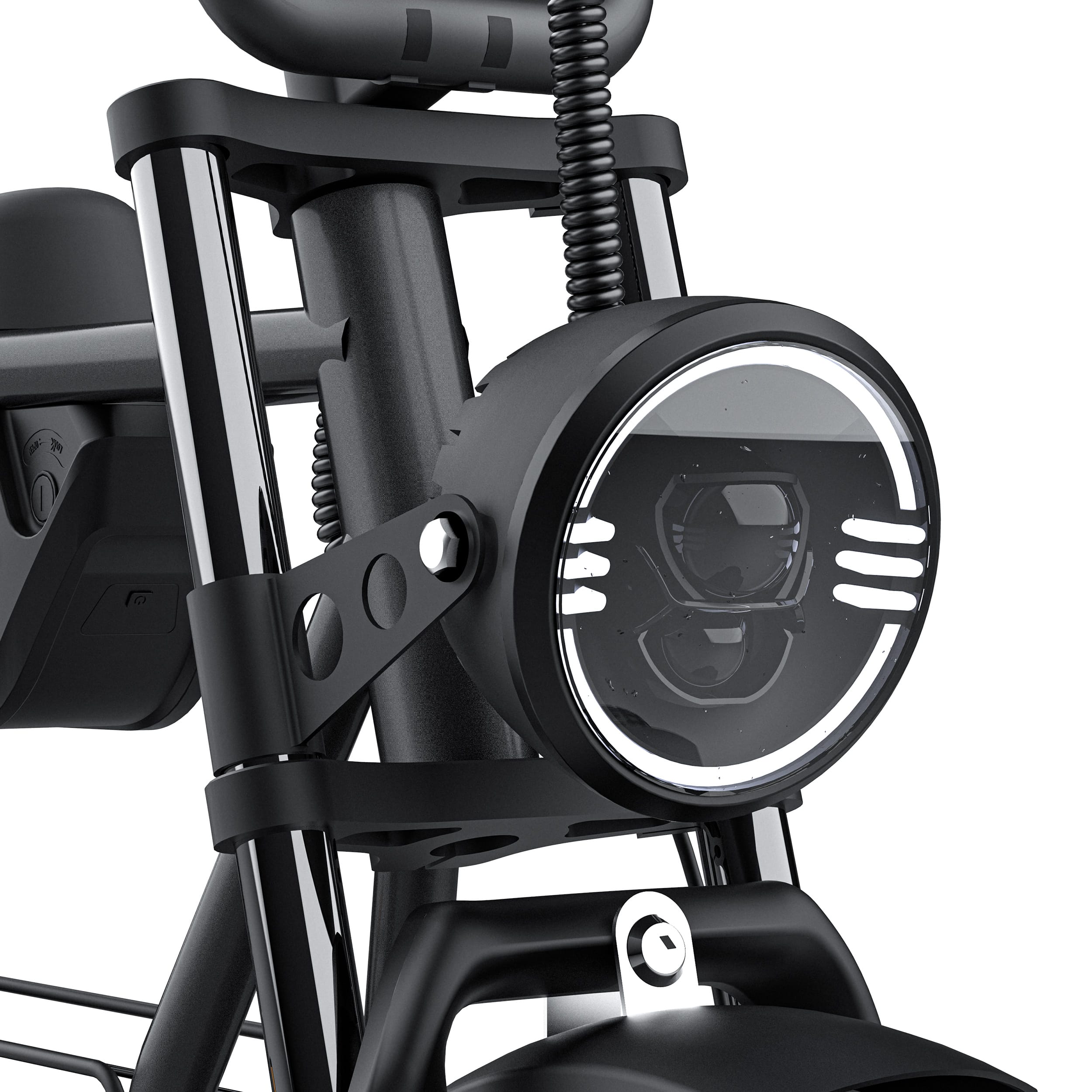

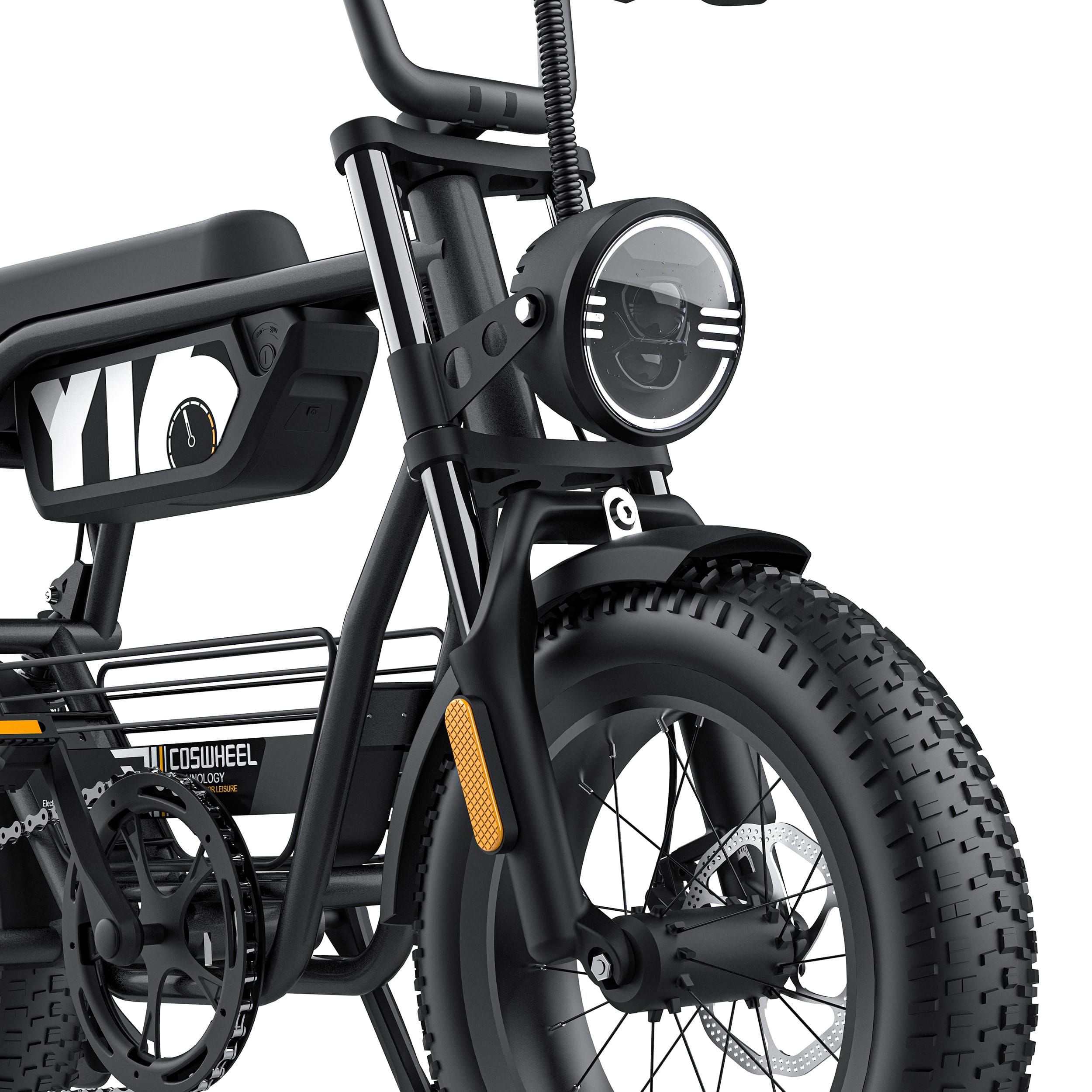

- Front Light: Classic Angel Eye Headlight, 120 LUX
- Rear Light: LED
- Pedal Assist: 1 Levels
- Sensors: Speed Sensor
Components
- Frame: Iron Frame
- Pedal: Black
- Crank: 46T Double Cover*Ffish Shape
- Rear Derailleur: Single Speed
- Chain: Anti-rust, 116 Mesh
- Handlebars: Black, 25.4*L:640mm*H:180mm, 17°

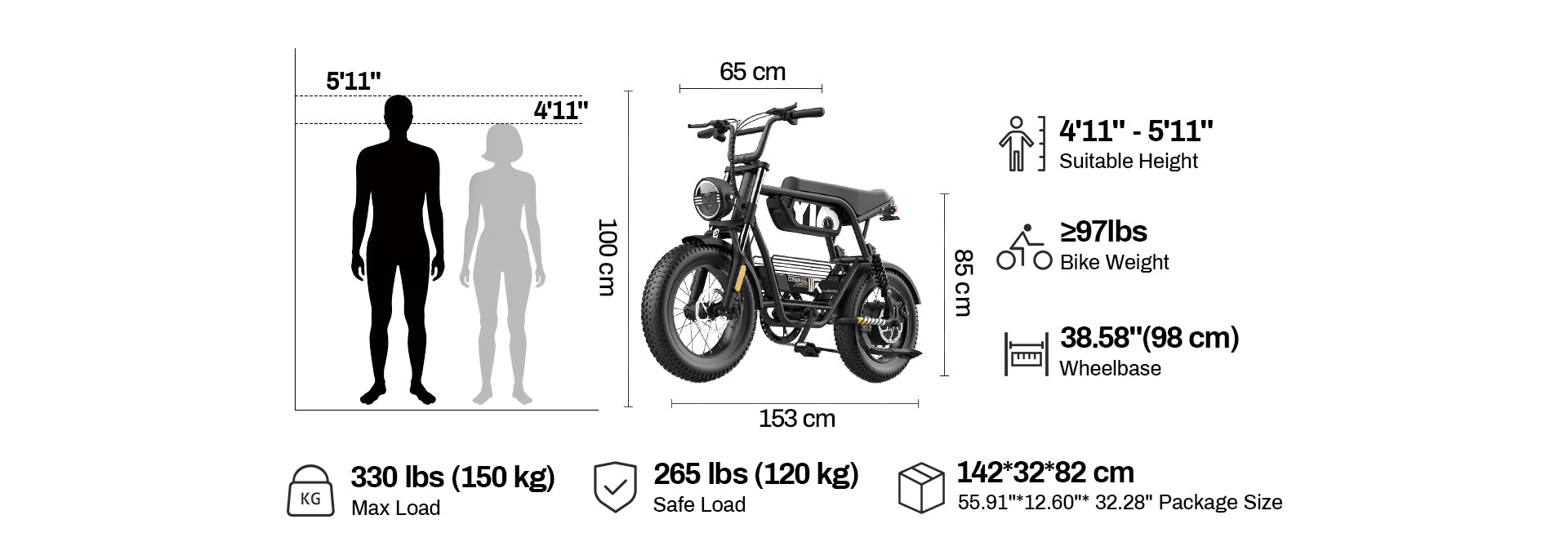

Geometry
- Suitable Height: 4'11" - 5'11" (4.9ft-5.9ft)
- Seat Height: 29.53" (75cm)
- Bike Height: 39.37" (100cm)
- Wheelbase: 38.58" (98cm)
- Handlebar Width: 25.59" (65cm)
- Bike Weight: ≥97lbs (with Battery) (≥44kg)
- Maximum Load: 330lbs (150kg)
- Safe Load: 265lbs (120kg)
- Overall Size: 60.24" * 25.59" *39.37" (153*65*100cm)
- Package Size: 55.91" * 12.60" * 32.28" (142*32*82cm)
Special Tips
Y16 model have CE and COC certificates. The speed of Y16 ebikes shipped to Europe will be limited to 25km/h when they leave the factory. After receiving the bike, you can contact us for guidance on lifting the speed limit. We can also send you a 250W logo to be affixed to the motor in accordance with European regulations.At present, European customers have not reported any regulatory issues after riding
Y16 features in detail

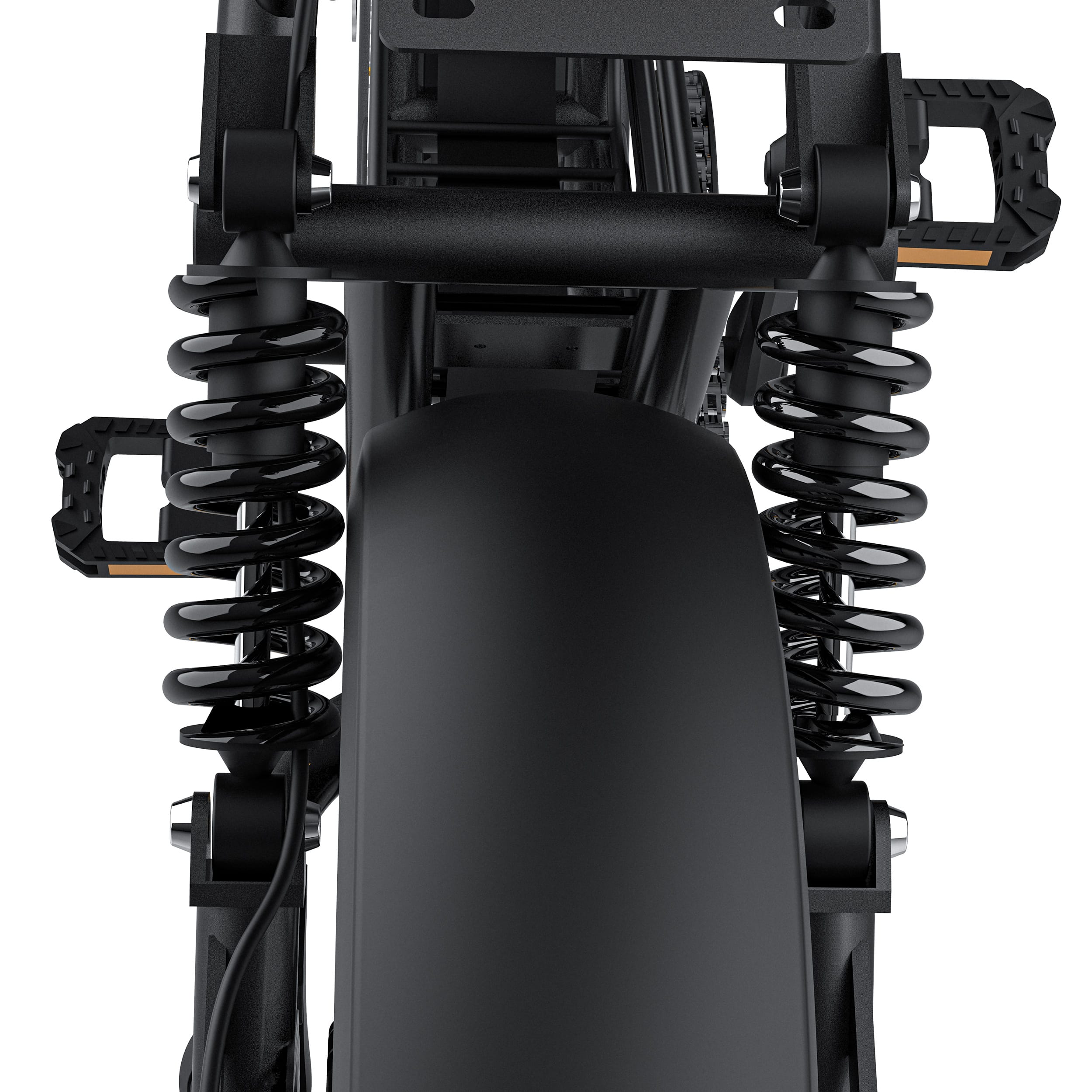

The Coswheel Y16 shock absorbers features Hole center 185mm ,black, 80mm Suspension Travel，adjustable double front suspension shocks with an inverted coil spring dual shock
The crank adopts a double cover chain design, which effectively reduces the risk of chain dropping and makes you ride more safely.

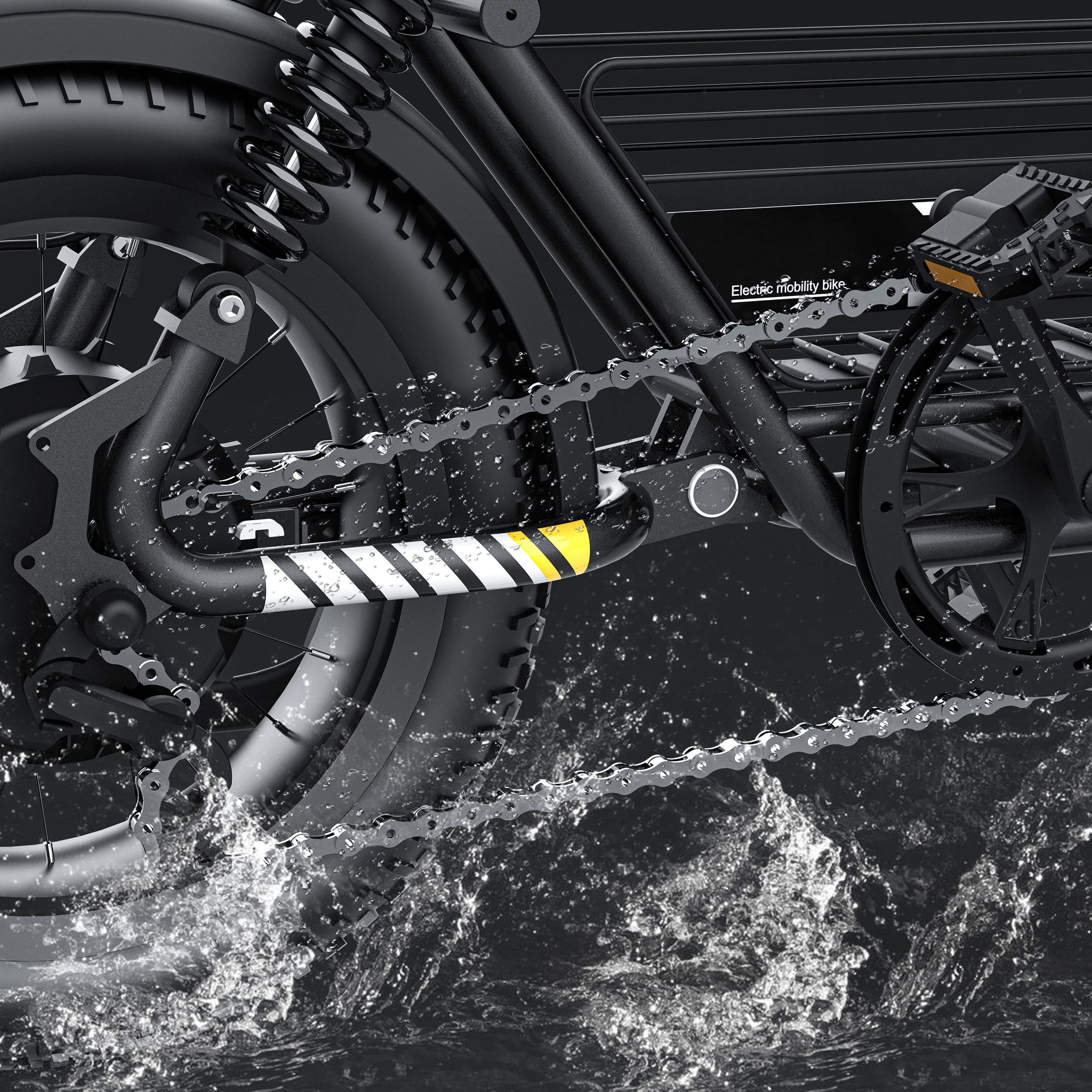

Brand new waterproof and rust-proof chain, silver-white.

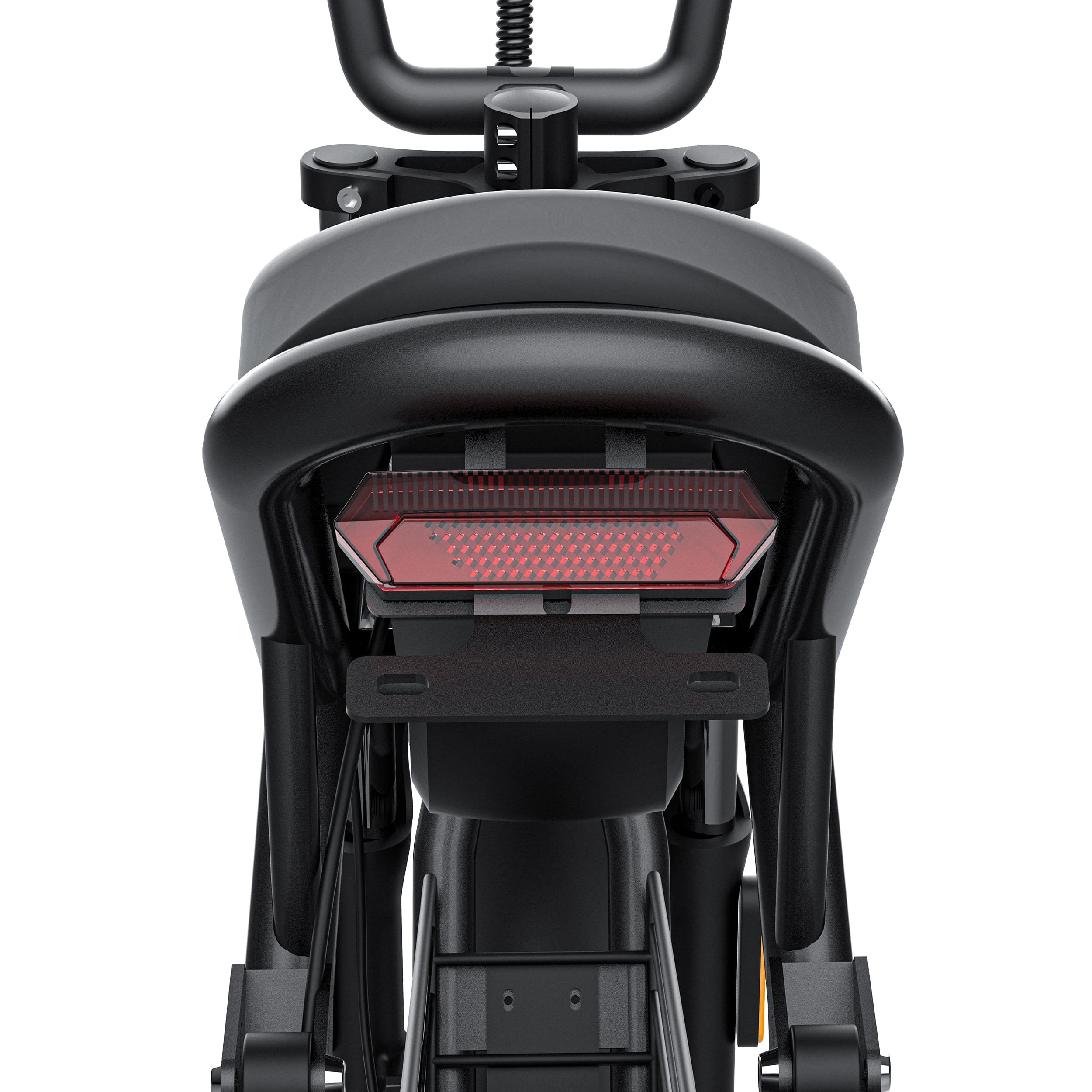

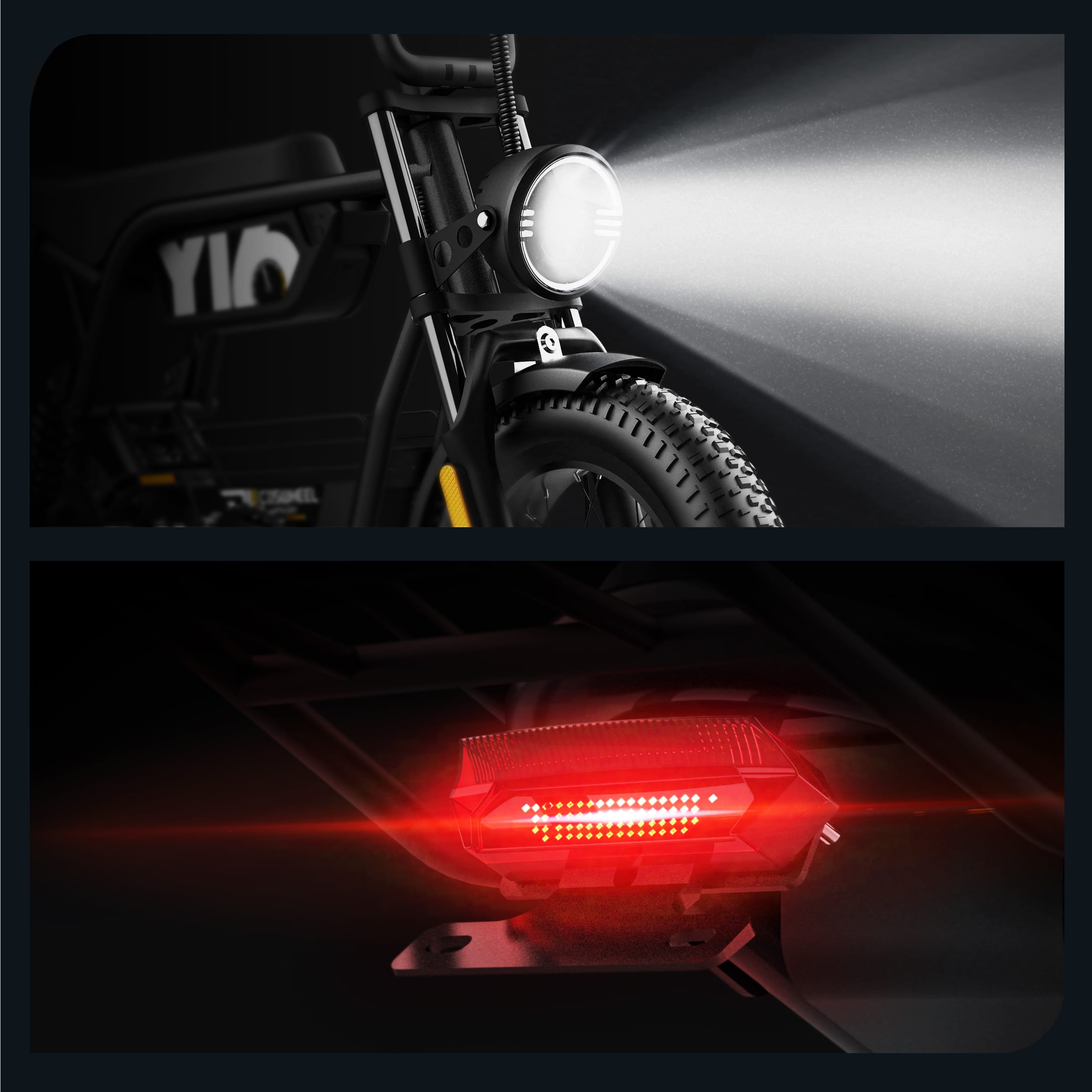

The Y16 carries a taillight along with dual turn signals to illuminate the darkest of roads
The Coswheel Y16 shock absorbers features Hole center 185mm ,black, 80mm Suspension Travel，adjustable double front suspension shocks with an inverted coil spring dual shock
The crank adopts a double cover chain design, which effectively reduces the risk of chain dropping and makes you ride more safely.
Brand new waterproof and rust-proof chain, silver-white.
The Y16 carries a taillight along with dual turn signals to illuminate the darkest of roads
Why choose Coswheel Y16

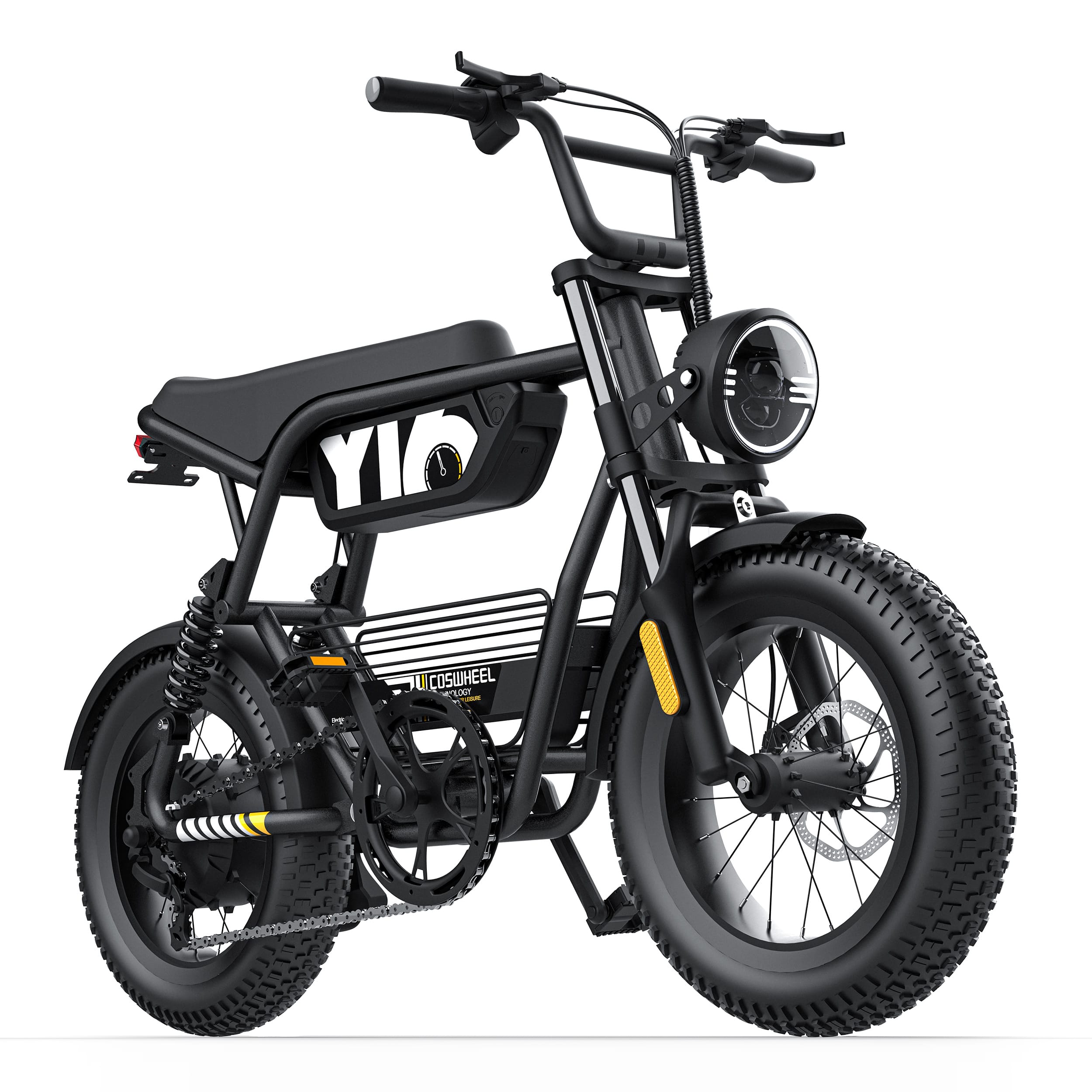

Fat Tire Commuter Electric Bike
Coswheel Y16 Focused on simplicity and ease,Designed for active lifestyles, rigid steel full suspension fork make it a low-maintenance choice for city riders,and offer enhanced control and comfort for diverse terrains
1000w (rated 750w)rear motor deliver dynamic performance for riders who prefer versatility
The double front suspension fork, with the 20x16" puncture protection tires, effectively cushions the shocks from diverse terrains. Riding this bike brings you much comfort and easiness

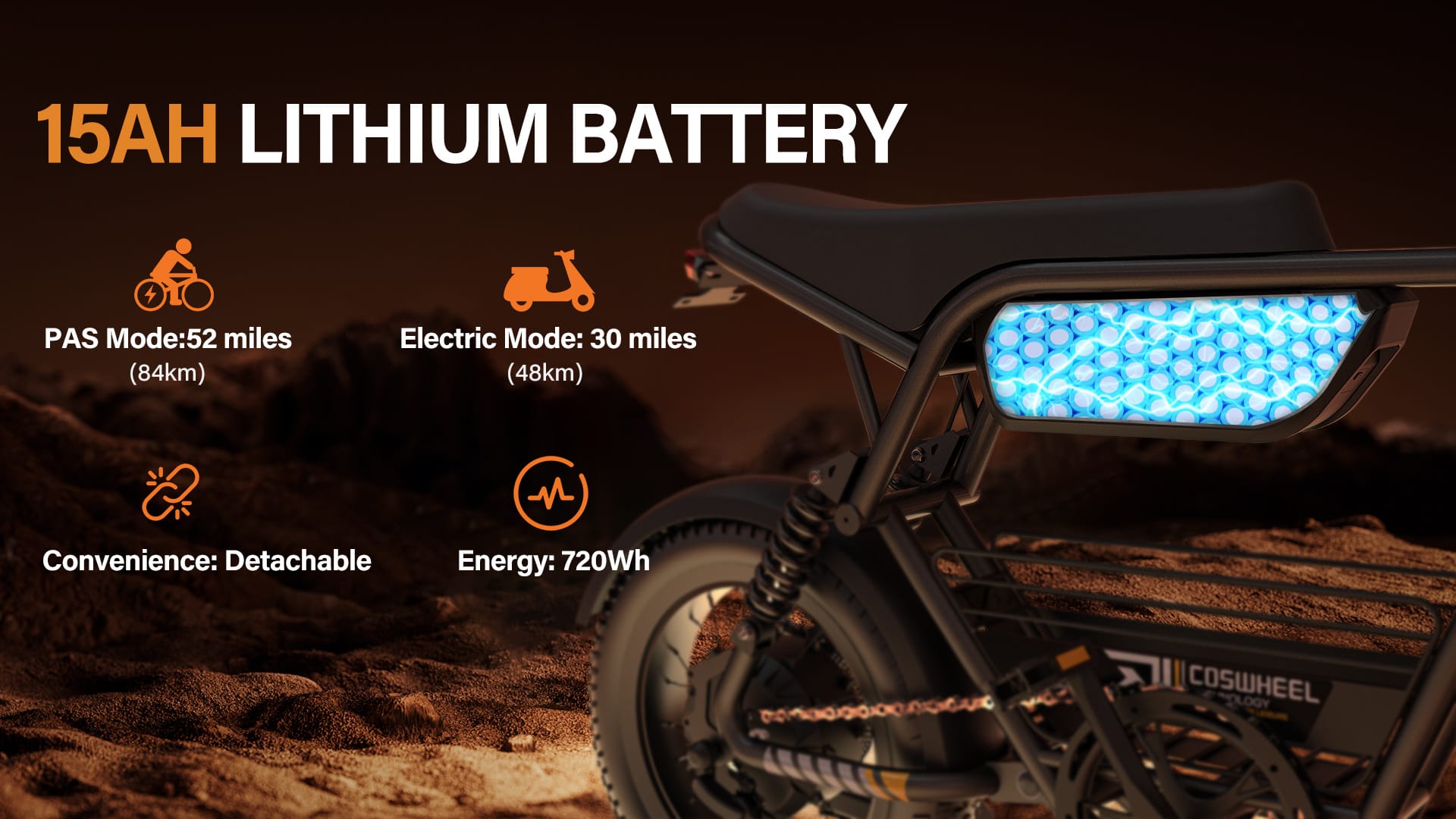

Yes, the 48V 15Ah battery provides a reliable range of up to 84 km for extended adventures
Absolutely! It's designed to load up to 150 kg,perfect for carrying camping gears and daily necessities
The front and rear lights ensure visibility during every ride, day or night, and the hydraulic disc brakes help stop the bike timely and quickly
Your companion to explore the city and embody style
Choose The Ride That Suits You
The round tube frame design offers comfortable elegance for anyone who wants to travel in style. Whether fashionable dresses or casual outfits, this e-bike fits your lifestyle perfectly.
Ride longer, explore further
With 720Wh battery you experience limitless freedom. Up to 84 km range for pure energy at the touch of a button, explore every corner effortlessly!
Unique original design
Get in comfortably, drive effortlessly.
With ergonomic original design,aviation aluminum alloy frame , not only provides effortless getting on and off, but also makes the ride a carefree pleasure.
Strong control, safe braking
Whether it's steep descents or abrupt stops, stay in control and overcome obstacles with confidence.
