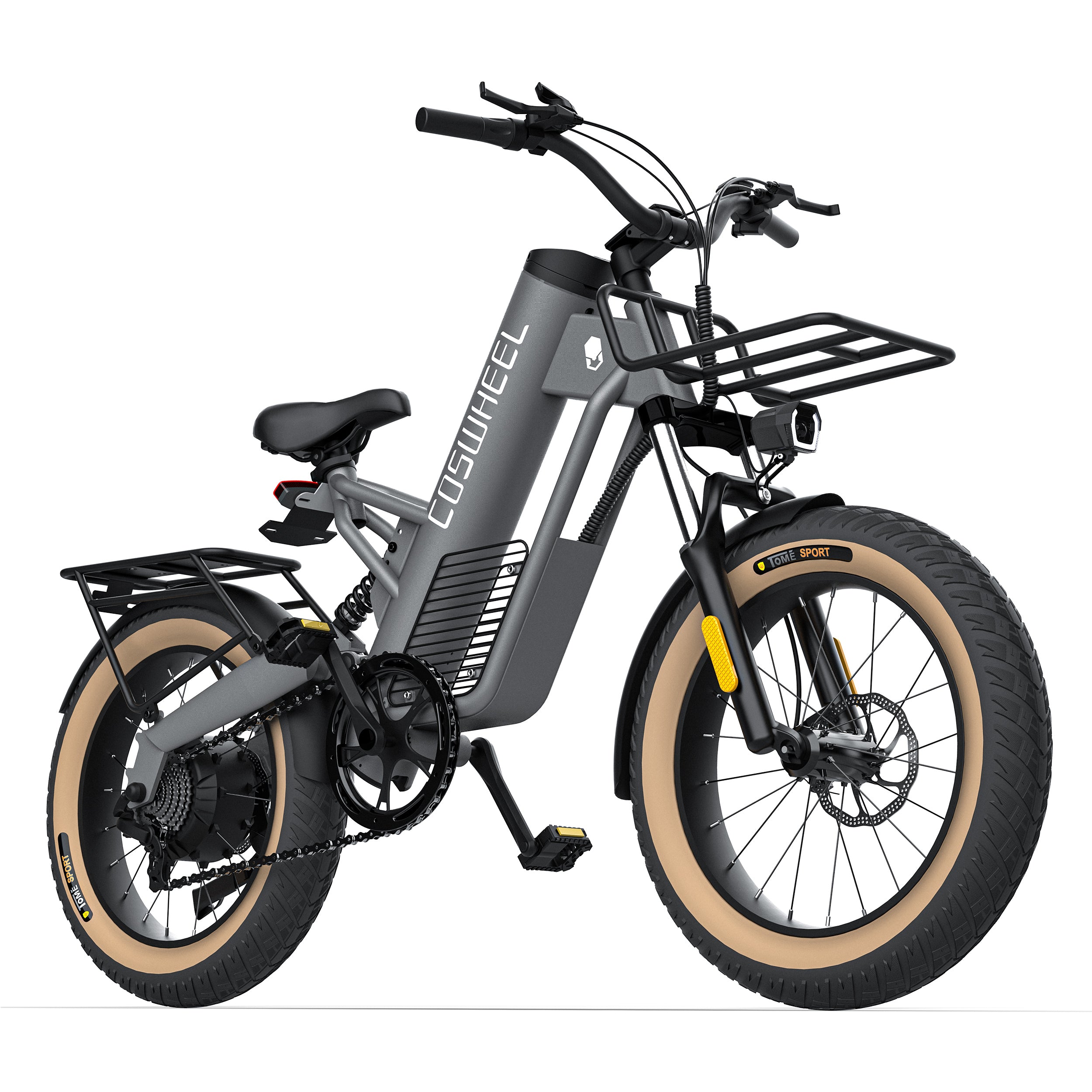

M20

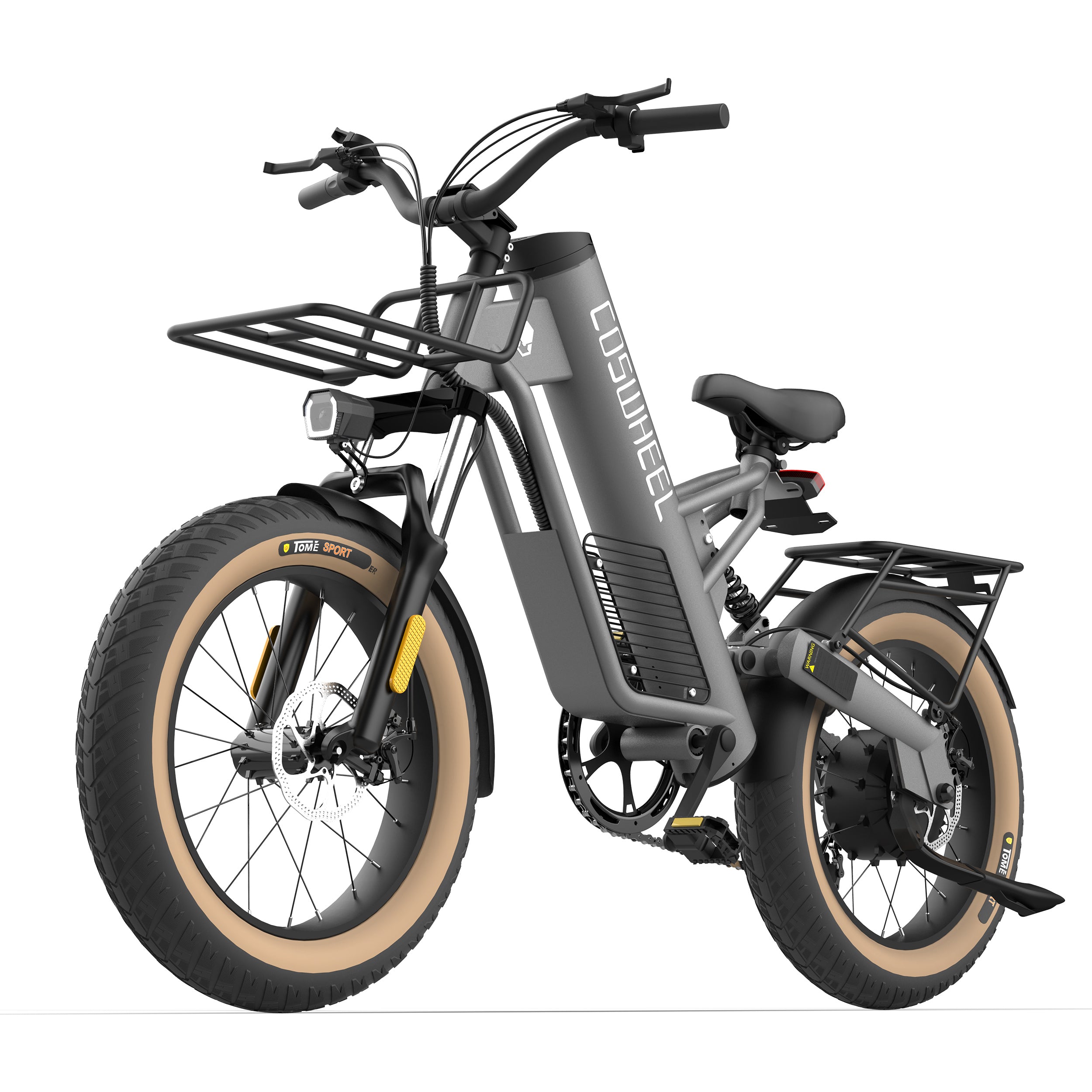

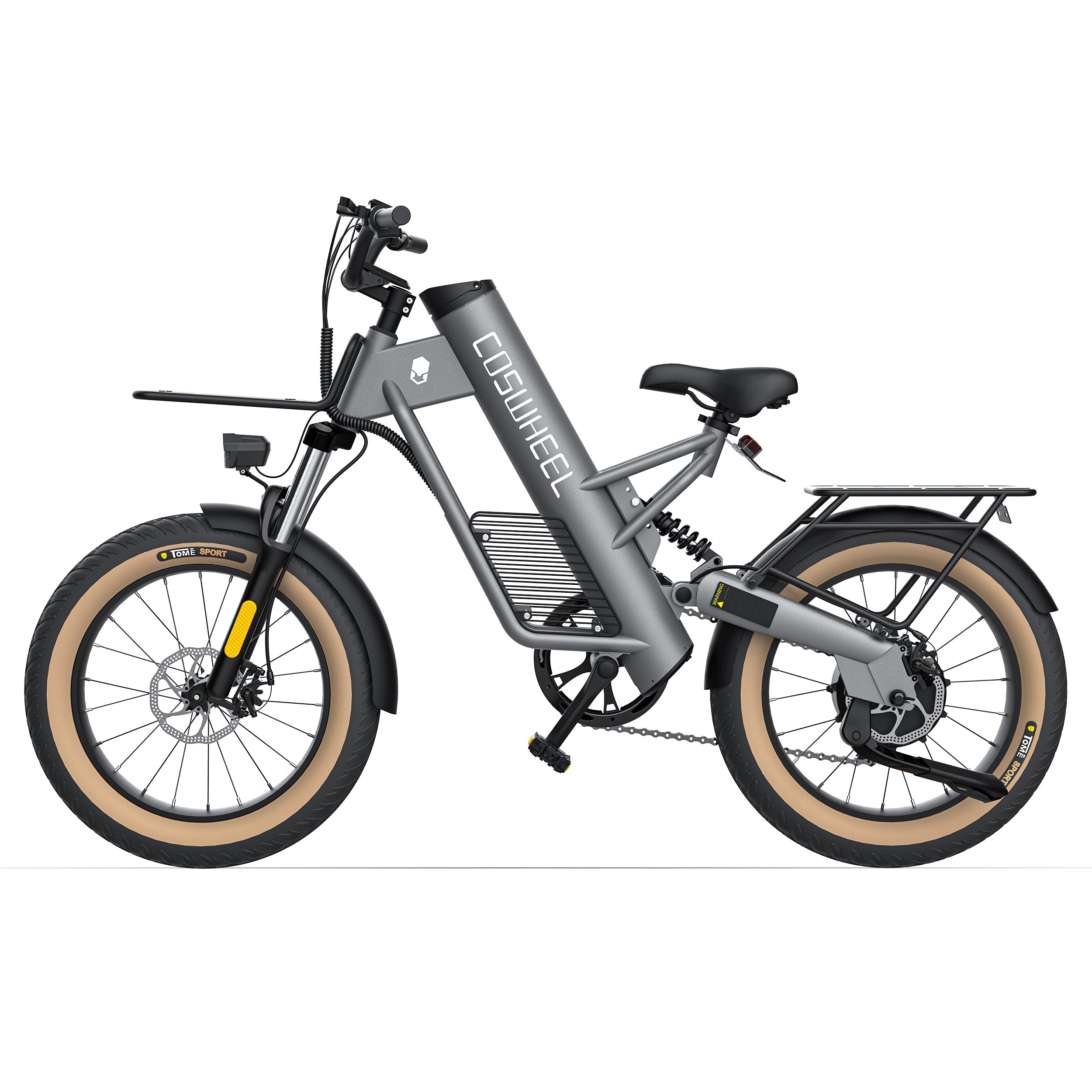

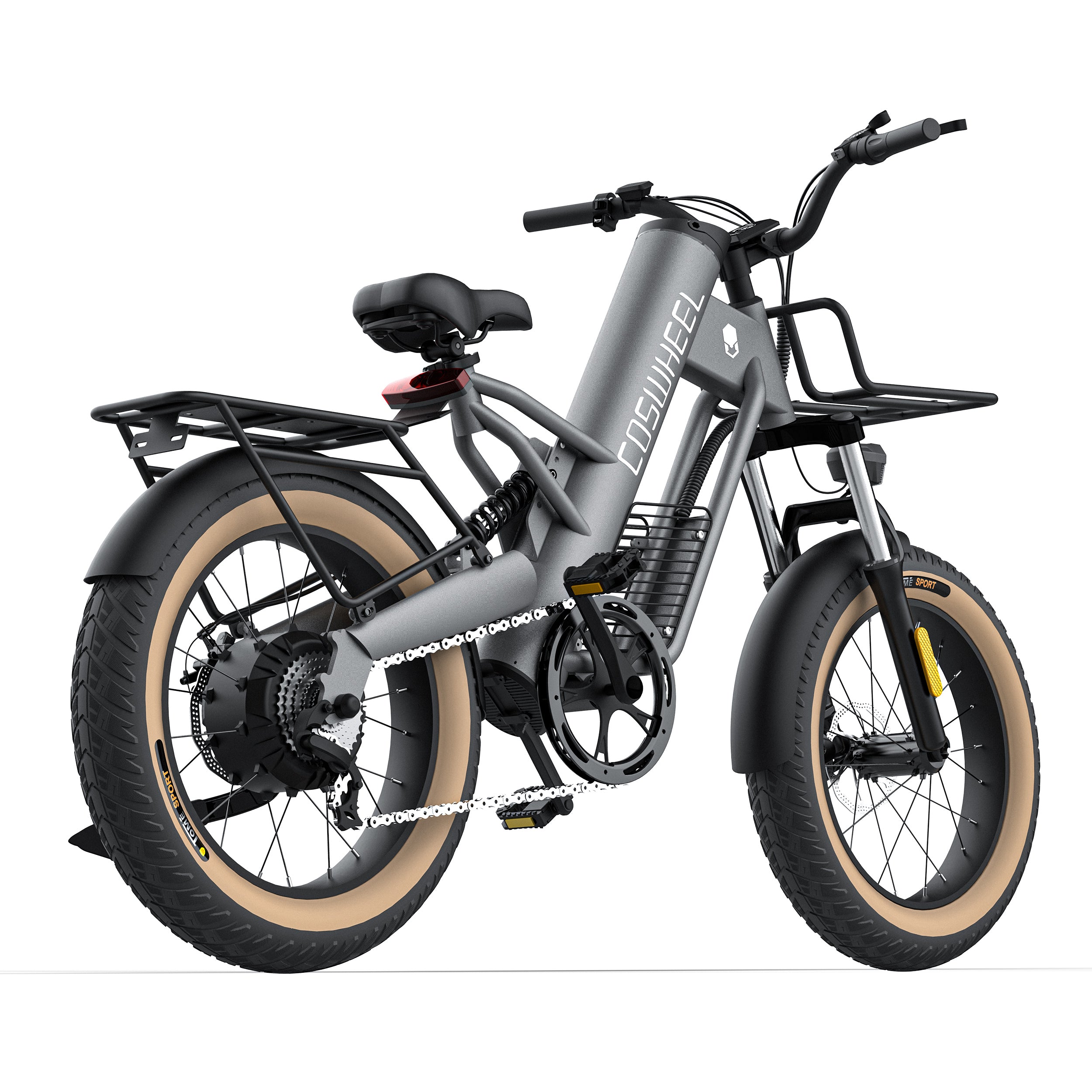

20 x 4.0" Commuter ebike with Front Shelves design
M20 Specifications
Performance
- Top Speed: Class 2/3, 45Km/h
- Range: 48km in Class-2 throttle-only mode (pure electricity); 84km in Class-1 PAS (pedal assist)
- Motor: 48V Peak 1000W (Rated 750W) Brushless Rear Hub Motor 50N.m
- Battery: 48V 15Ah Battery (Lithium 18650 Cells)
- Energy: 720Wh
- Front Suspension: 20" Shoulder Shock Absorbing, 80mm Travel
- Brakes: Line Brake, Equipped with 160mm Stainless Brake Disc
- Tires: Road Tire 20"*4"
- Throttle: Grip Twist Throttle
Electronics
- Charger: 48V3A Charger
- Charging Time: 3.5-8.0 Hours
- Display: Easy Read LCD Display
- Controller: 48V 22A
- Front Light: LED
- Rear Light: LED
- Pedal Assist: 3 Levels
- Sensors: Speed Sensor
Components
- Frame: Hydroformed Triple-Butted 6061-T6 Aluminium Alloy
- Pedal: Aluminum Alloy Pedal, with Reflect-light, Axis 9/16 x2
- Crank: 1/2 "*3/32"*46T 7-speed ED Tooth Plate
- Rear Derailleur: Shimano 7-Speed
- Chain: 7-speed Anti-rust, 1/2" * 3/32"
- Handlebars: Bend Handlebar
Geometry
- Suitable Height: 5'1" - 6'8"
- Seat Height: 33.9" (86cm)
- Bike Height: 41.3" (105cm)
- Wheelbase: 43.3" (110cm)
- Handlebar Width: 29.1" (74cm)
- Bike Weight: ≥71lbs (with Battery) (≥32kg)
- Maximum Load: 330lbs (150kg)
- Safe Load: 265lbs (120kg)
- Overall Size: 64.2" * 29.1" *41.3" (163*74*105cm)
- Package Size: 55.1" * 12.6" * 31.5" (140*32*80cm)
Special Tips
M20 model have CE and COC certificates. The speed of M20 ebikes shipped to Europe will be limited to 25km/h when they leave the factory. After receiving the bike, you can contact us for guidance on lifting the speed limit. We can also send you a 250W logo to be affixed to the motor in accordance with European regulations.At present, European customers have not reported any regulatory issues after riding.
Video
M20 features in detail
The M20 equipped a peak 1000W brushless powerful rear hub motor, rated at 750W,making your riding journey more powerful and faster

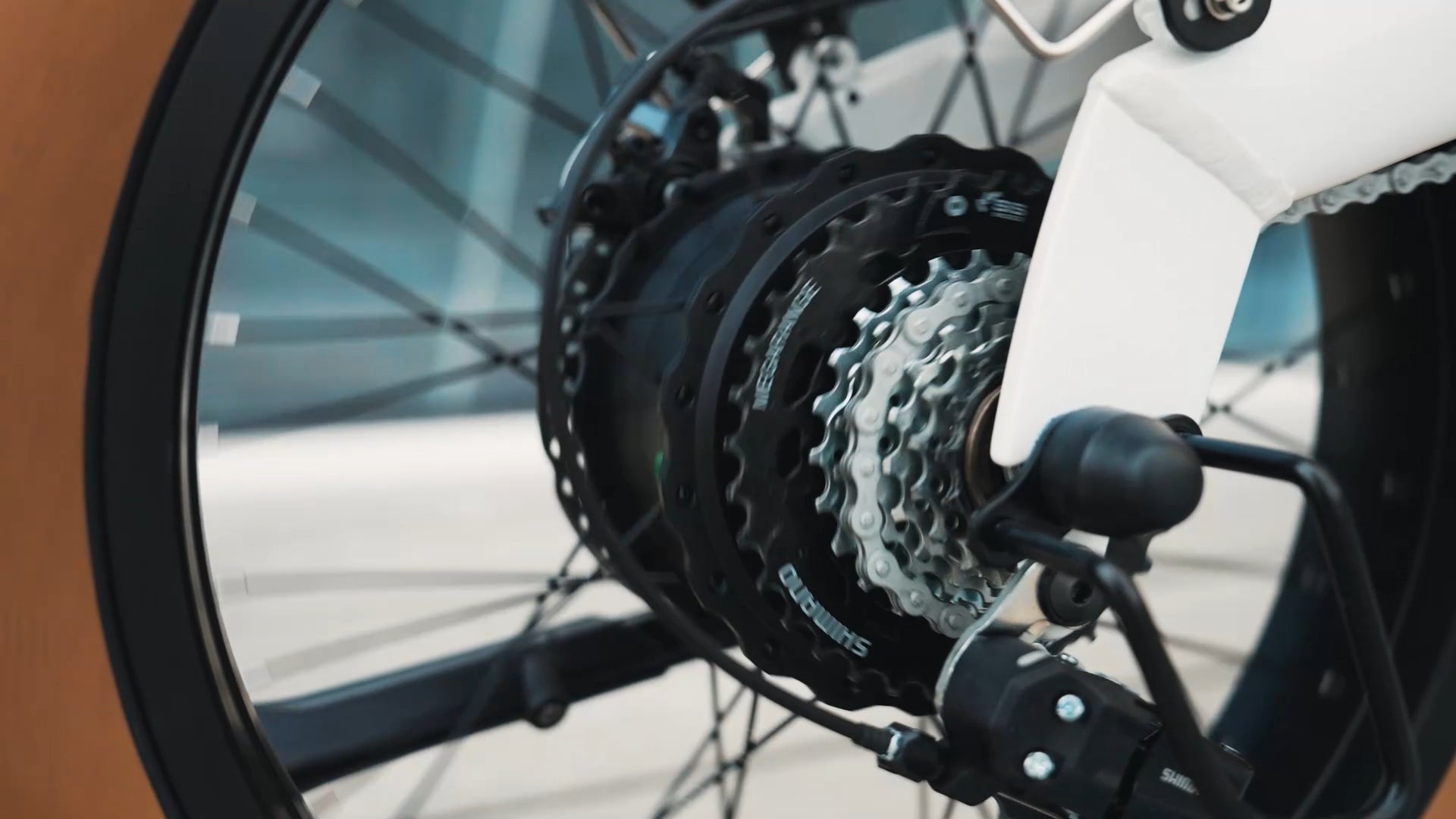

When the trail gets steep, we got you covered. The M20 comes standard with an 7-speed cassette to provide that extra power to smooth out even the gnarliest hills

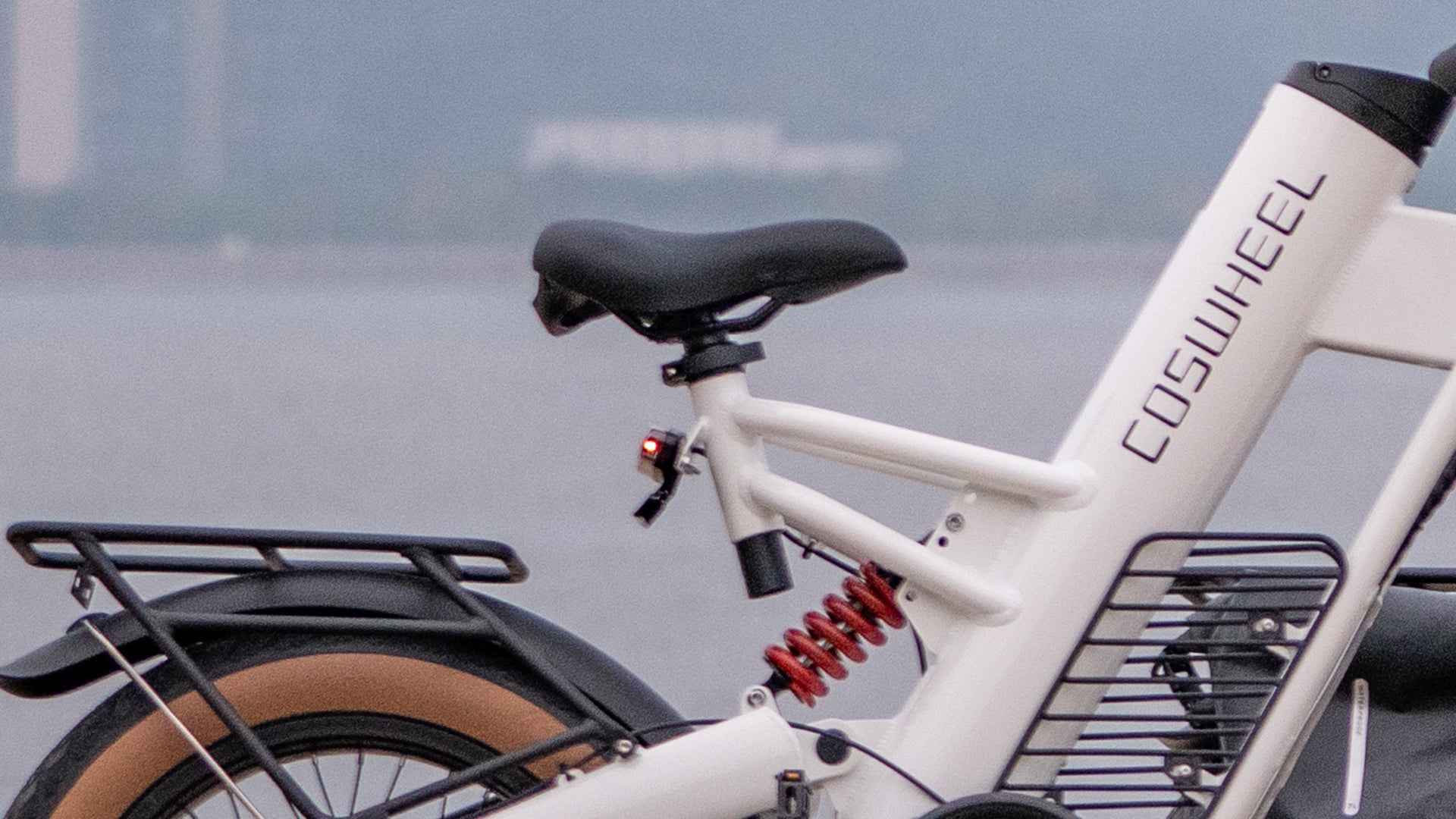

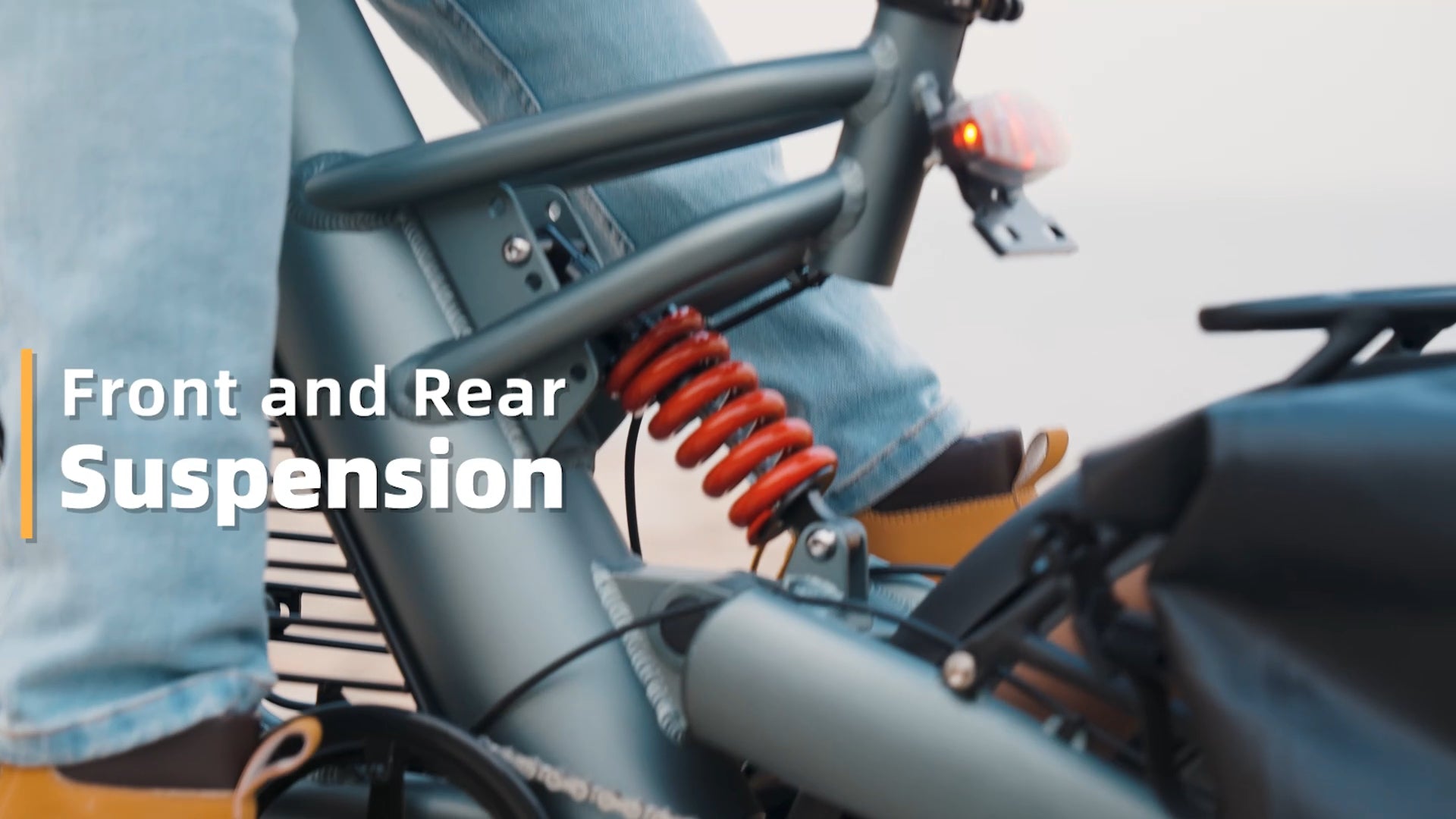

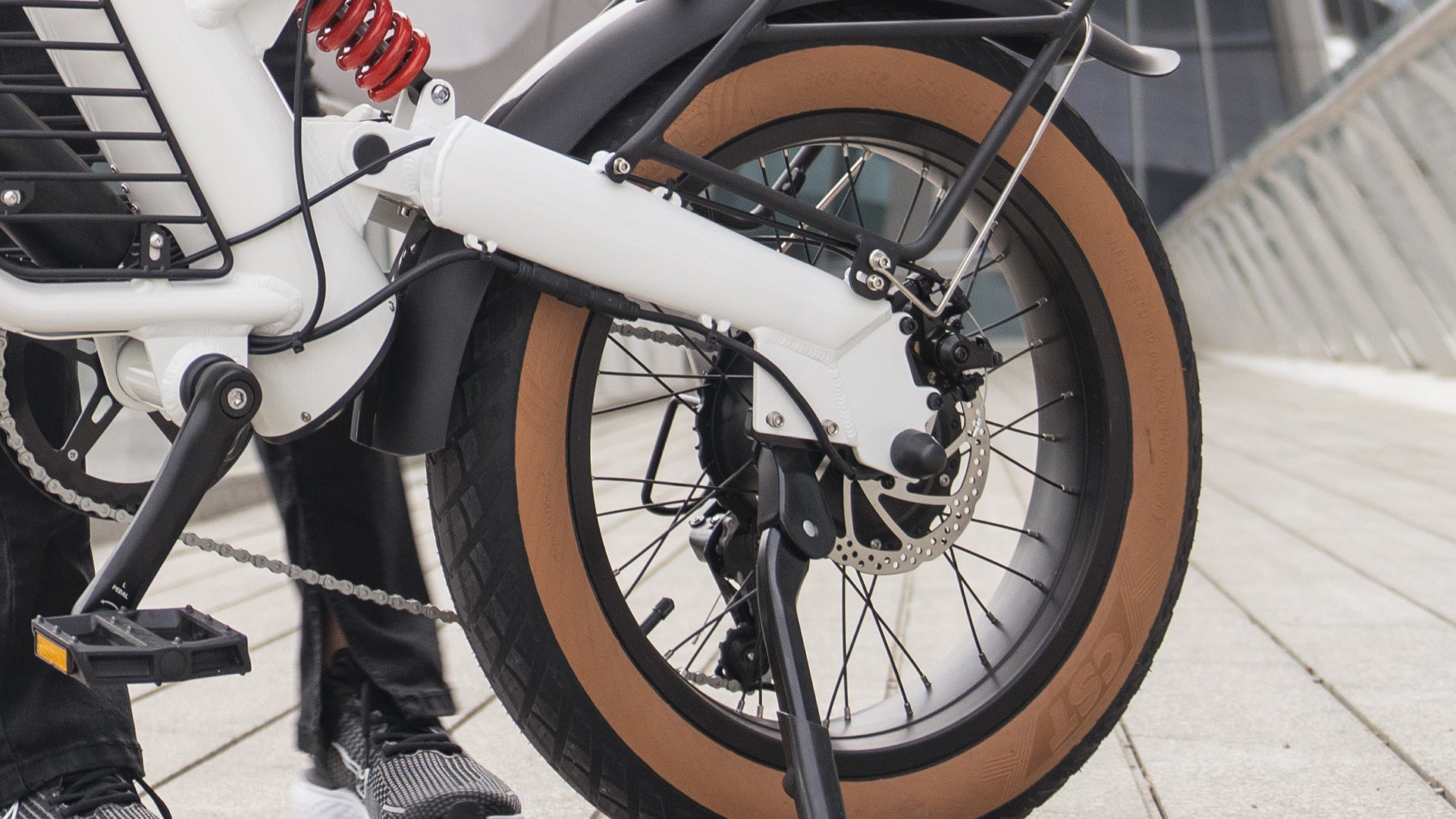

Rear Suspension: adjustable damping
suspension,180mm Travel.Provide a smoother,more comfortable ride by absorbing bumps and vibrations from the road

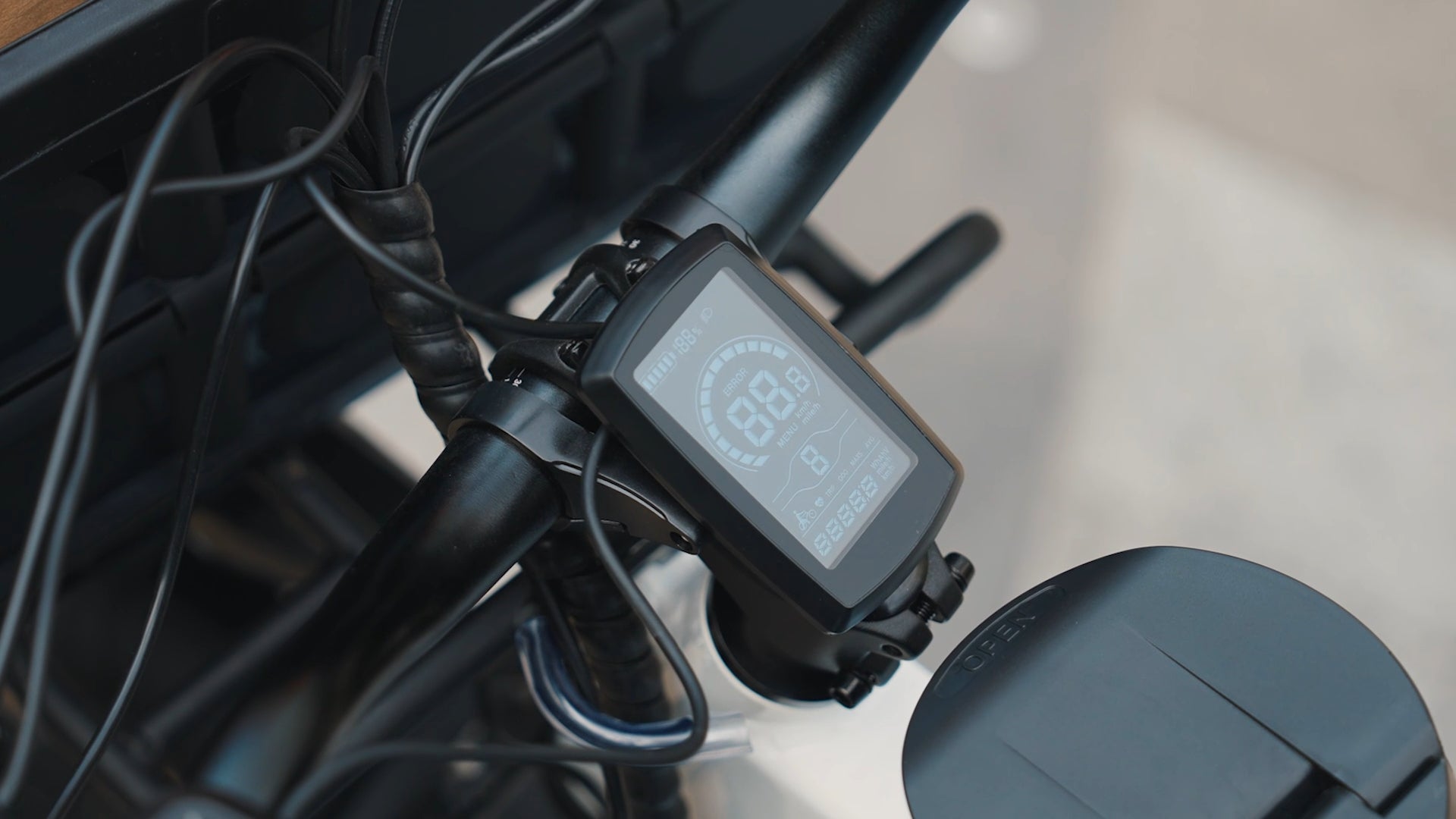

Large 3.5-inch color LCD display lets you clearly know how your ebike is being used, with a USB port to link your phone charging

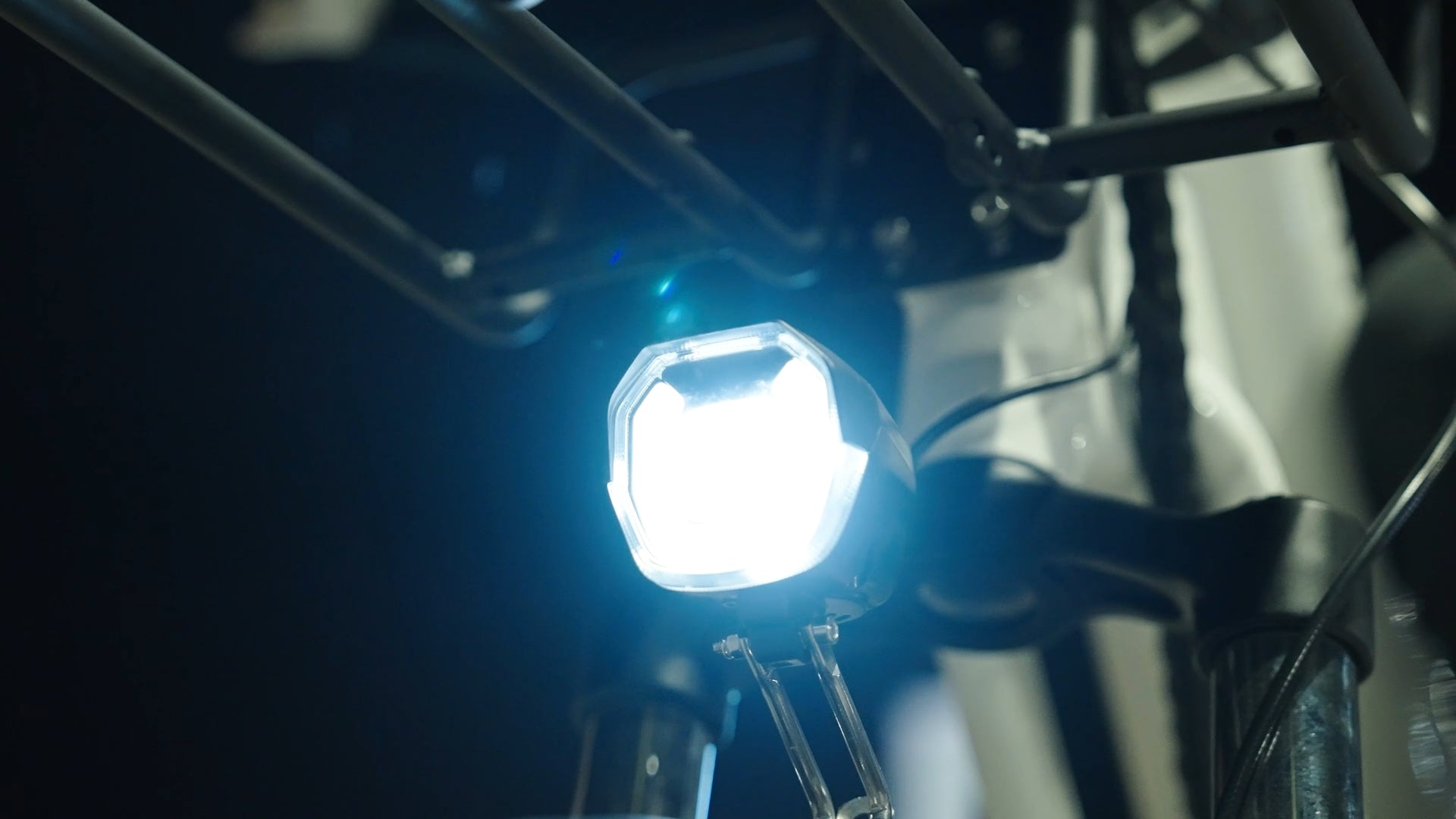

The adventures don't need to end when the sun goes down; the M20 comes with a bright LED Angel Eye headlight and tail light all with dual Turn signals to illuminate even the darkest paths
gears for adapting to different terrains on demand.Twisting the throttle gives you a super cool speed and passion experience
The seat could move up and down, it offers comfort,customization,versatility, and convenience for riders of different heights and preferences

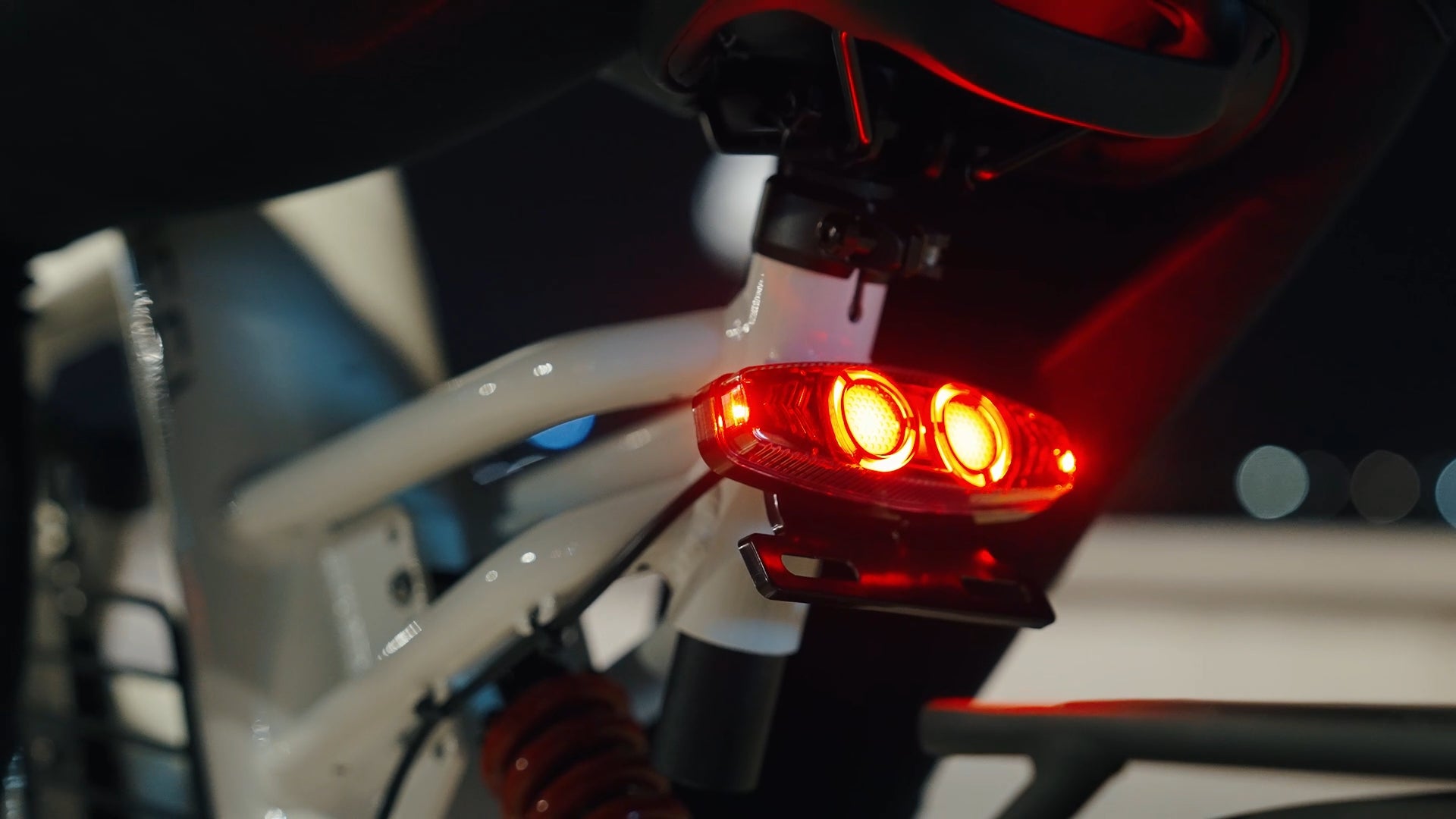

The M20 carries a taillight along with dual turn signals to illuminate the darkest of roads
The M20 equipped a peak 1000W brushless powerful rear hub motor, rated at 750W,making your riding journey more powerful and faster
When the trail gets steep, we got you covered. The M20 comes standard with an 7-speed cassette to provide that extra power to smooth out even the gnarliest hills
Rear Suspension: adjustable damping
suspension,180mm Travel.Provide a smoother,more comfortable ride by absorbing bumps and vibrations from the road
Large 3.5-inch color LCD display lets you clearly know how your ebike is being used, with a USB port to link your phone charging
The adventures don't need to end when the sun goes down; the M20 comes with a bright LED Angel Eye headlight and tail light all with dual Turn signals to illuminate even the darkest paths
gears for adapting to different terrains on demand.Twisting the throttle gives you a super cool speed and passion experience
The seat could move up and down, it offers comfort,customization,versatility, and convenience for riders of different heights and preferences
The M20 carries a taillight along with dual turn signals to illuminate the darkest of roads
What's special about M20
Why choose Coswheel M20 fat tire electric bike
Coswheel CT20 Focused on simplicity and ease,Designed for active lifestyles,the Shimano 7-speed derailleur and rigid aluminum full suspension fork make it a low-maintenance choice for city riders,and offer enhanced control and comfort for diverse terrains
Its Shimano 7-speed derailleur and rear motor deliver dynamic performance for riders who prefer versatility
The hydraulic front suspension fork, with the 20"x4.0" puncture protection tires, effectively cushions the shocks from diverse terrains. Riding this bike brings you much comfort and easiness
Yes, the 48V 15Ah battery provides a reliable range of up to 84 km for extended adventures
Absolutely! It's designed to load up to 150 kg,perfect for carrying camping gears and daily necessities
The front and rear lights ensure visibility during every ride, day or night, and the hydraulic disc brakes help stop the bike timely and quickly
Engineered for real-world challenges, the M20’s rugged tires and strong motor provide stable, clean energy performance—whether you're tackling muddy roads or unpredictable terrain
Commute smarter with zero emissions. COSWHEEL M20 offers a smooth, efficient ride built for urban mobility—eco-conscious, stylish, and reliable for your everyday journeys
Escape the city and explore nature responsibly. With durable components and long-range battery, the M20 delivers a powerful, quiet ride that respects the environment and thrills the rider
