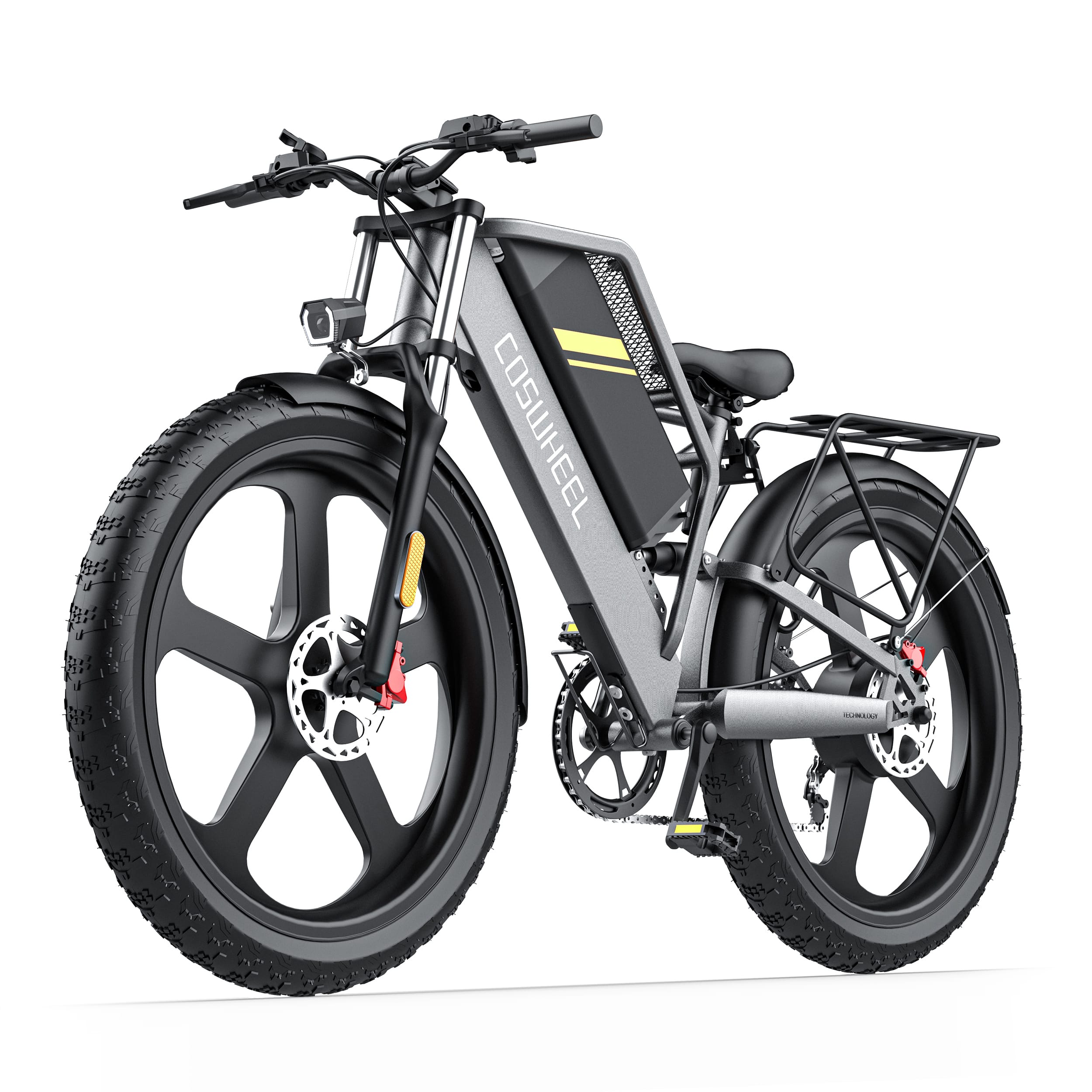

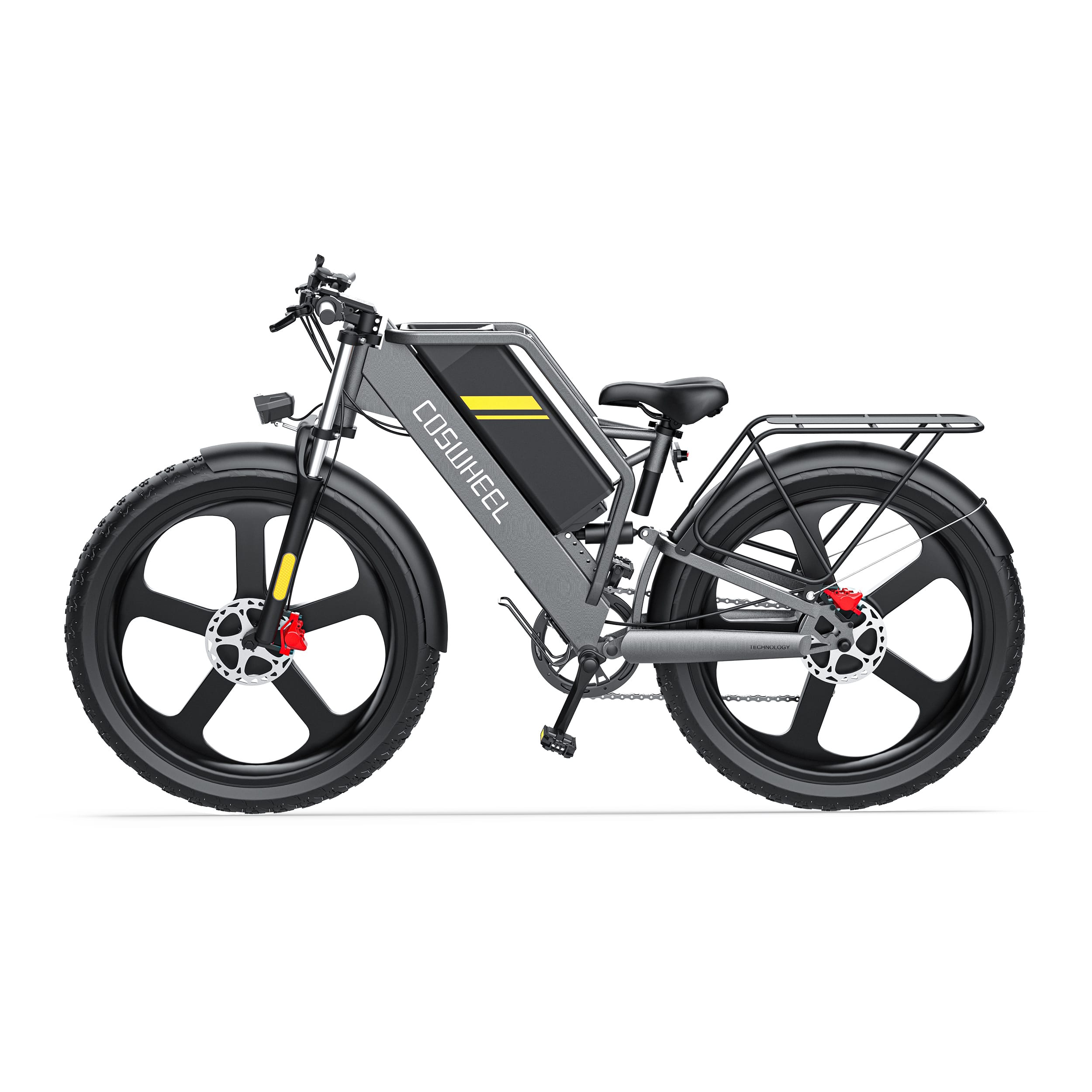

T26
Full suspension ebike for limitless adventures
Video
T26 Spec
Performance
- Top Speed: Class 2/3, 28 Mph (45Km/h)
- Range: 50+miles (80km) in Class-2 throttle-only mode (pure electricity); 87miles (140km) in Class-1 PAS (pedal assist)
- Motor: 48V Peak 1500W (Rated 1000W) Brushless Rear Hub Motor 80N.m
- Battery: 48V 25Ah Battery (Lithium 18650 Cells)
- Energy: 1200Wh
- Front Suspension: 20" Shoulder Shock Absorbing, 80mm Travel
- Rear Suspension: 850 Pounds, 180mm Travel
- Brakes: Double Piston Oil Brake, Equipped with 180mm Stainless Brake Disc
- Tires: ARISUN Off Road Tire 26" × 4.0" A820 60TPI with Meimeng Tire+PVC Line
- Throttle: Grip Twist Throttle
Electronics
- Charger: 48V3A Charger
- Charging Time: 3.5-8.0 Hours
- Display: Easy Read LCD Display
- Controller: 48V 28A
- Front Light: Classic Angel Eye Headlight, 120 LUX
- Rear Light: LED
- Pedal Assist: 3 Levels
- Sensors: Speed Sensor
Components
- Frame: Hydroformed Triple-Butted 6061-T6 Aluminium Alloy
- Pedal: Aluminum Alloy Pedal, with Reflect-light, Axis 9/16 x2
- Crank: 1/2 "*3/32"*46T 7-speed ED Tooth Plate
- Rear Derailleur: Shimano 7-Speed
- Chain: 7-speed Anti-rust, 1/2" * 3/32"
- Handlebars: Split Handlebar, φ32 φ22 Sand Black

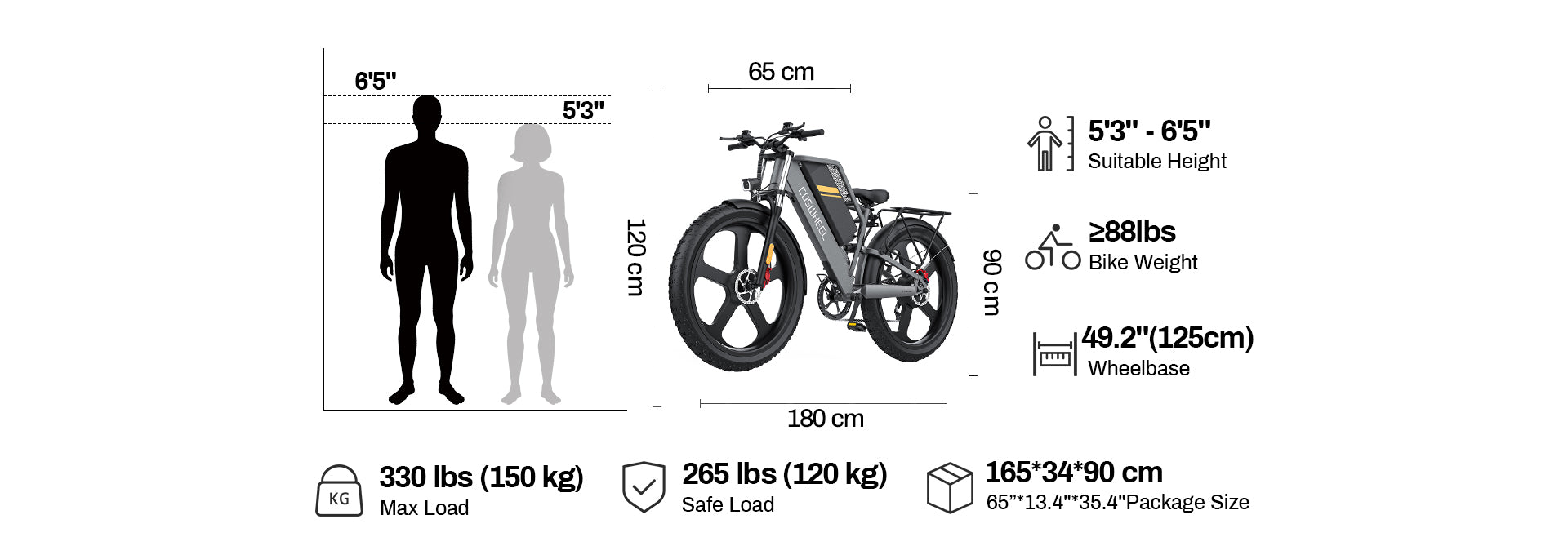

Geometry
- Suitable Height: 5'3" - 6'5"
- Seat Height: 35.4" (90cm)
- Bike Height: 47.3" (120cm)
- Wheelbase: 49.2" (125cm)
- Handlebar Width: 25.6" (65cm)
- Bike Weight: ≥88lbs (with Battery) (≥40kg)
- Maximum Load: 330lbs (150kg)
- Safe Load: 265lbs (120kg)
- Overall Size: 70.9" * 25.6" *47.3" (180*65*120cm)
- Package Size: 65" * 13.4" * 35.4" (165*34*90cm)
Special Tips
T26 model have CE and COC certificates. The speed of T26 ebikes shipped to Europe will be limited to 25km/h when they leave the factory. After receiving the bike, you can contact us for guidance on lifting the speed limit. We can also send you a 250W logo to be affixed to the motor in accordance with European regulations.At present, European customers have not reported any regulatory issues after riding
T26 features in detail
Boost your ride with our compact, efficient e-bike hub motor. Reliable, sleek, and designed for smooth performance—effortlessly elevate your cycling experience

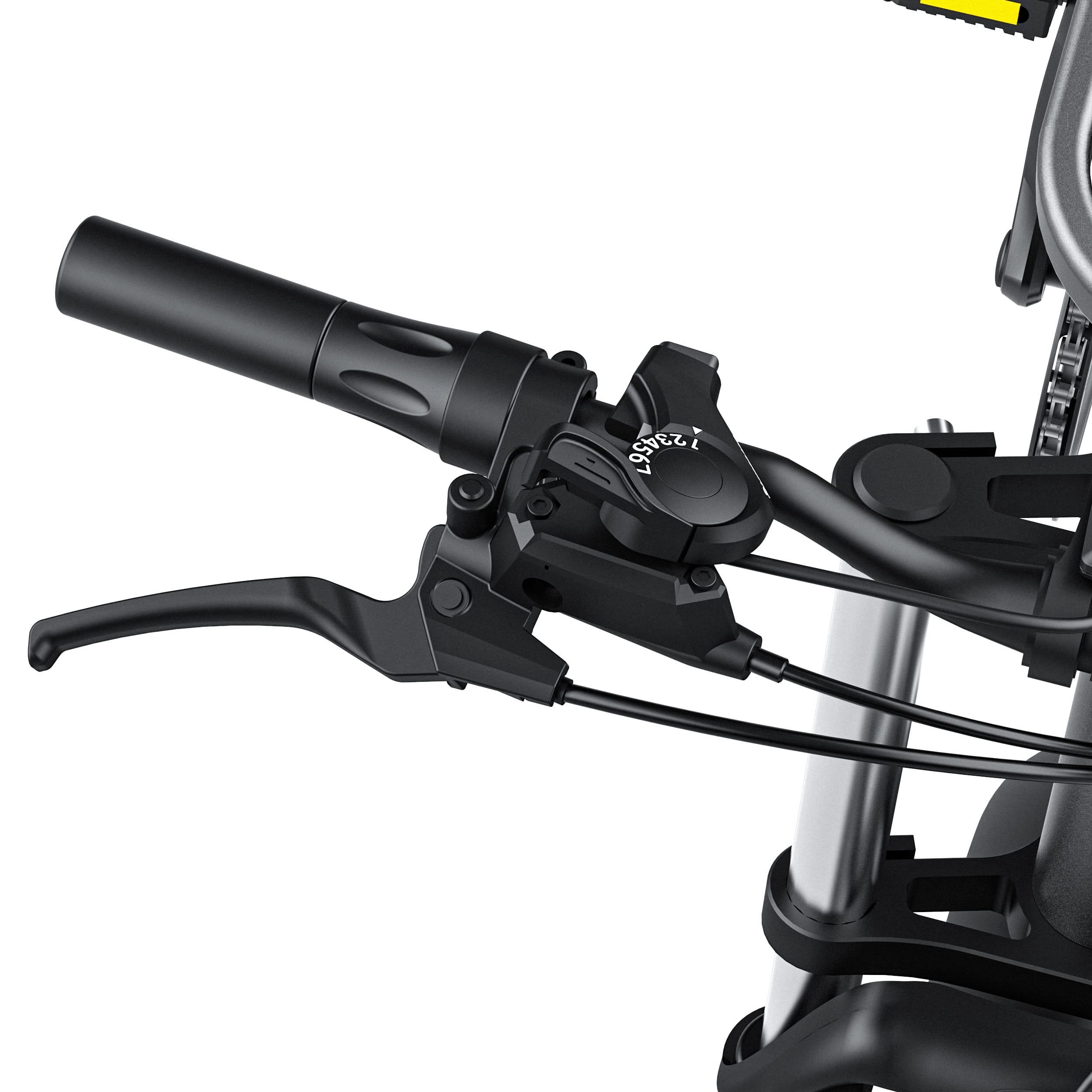

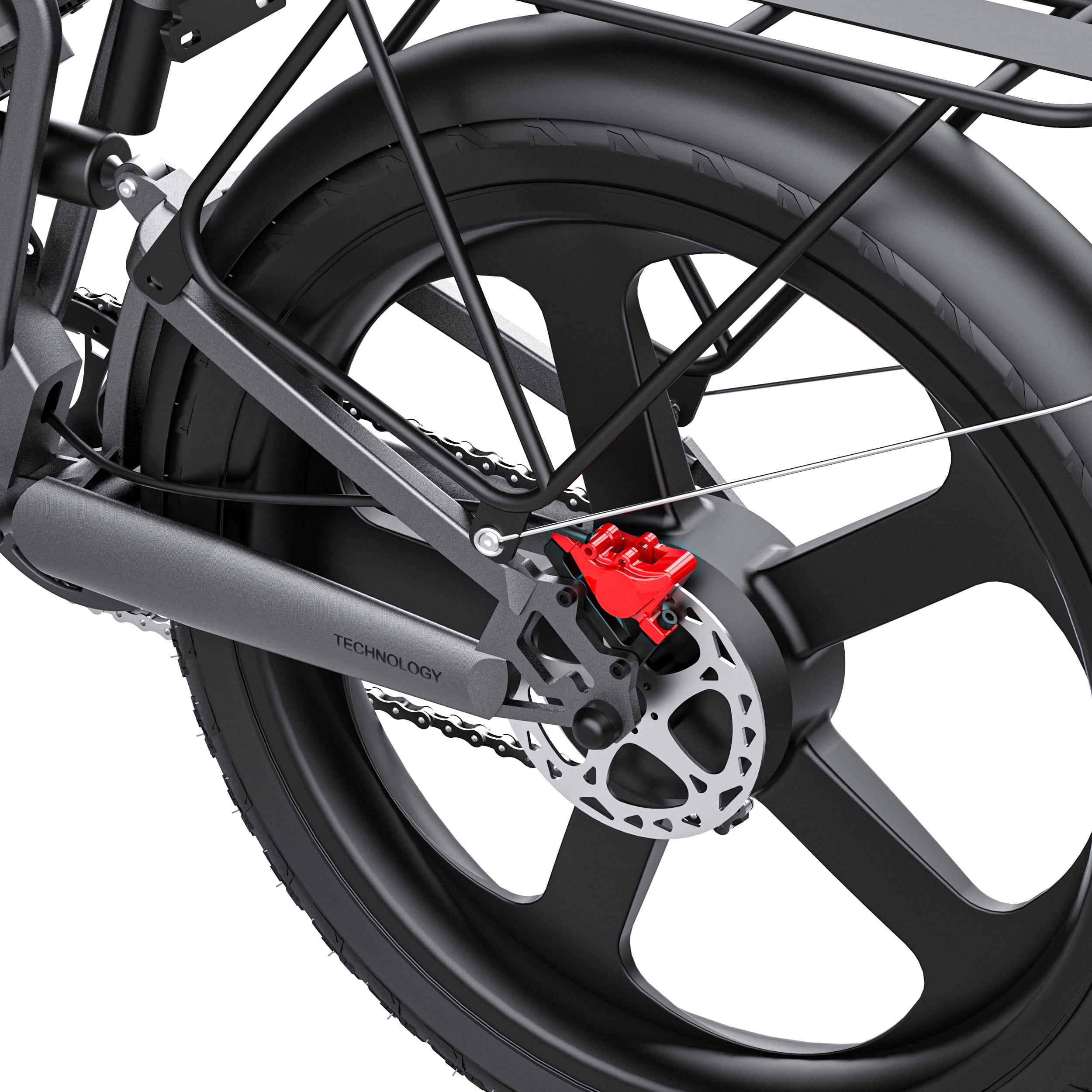

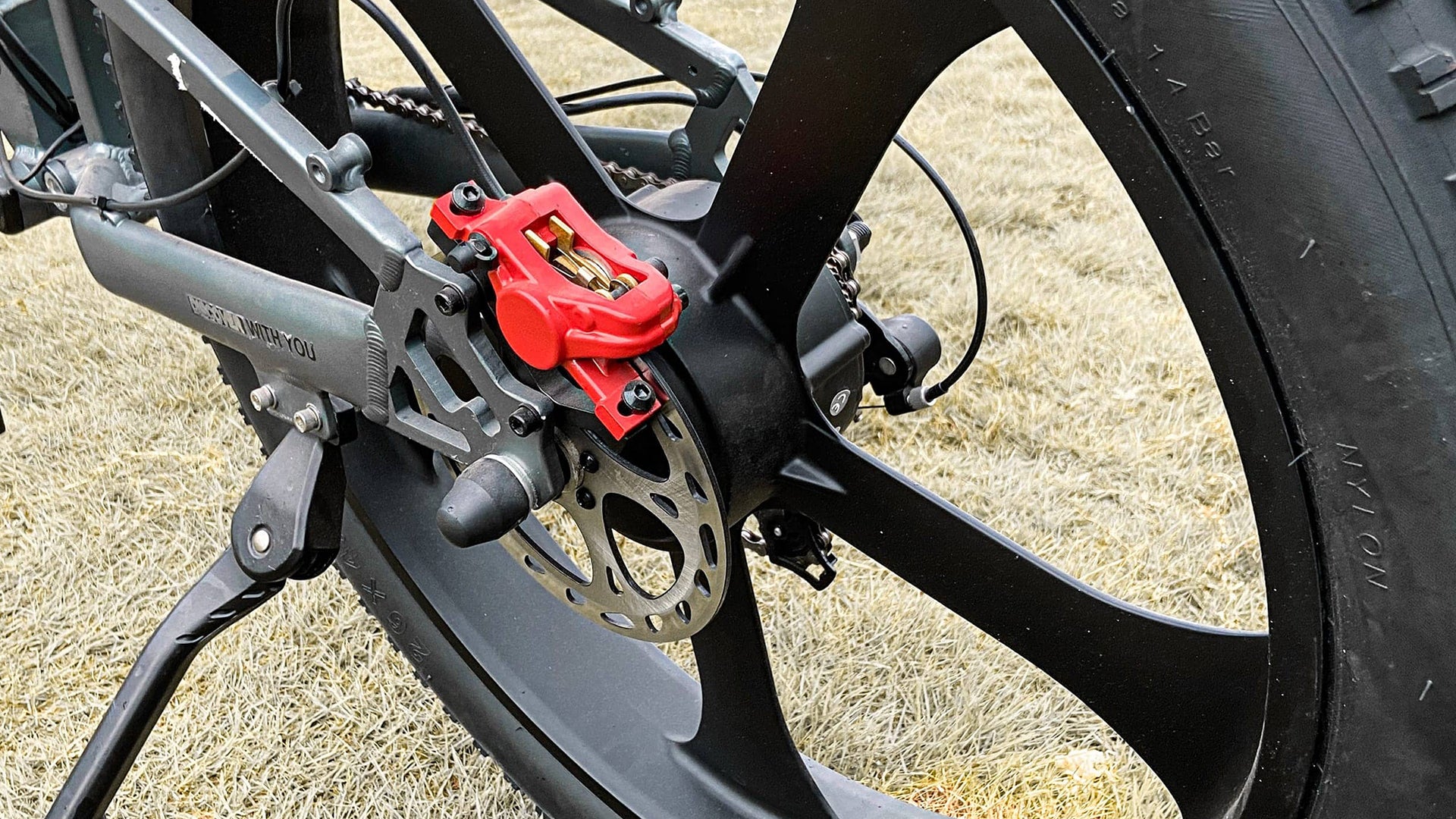

Super powerful motorcycle grade hydraulic brakes will ensure you and your e-bike will slow down in the blink of an eye. These 2-piston brakes provide powerful stopping power in all riding conditions. 3.0mm thickness, 180mm diameter brake disc

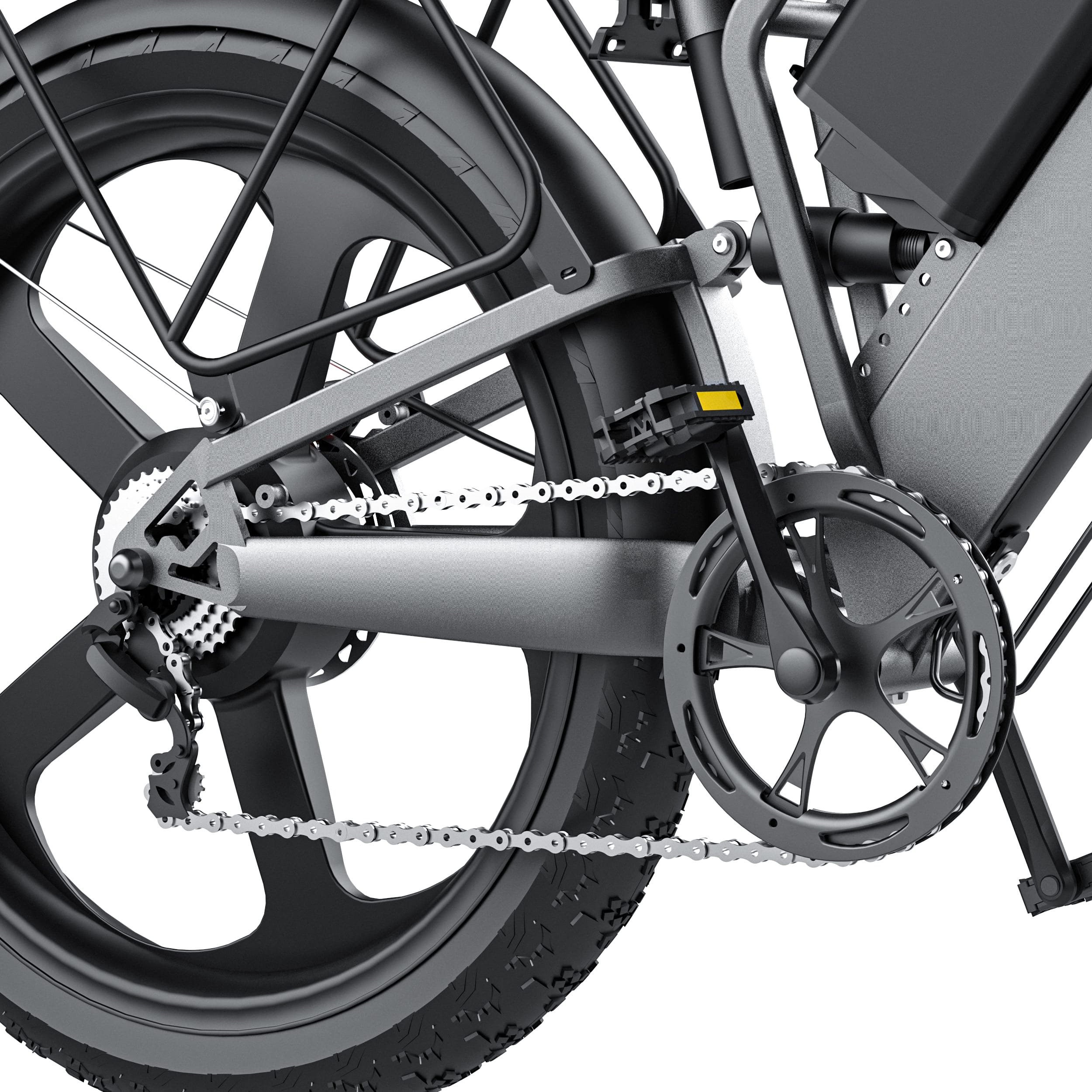

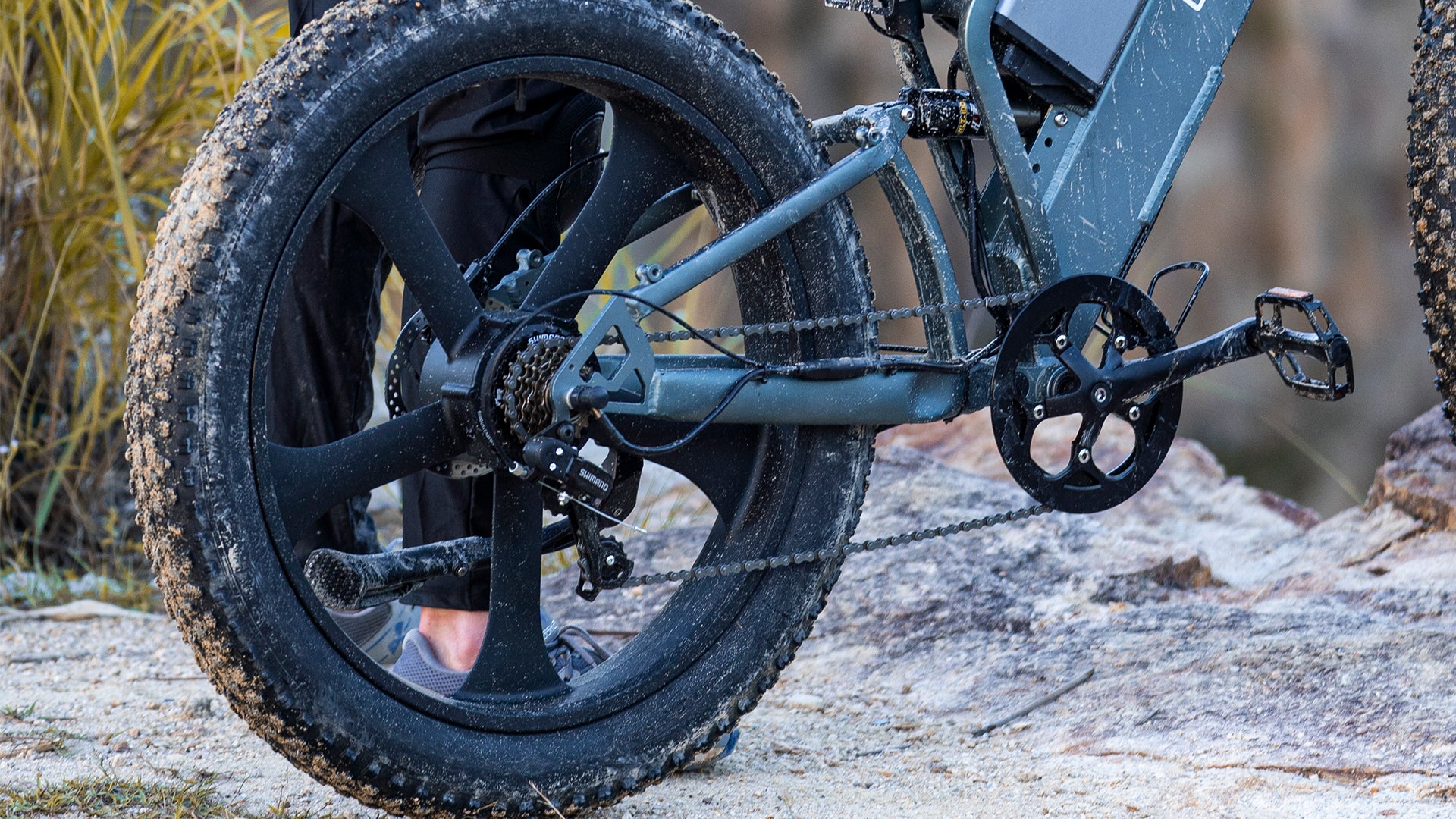

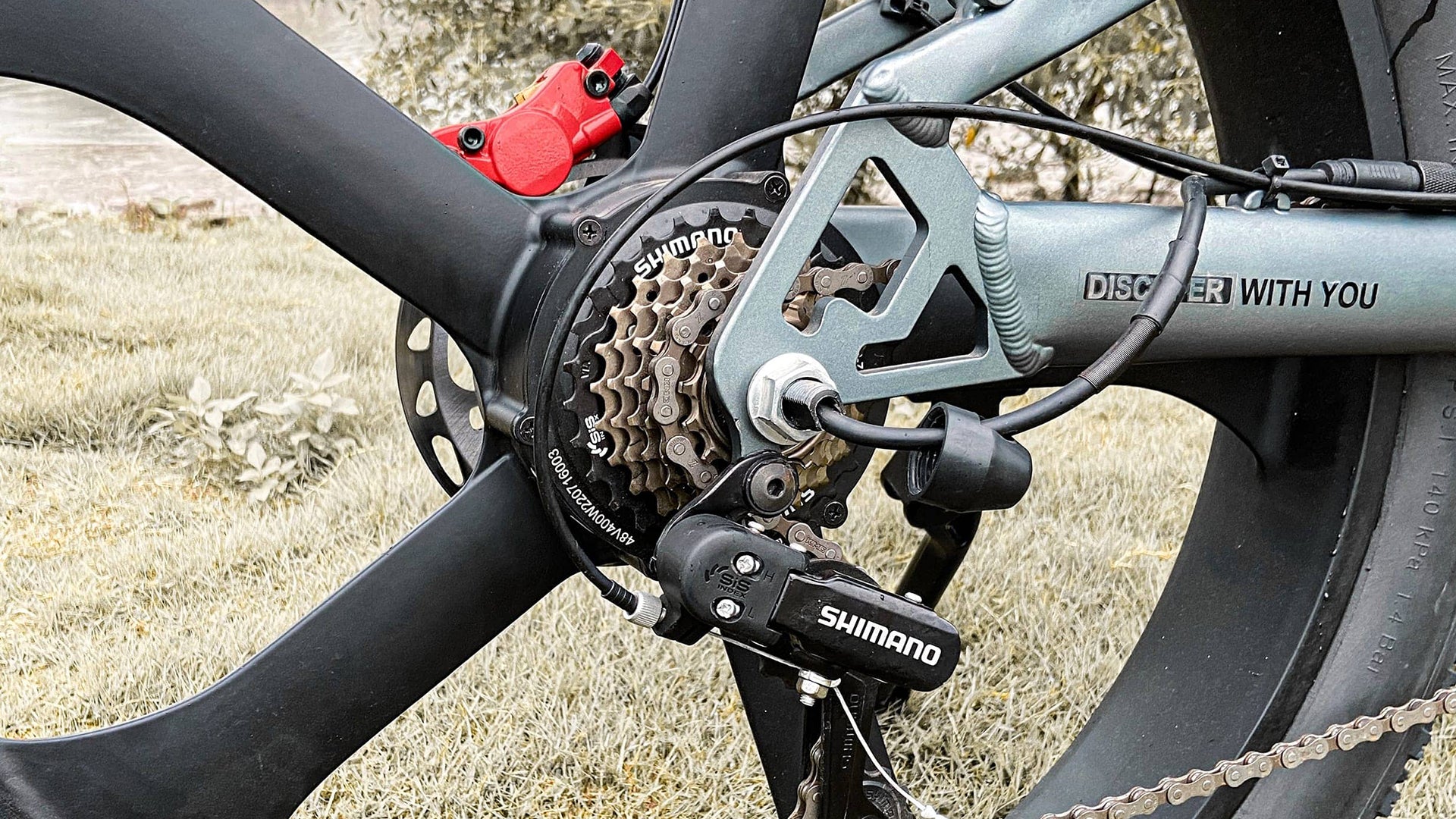

When the trail gets steep, we got you covered. The T26 comes standard with an 7-speed cassette to provide that extra power to smooth out even the gnarliest hills

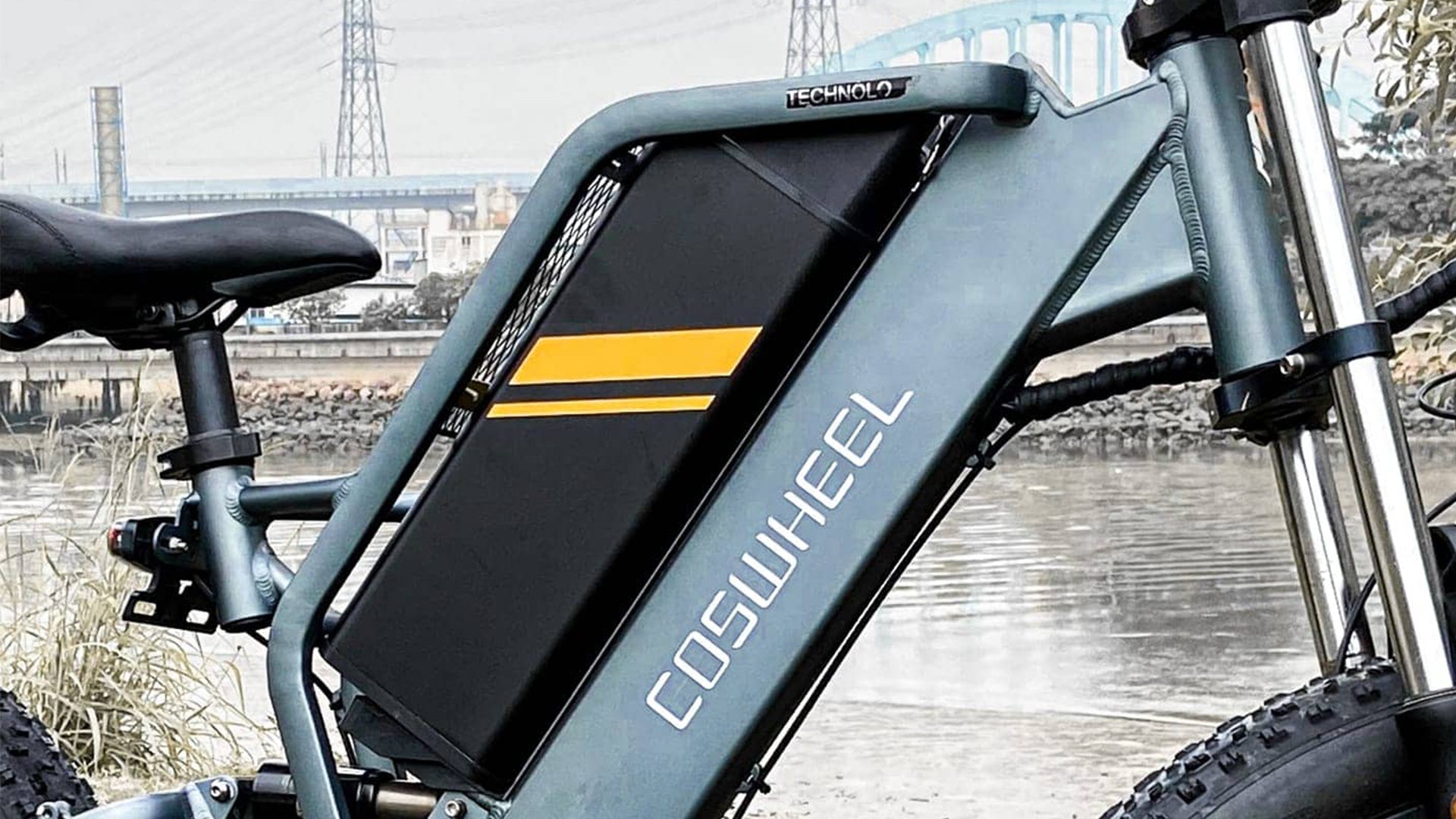

T26's battery has been repositioned to the seat tube with lock to keep its center of gravity low, allowing for a longer seat and additional room for riders to move as they cruise

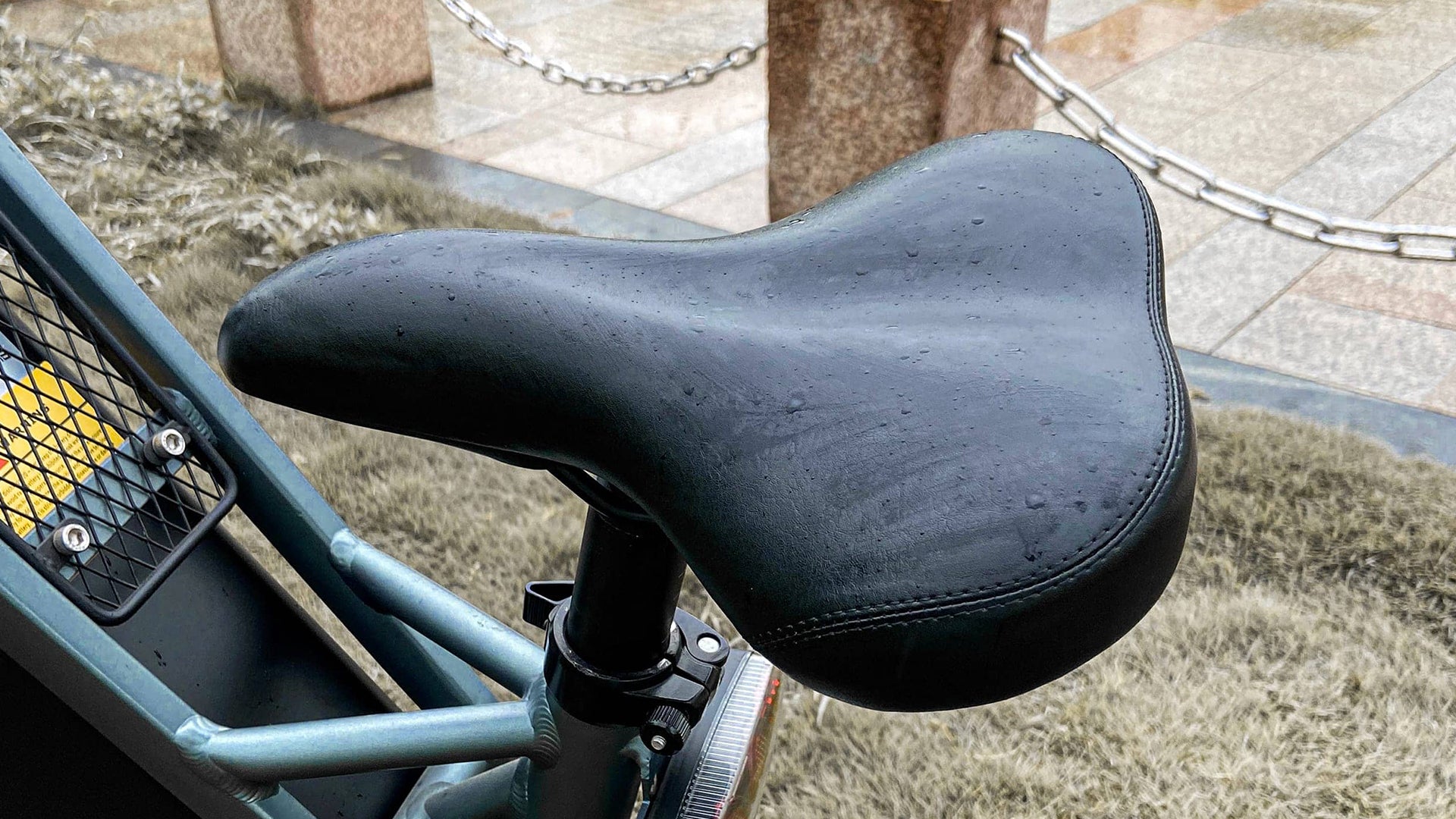

The seat could move up and down, it offers comfort,customization,versatility, and convenience for riders of different heights and preferences

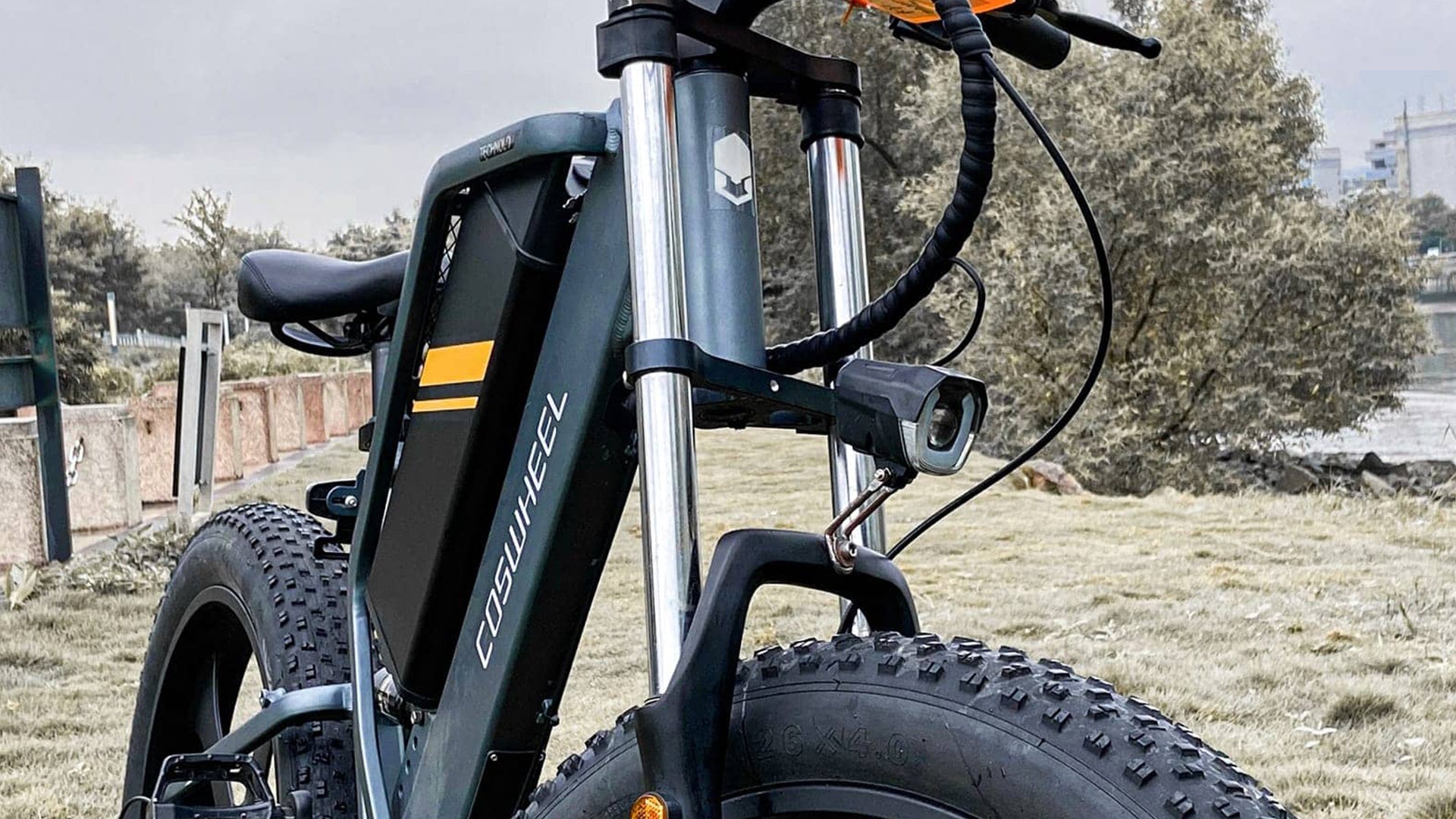

The Coswheel T26 features adjustable double front suspension shocks with an inverted coil spring shock which can preload, compression, and rebound adjustments for better handling and a smooth ride and for optimal riding

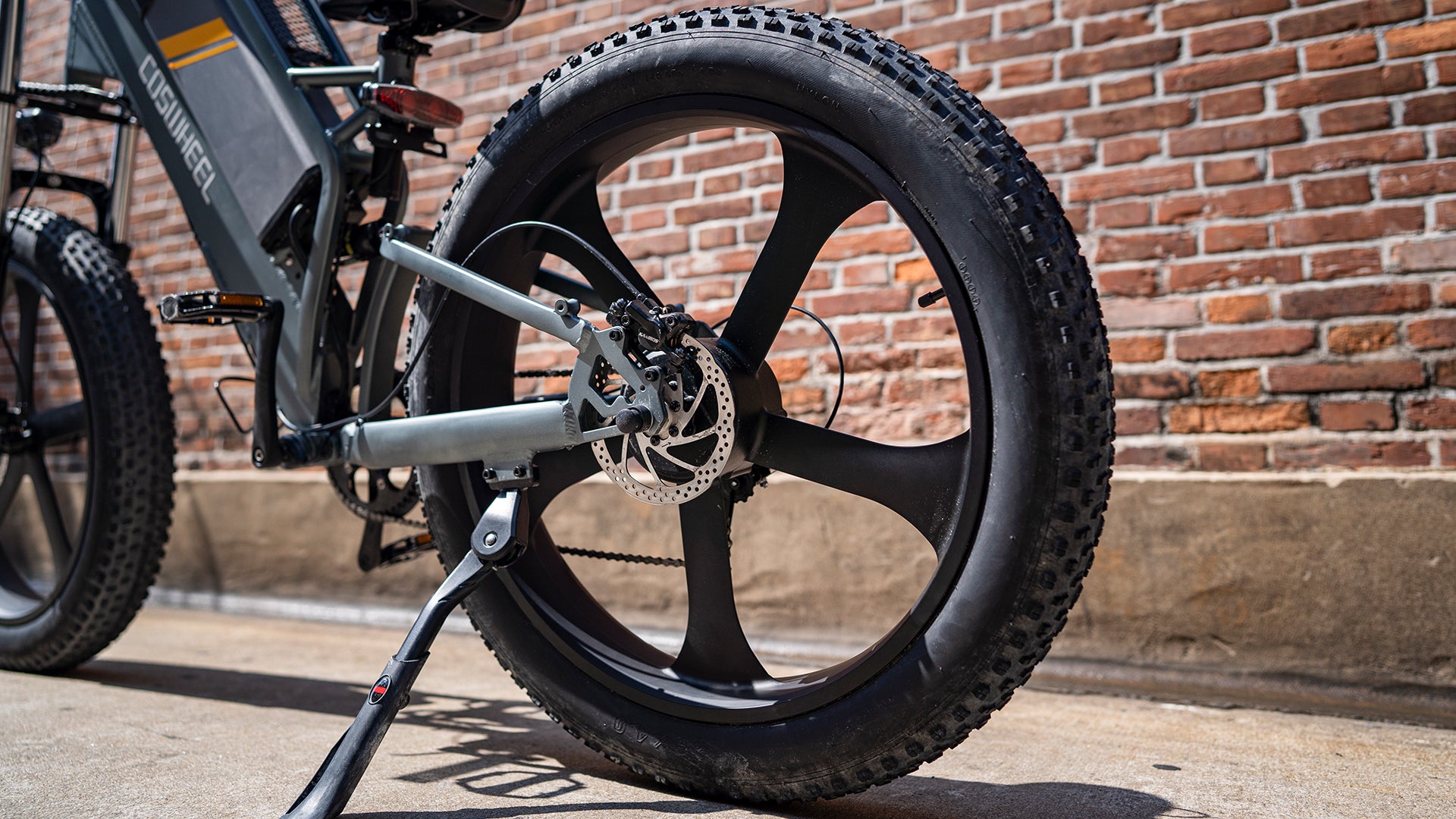

The Coswheel T26 features Thickened imported rubber tires that blend moto and bicycle tire construction ，more wear-resistant and puncture-resistant for improved traction, reduced road noise and increased stability，longer service life. Size 26*4.0 inches, suitable for snow, beach, mountain, road, mud all road shape,that can tackle even the toughest roads for your most resilient ride yet

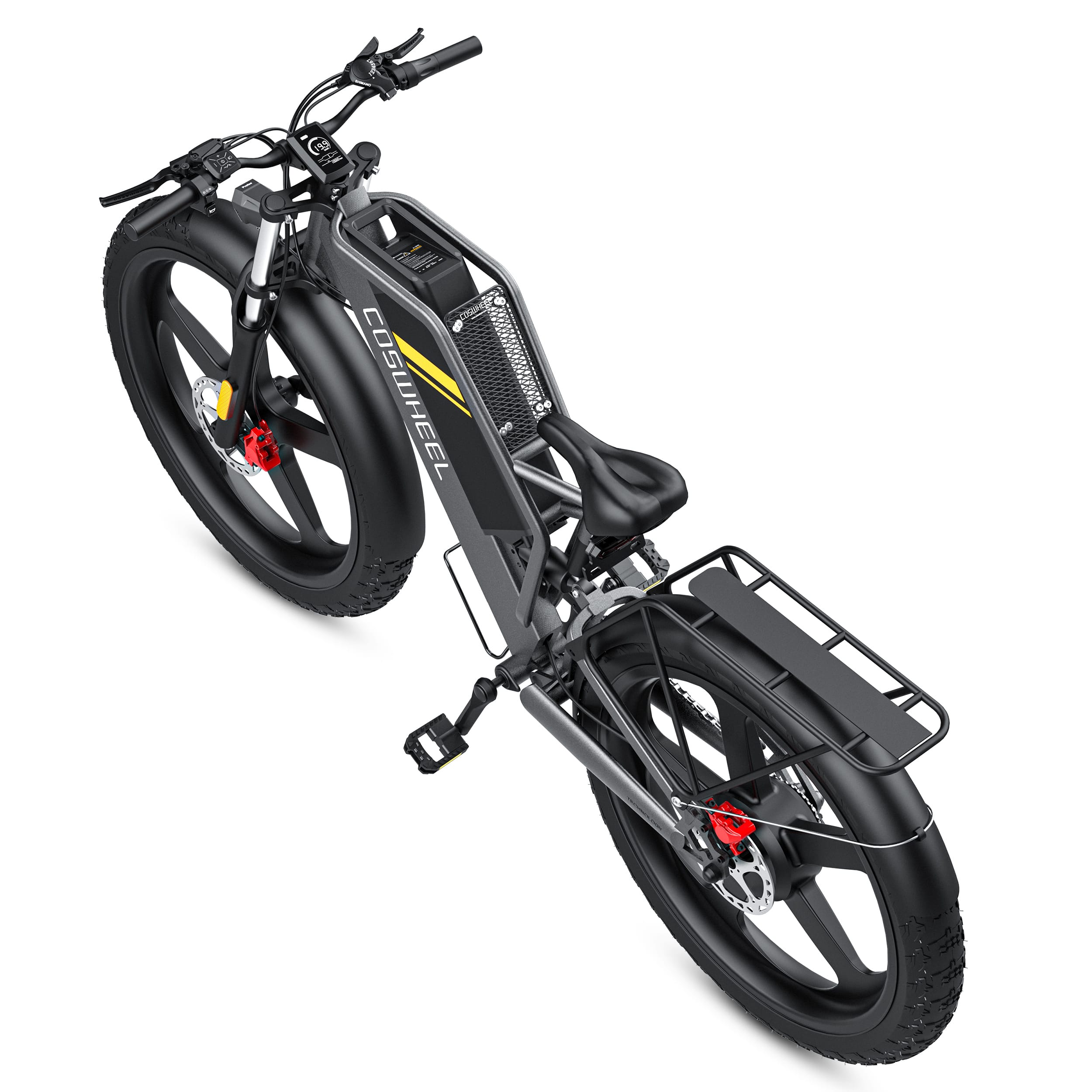

With one of Coswheel’s most recognizable silhouettes and comfortable seats, the T26 is perfect for city rides, urban adventures, and bold exploration . Independent Original design；Swing-arm aviation aluminum alloy 6061 frame；200000 vibration tests are not easily deformed, far exceeding European standards
Boost your ride with our compact, efficient e-bike hub motor. Reliable, sleek, and designed for smooth performance—effortlessly elevate your cycling experience
Super powerful motorcycle grade hydraulic brakes will ensure you and your e-bike will slow down in the blink of an eye. These 2-piston brakes provide powerful stopping power in all riding conditions. 3.0mm thickness, 180mm diameter brake disc
When the trail gets steep, we got you covered. The T26 comes standard with an 7-speed cassette to provide that extra power to smooth out even the gnarliest hills
T26's battery has been repositioned to the seat tube with lock to keep its center of gravity low, allowing for a longer seat and additional room for riders to move as they cruise
The seat could move up and down, it offers comfort,customization,versatility, and convenience for riders of different heights and preferences
The Coswheel T26 features adjustable double front suspension shocks with an inverted coil spring shock which can preload, compression, and rebound adjustments for better handling and a smooth ride and for optimal riding
The Coswheel T26 features Thickened imported rubber tires that blend moto and bicycle tire construction ，more wear-resistant and puncture-resistant for improved traction, reduced road noise and increased stability，longer service life. Size 26*4.0 inches, suitable for snow, beach, mountain, road, mud all road shape,that can tackle even the toughest roads for your most resilient ride yet
With one of Coswheel’s most recognizable silhouettes and comfortable seats, the T26 is perfect for city rides, urban adventures, and bold exploration . Independent Original design；Swing-arm aviation aluminum alloy 6061 frame；200000 vibration tests are not easily deformed, far exceeding European standards
Why Choose Coswheel T26
light off-road electric fat bike
Coswheel T26 Focused on simplicity and ease,Designed for active lifestyles,the Shimano 7-speed derailleur and rigid aluminum full suspension fork make it a low-maintenance choice for city riders,and offer enhanced control and comfort for diverse terrains
Its Shimano 7-speed derailleur and rear motor deliver dynamic performance for riders who prefer versatility
The hydraulic front suspension fork, with the 20"x6.0" puncture protection tires, effectively cushions the shocks from diverse terrains. Riding this bike brings you much comfort and easiness
Yes, the 48V 25Ah battery provides a reliable range of up to 140 km for extended adventures
Absolutely! It's designed to load up to 150kg,perfect for carrying camping gears and daily necessities
The front and rear lights ensure visibility during every ride, day or night, and the hydraulic disc brakes help stop the bike timely and quickly
Conquer rugged hills and rocky paths with ease.
The T26's powerful motor and shock-absorbing build make light mountain trails feel smooth and thrilling—perfect for weekend adventurers.
Silent power through nature’s green maze.
Navigate narrow woodland paths with agility and grace. T26’s responsive handling keeps you in rhythm with the forest around you.
Freedom rolls beyond the city edge.
T26 takes you further—open roads, wide skies, and the breeze at your back. Designed for long rides and open-air exploration.
