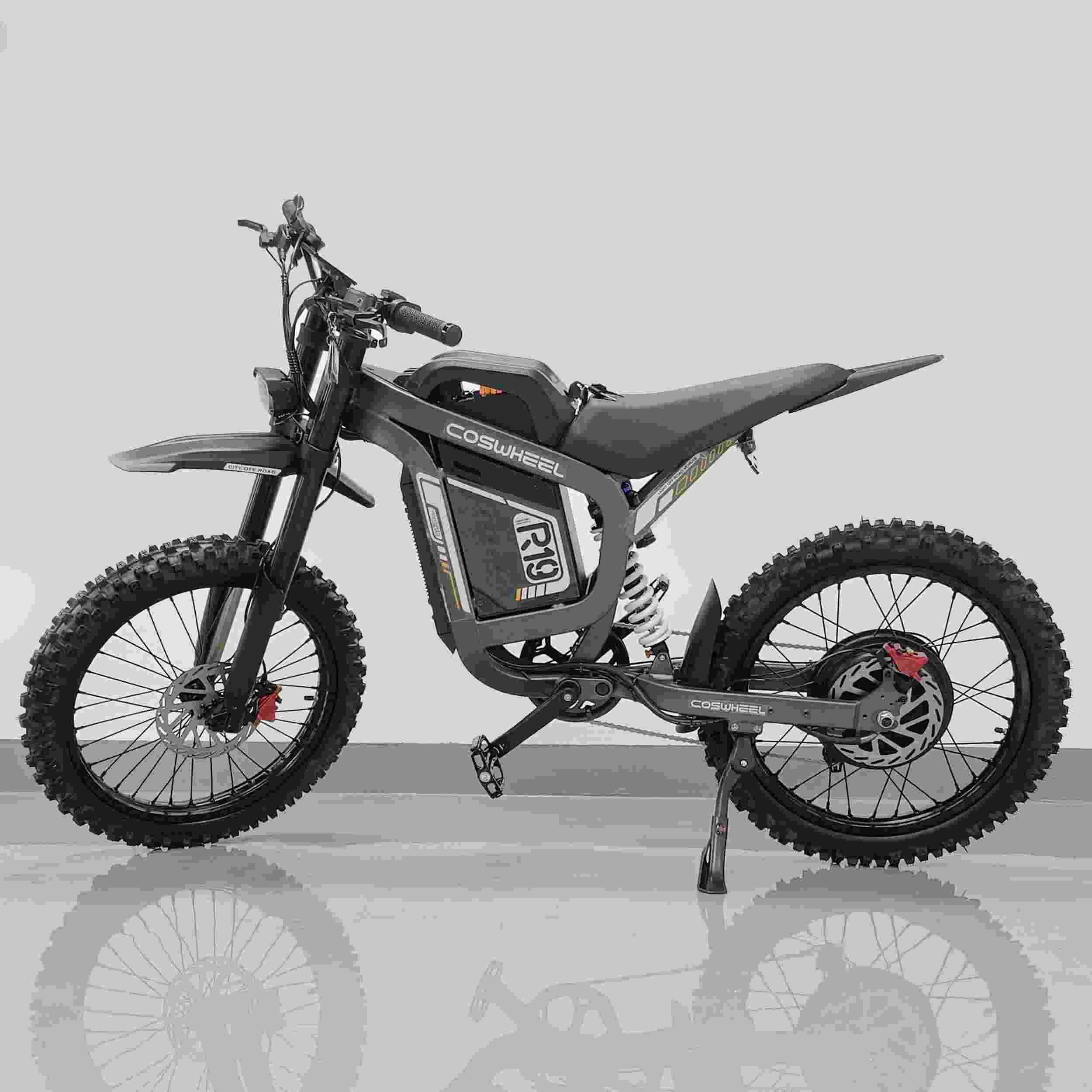

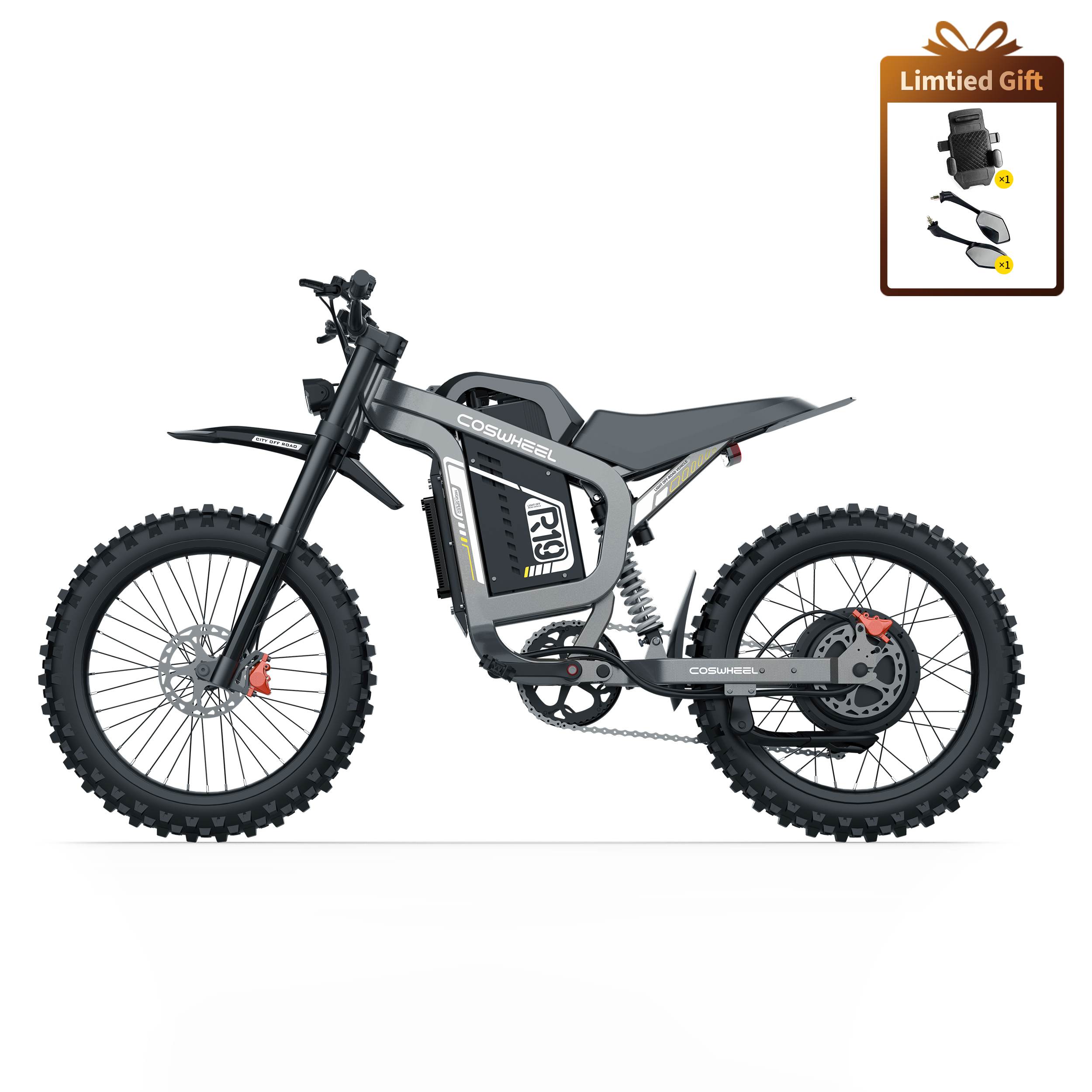

Coswheel R19 Electric Dirt Bike
Torque 120N.m, can climb 40 degrees slope, front 70/100-19 and rear 80/90-19 professional off-road wheelset
R19 has European Certificate of Conformity (COC) Document and CE.You can use this COC to register.
R19 is currently awaiting customs clearance at the Italian port.
R19 model have CE and COC certificates. The speed of R19 ebikes shipped to Europe will be limited to 25km/h when they leave the factory. After receiving the bike, you can contact us for guidance on lifting the speed limit. We can also send you a 250W logo to be affixed to the motor in accordance with European regulations.At present, European customers have not reported any regulatory issues after riding
Reliable Off Road Commuting Partner
The R19 is equipped with a 40AH high energy density battery, 2880WH, a maximum range of 124 miles (200km) (accelerator + pedal assist), plus front and rear adjustable damping suspension and dual-piston heavy hydraulic brakes, making your adventure very safe
Best Budget 72V 6000W Electric Dirt Bike
R19 is the most cost-effective 72V electric dirt bike launched by COSWHEEL. Peak 6000W (rated 3000W) rear drive motor, torque 120N.m, light throttle, maximum speed 50mph (80km/h). Compared with other brands of the same configuration products, the same performance, better price, and reliable quality, let you enjoy the adventure journey more easily.
R19 Every Part Counts
Aluminum Alloy Frame

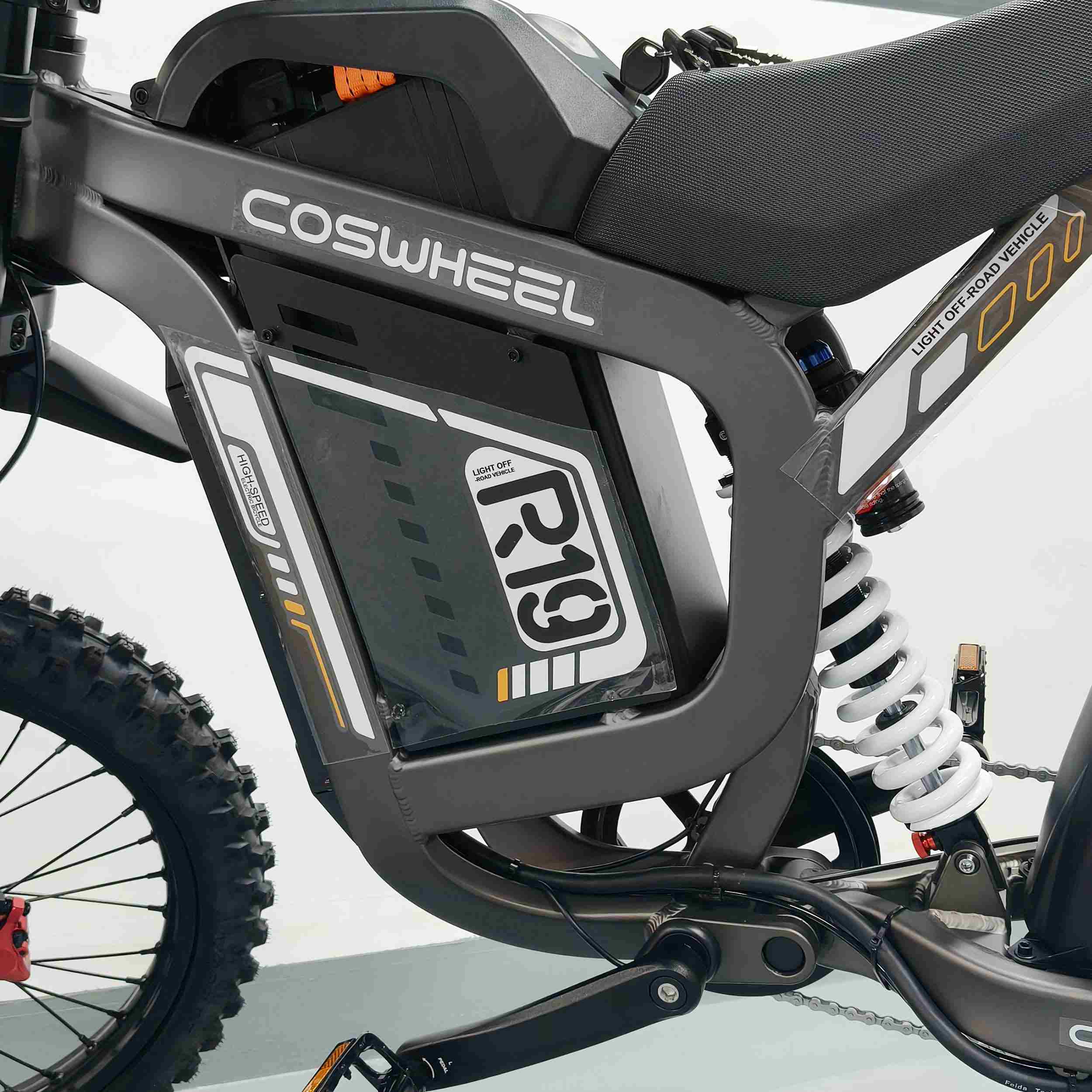

R19 frame is made of Hydroformed Triple-Butted 6061-T6 Aluminum Alloy, which is stronger and more reliable than other brands of iron frames, and is not easily corroded or aged. At the same time, our frames have undergone more than 10,000 collision tests to ensure your safety.

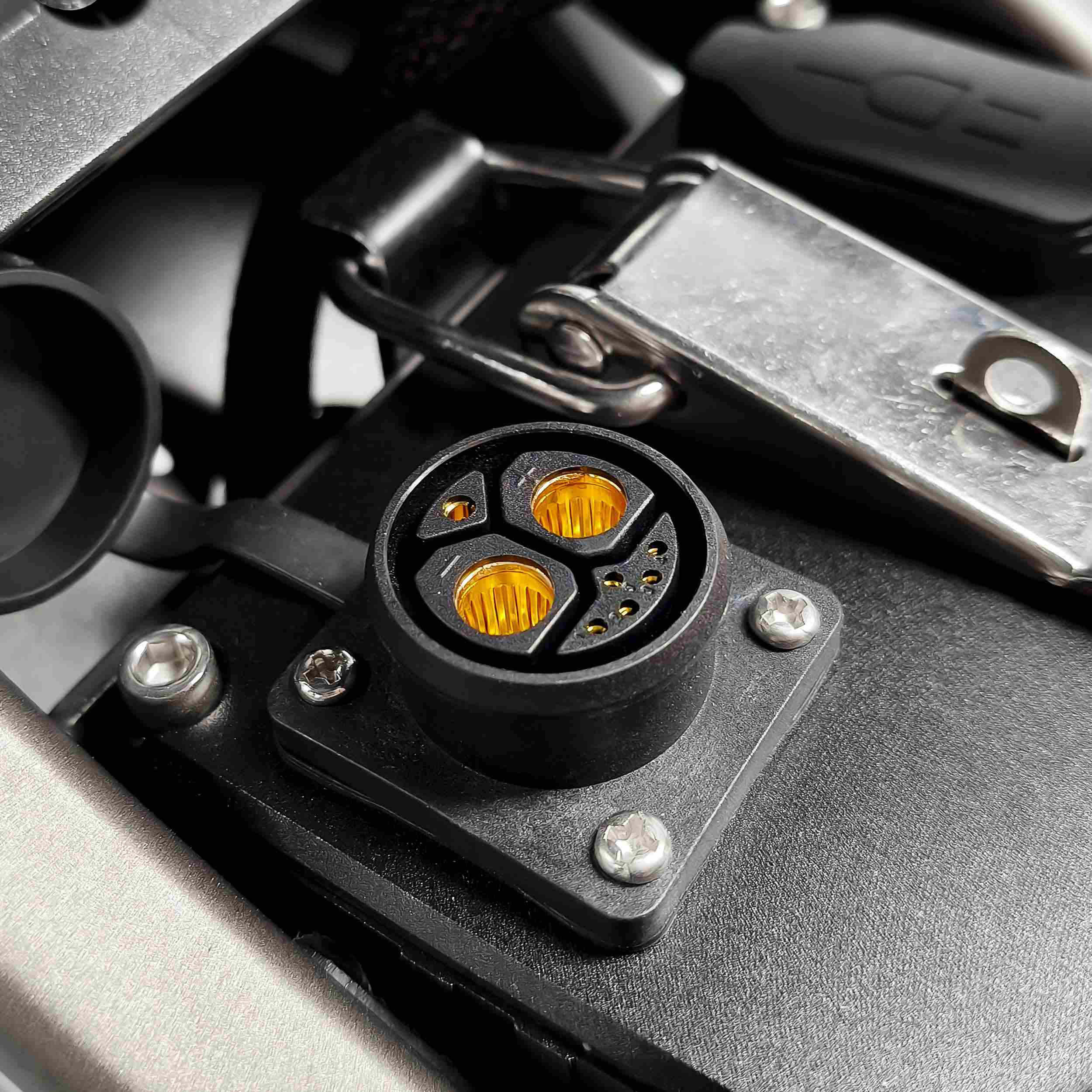

Safety Power Interface
The R19 72V 40AH battery has a high-quality discharge port with a max voltage of 84V and a 6A charger, fully charging in 6-7 hours. A full charge offers a range of up to 124 miles (200km) with both accelerator and pedal assist. Maintaining a speed of 25mph (40km/h) is more battery-friendly.
Adjustable Rear Suspension
The R19 rear suspension is equipped with a white 300mm adjustable damping shock absorber. The blue rotary button on the top can adjust the downward damping pressure, and the red rotary button on the bottom can adjust the upward damping pressure.

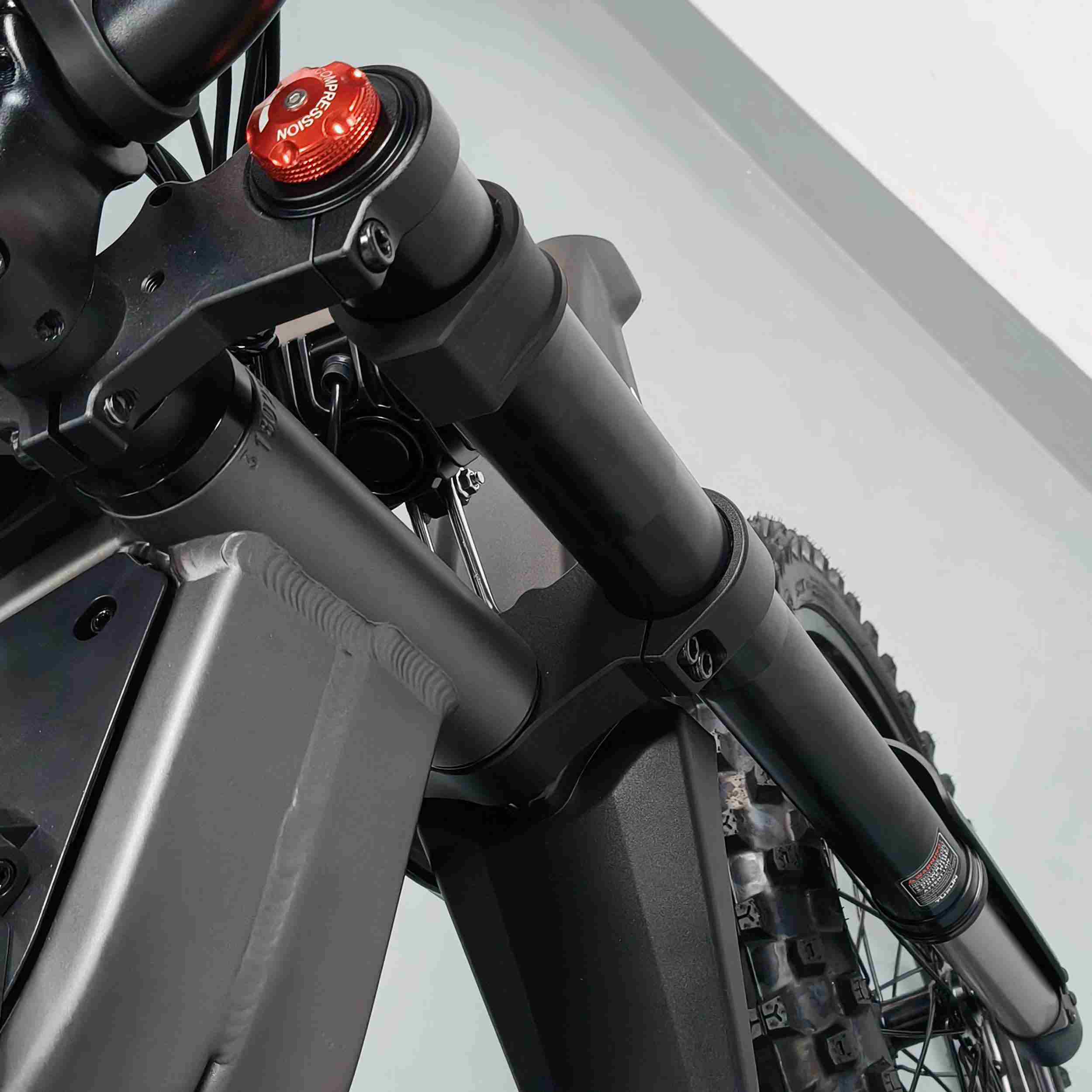

Adjustable Front Suspension
The front fork has an inverted hydraulic shock absorber with adjustable damping and 200mm suspension travel. By rotating the red button on the right, you can slowly adjust the oil pressure to adjust the damping, making the front suspension rebound slower or faster.

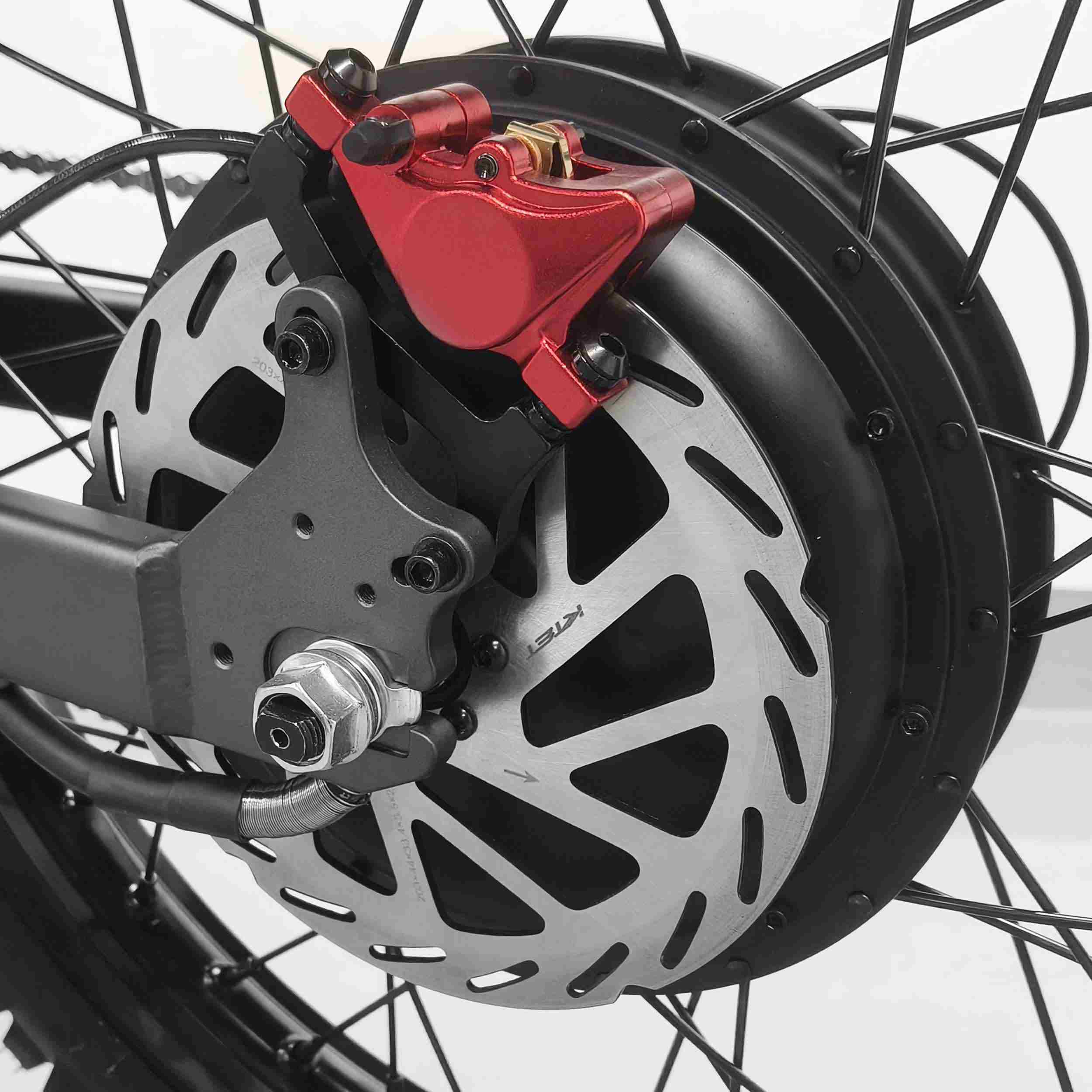

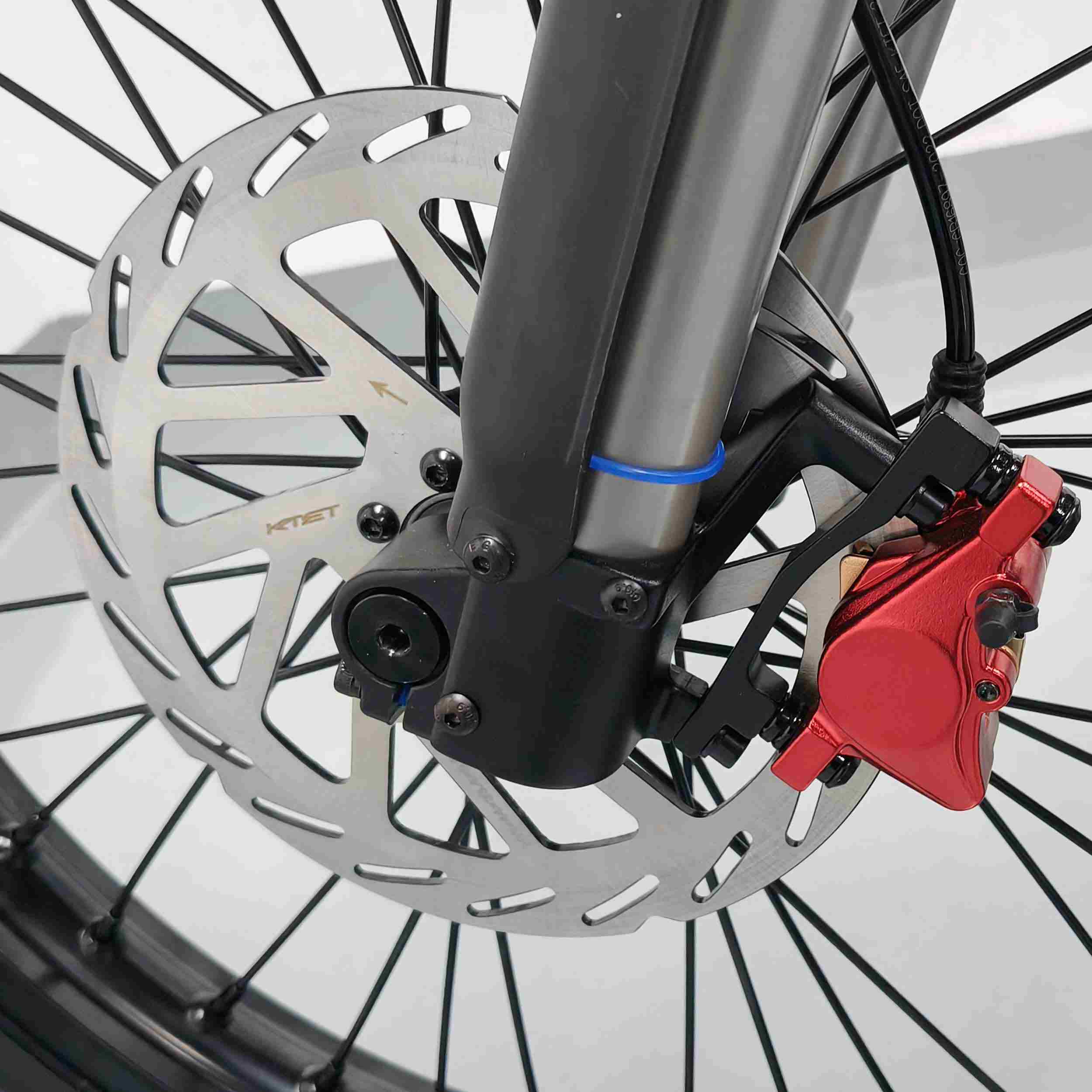

Heavy Duty Hydraulic Brakes
The R19 is equipped with a heavy-duty dual-piston hydraulic brake system, with a front wheel brake pad of 220mmX2.8 and a rear wheel brake pad of 180mmX2.8, providing heavy and stable brakes.
Professional Off-road Tires
Pair text with an image to focus on your chosen product, collection, or blog post. Add details on availability, style, or even provide a review.

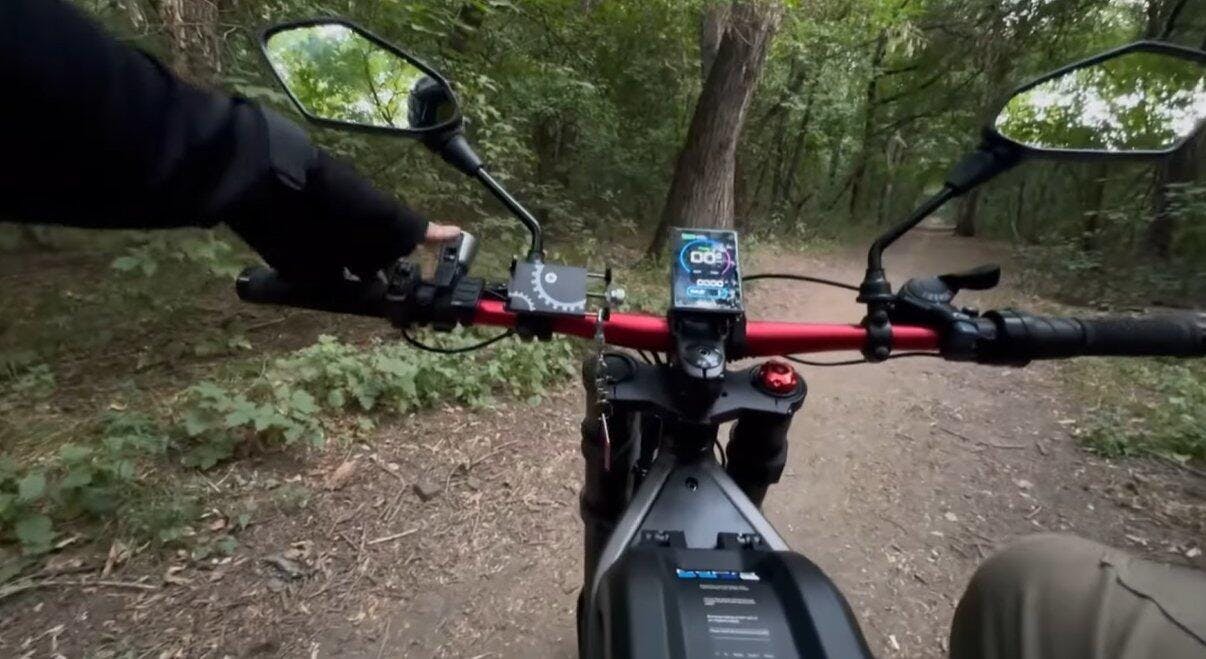

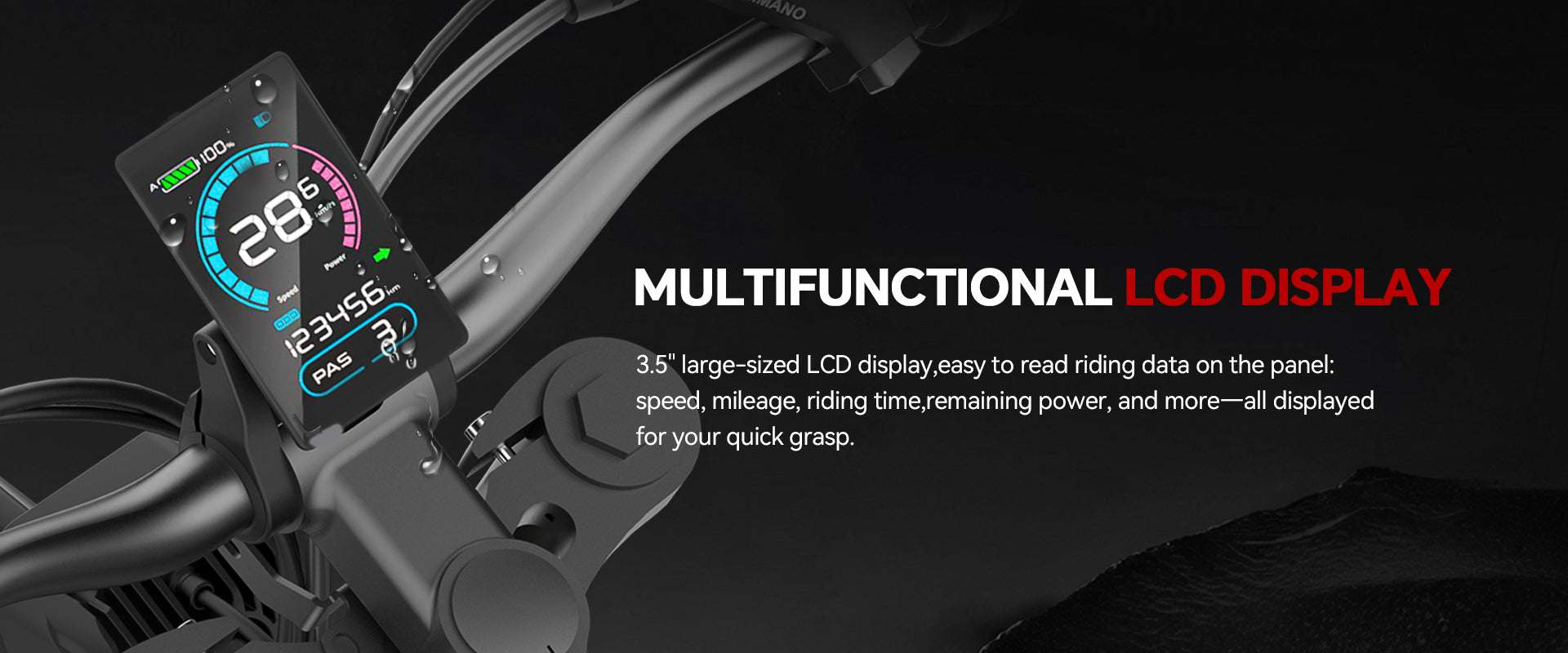

3.5" LCD Color Display
Place the NFC card below the 3.5" color display to unlock the R19. When first unlocked or after 3 seconds of inactivity, the bike enters neutral “P” mode and won’t start if the throttle is twisted. To resume throttle, hold the brake handle firmly.

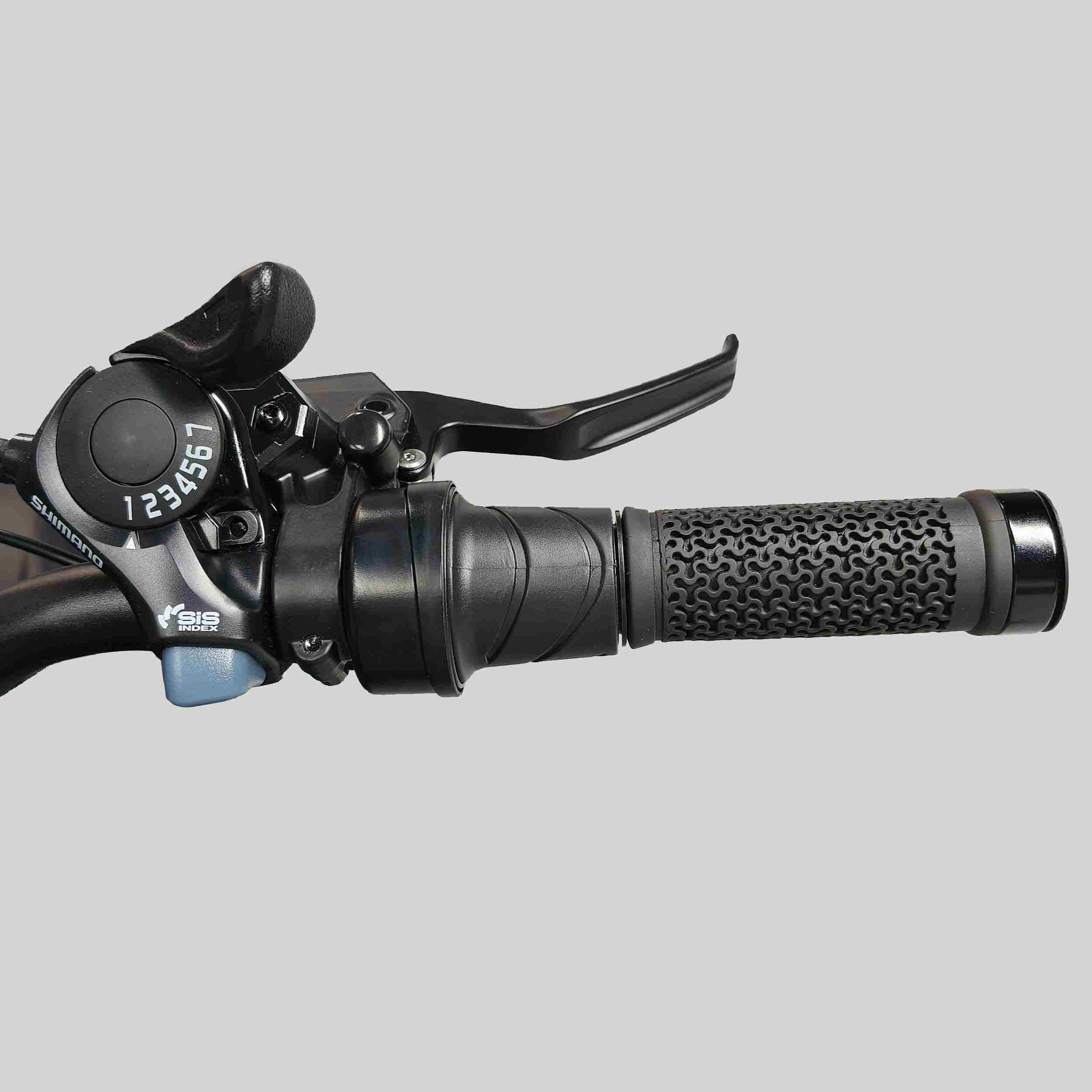

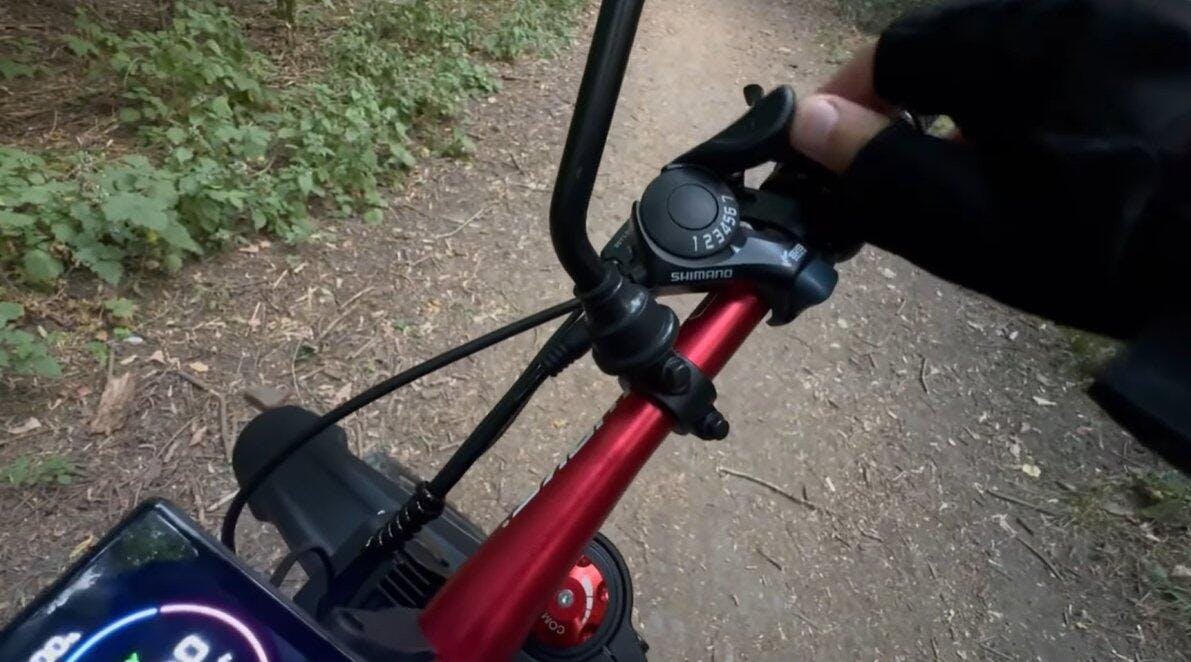

Switches For Feature Sets
Unlock the R19 by placing the NFC card on the display. The left handle has 3 gears to switch throttle speed, with a max speed of 50mph (80km/h) in gear 3. Hold the top button to set a 15mph (25km/h) speed limit (display shows "25km/h"). Hold again to restore the 50mph (80km/h) limit (display shows "99km/h"). Press the "M" button to change display functions.

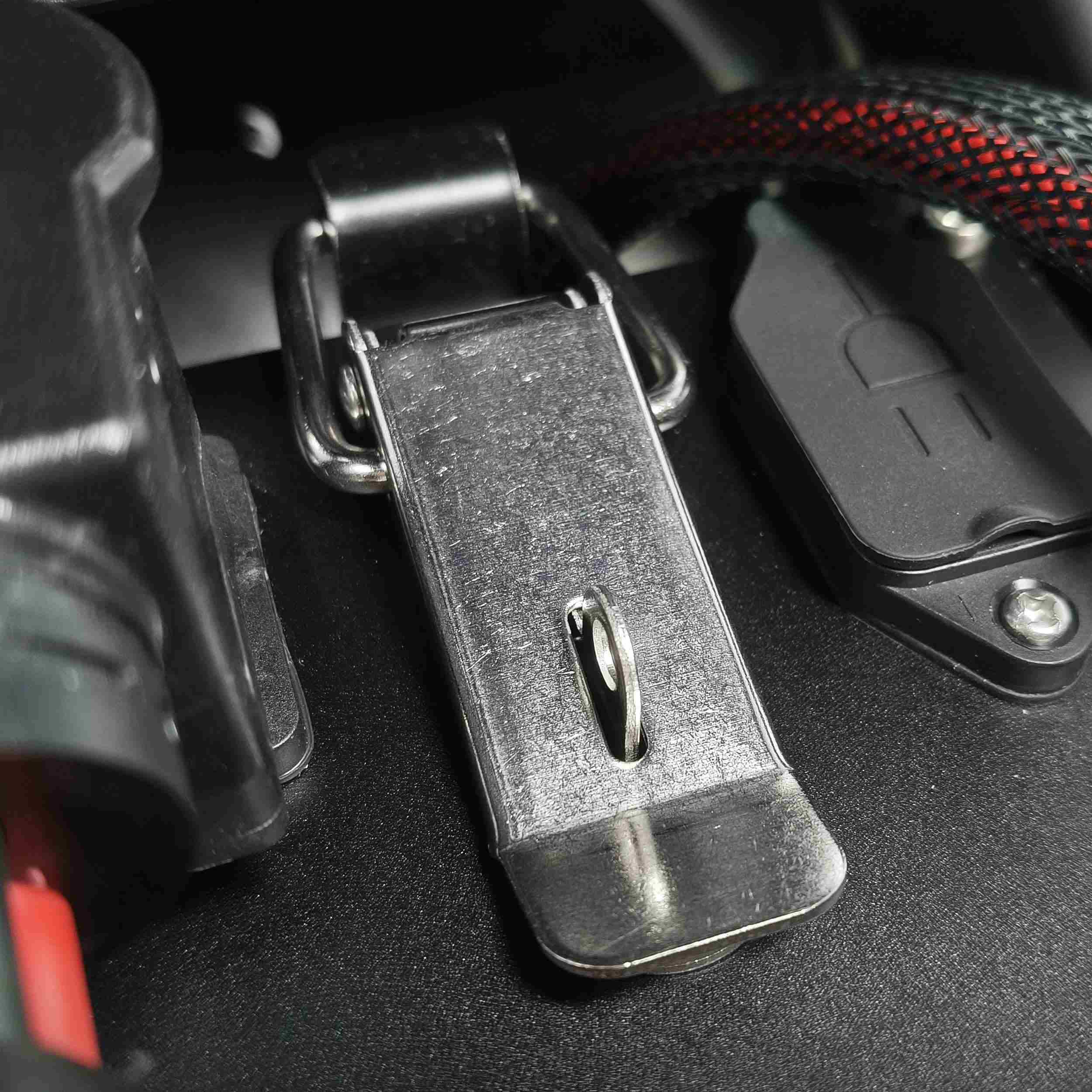

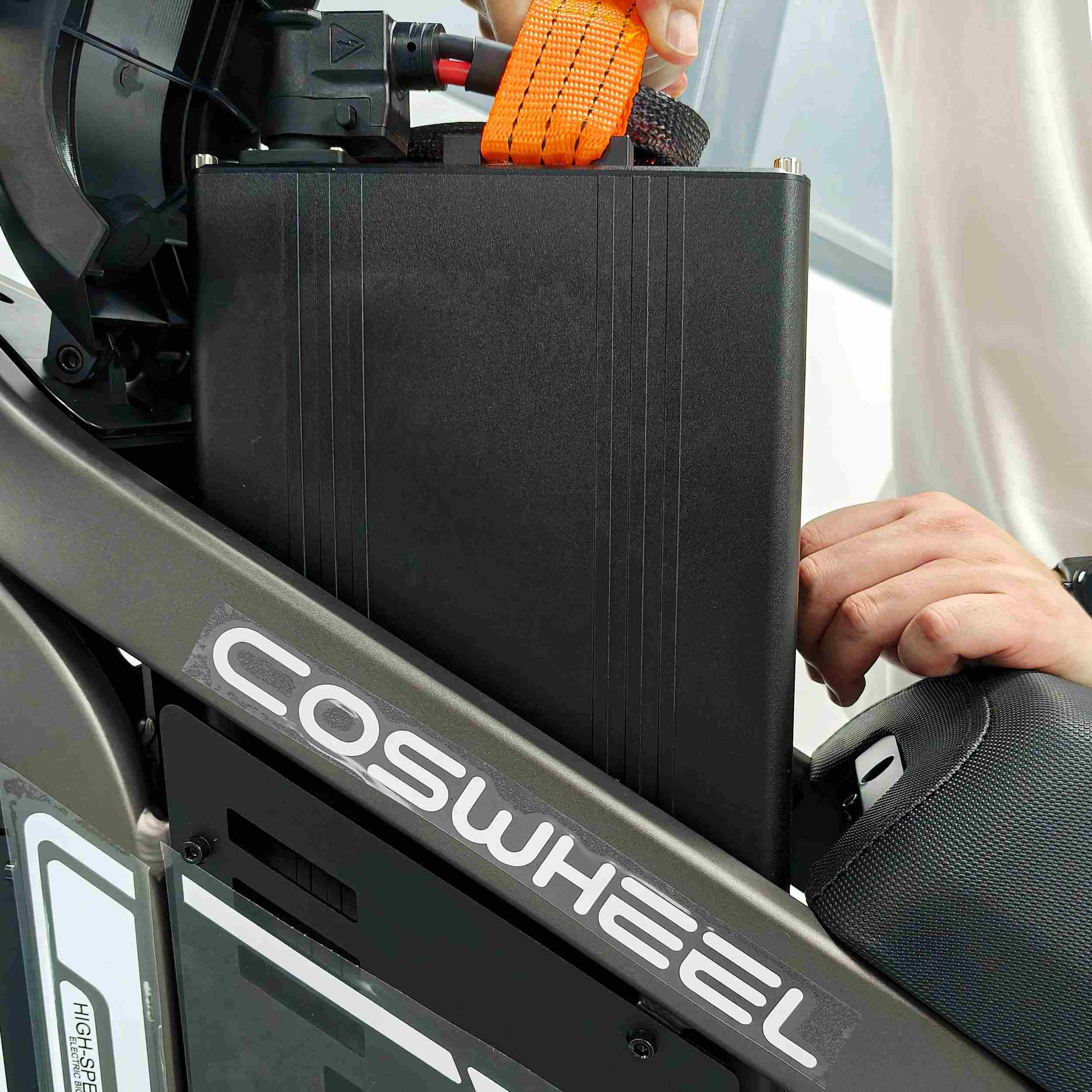

Battery Lock
The R19 is equipped with a removable power supply. When you need to remove the battery, please unplug the discharge port on the battery and loosen the lock. When you put the battery back in, remember to lock the battery lock to prevent the battery from shaking during riding, which may cause danger.

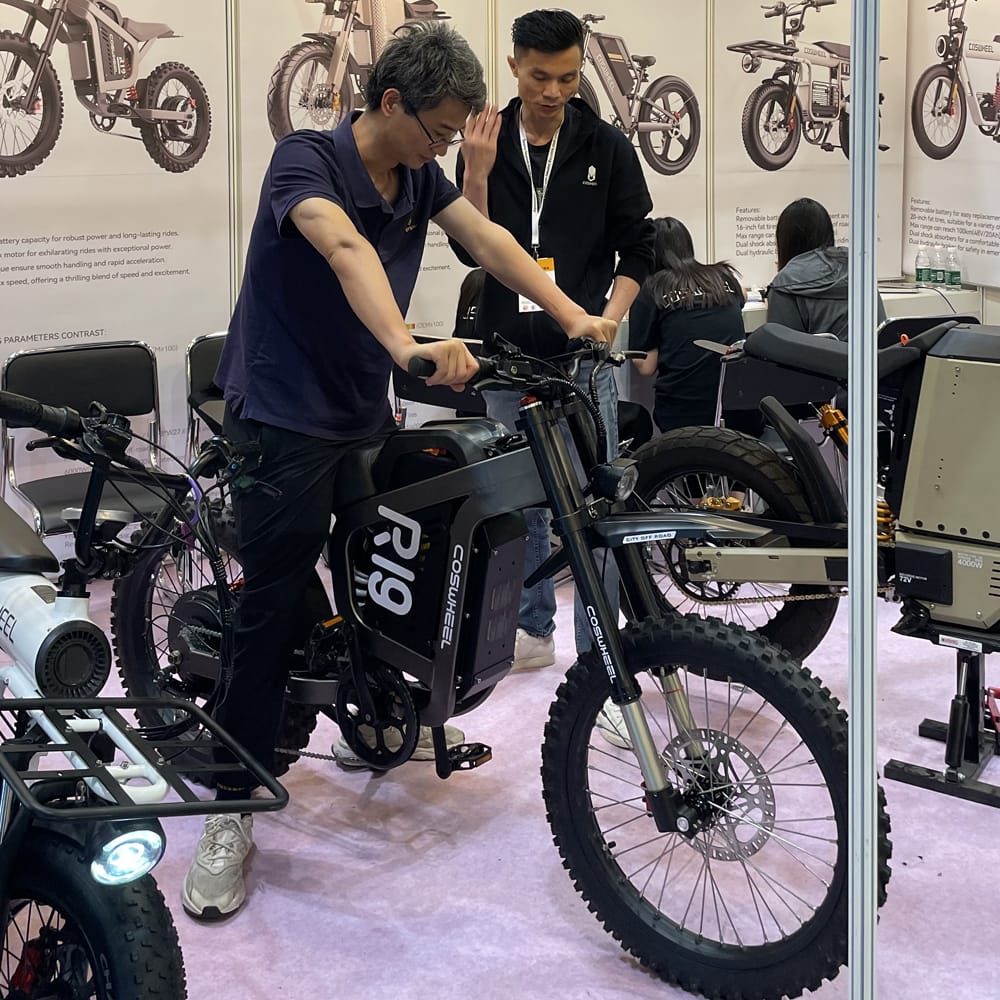

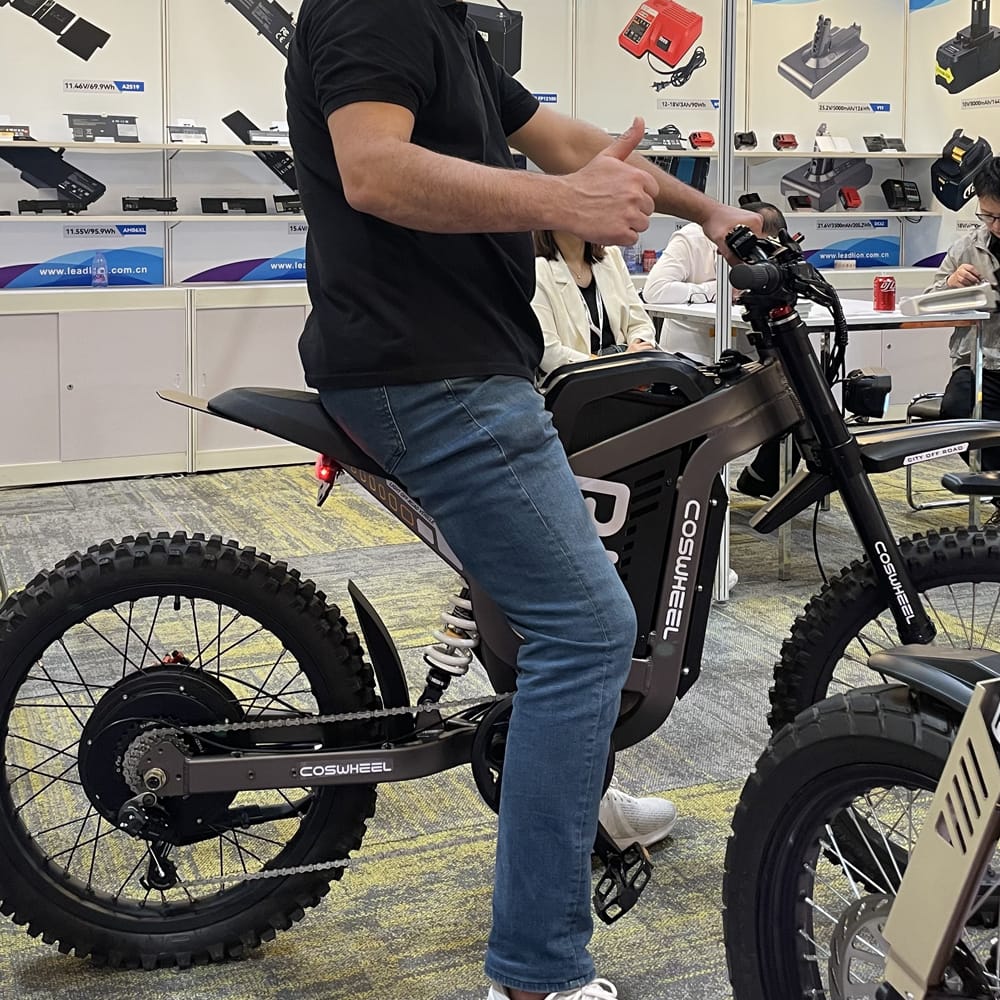

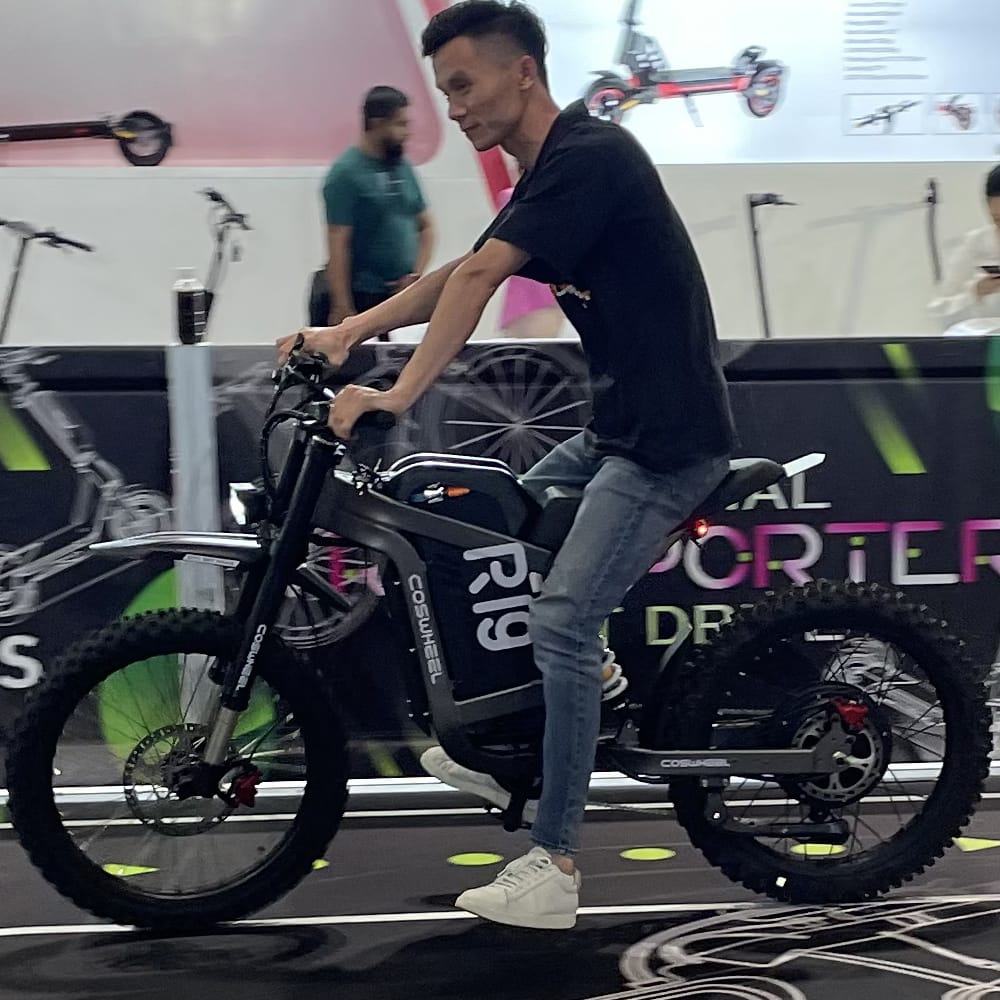

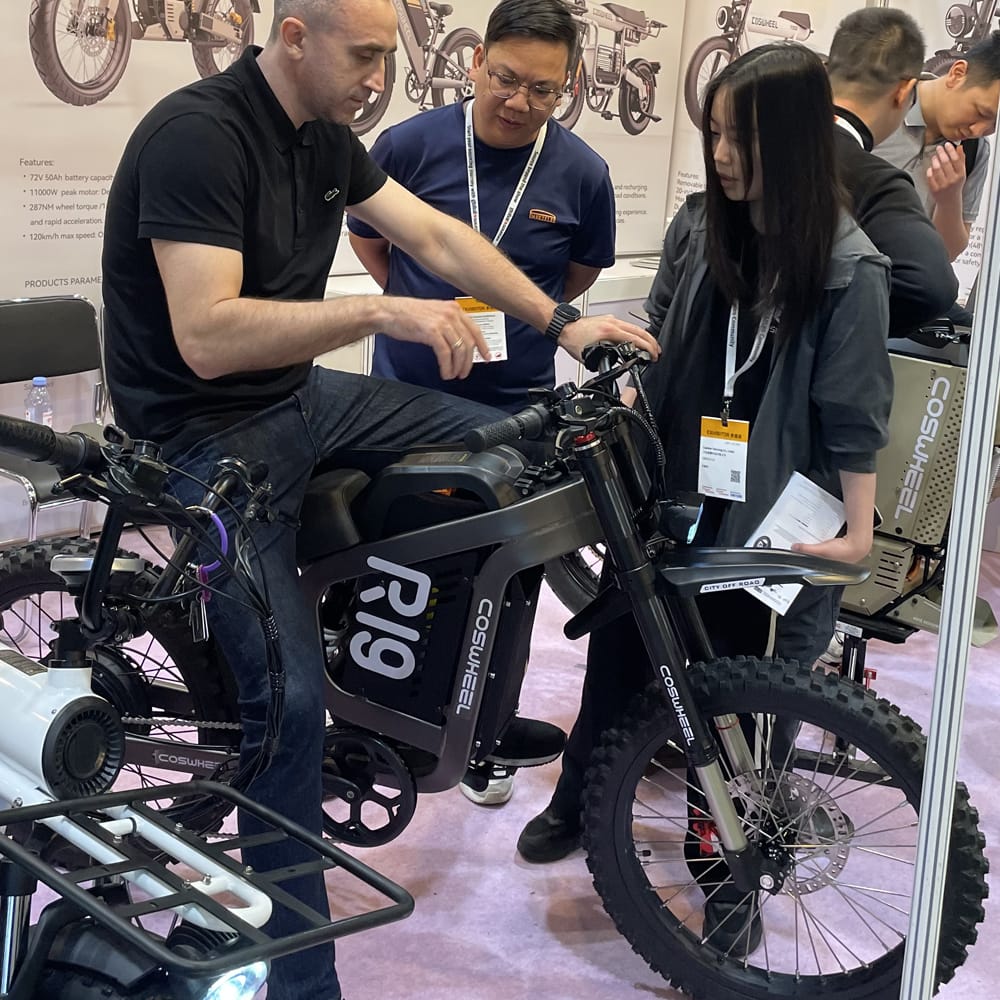

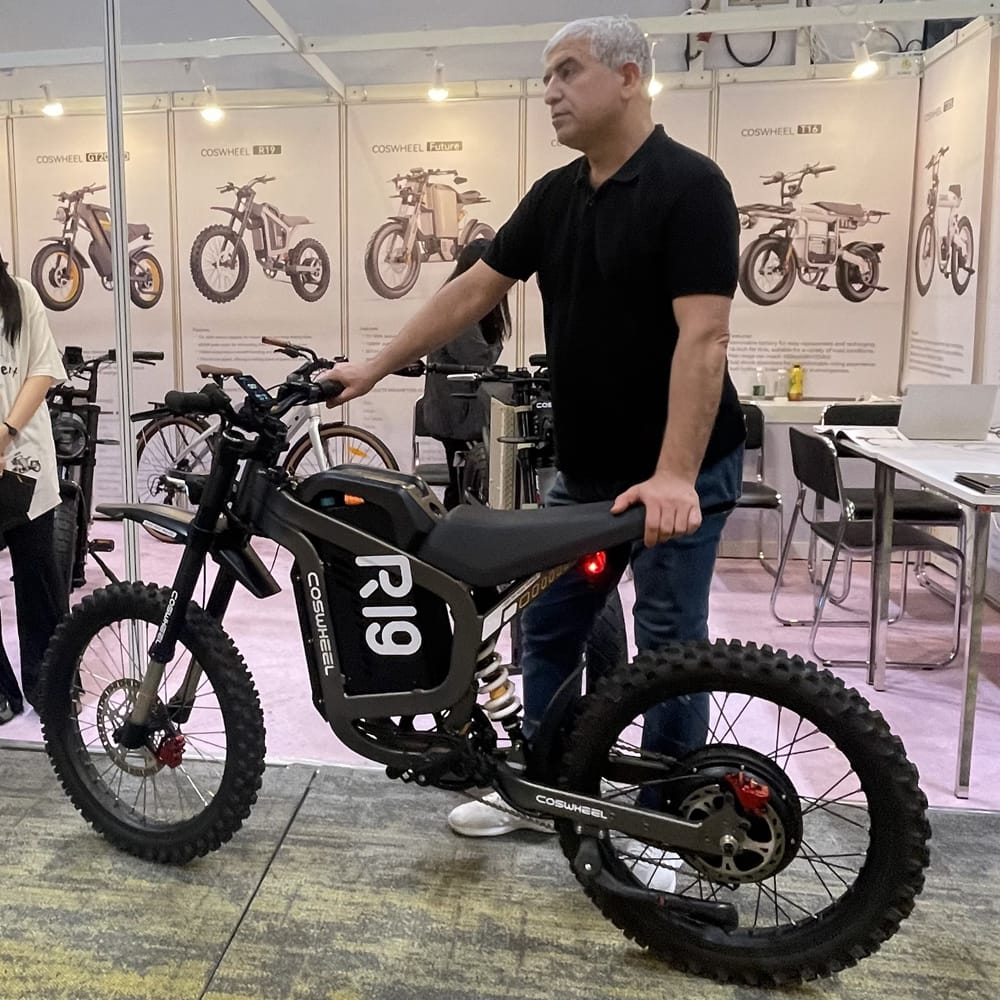

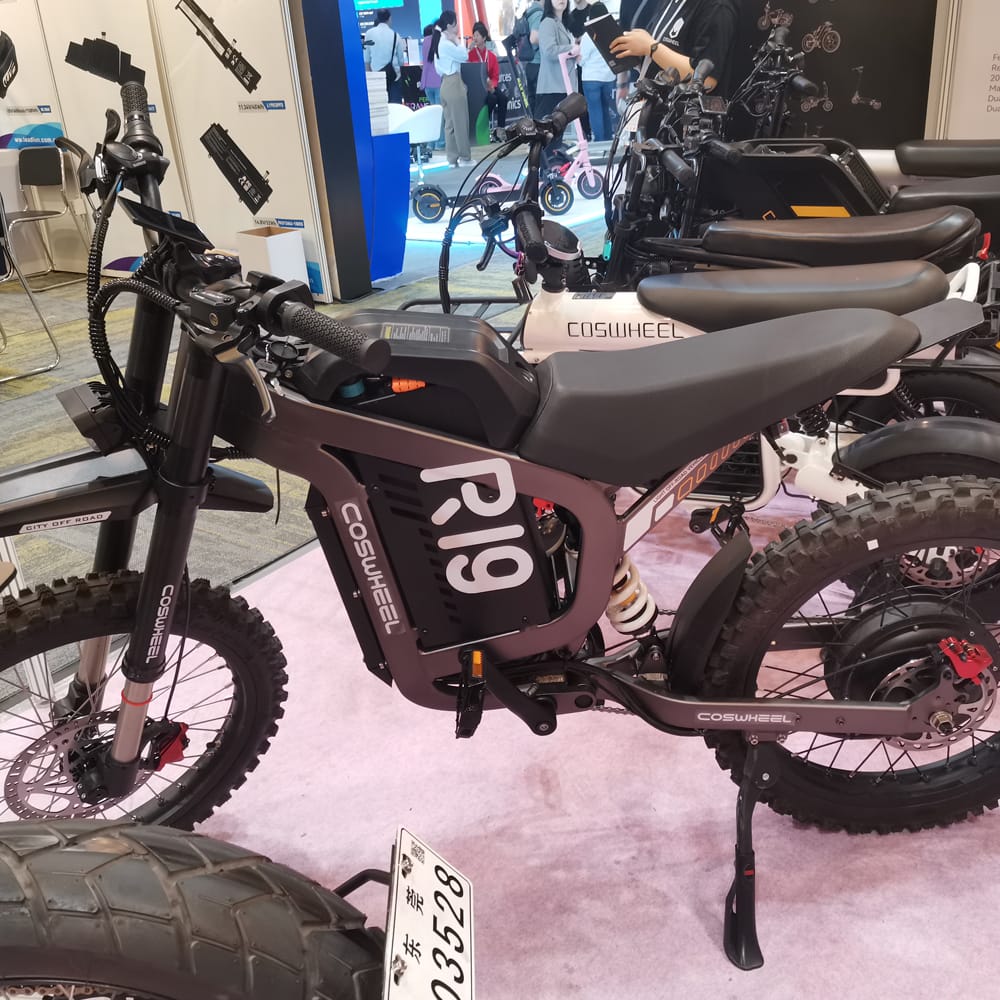

R19 at the Exhibition
R19 Specifications
Performance
- Top Speed: Class 2/3, 50 Mph (80Km/h)
- Range: 75+miles (120km) in Class-2 throttle-only mode (pure electricity); 124miles (200km) in Class-1 PAS (pedal assist)

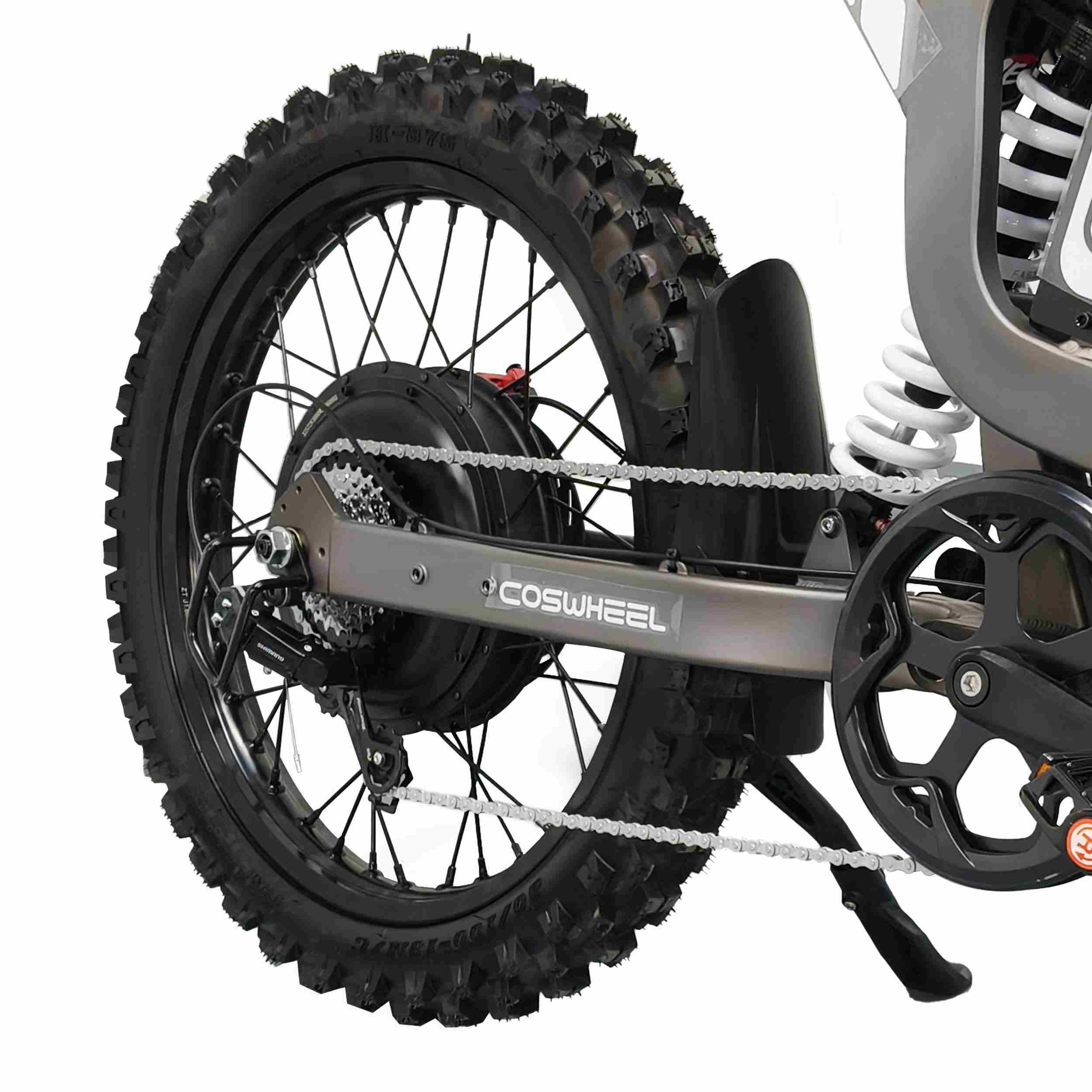

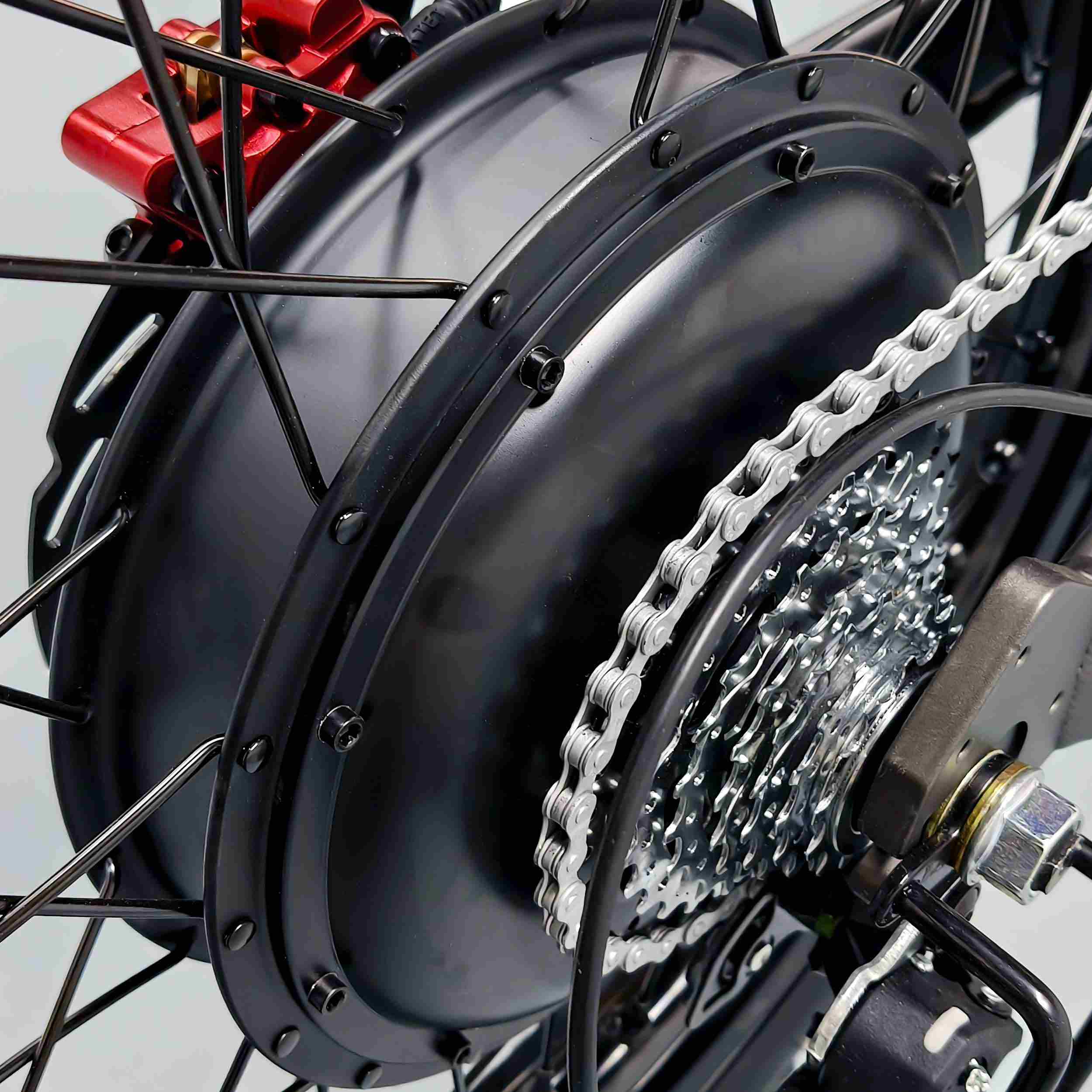

- Motor: 72V Peak 6000W (Rated 3000W) Brushless Rear Hub Motor 120Nm
- Battery: 72V 40Ah Lithium Battery
- Energy: 2880Wh
- Front Suspension: Inverted hydraulic shock absorber with adjustable damping, 200mm Travel
- Rear Suspension: Adjustable Damping, 300mm Travel
- Front Brakes: Double piston hydraulic oil brake, Equipped with 220mm*2.8 brake disc
- Rear Brakes: Double piston hydraulic oil brake, Equipped with 180mm*2.8 brake disc
- Front Tires: 70/100-19 professional off-road tire
- Rear Tires: 80/100-19 professional off-road tire
- Throttle: Grip Twist Throttle
Electronics
- Charger: 84V 6A Charger
- Charging Time: 6.0-7.0 Hours
- Display: 3.5" LCD high-brightness color screen
- Controller: 72V 80A

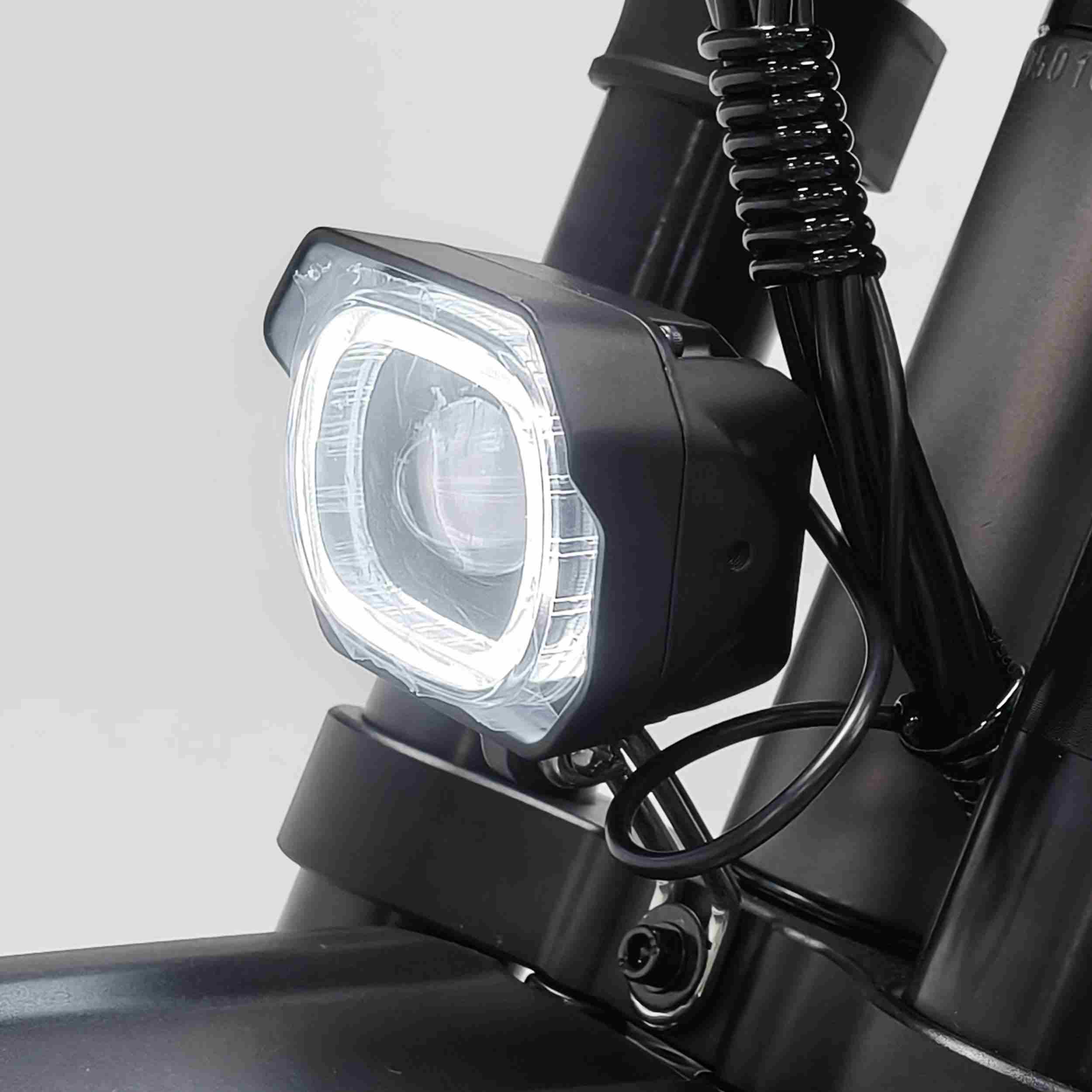

- Front Light: 12V Headlight

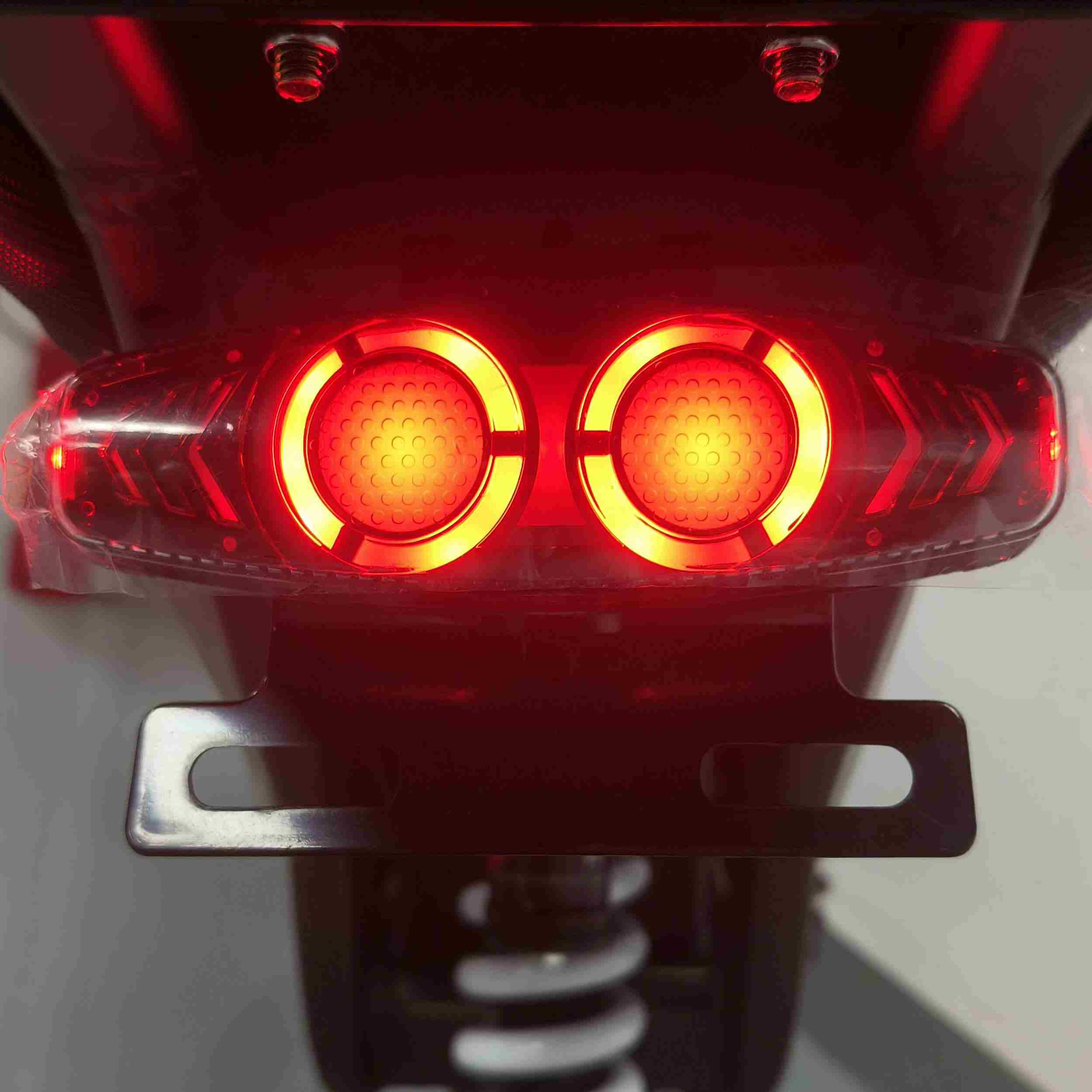

- Rear Light: LED
- Pedal Assist: 3 Levels
- Unlock Method: NFC Card
- Sensors: Speed Sensor
Components
- Frame: Hydroformed Triple-Butted 6061-T6 Aluminium Alloy

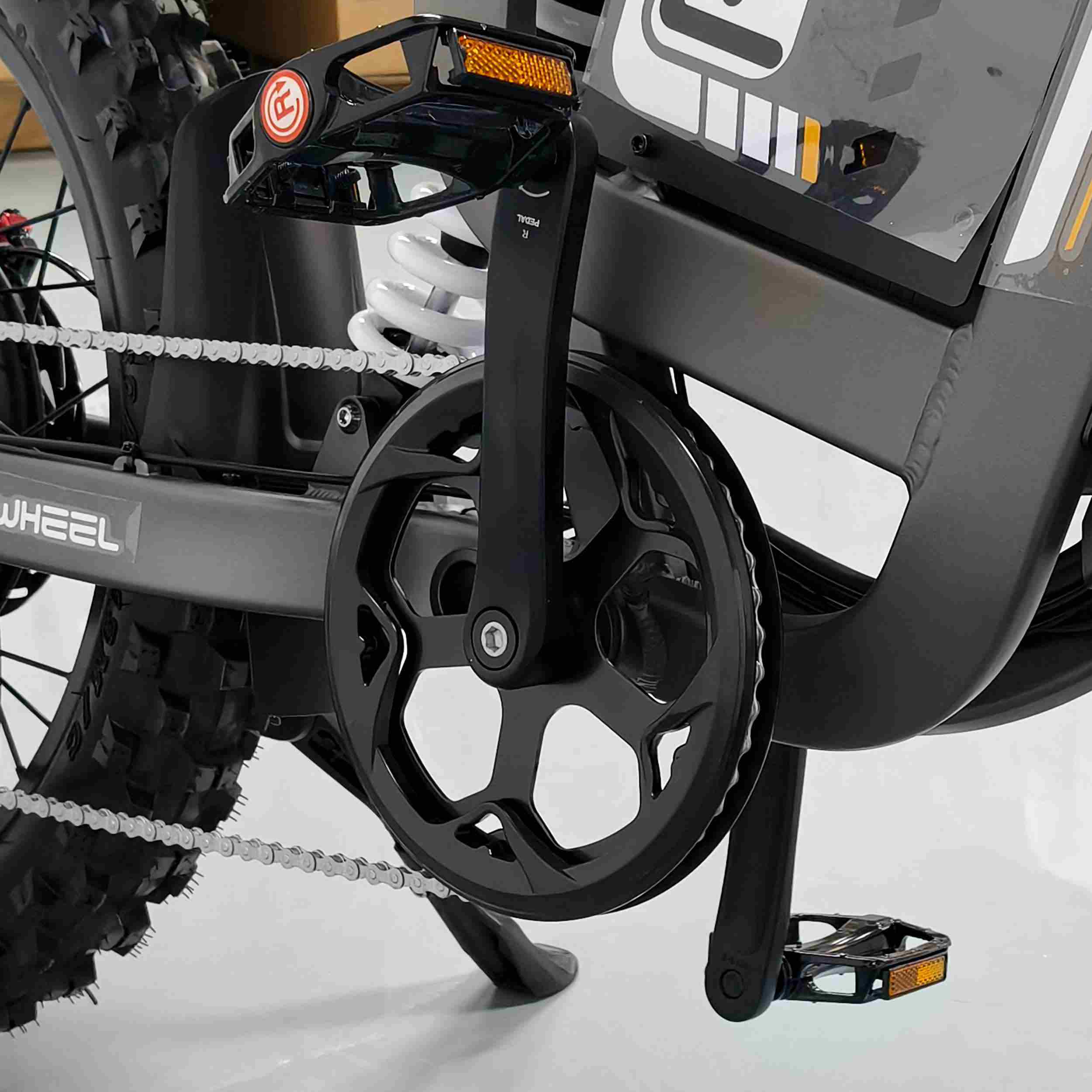

- Pedal: Aluminum Alloy Pedal, with Reflect-light, Axis 9/16 x2
- Crank: 1/2 "*3/32"*46T 7-speed ED Tooth Plate
- Rear Derailleur: Shimano 7-Speed
- Chain: 7-speed Anti-rust, 1/2" * 3/32"
- Handlebars: Split Handlebar, φ32 φ22 Sand Black
Geometry
- Suitable Height: 5'1" - 6'5"(155-200cm)
- Seat Height: 32.6" (83cm)
- Bike Height: 41.7" (106cm)
- Wheelbase: 47.8" (121.5cm)
- Handlebar Width: 27.2" (69cm)
- Bike Weight: ≥99lbs (with Battery) (≥45kg)
- Maximum Load: 440lbs (200kg)
- Safe Load: 330lbs (150kg)
- Overall Size: 74.8" * 27.6" *43" (190*70*109cm)
- Top Speed: Class 2/3, 50 Mph (80Km/h)
- Range: 75+miles (120km) in Class-2 throttle-only mode (pure electricity); 124miles (200km) in Class-1 PAS (pedal assist)
- Motor: 72V Peak 6000W (Rated 3000W) Brushless Rear Hub Motor 120Nm
- Battery: 72V 40Ah Lithium Battery
- Energy: 2880Wh
- Front Suspension: Inverted hydraulic shock absorber with adjustable damping, 200mm Travel
- Rear Suspension: Adjustable Damping, 300mm Travel
- Front Brakes: Double piston hydraulic oil brake, Equipped with 220mm*2.8 brake disc
- Rear Brakes: Double piston hydraulic oil brake, Equipped with 180mm*2.8 brake disc
- Front Tires: 70/100-19 professional off-road tire
- Rear Tires: 80/100-19 professional off-road tire
- Throttle: Grip Twist Throttle
- Charger: 84V 6A Charger
- Charging Time: 6.0-7.0 Hours
- Display: 3.5" LCD high-brightness color screen
- Controller: 72V 80A
- Front Light: 12V Headlight
- Rear Light: LED
- Pedal Assist: 3 Levels
- Unlock Method: NFC Card
- Sensors: Speed Sensor
- Frame: Hydroformed Triple-Butted 6061-T6 Aluminium Alloy
- Pedal: Aluminum Alloy Pedal, with Reflect-light, Axis 9/16 x2
- Crank: 1/2 "*3/32"*46T 7-speed ED Tooth Plate
- Rear Derailleur: Shimano 7-Speed
- Chain: 7-speed Anti-rust, 1/2" * 3/32"
- Handlebars: Split Handlebar, φ32 φ22 Sand Black
- Suitable Height: 5'1" - 6'5"(155-200cm)
- Seat Height: 32.6" (83cm)
- Bike Height: 41.7" (106cm)
- Wheelbase: 47.8" (121.5cm)
- Handlebar Width: 27.2" (69cm)
- Bike Weight: ≥99lbs (with Battery) (≥45kg)
- Maximum Load: 440lbs (200kg)
- Safe Load: 330lbs (150kg)
- Overall Size: 74.8" * 27.6" *43" (190*70*109cm)
Why Choose Coswheel R19
Electric Dirt Bike
Coswheel R19 Focused on simplicity and ease,Designed for active lifestyles,the Shimano 7-speed derailleur and rigid aluminum full suspension fork make it a low-maintenance choice for city riders,and offer enhanced control and comfort for diverse terrains
Its Shimano 7-speed derailleur and rear motor deliver dynamic performance for riders who prefer versatility
The hydraulic front suspension fork, with the 19" puncture protection tires, effectively cushions the shocks from diverse terrains. Riding this bike brings you much comfort and easiness
Yes, the 72V 40Ah battery provides a reliable range of up to 200 km for extended adventures
Absolutely! It's designed to load up to 200kg,perfect for carrying camping gears and daily necessities

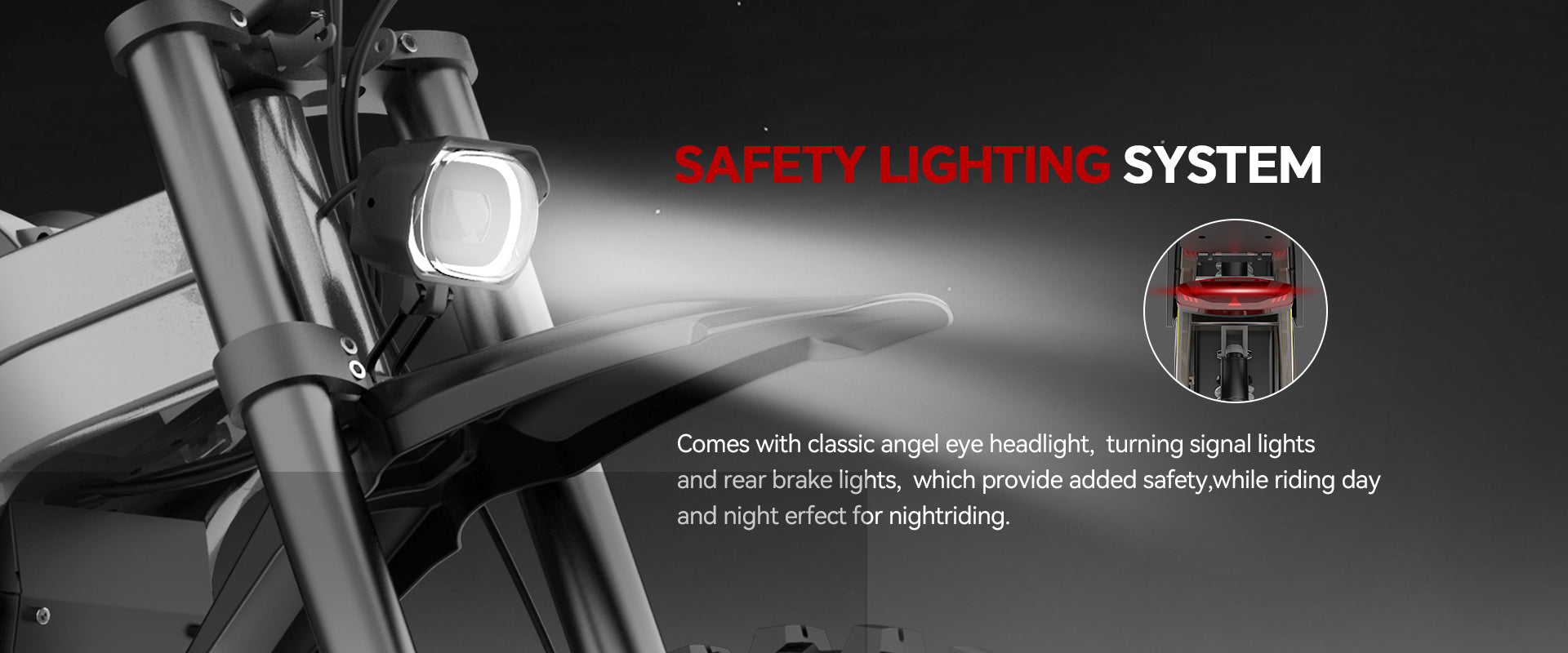

The front and rear lights ensure visibility during every ride, day or night, and the hydraulic disc brakes help stop the bike timely and quickly
SUPPORT
Certificate
UL2849 test report
COC certification
GCC test report
EU EN15194 and CE certification
VIN Number
The VIN number (Serial number) of the R19 ebike is in the middle of the front fork of each R19 (please note that the VIN number of the R19 is unique and cannot be repeated)

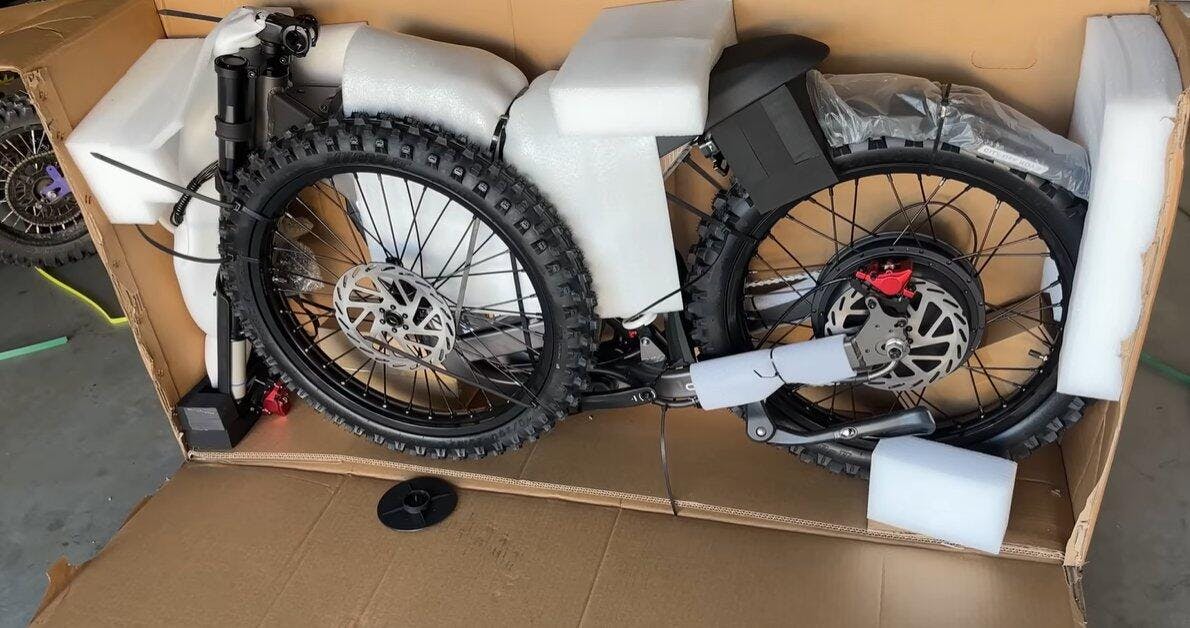

Package
R19 Ebike*1/Fender*2/Charger*1//Tool Bag*1
UL2849 test report
COC certification
GCC test report
EU EN15194 and CE certification
The VIN number (Serial number) of the R19 ebike is in the middle of the front fork of each R19 (please note that the VIN number of the R19 is unique and cannot be repeated)
R19 Ebike*1/Fender*2/Charger*1//Tool Bag*1
