CT20
Better capable commuter eBike to date
Your companion to explore the city and embody style
Choose The Ride That Suits You
The round tube frame design offers comfortable elegance for anyone who wants to travel in style. Whether fashionable dresses or casual outfits, this e-bike fits your lifestyle perfectly.
Ride longer, explore further
With 1200Wh battery you experience limitless freedom. Up to 140 km range for pure energy at the touch of a button, explore every corner effortlessly!
Unique original design
Get in comfortably, drive effortlessly.
With ergonomic original design,aviation aluminum alloy frame , not only provides effortless getting on and off, but also makes the ride a carefree pleasure.
Strong control, safe braking
Whether it's steep descents or abrupt stops, stay in control and overcome obstacles with confidence.
CT20 Specifications
Special Tips
CT20 model have CE and COC certificates. The speed of CT20 ebikes shipped to Europe will be limited to 25km/h when they leave the factory. After receiving the bike, you can contact us for guidance on lifting the speed limit. We can also send you a 250W logo to be affixed to the motor in accordance with European regulations.At present, European customers have not reported any regulatory issues after riding
Performance
- Top Speed: Class 2/3, 28 Mph (45Km/h)
- Range: 50+miles (80km) in Class-2 throttle-only mode (pure electricity); 87miles (140km) in Class-1 PAS (pedal assist)
- Motor: 48V Peak 1500W (Rated 1000W) Brushless Rear Hub Motor 80N.m
- Battery: 48V 25Ah Battery (Lithium 18650 Cells)
- Energy: 1200Wh
- Front Suspension: 20" Shoulder Shock Absorbing, 80mm Travel
- Brakes: Double Piston Oil Brake, Equipped with 180mm Stainless Brake Disc
- Tires: Off-road Tire 20" * 5.0" IA-2149 with AV+Lining
- Throttle: Grip Twist Throttle (Old) / Thumb Throttle (New)
Electronics
- Charger: 48V3A Charger
- Charging Time: 3.5-8.0 Hours
- Display: Easy Read LCD Display
- Controller: 48V 28A
- Front Light: Classic Angel Eye Headlight, 120 LUX
- Rear Light: LED
- Pedal Assist: 3 Levels
- Sensors: Speed Sensor
Components
- Frame: Hydroformed Triple-Butted 6061-T6 Aluminium Alloy
- Pedal: Aluminum Alloy Pedal, with Reflect-light, Axis 9/16 x2
- Crank: 1/2 "*3/32"*46T 7-speed ED Tooth Plate
- Rear Derailleur: Shimano 7-Speed
- Chain: 7-speed Anti-rust, 1/2" * 3/32"
- Handlebars: Sand Black 31.8*660
Geometry
- Suitable Height: 5'1" - 6'5"
- Seat Height: 33.4" (85cm)
- Bike Height: 45.3" (115cm)
- Wheelbase: 45.3" (115cm)
- Handlebar Width: 26.4" (67cm)
- Bike Weight: ≥88lbs (with Battery) (≥40kg)
- Maximum Load: 330lbs (150kg)
- Safe Load: 265lbs (120kg)
- Overall Size: 70.9" * 26.4" *45.3" (180*67*115cm)
- Package Size: 59.4" * 14.2" * 35.4" (151*36*90cm)
CT20 features in detail
The CT20 equipped a peak 1500W brushless powerful rear hub motor, rated at 1000W,making your riding journey more powerful and faster
When the trail gets steep, we got you covered. The CT20 comes standard with an 7-speed cassette to provide that extra power to smooth out even the gnarliest hills
Super powerful motorcycle grade hydraulic brakes will ensure you and your e-bike will slow down in the blink of an eye. These 2-piston brakes provide powerful stopping power in all riding conditions. 3.0mm thickness, 180mm diameter brake disc
Large 4.0-inch color LCD display lets you clearly know how your ebike is being used, with a USB port to link your phone charging
CT20's battery has been repositioned to the seat tube with lock to keep its center of gravity low, allowing for a longer seat and additional room for riders to move as they cruise
The adventures don't need to end when the sun goes down; the CT20 comes with a bright LED Angel Eye headlight and tail light all with dual Turn signals to illuminate even the darkest paths
Each e-bike comes pre-programmed in the Class-2 mode, which allows for throttle operation and pedal-assist ，You can limit and release the speed that belongs to you . Switch between ride modes to access Class-1, Class-3, and reach up to Off-Road mode
CT20 moto-inspired seat provides plenty of room to get into the perfect riding position. The extended seat will ensure you stay comfortable even on your longest rides, regardless of terrain or conditions
The CT20 carries a taillight along with dual turn signals to illuminate the darkest of roads
Upgrade your ride with Coswheel CT20's spacious storage basket! Effortlessly carry essentials, shop with ease, and enjoy added convenience on every journey
The CT20 equipped a peak 1500W brushless powerful rear hub motor, rated at 1000W,making your riding journey more powerful and faster
When the trail gets steep, we got you covered. The CT20 comes standard with an 7-speed cassette to provide that extra power to smooth out even the gnarliest hills
Super powerful motorcycle grade hydraulic brakes will ensure you and your e-bike will slow down in the blink of an eye. These 2-piston brakes provide powerful stopping power in all riding conditions. 3.0mm thickness, 180mm diameter brake disc
Large 4.0-inch color LCD display lets you clearly know how your ebike is being used, with a USB port to link your phone charging
CT20's battery has been repositioned to the seat tube with lock to keep its center of gravity low, allowing for a longer seat and additional room for riders to move as they cruise
The adventures don't need to end when the sun goes down; the CT20 comes with a bright LED Angel Eye headlight and tail light all with dual Turn signals to illuminate even the darkest paths
Each e-bike comes pre-programmed in the Class-2 mode, which allows for throttle operation and pedal-assist ，You can limit and release the speed that belongs to you . Switch between ride modes to access Class-1, Class-3, and reach up to Off-Road mode
CT20 moto-inspired seat provides plenty of room to get into the perfect riding position. The extended seat will ensure you stay comfortable even on your longest rides, regardless of terrain or conditions
The CT20 carries a taillight along with dual turn signals to illuminate the darkest of roads
Upgrade your ride with Coswheel CT20's spacious storage basket! Effortlessly carry essentials, shop with ease, and enjoy added convenience on every journey
What's special about CT20
Why choose Coswheel CT20 fat tire electric bike
Coswheel CT20 Focused on simplicity and ease,Designed for active lifestyles,the Shimano 7-speed derailleur and rigid aluminum full suspension fork make it a low-maintenance choice for city riders,and offer enhanced control and comfort for diverse terrains
Its Shimano 7-speed derailleur and rear motor deliver dynamic performance for riders who prefer versatility
The hydraulic front suspension fork, with the 20"x5.0" puncture protection tires, effectively cushions the shocks from diverse terrains. Riding this bike brings you much comfort and easiness
Yes, the 48V 25Ah battery provides a reliable range of up to 140 km for extended adventures
Absolutely! It's designed to load up to 150 kg,perfect for carrying camping gears and daily necessities
The front and rear lights ensure visibility during every ride, day or night, and the hydraulic disc brakes help stop the bike timely and quickly
Engineered for real-world challenges, the CT20’s rugged tires and strong motor provide stable, clean energy performance—whether you're tackling muddy roads or unpredictable terrain
Commute smarter with zero emissions. COSWHEEL CT20 offers a smooth, efficient ride built for urban mobility—eco-conscious, stylish, and reliable for your everyday journeys
Escape the city and explore nature responsibly. With durable components and long-range battery, the CT20 delivers a powerful, quiet ride that respects the environment and thrills the rider
Spacious seating and solid design let you ride with loved ones—making everyday commutes or weekend outings cleaner, greener, and more connected
From grocery runs to urban delivery tasks and quick errands, the CT20 offers practical mobility with zero emissions. Compact yet capable, it's the smart solution for sustainable short trips and daily convenience
Customer Reviews
Bestellung und Lieferung verliefen einwandfrei.
Auspacken und Zusammenbau einfach, da sämtliches benötigte Werkzeug mitgeliefert wurde. Ich bin sehr zufrieden mit der Qualität des Bikes.
Die erste Probefahrt hat mich begeistert und ein Grinsen ins Gesicht gezaubert.
Es war eine gute Entscheidung diese E-Bike zu kaufen
Seems to be a solid bike. Just received it yesterday so I won't make too many comments on performance. Good speed and handling though. Lights are sufficient. No real need to add more. Assembly was a breeze. Had a bent cage on the left side when it arrived. And 2 bolts missing there. Plus a bolt was missing from kick stand. Overall satisfied with the experience though.

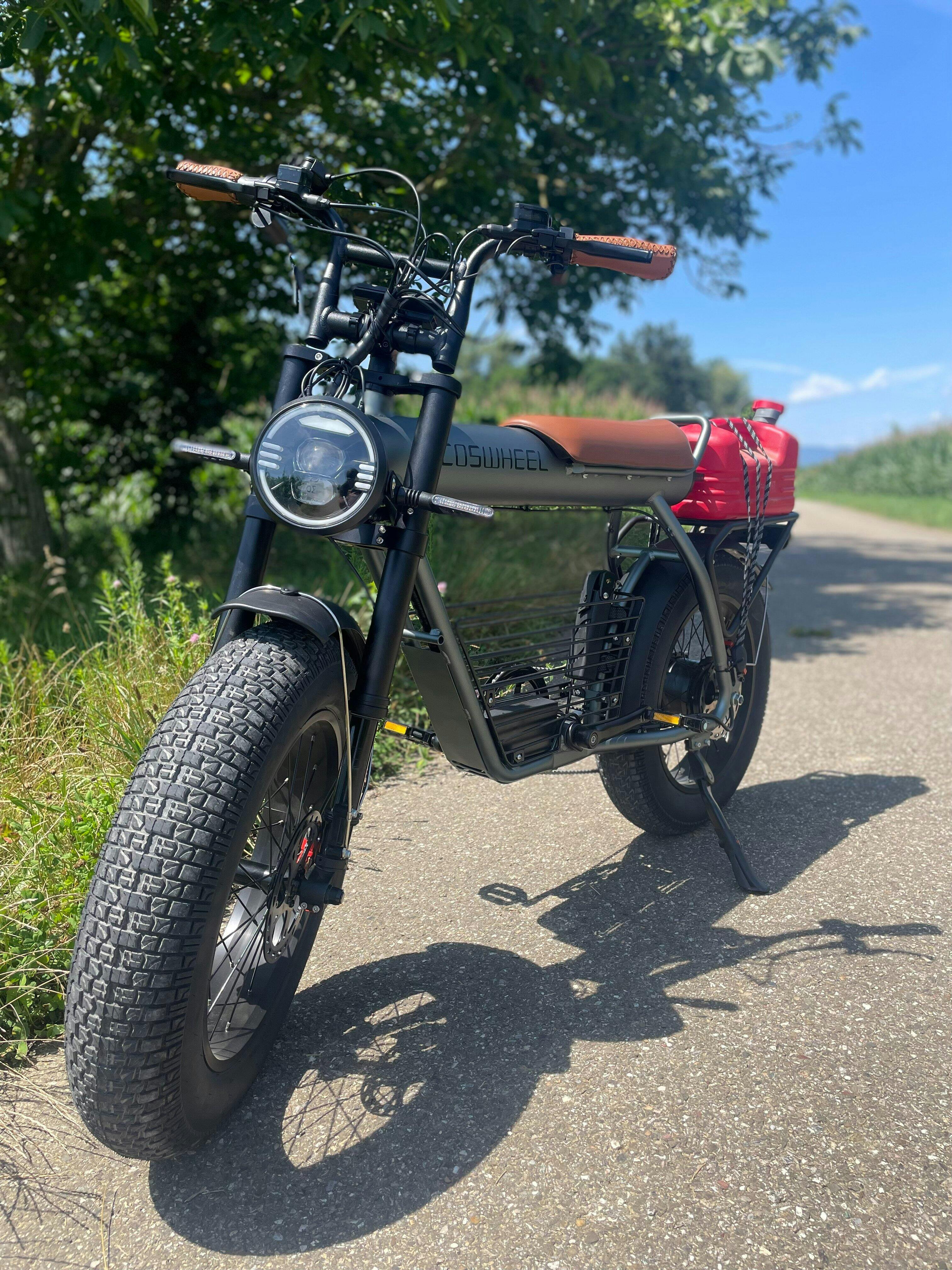

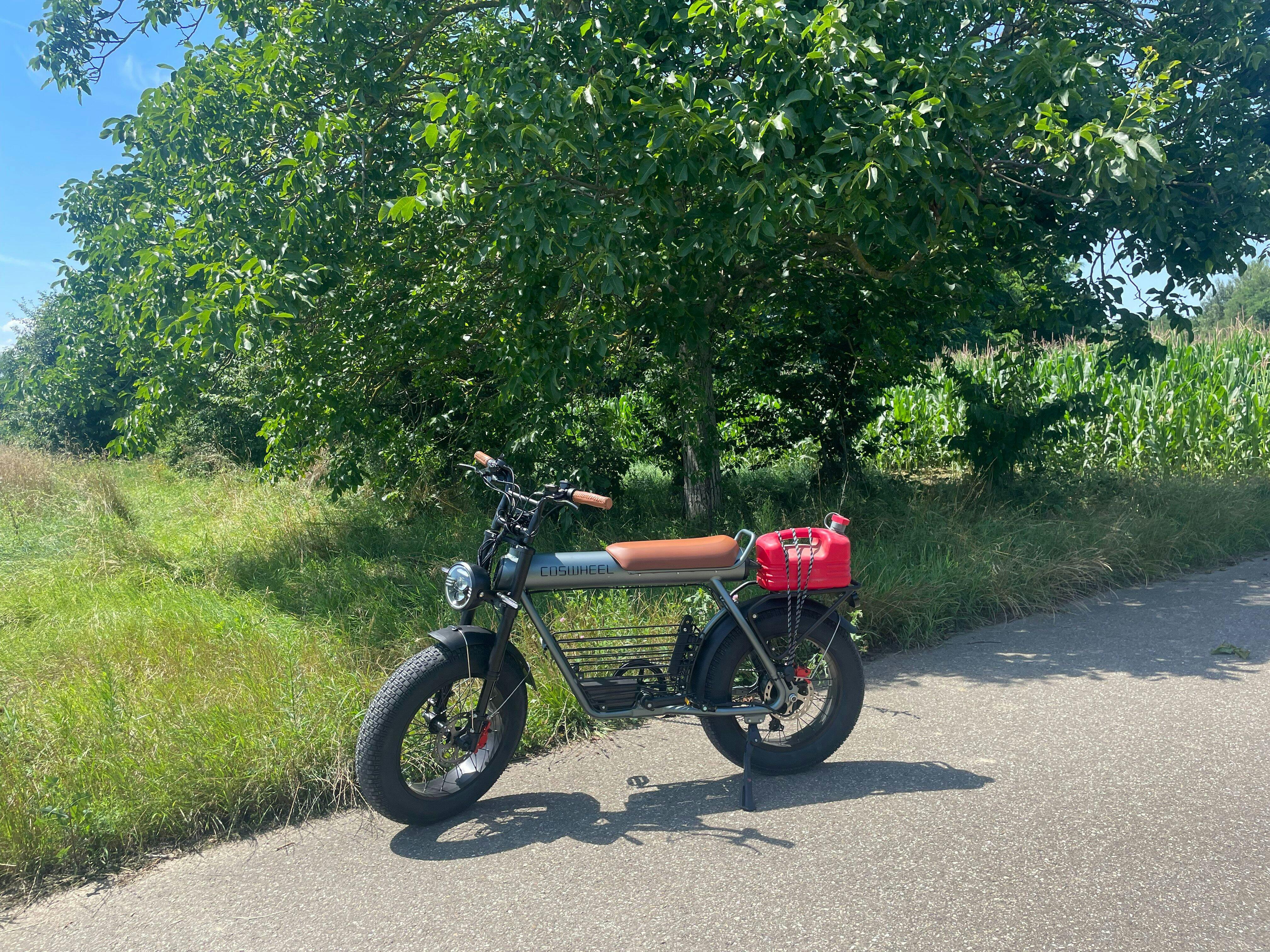

partager une photo que j’ai prise ce week-end balade 60km/jour
