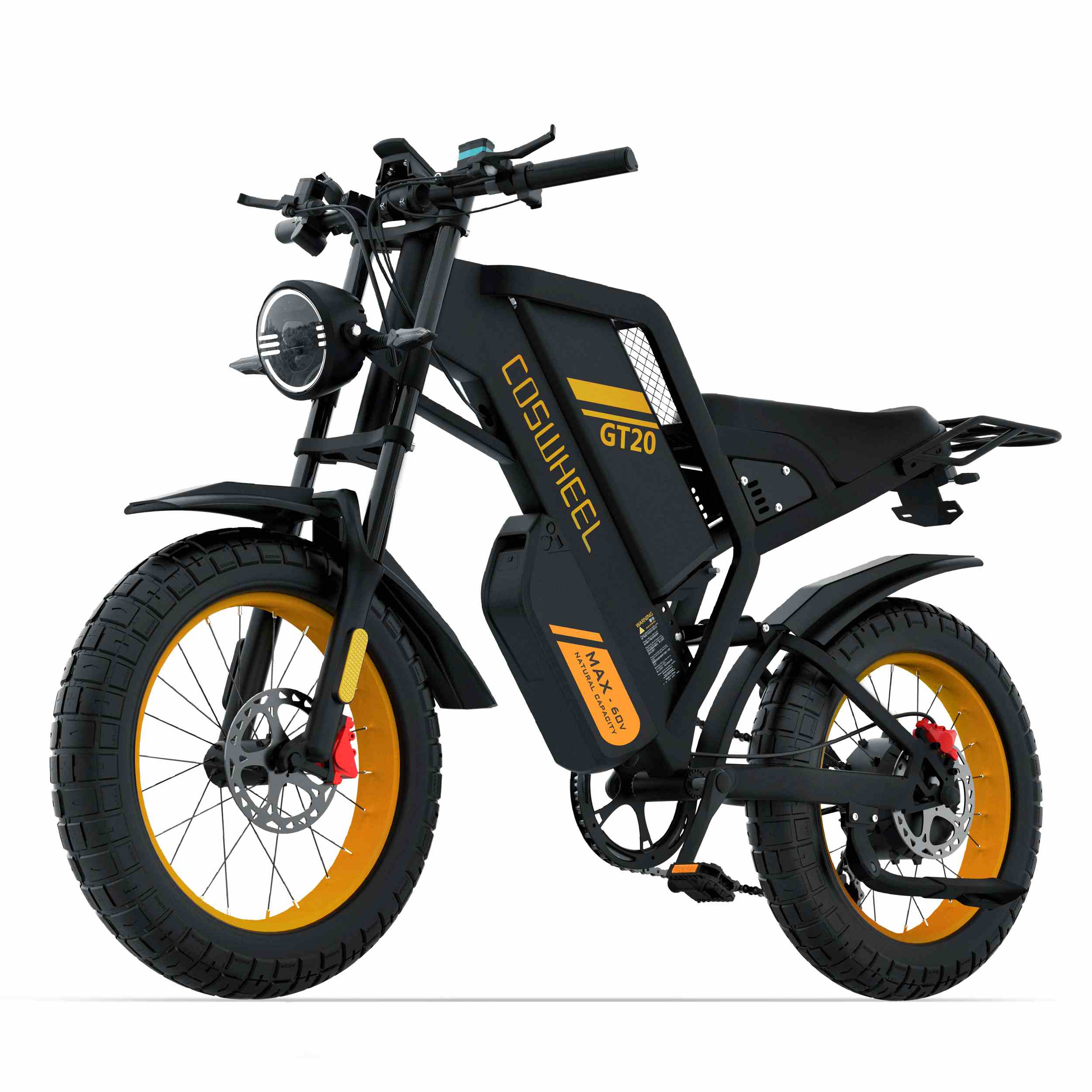

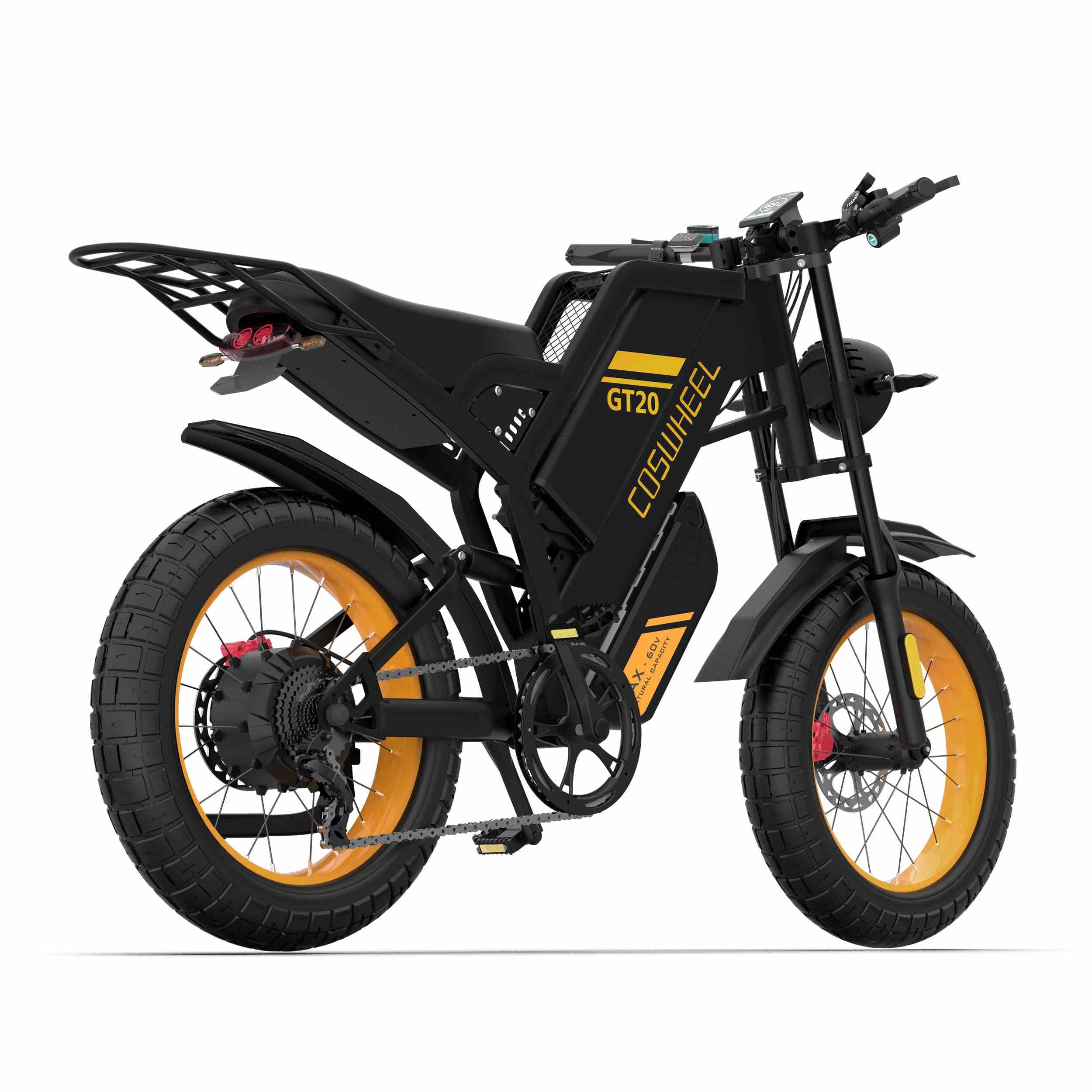

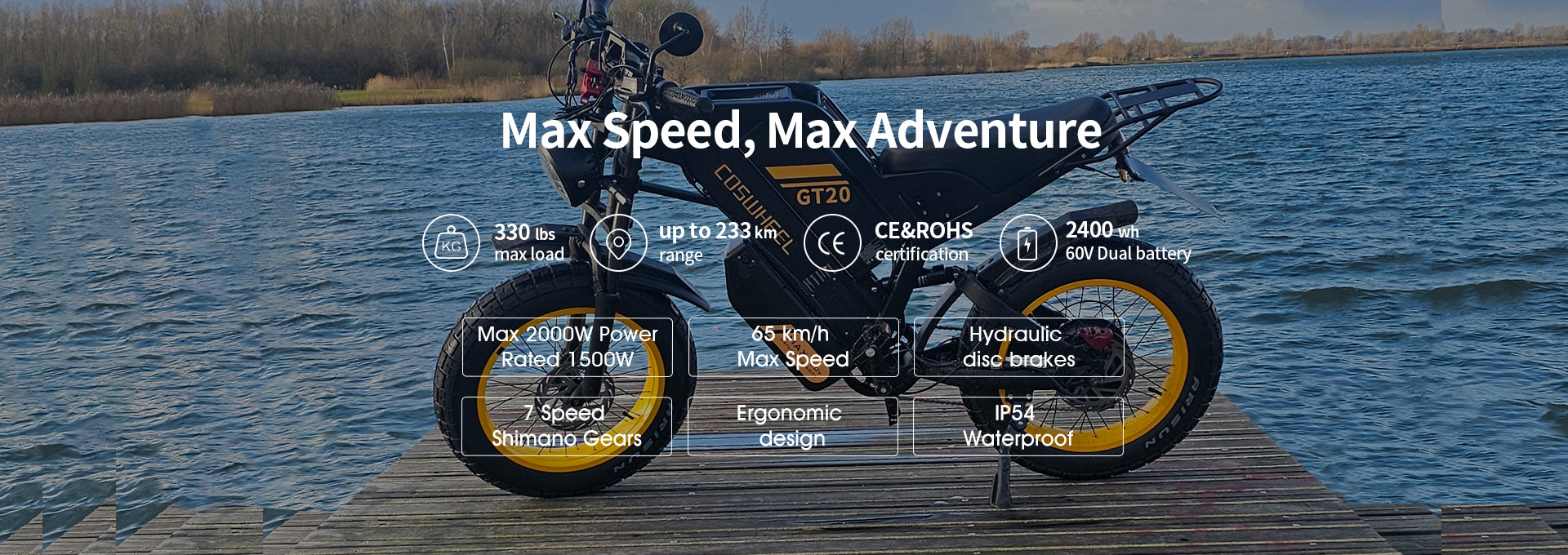

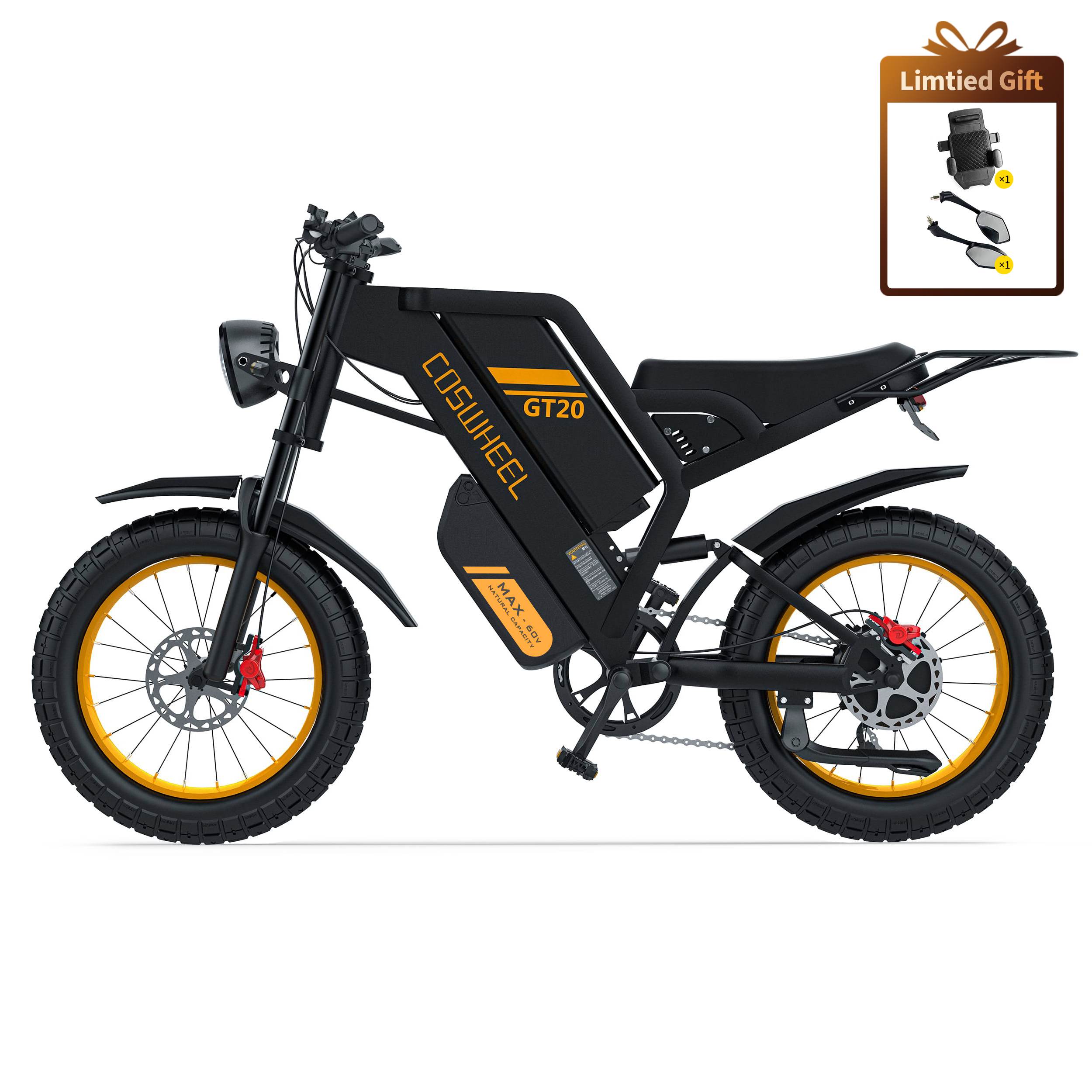

Coswheel GT20 Max
Full suspension Dual Samsung batteries ebike for limitless adventures
It takes about 40-55 working days for GT20Max to be delivered from China to Europe

GT20 Max model have CE and COC certificates. The speed of GT20 Max ebikes shipped to Europe will be limited to 25km/h when they leave the factory. After receiving the bike, you can contact us for guidance on lifting the speed limit. We can also send you a 250W logo to be affixed to the motor in accordance with European regulations.At present, European customers have not reported any regulatory issues after riding.

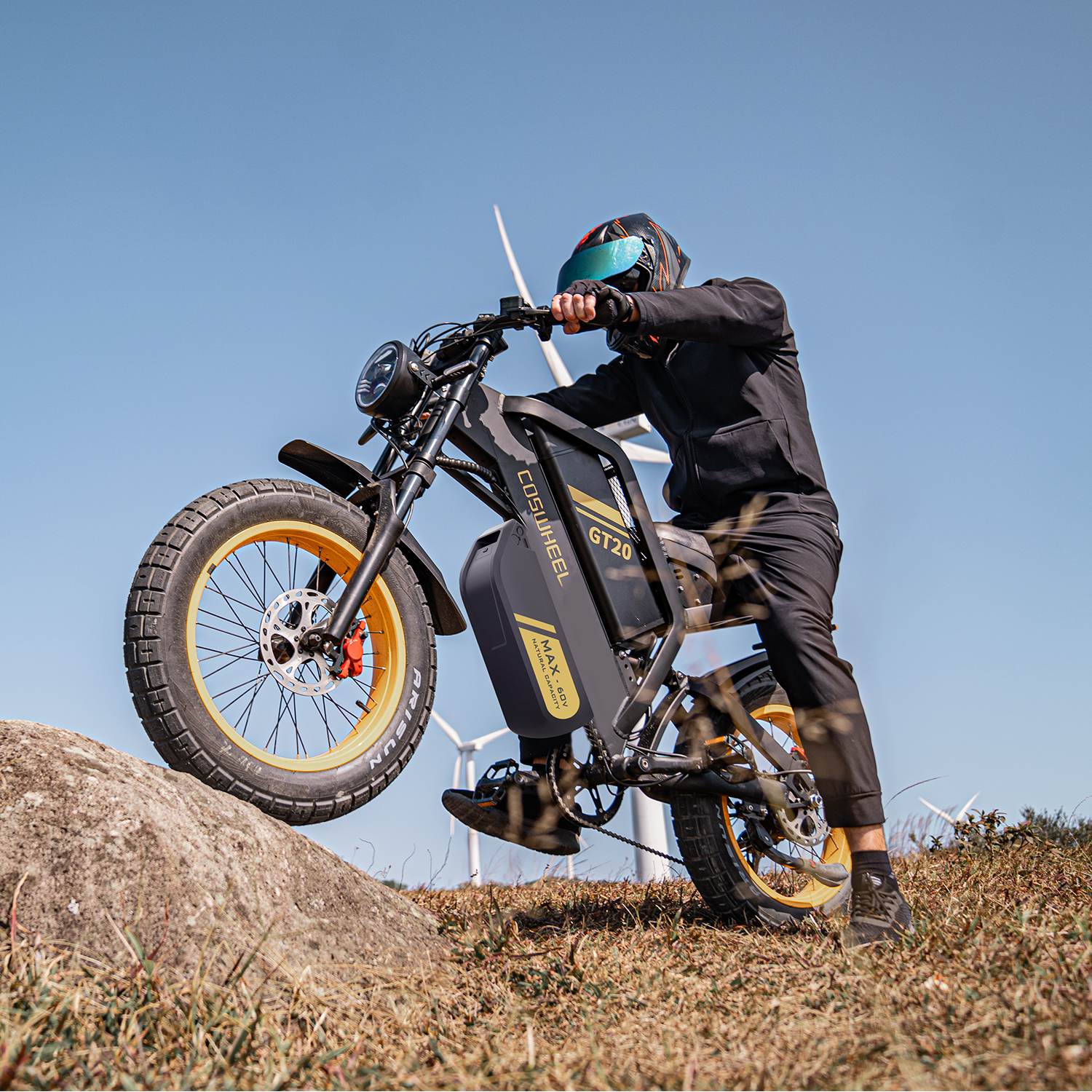

Mountain Light Off-Road
Conquer light off-road trails with the COSWHEEL GT20 Max . Its rugged tires and strong suspension deliver smooth, stable rides across hilly, uneven terrain.

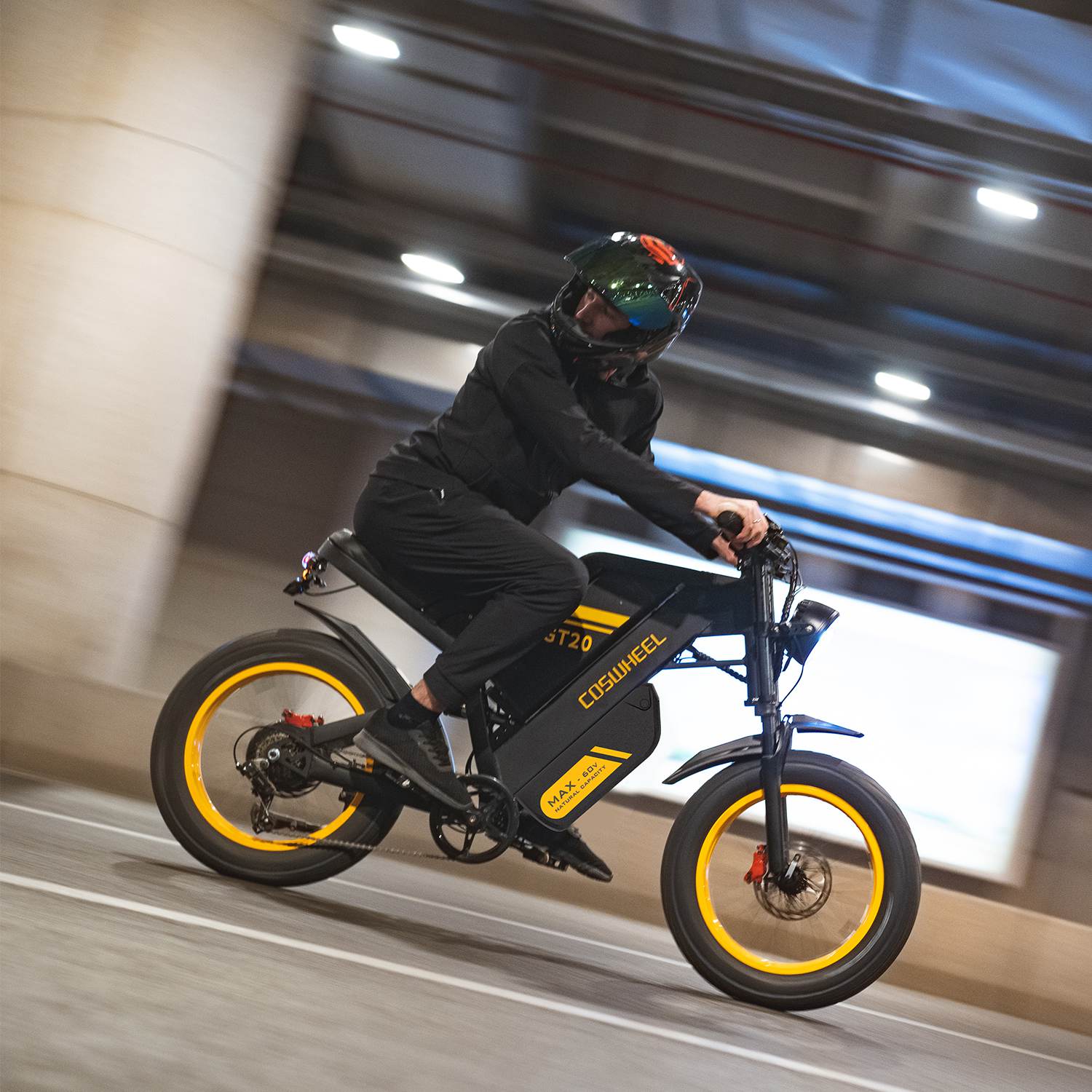

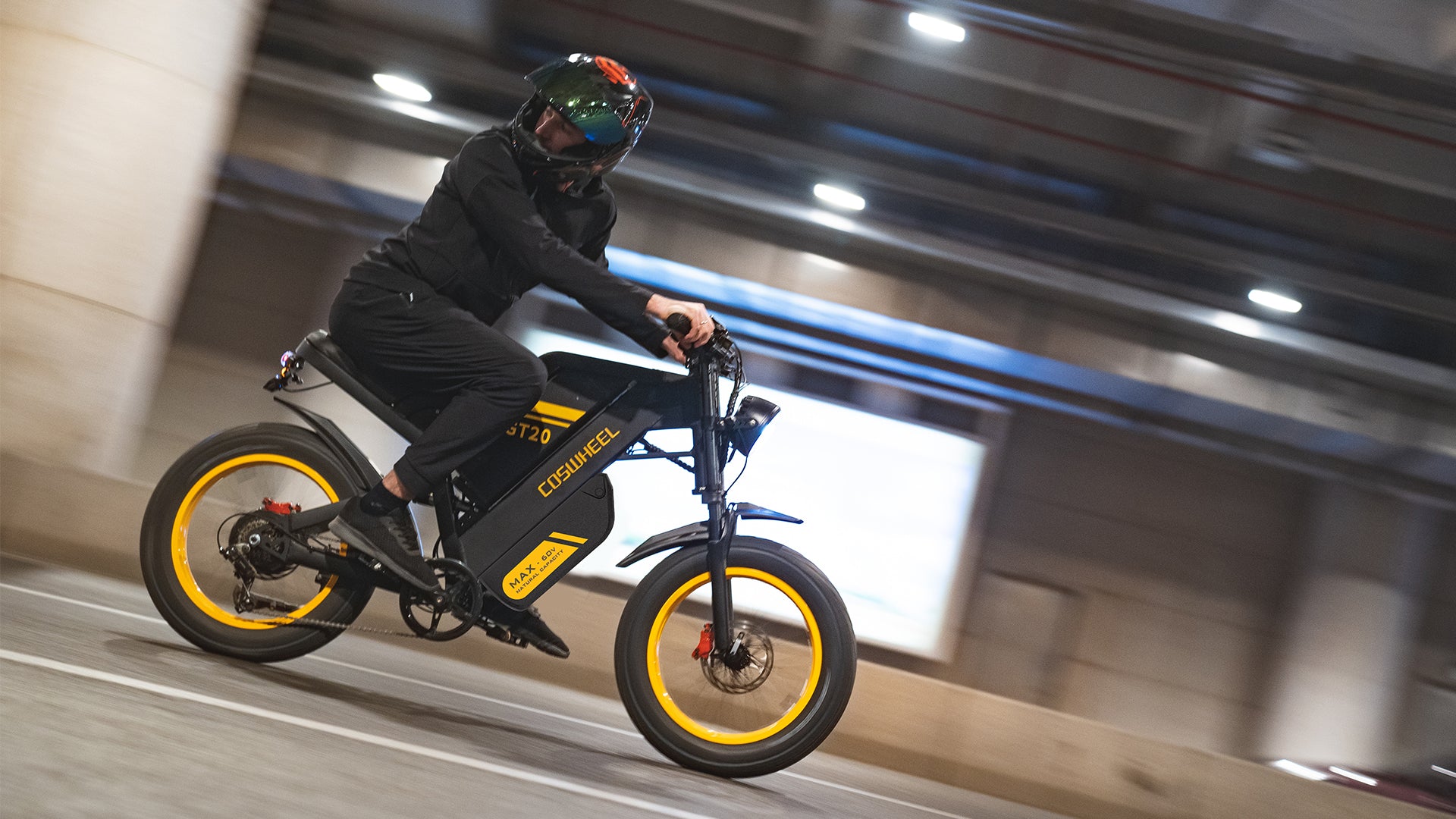

Street Leap
Commute smarter with zero emissions. Coswheel GT20 Max offers a smooth, efficient ride built for urban mobility—eco-conscious, stylish, and reliable for your everyday journeys

Beach Roads
Engineered for real-world challenges, the GT20 Max `s rugged tires and strong motor provide stable, clean energy performance—whether you're tackling muddy roads or unpredictable terrain.
Unleash The Full Potential Of Your Ride With Coswheel GT20max Electric Bikes
Where Every Detail Matters
No terrain too tough, no dream too far – steel and spirit redefine ride

2000W Brushless Motor
Equipped with 60V 1500W rated power outputs max 2000W powerful power, Class 2/3 can unlock off-road mode, making climbing You'll experience the double power, provide you with an awesome riding experience(To comply with European regulations, the motor power can be labeled 250W).

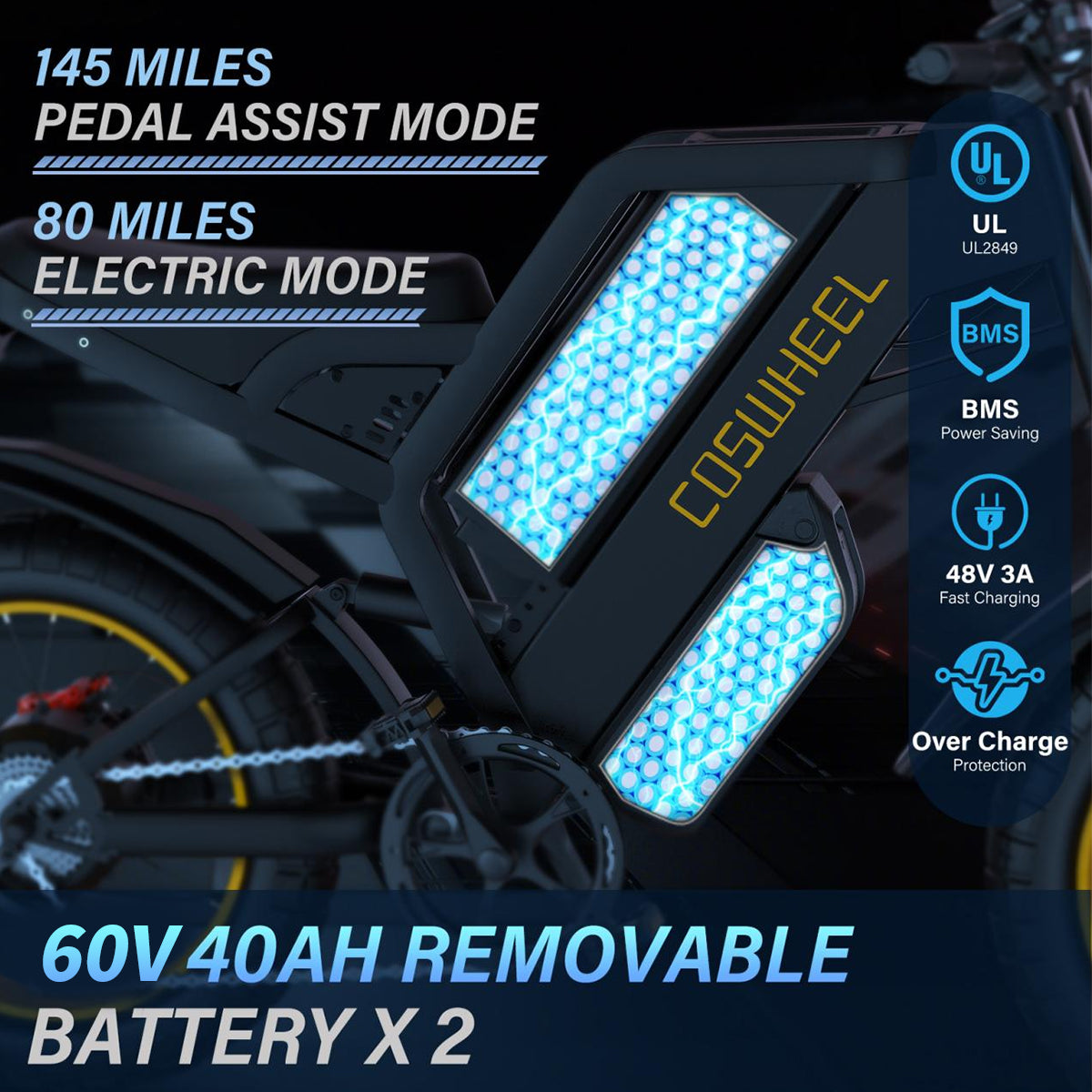

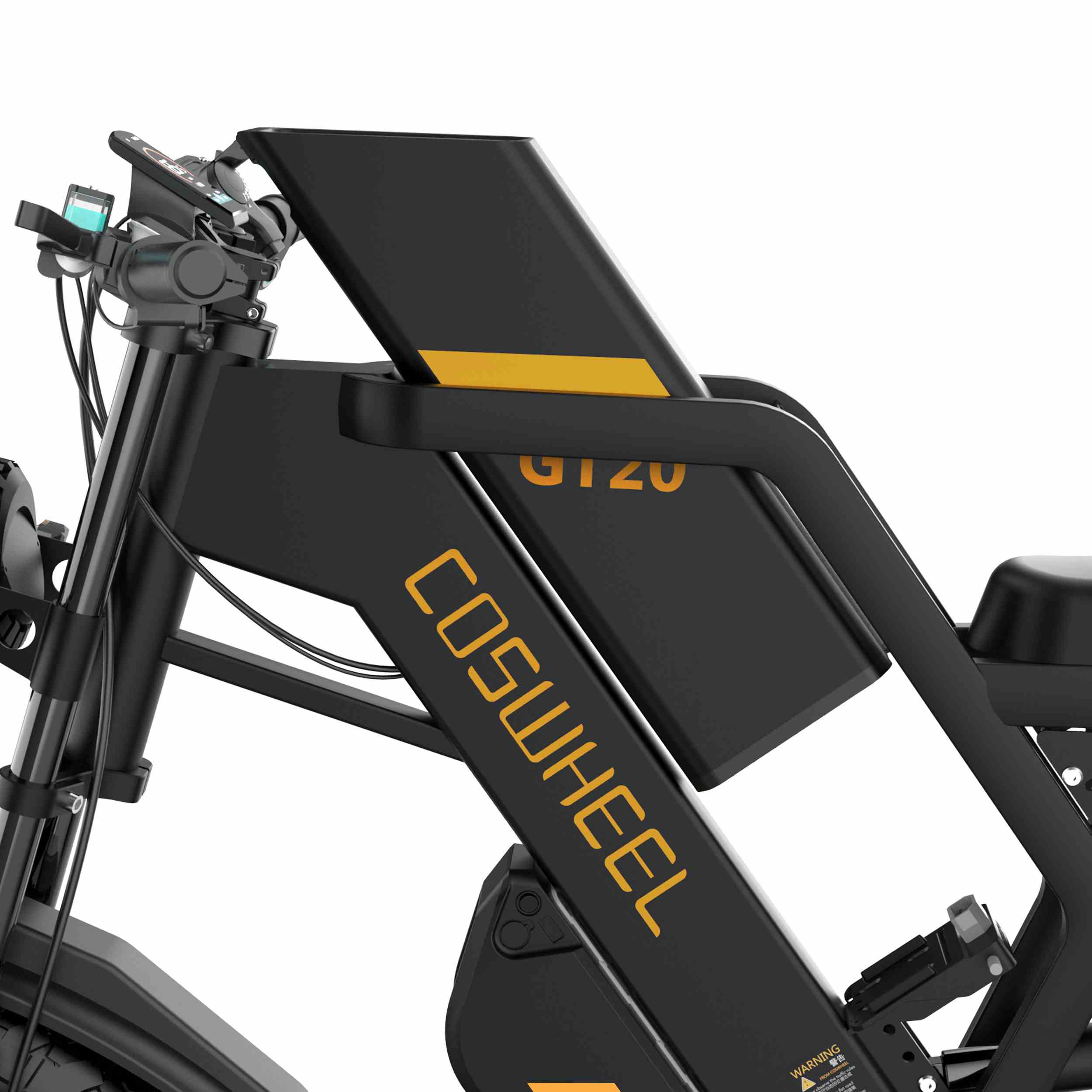

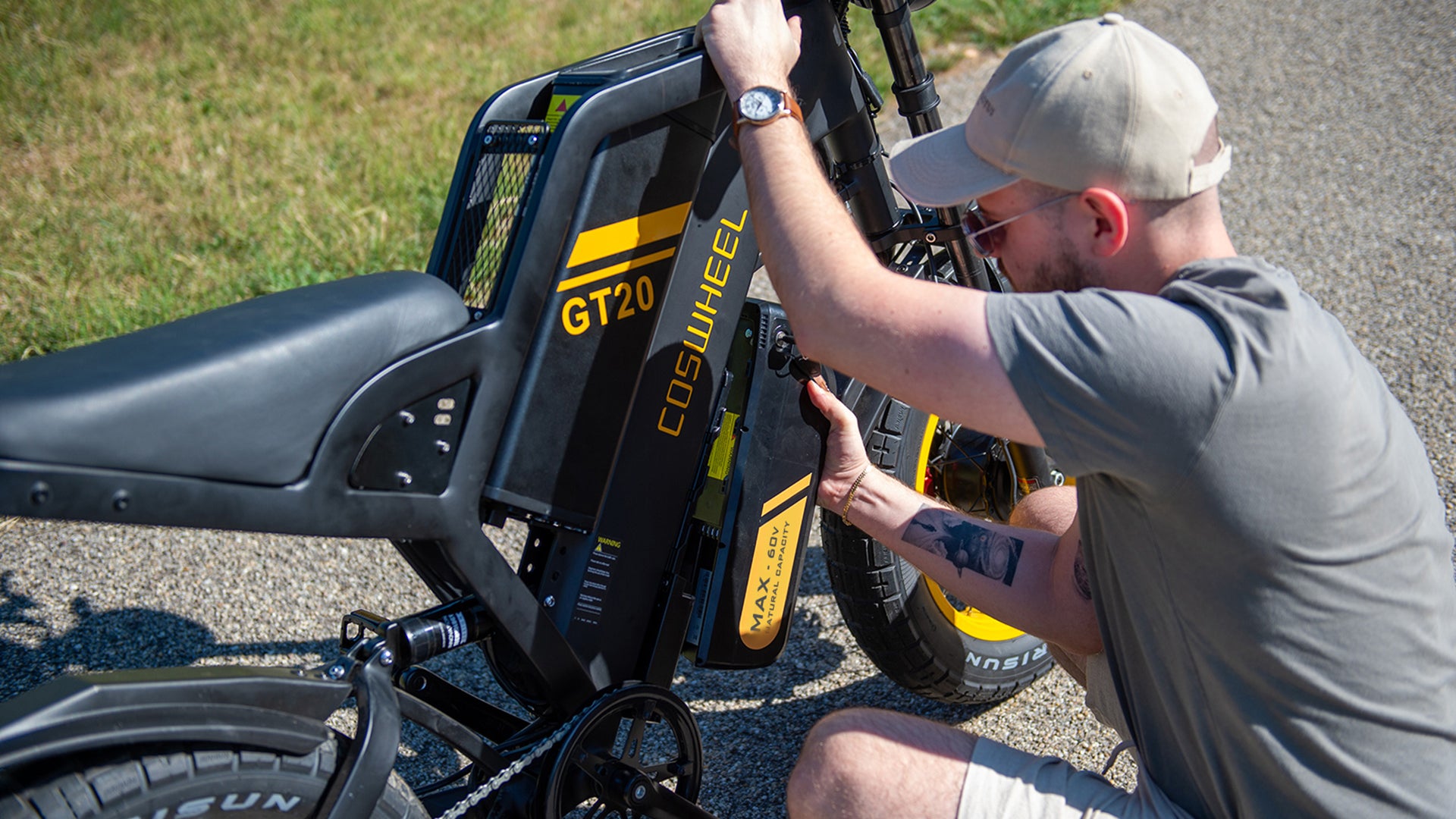

40AH Dual Battery
GT20 Max equipped with 25AH+15AH dual batteries(Built-in Samsung brand battery), you can easily conquer long-distance riding

Hydraulic brakes
Super powerful motorcycle grade hydraulic brakes will ensure you and your e-bike will slow down in the blink of an eye. These 2-piston brakes provide powerful stopping power in all riding conditions. 3.0mm thickness, 180mm diameter brake disc

7 Speed Shimano Gears
When the trail gets steep, we got you covered. The GT20 Max comes standard with an 7-speed cassette to provide that extra power to smooth out even the gnarliest hills.

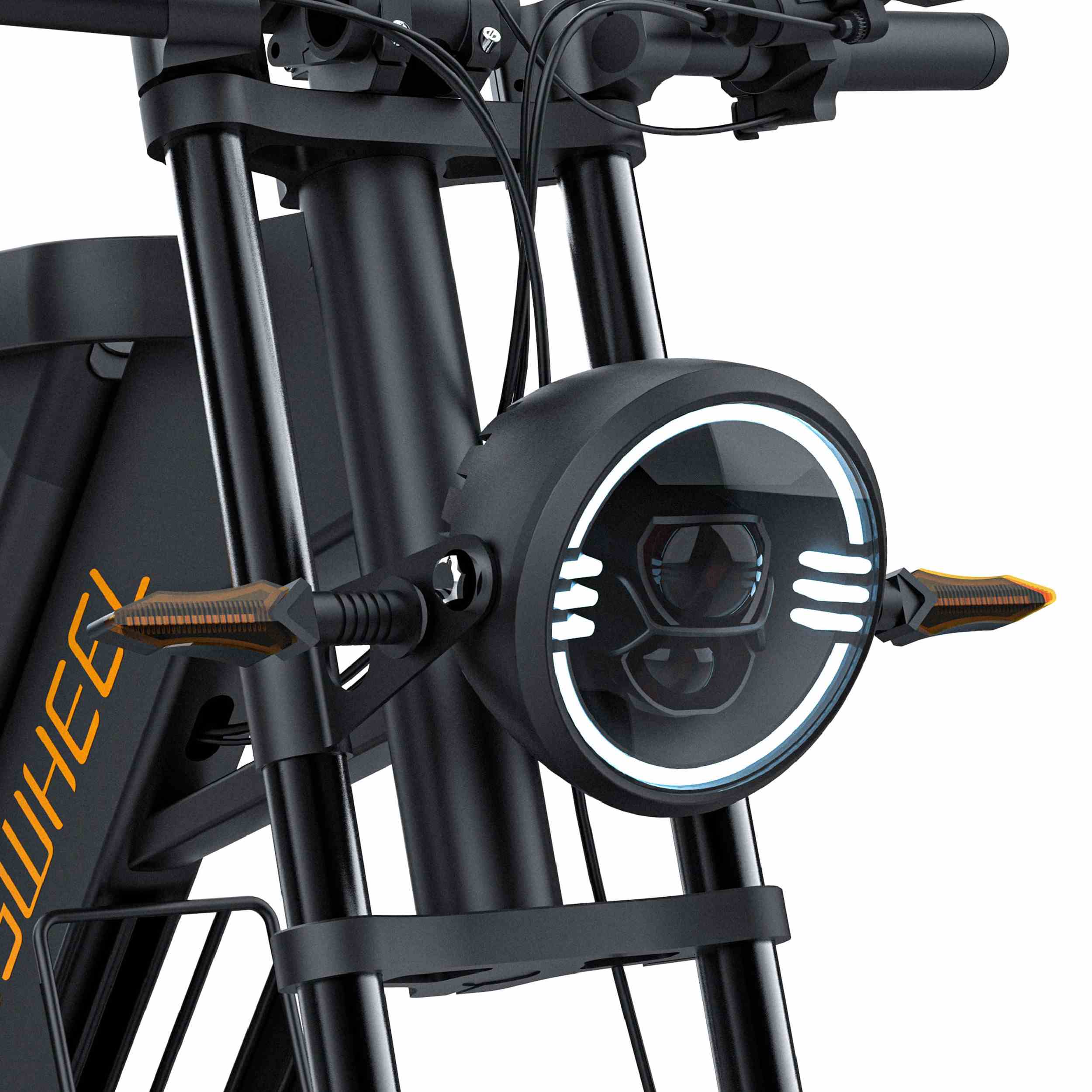

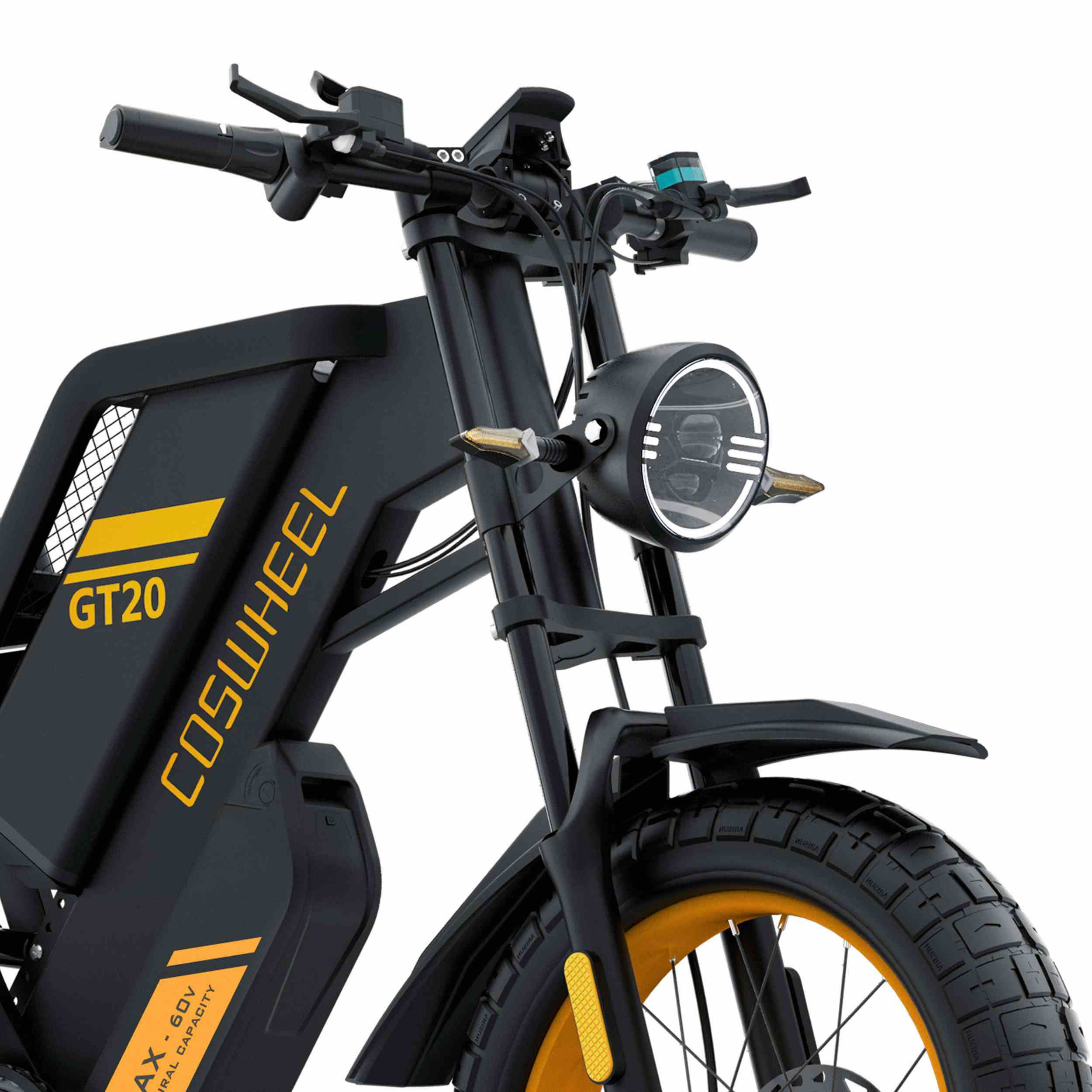

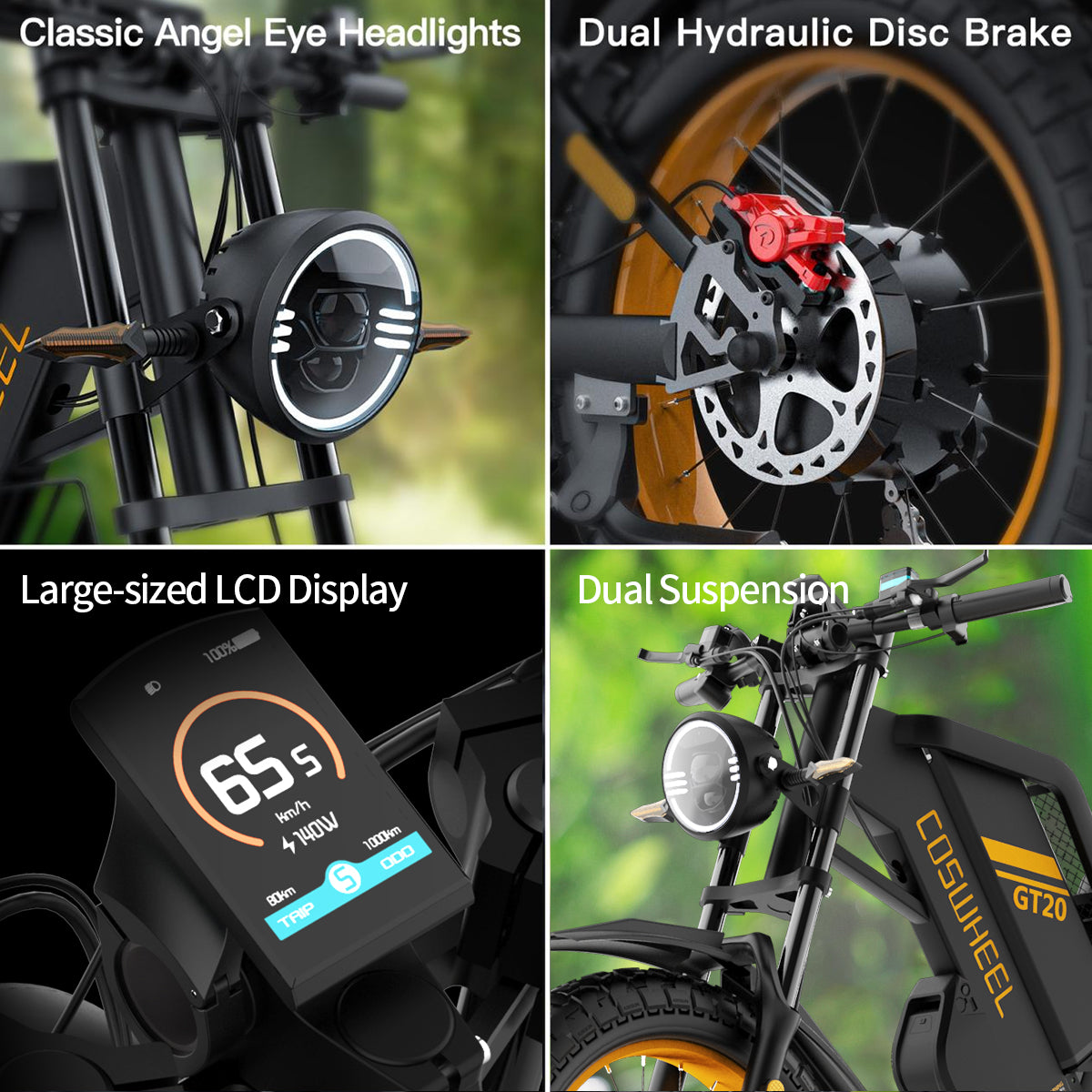

Angel Eye headlight
The adventures don't need to end when the sun goes down; the GT20 Max comes with a bright LED Angel Eye headlight and tail light all with dual Turn signals to illuminate even the darkest paths.

Full Suspension
The Coswheel GT20 Max features adjustable double front suspension shocks with an inverted coil spring shock which can preload, compression, and rebound adjustments for better handling and a smooth ride and for optimal riding

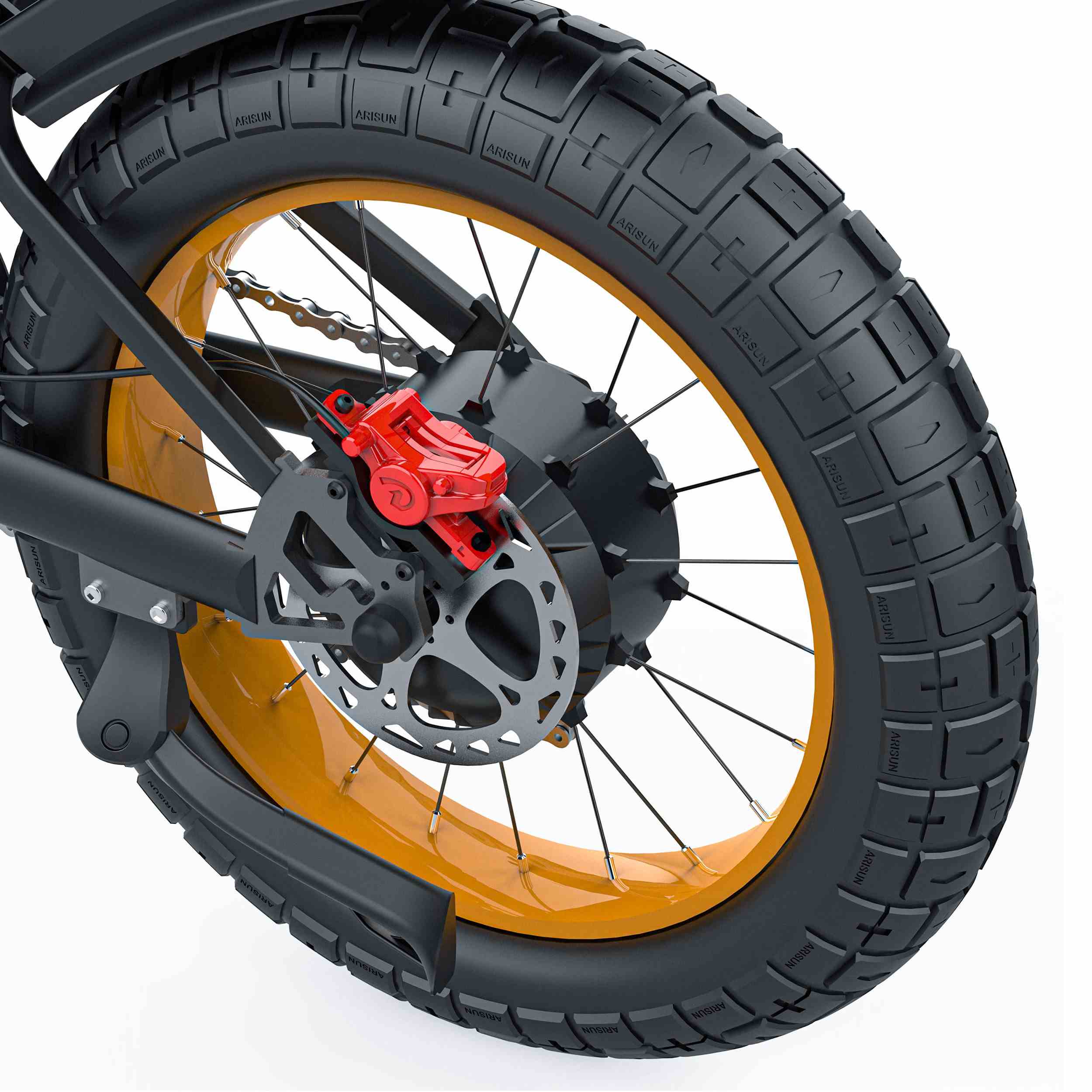

Dual Piston Hydraulic Brake
Super powerful motorcycle grade hydraulic brakes will ensure you and your e-bike will slow down in the blink of an eye. These 2-piston brakes provide powerful stopping power in all riding conditions. 3.0mm thickness, 180mm diameter brake disc

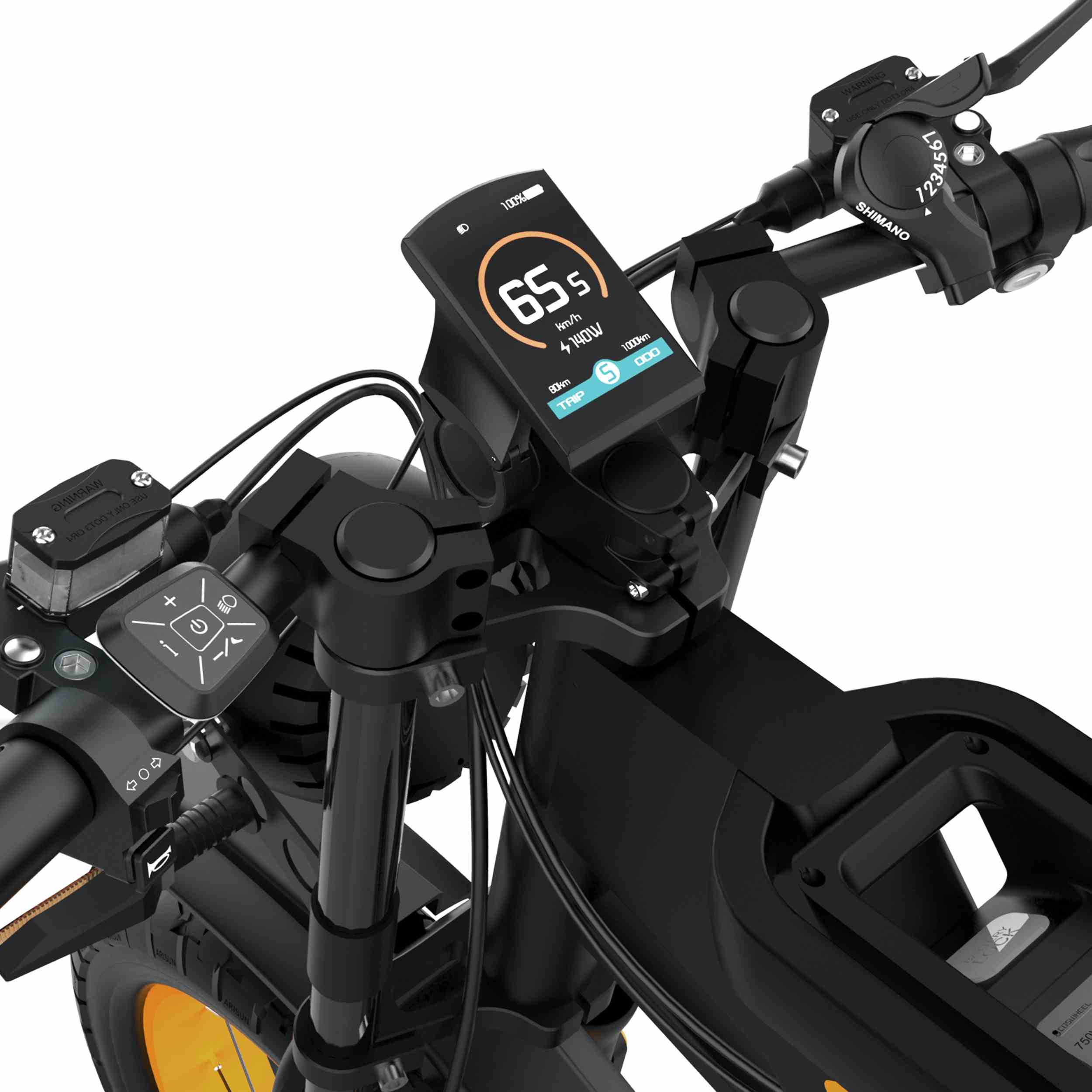

Multi-function switch
The GT20 Max’s multifunction button switch integrates lighting, horn, and power controls in one ergonomic design. Easy to reach and simple to operate, it enhances safety, convenience, and riding confidence across city streets and off-road adventures.

Precision Throttle, Instant Power
GT20 MAX features a responsive throttle that delivers smooth, precise speed control. Instantly adjust your pace, whether cruising through the city or powering up tough trails—freedom is in your hand.

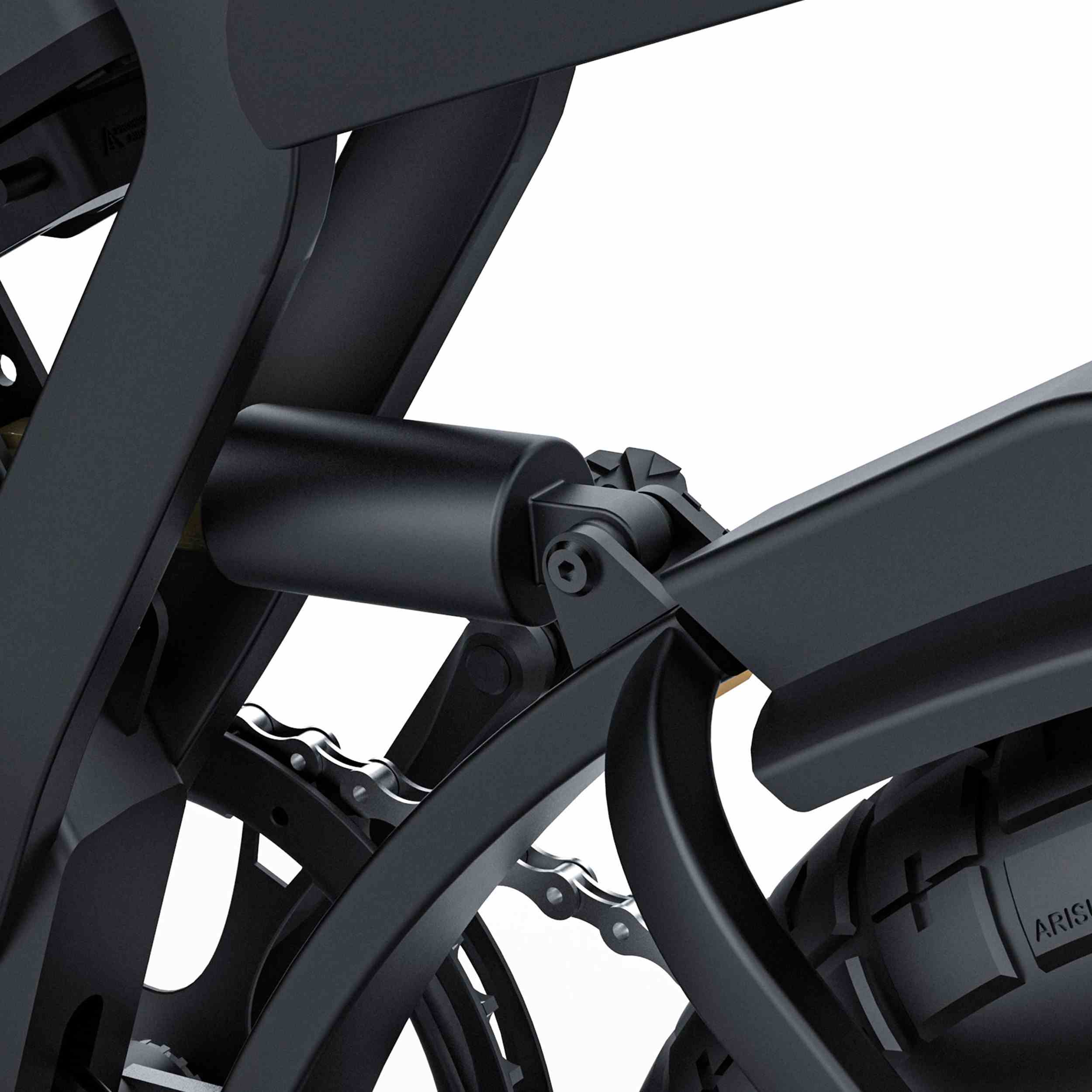

180mm Rear Suspension
Super powerful motorcycle grade hydraulic brakes will ensure you and your e-bike will slow down in the blink of an eye. These 2-piston brakes provide powerful stopping power in all riding conditions. 3.0mm thickness, 180mm diameter brake disc.

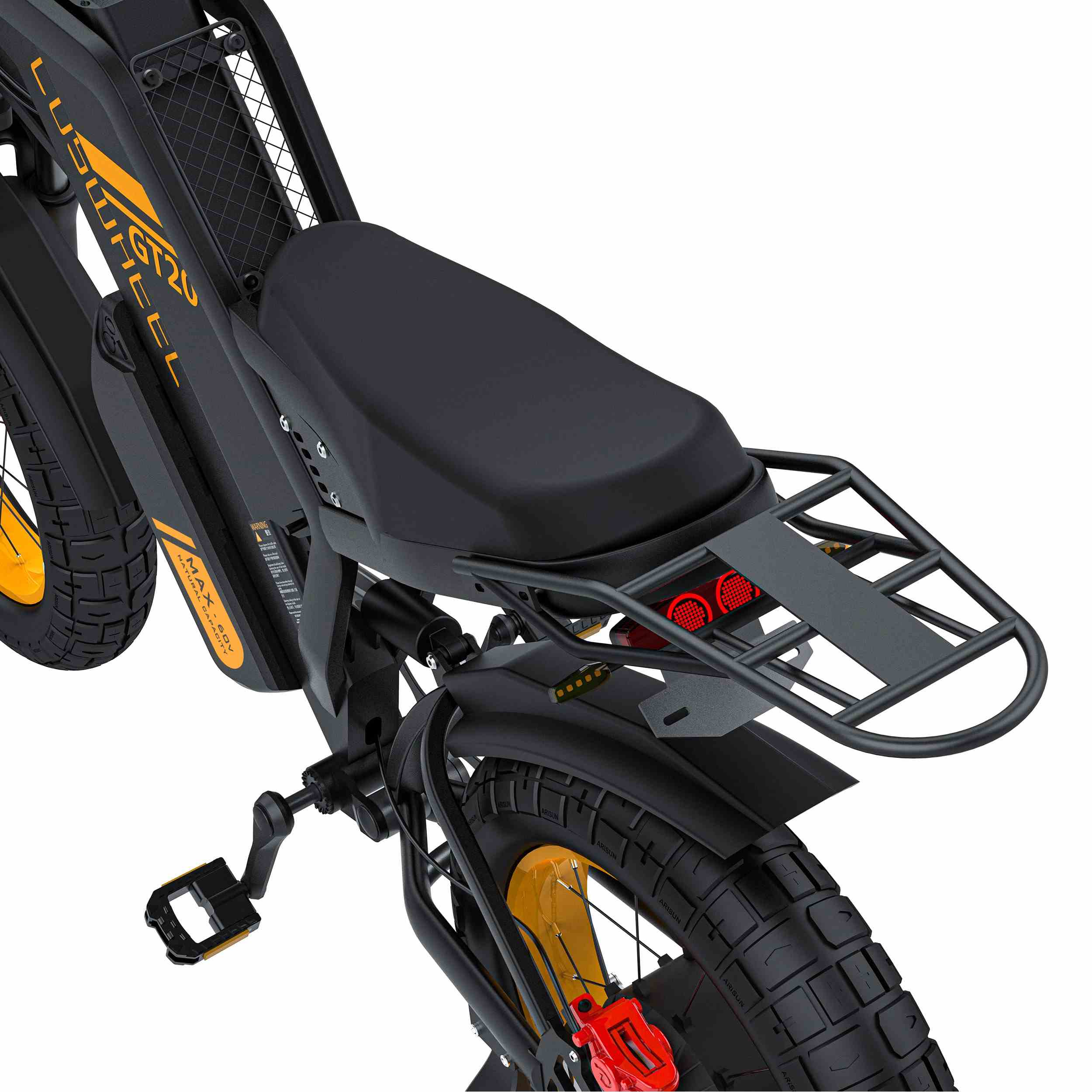

Soft seats
GT20 Max moto-inspired soft seat provides plenty of room to get into the perfect riding position. The extended seat will ensure you stay comfortable even on your longest rides, regardless of terrain or conditions.

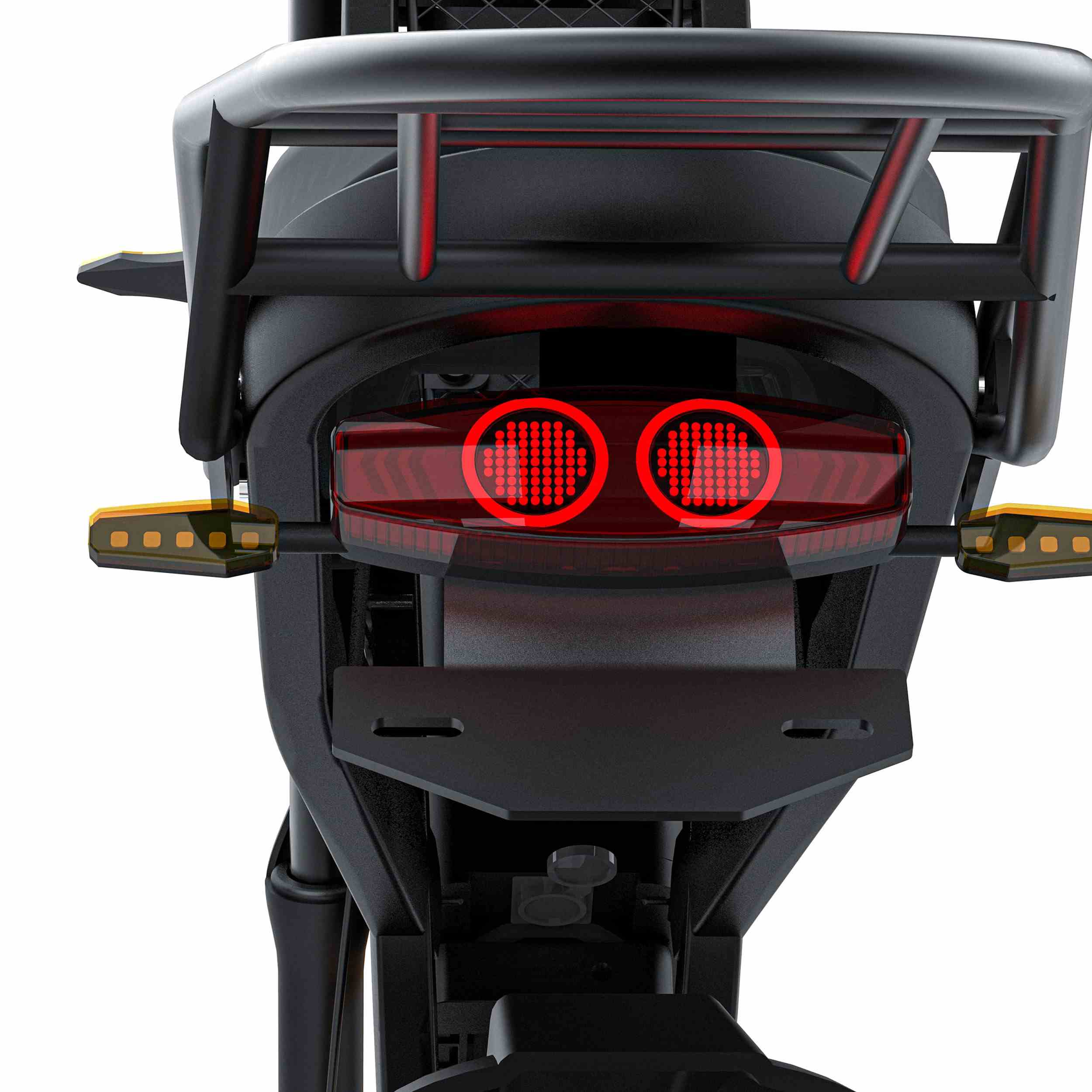

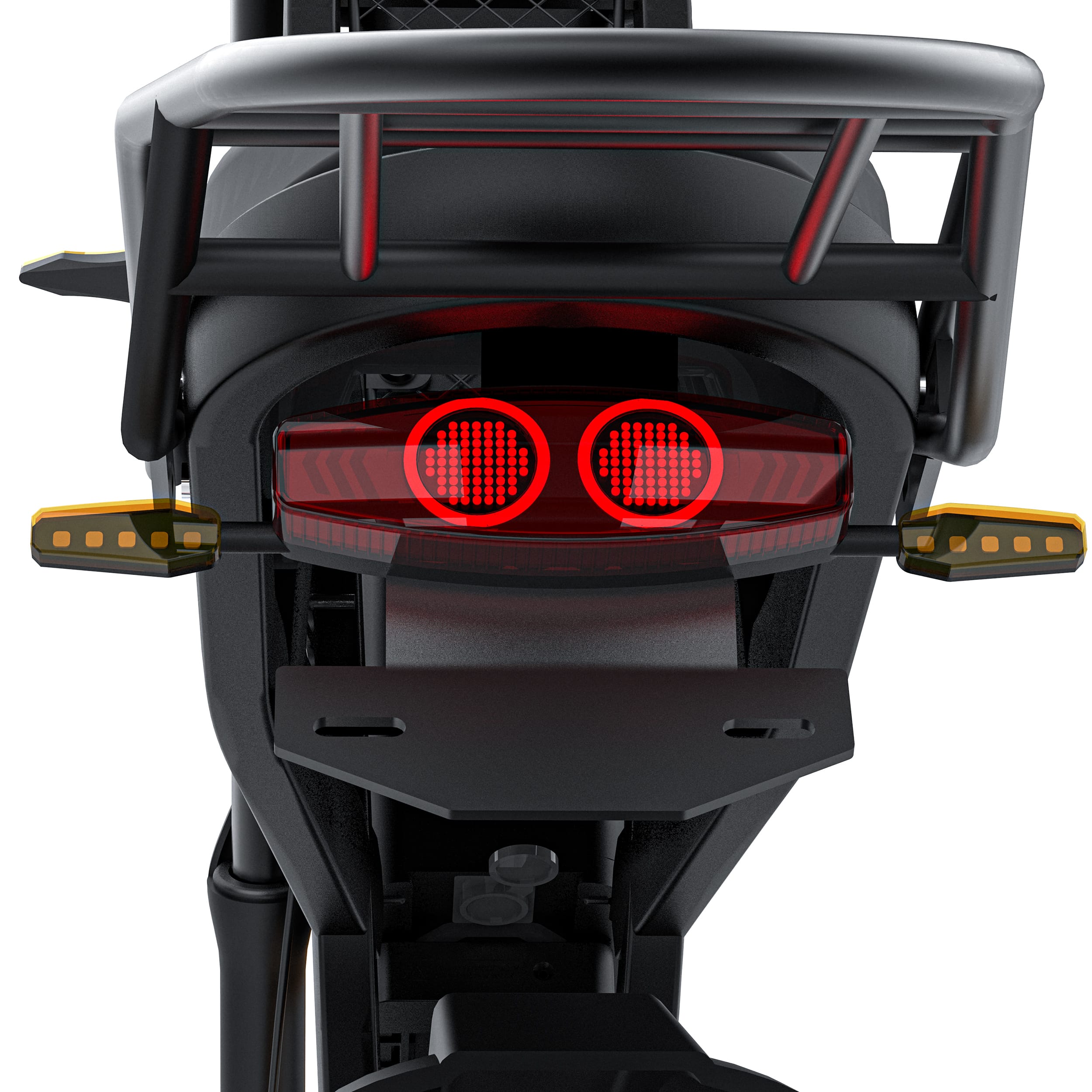

Powerful Lighting
The GT20 Max carries a flowing headlights ,taillight along with dual turn signals to illuminate the darkest of roads.
Why Choose Coswheel GT20 Max
light off-road electric fat bike
Coswheel GT20 Max Focused on simplicity and ease,Designed for active lifestyles,the Shimano 7-speed derailleur and rigid aluminum full suspension fork make it a low-maintenance choice for city riders,and offer enhanced control and comfort for diverse terrains
Its Shimano 7-speed derailleur and rear motor deliver dynamic performance for riders who prefer versatility

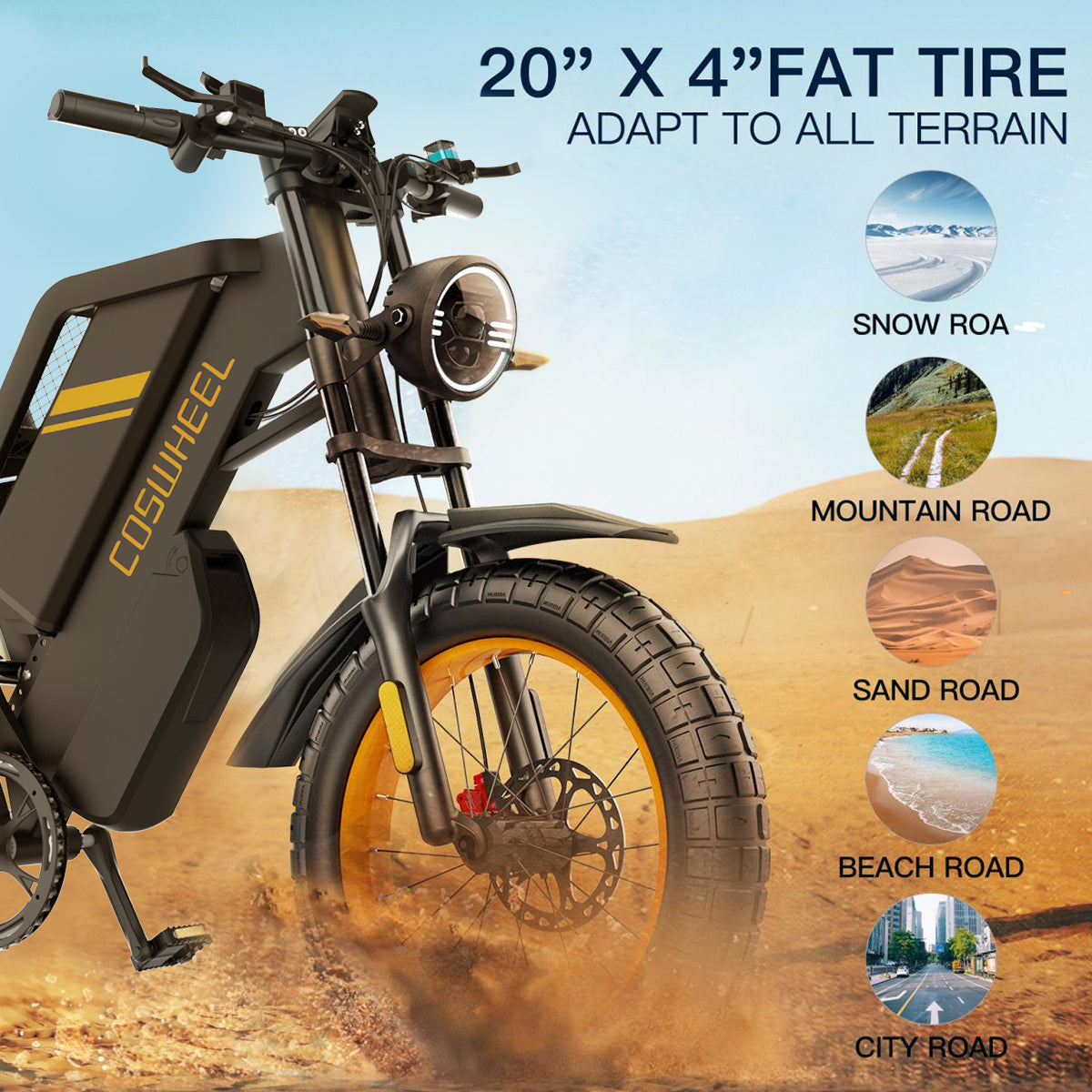

The hydraulic front suspension fork, with the 20"x4.0" puncture protection tires, effectively cushions the shocks from diverse terrains. Riding this bike brings you much comfort and easiness
Yes, the 60V 25Ah+15Ah dual battery provides a reliable range of up to 233 km for extended adventures
Absolutely! It's designed to load up to 150kg,perfect for carrying camping gears and daily necessities
The front and rear lights ensure visibility during every ride, day or night, and the hydraulic disc brakes help stop the bike timely and quickly
GT20 Max Specifications
Performance
- Top Speed: The Initial Speed limit 25Km/h,Class 2/3 can unlock off-road mode

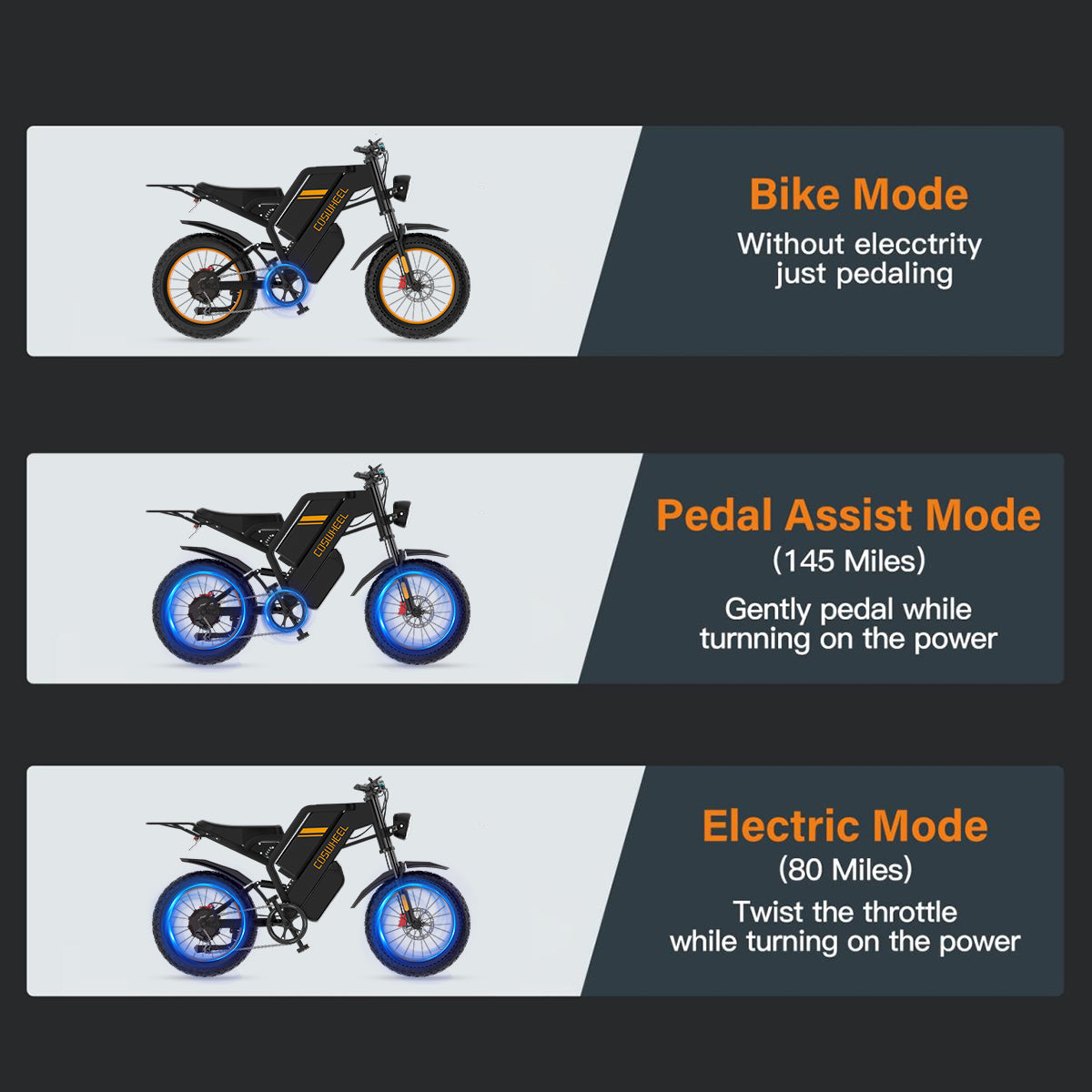

- Range: 80+miles (128km) in Class-2 throttle-only mode (pure electricity); 145miles (233km) in Class-1 PAS (pedal assist)
- Motor: 60V Peak 2000 (Rated 1500) Brushless Rear Hub Motor
- Torque:120N.m
- Battery: 60V 25Ah+15Ah Samsung Battery (Lithium 18650 Cells)
- Energy: 2400Wh
- Front Suspension: 20" Shoulder Shock Absorbing, 80mm Travel
- Rear Suspension: 850 Pounds, 180mm Travel
- Brakes: Double Piston Oil Brake, Equipped with 180mm Stainless Brake Disc
- Tires: ARISUN Off Road Tire 20" × 4.0" A820 60TPI with Meimeng Tire+PVC Line
- Throttle: Thumb Throttle
Electronics
- Charger: 60V5A Charger
- Charging Time: 3.5-8.0 Hours
- Display: Easy Read LCD Display
- Controller: 60V 35A
- Front Light: Classic Angel Eye Headlight, 120 LUX
- Rear Light: LED
- Pedal Assist: 3 Levels
- Sensors: Speed Sensor
Components
- Frame: Hydroformed Triple-Butted 6061-T6 Aluminium Alloy
- Pedal: Aluminum Alloy Pedal, with Reflect-light, Axis 9/16 x2
- Crank: 1/2 "*3/32"*46T 7-speed ED Tooth Plate
- Rear Derailleur: Shimano 7-Speed
- Chain: 7-speed Anti-rust, 1/2" * 3/32"
- Handlebars: Split Handlebar, φ32 φ22 Sand Black

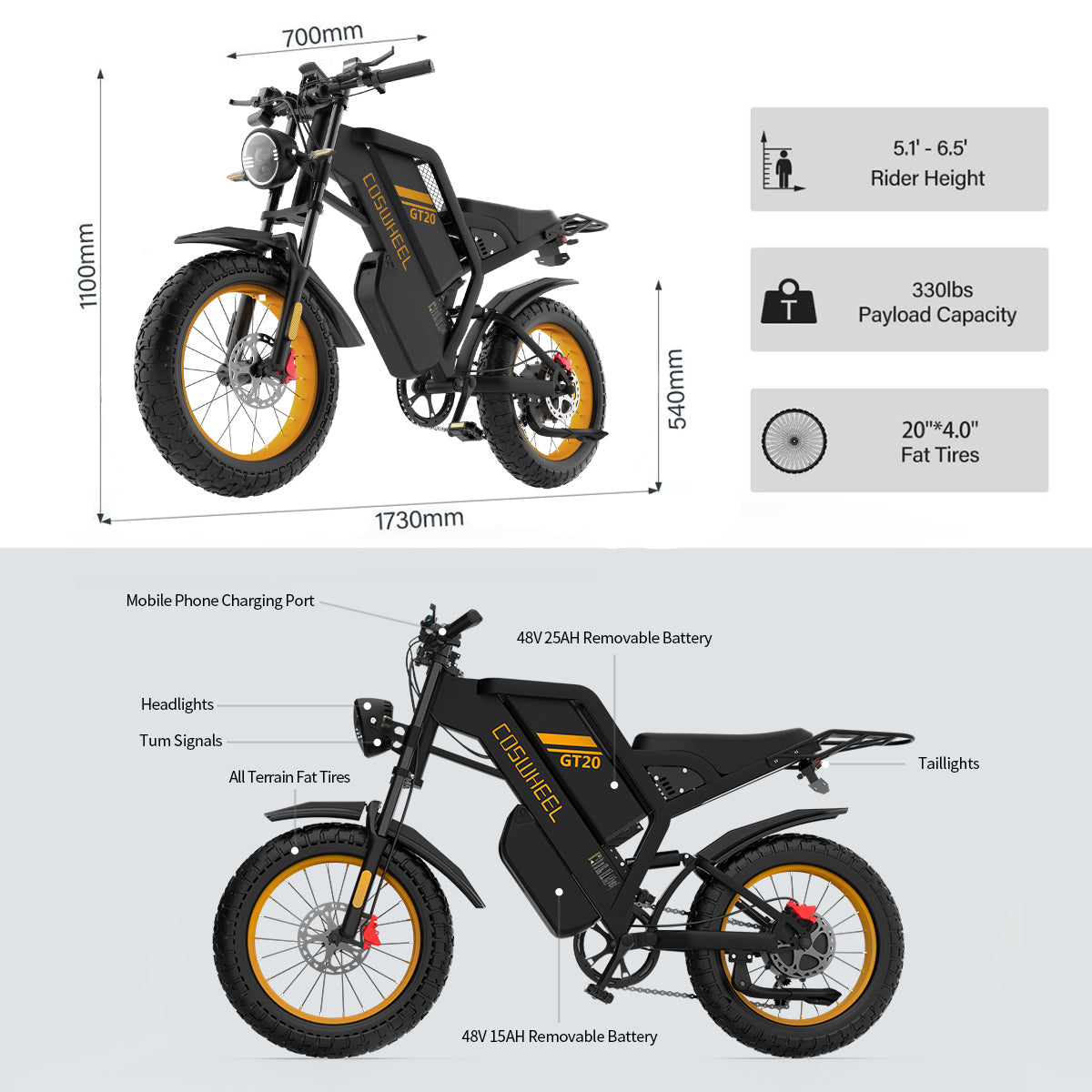

Geometry
- Suitable Height: 5'1" - 6'5"
- Seat Height: 32.6" (83cm)
- Bike Height: 41.7" (106cm)
- Wheelbase: 47.8" (121.5cm)
- Handlebar Width: 27.2" (69cm)
- Bike Weight: ≥99lbs (with Battery) (≥45kg)
- Maximum Load: 330lbs (150kg)
- Safe Load: 265lbs (120kg)
- Overall Size: 70.9" * 27.2" *41.7" (180*69*106cm)
- Package Size: 59.4" * 13.8" * 36.2" (151*35*92cm)
- Top Speed: The Initial Speed limit 25Km/h,Class 2/3 can unlock off-road mode
- Range: 80+miles (128km) in Class-2 throttle-only mode (pure electricity); 145miles (233km) in Class-1 PAS (pedal assist)
- Motor: 60V Peak 2000 (Rated 1500) Brushless Rear Hub Motor
- Torque:120N.m
- Battery: 60V 25Ah+15Ah Samsung Battery (Lithium 18650 Cells)
- Energy: 2400Wh
- Front Suspension: 20" Shoulder Shock Absorbing, 80mm Travel
- Rear Suspension: 850 Pounds, 180mm Travel
- Brakes: Double Piston Oil Brake, Equipped with 180mm Stainless Brake Disc
- Tires: ARISUN Off Road Tire 20" × 4.0" A820 60TPI with Meimeng Tire+PVC Line
- Throttle: Thumb Throttle
- Charger: 60V5A Charger
- Charging Time: 3.5-8.0 Hours
- Display: Easy Read LCD Display
- Controller: 60V 35A
- Front Light: Classic Angel Eye Headlight, 120 LUX
- Rear Light: LED
- Pedal Assist: 3 Levels
- Sensors: Speed Sensor
- Frame: Hydroformed Triple-Butted 6061-T6 Aluminium Alloy
- Pedal: Aluminum Alloy Pedal, with Reflect-light, Axis 9/16 x2
- Crank: 1/2 "*3/32"*46T 7-speed ED Tooth Plate
- Rear Derailleur: Shimano 7-Speed
- Chain: 7-speed Anti-rust, 1/2" * 3/32"
- Handlebars: Split Handlebar, φ32 φ22 Sand Black
- Suitable Height: 5'1" - 6'5"
- Seat Height: 32.6" (83cm)
- Bike Height: 41.7" (106cm)
- Wheelbase: 47.8" (121.5cm)
- Handlebar Width: 27.2" (69cm)
- Bike Weight: ≥99lbs (with Battery) (≥45kg)
- Maximum Load: 330lbs (150kg)
- Safe Load: 265lbs (120kg)
- Overall Size: 70.9" * 27.2" *41.7" (180*69*106cm)
- Package Size: 59.4" * 13.8" * 36.2" (151*35*92cm)
COSWHEEL GT20 Max
SUPPORT
Certificate
GT20 MAX UL2849 test report
COC certification
GCC test report
EN15194 and CE certification
VIN Number
The VIN number (Serial number) of the GT20 MAX ebike is in the middle of the front fork of each GT20 MAX (please note that the VIN number of the GT20 MAX is unique and cannot be repeated)
Package

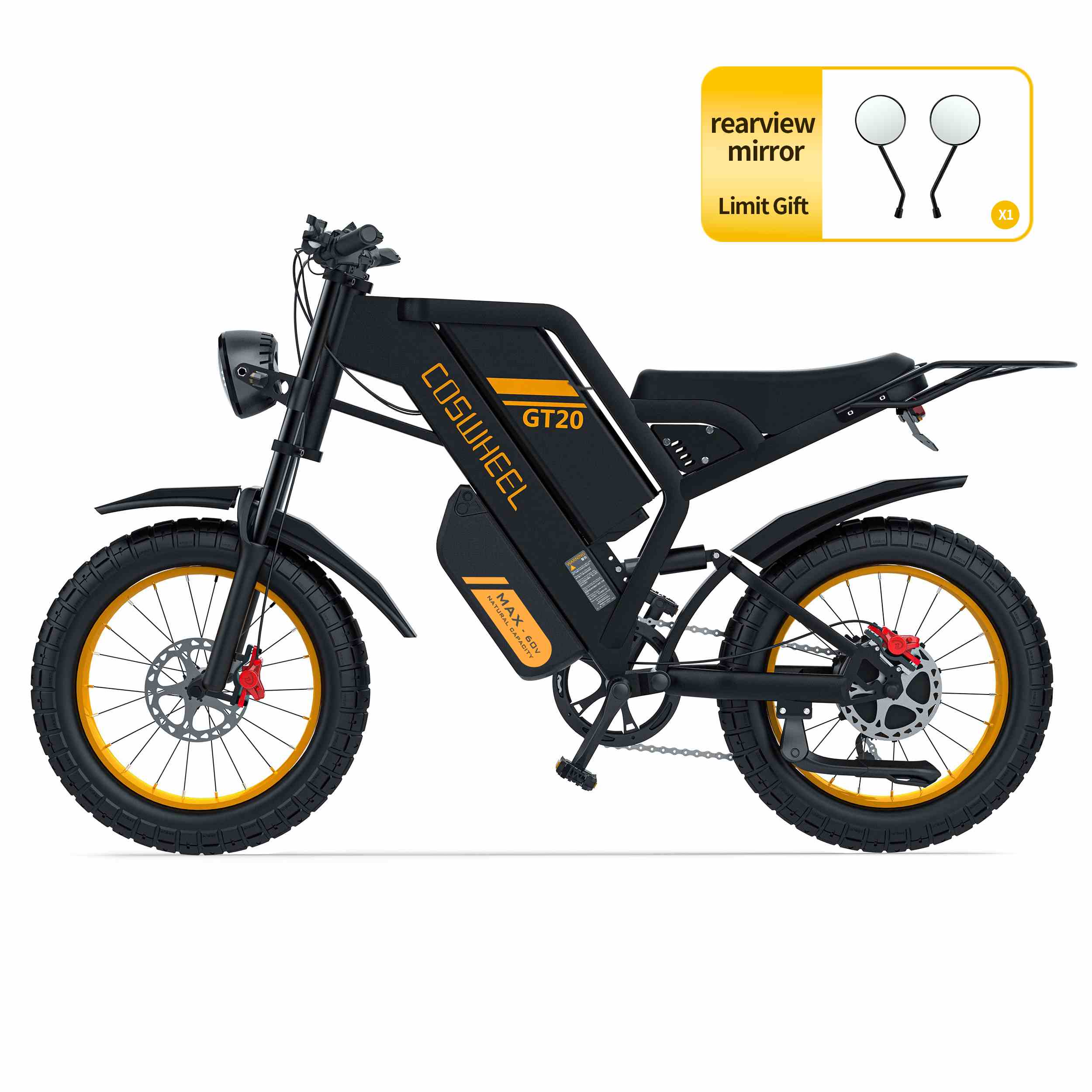

GT20 MAX Ebike*1/Fender*2/Charger*1/Manual*1/Tool Bag*1/Rear Shelf*1/Rearview Mirror*1
GT20 MAX UL2849 test report
COC certification
GCC test report
EN15194 and CE certification
The VIN number (Serial number) of the GT20 MAX ebike is in the middle of the front fork of each GT20 MAX (please note that the VIN number of the GT20 MAX is unique and cannot be repeated)
GT20 MAX Ebike*1/Fender*2/Charger*1/Manual*1/Tool Bag*1/Rear Shelf*1/Rearview Mirror*1
